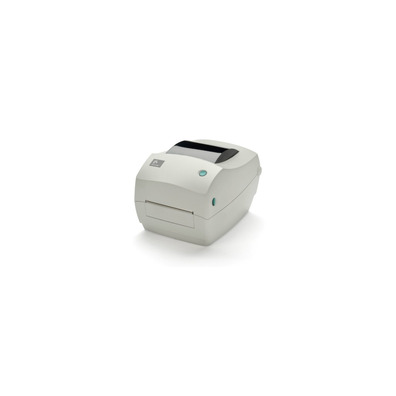

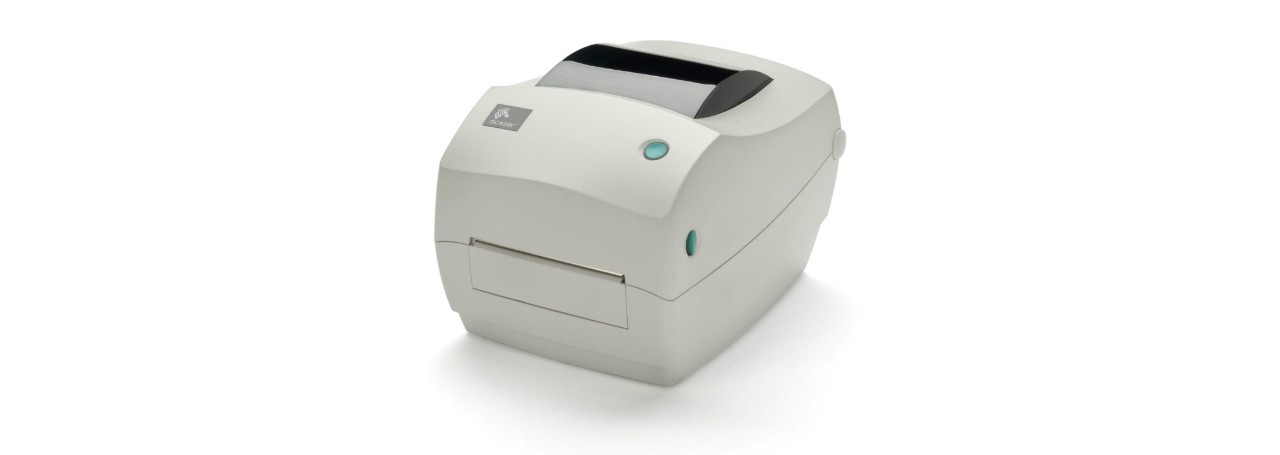

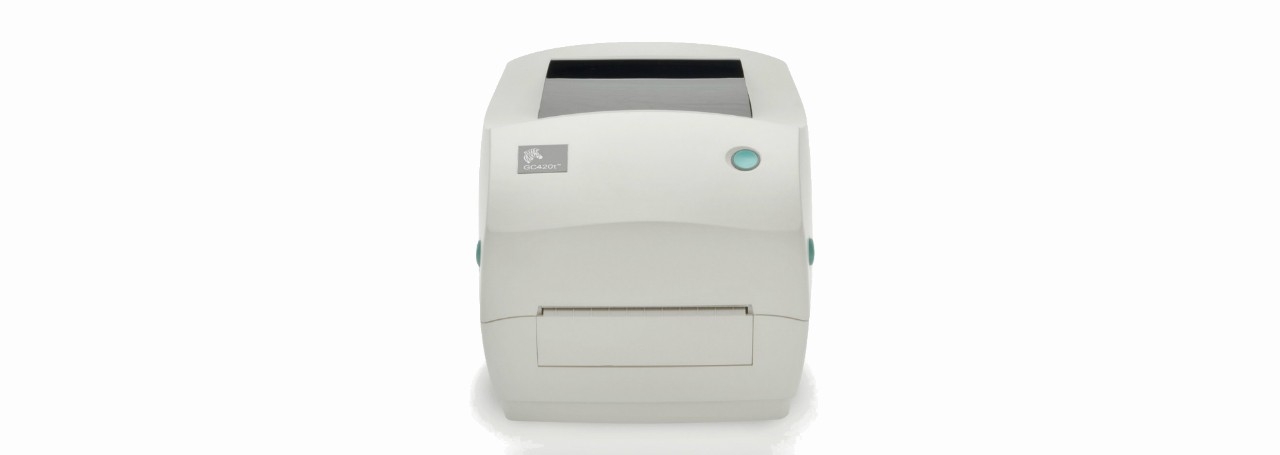

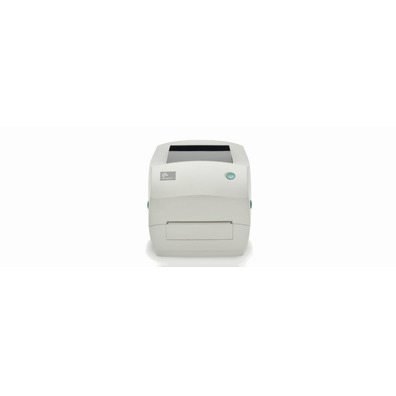

Zebra Thermal Printer GC-420D

Thermal printer Zebra GC-420D

Printers GC420™ Series from Zebra offer professional printing for any budget. These printers affordable and easy-to-use are suitable for various applications in basic labeling. Despite their affordable price, these printers are designed to provide reliability and longevity. Like all printers, G-Series, the GC420 presents casing of double-wall and print head completely metallic to reduce the parts replacement and downtime of the printer.

FEATURES

FOR CUSTOMERS CONCERNED ABOUT THE PRICE THAT REQUIRE BASIC BENEFITS
The desktop printer GC420 Zebra, with a competitive price, provides the quality, durability, and reliability of Zebra to numerous applications of direct thermal printing and thermal transfer low volume to medium. Competitive price, but high quality of manufacturing double-walled and durability without compromise.

POWER AND PERFORMANCE
The compact design for space-saving printer GC420 contains a powerful 32-bit processor for the production of labels at high speed, and 8 MB of Flash memory for storage of fonts and graphics. The GC420 supports materials of up to 10.80 cm (4.25 inch) for standard applications desktop.

EASY TO SET UP AND USE
The GC420 also includes the programming language EPL2 and powerful ZPL II, which facilitates its integration with other Zebra printers. The option of despegador/dispenser expands the versatility of the printer GC420 to address a variety of applications even more.

TECHNICAL SPECIFICATIONS

Brand Zebra
Model GC-420D
Printer type Printer direct thermal
Specifications
- Resolution: 203 dpi (8 dots/mm)
- 8 MB Flash, 8 MB SDRAM (standard)
- Width of printing: 4.09" (104 mm)
- Impression length: 39" (991 mm)
- Print speed: 102 mm / 4 in. per second
- Sensors Middle: Reflective, Transmissive.
Connectivity
- Parallel port (36 pin) Centronics
- RS-232 serial port,
- USB port V1.1, bi-directional
Features of paper - the Width of the supply: from 25.4 mm to 108 mm
- Length of supply: 9.6 mm to 990 mm
Maximum size of the supply roll:
- 127 mm dia. ext. in a tube of 25,4 mm
- 38 mm dia. int.
Thickness of the supply: from 0.08 mm to 0.18 mm
Types of supply:
- Roll or fold continuous
- Tags (die-cut or continuous; direct thermal or thermal transfer.)
- Paper for receipt (continuous, direct thermal)
- Bracelets (thermal transfer or direct thermal printing)
Programming languages EPL2, ZPL I/ZPL II
Barcode - Relations of barcode: 2:1 (without rotation) and 3:1
- Linear bar codes: Code 11, Code 39, Code 93, Code 128A, B & C (Manual/Auto), UCC/EAN-128, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or extensions of 5 digits, UPC-E with 2 and 5, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar™ (formerly RSS), Postnet (5, 9, 11 & 13 digit) Japanese Postnet, Plessey (MSI-1), MSI-3, German Post Code, RSS-14 (limited).
- Two-dimensional: PDF417 (MicroPDF-417 and MacroPDF-417), Code 49, Maxicode, Codablock, Data Matrix, QR code, and Aztec.
Fonts and graphics - Sixteen sources ZPL fixed (expandable)
- A source ZPL scalable
- Five sources EPL2 fixed (expandable)
- Supports graphics and fonts defined by the user, including custom logos
