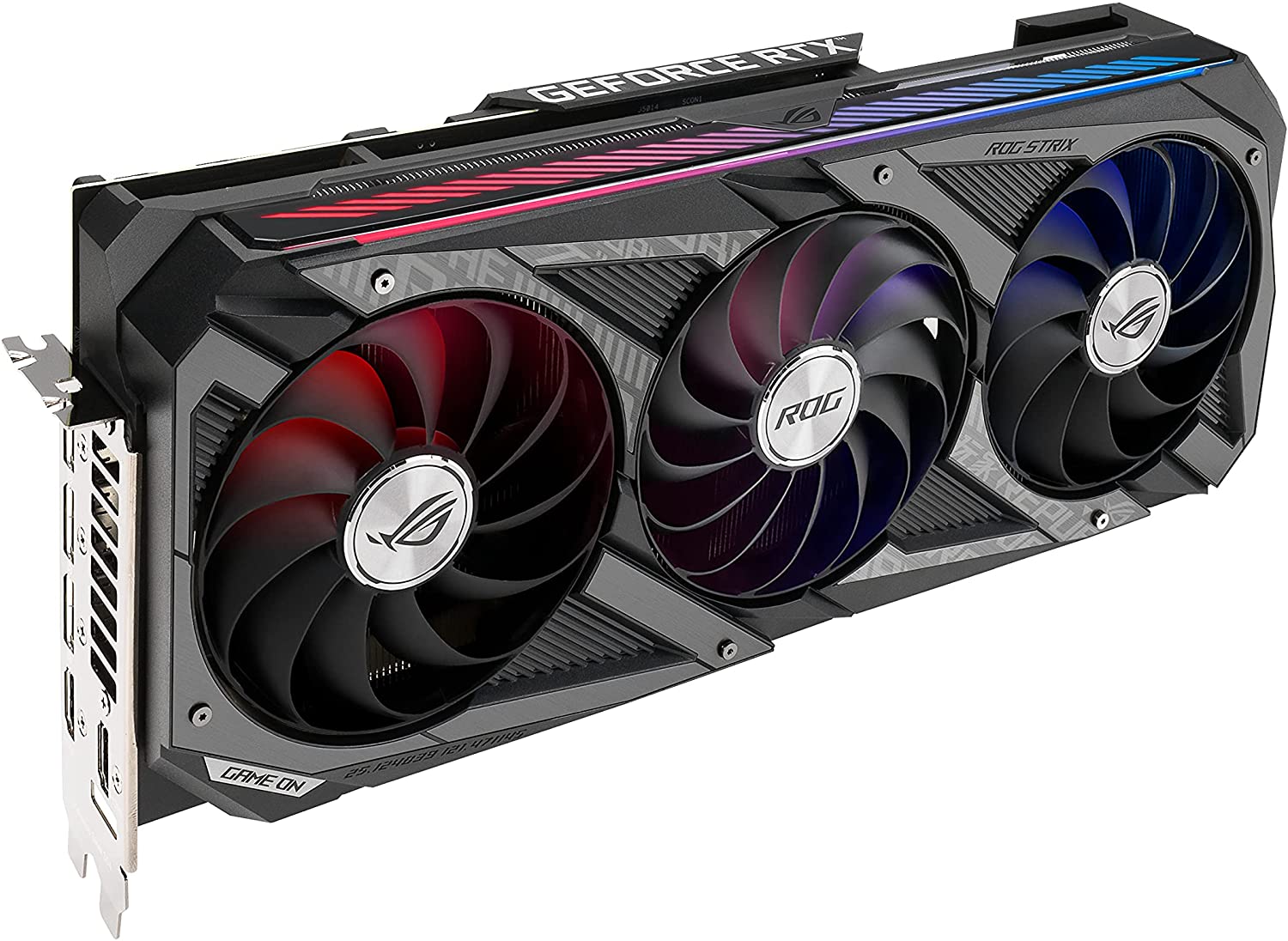

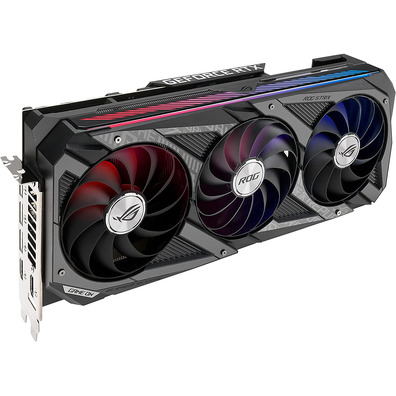

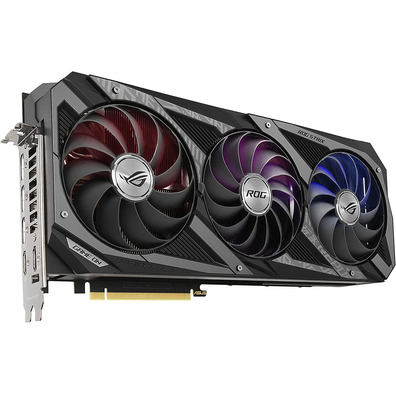

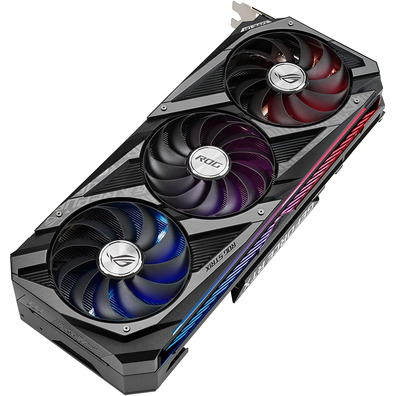

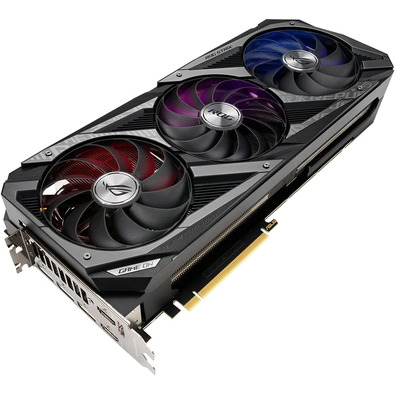

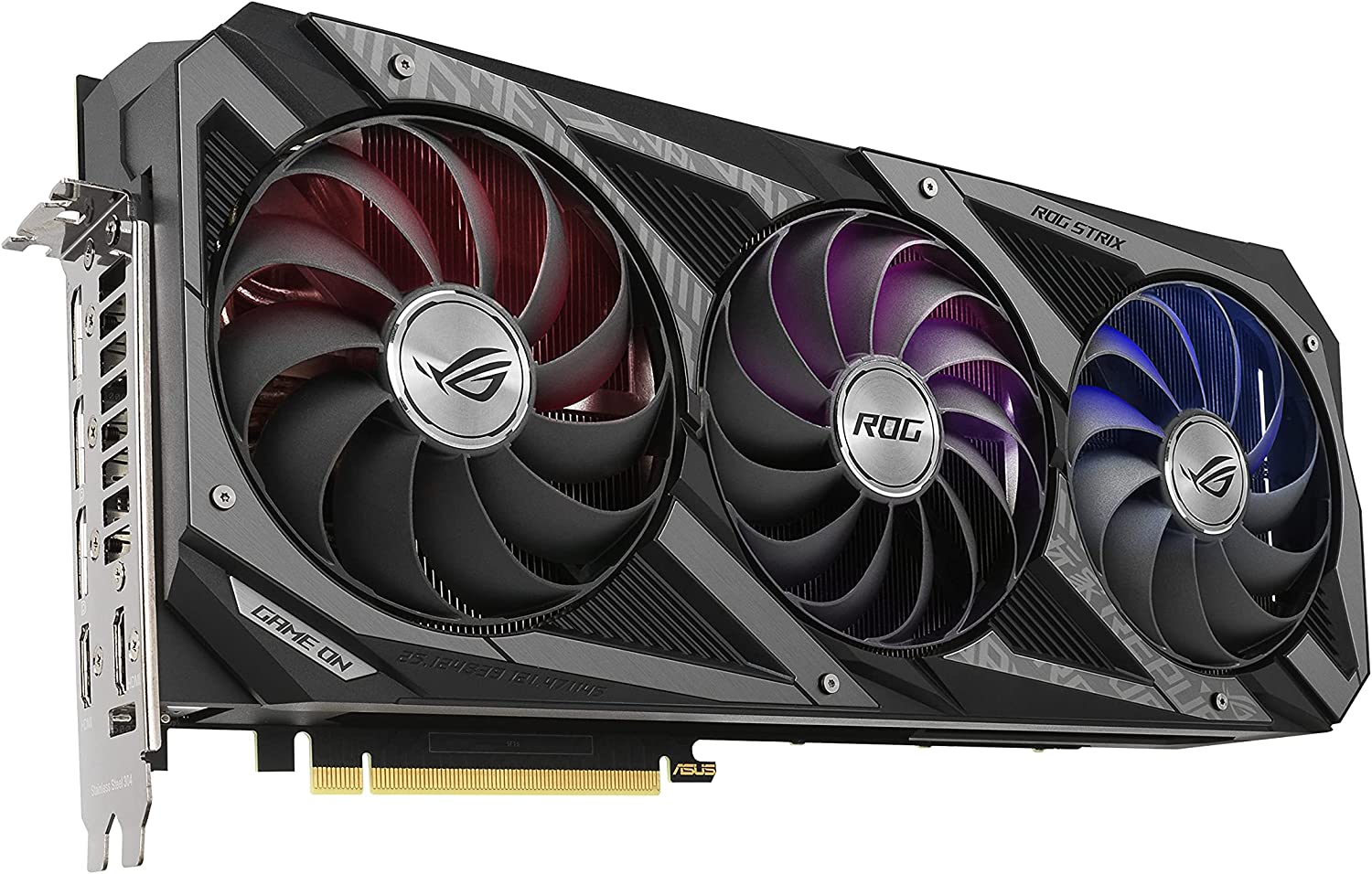

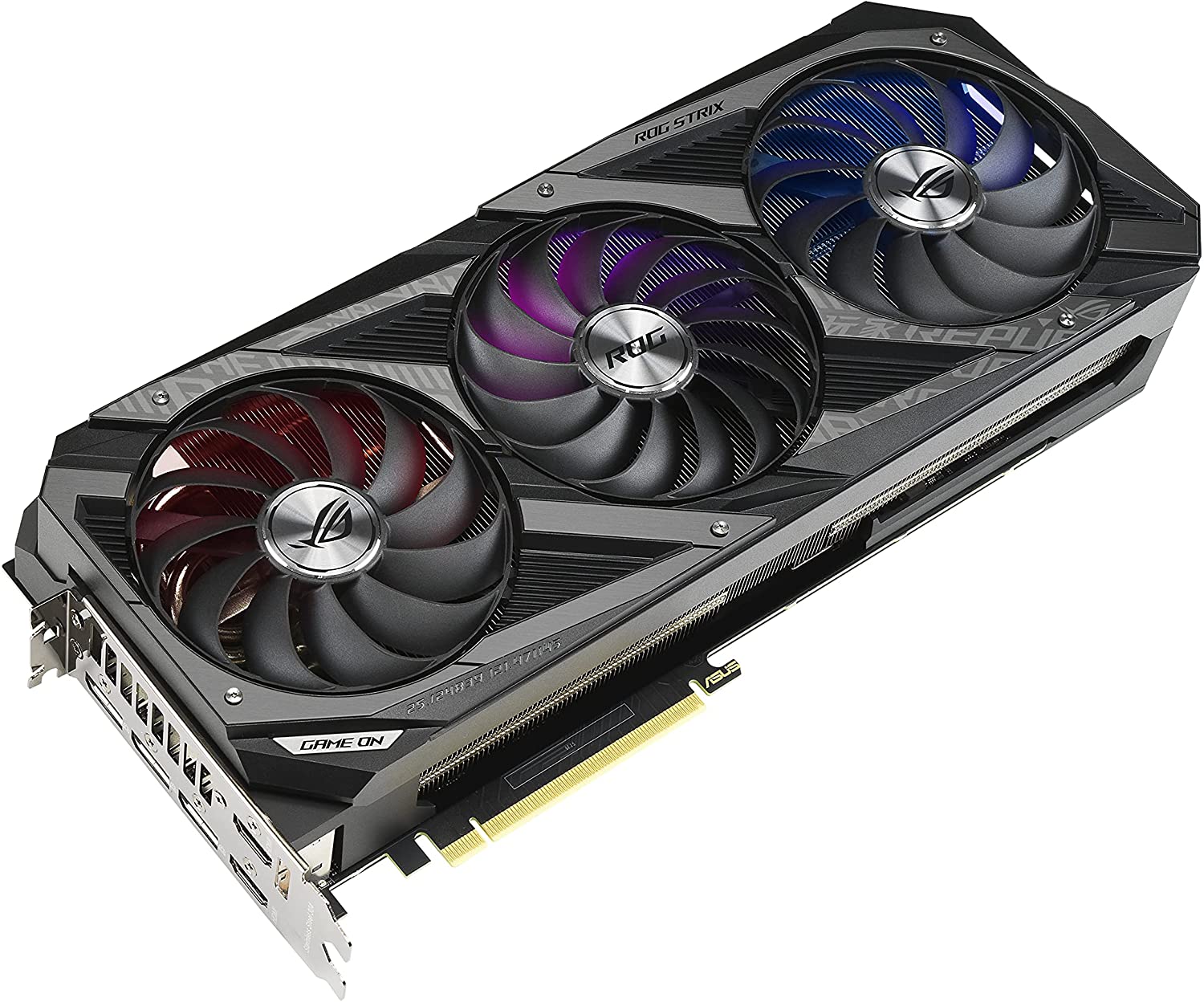

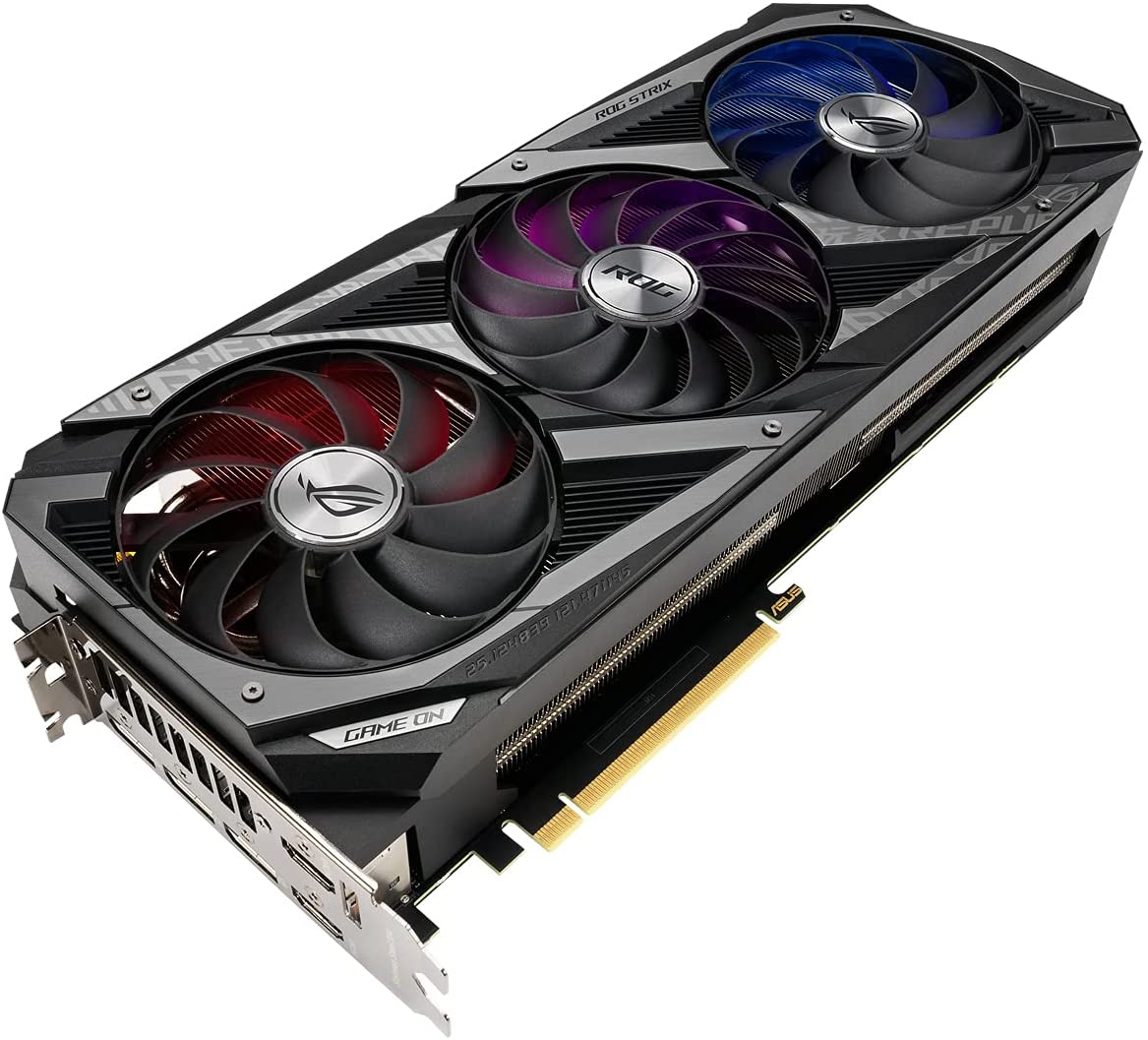

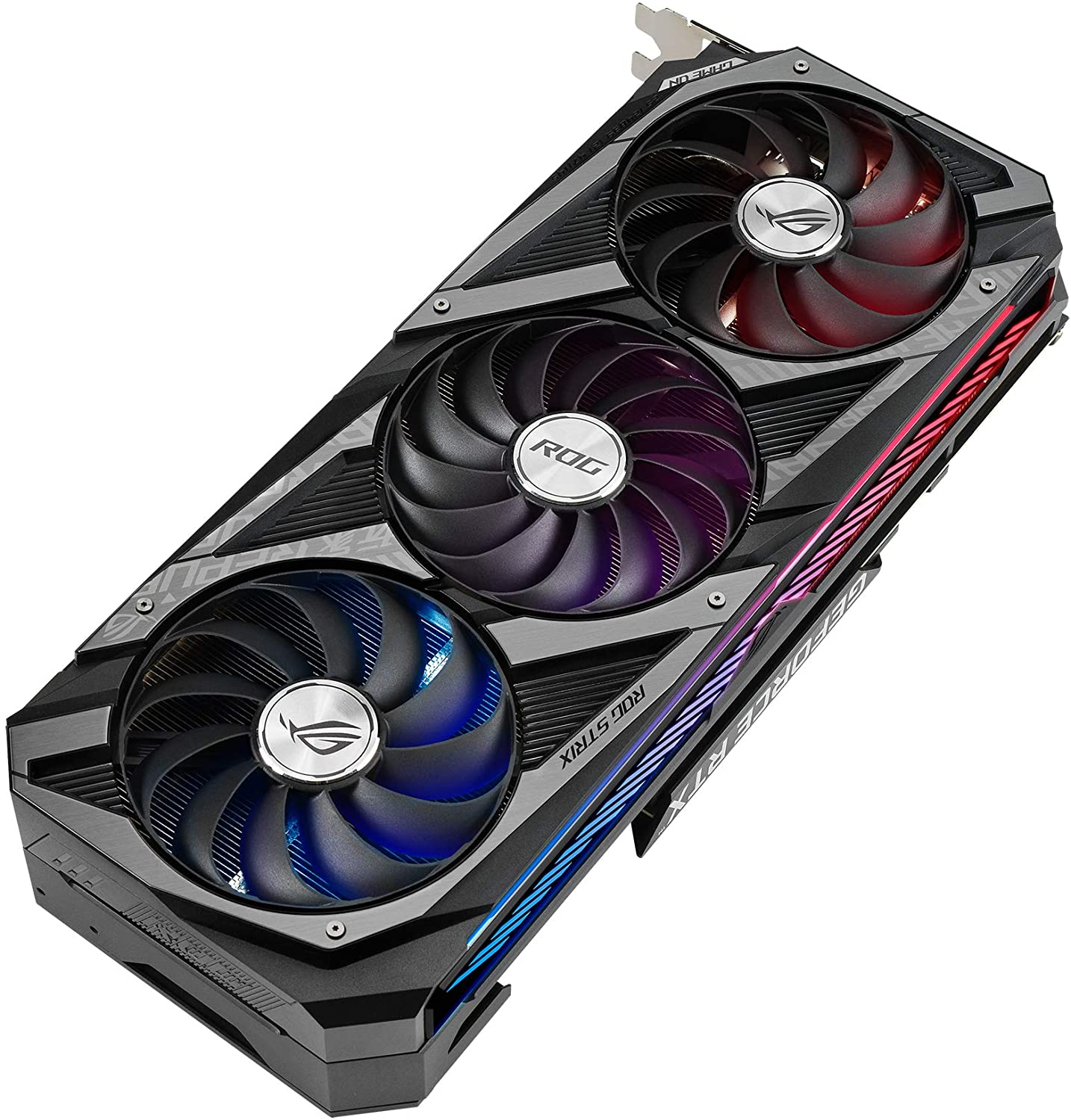

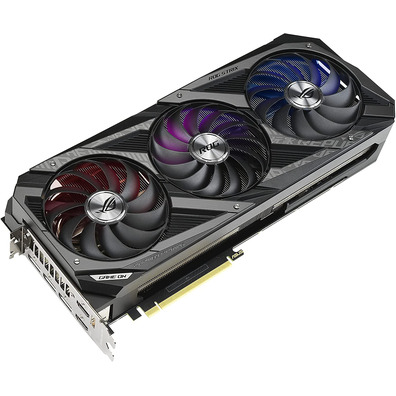

Asus ROG Strix RTX3070Ti Gaming OC 8GB GDDR6X Chart Card

Gr Card &aentifies Asus ROG Strix RTX3070Ti Gaming OC 8GB GDDR6X

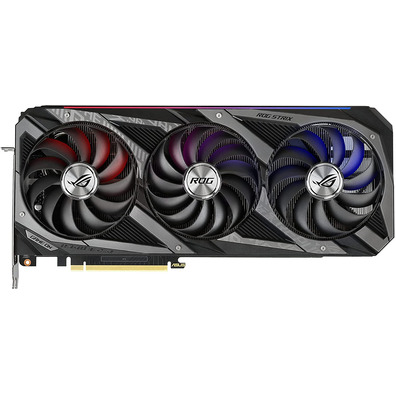

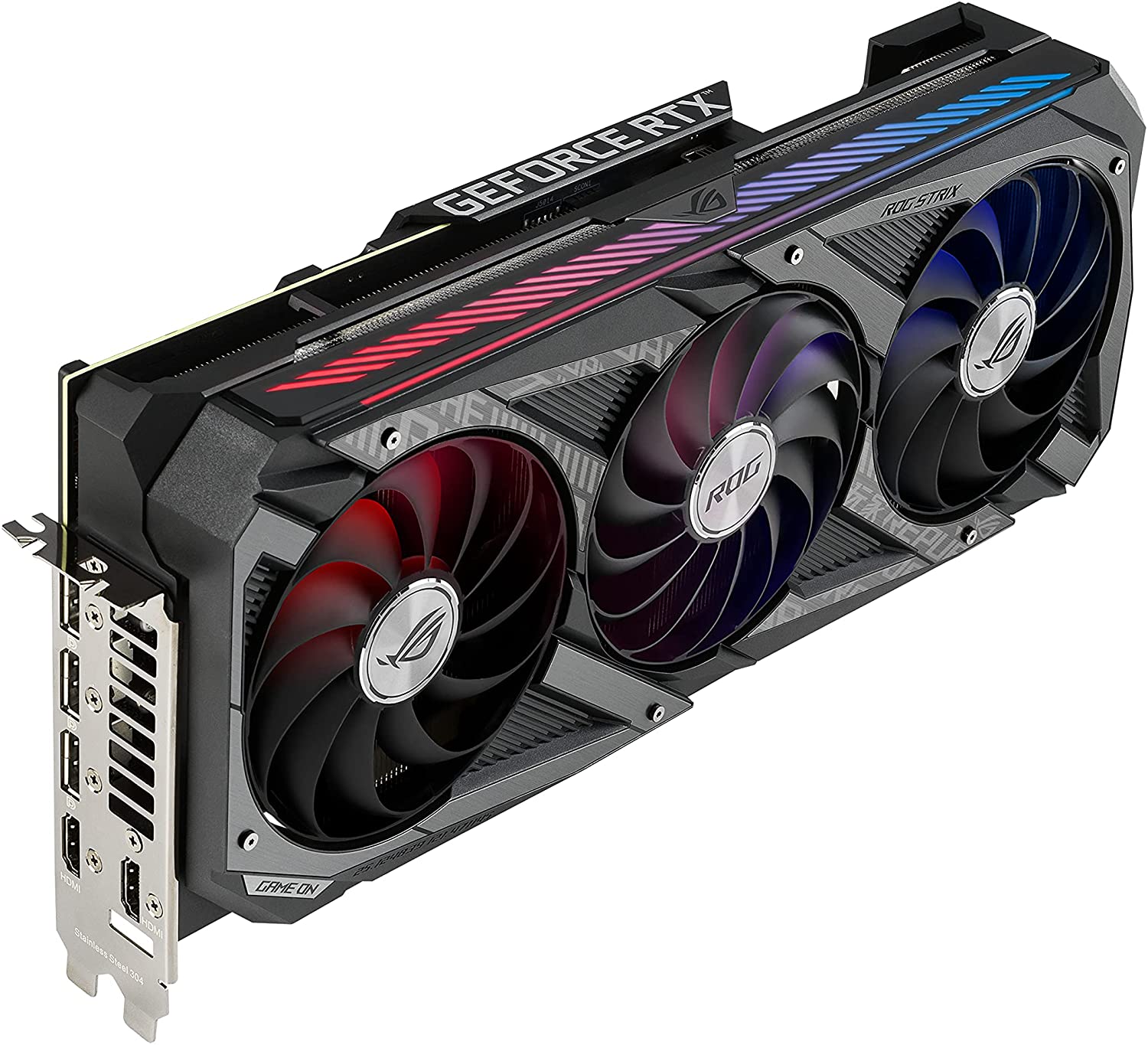

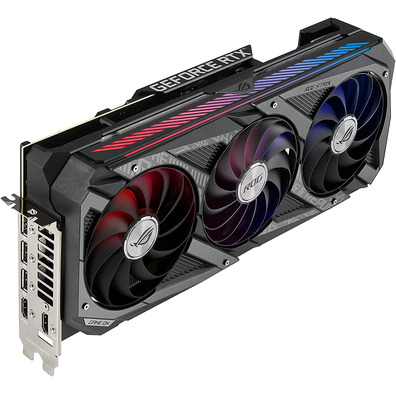

From top to bottom, the ROG Strix GeForce RTX 3070 Ti has been dramatically improved to fit the new and impressive NVIDIA Ampere architecture and to offer the next wave of innovate &oatecn in gaming performance to the market. A ñ or cool and m &aecons metal surround a group of Axial Technology fans. The ñ or uniform of the fans of the latest generation has been usurped by a new rotation scheme and specialized roles for the central and auxiliary fans. Under the blades, a large and impressive heat sink is ready for the demanding loads. The PCB has some new tricks under the sleeve, and even the backplane has received some performance-enhancing changes.

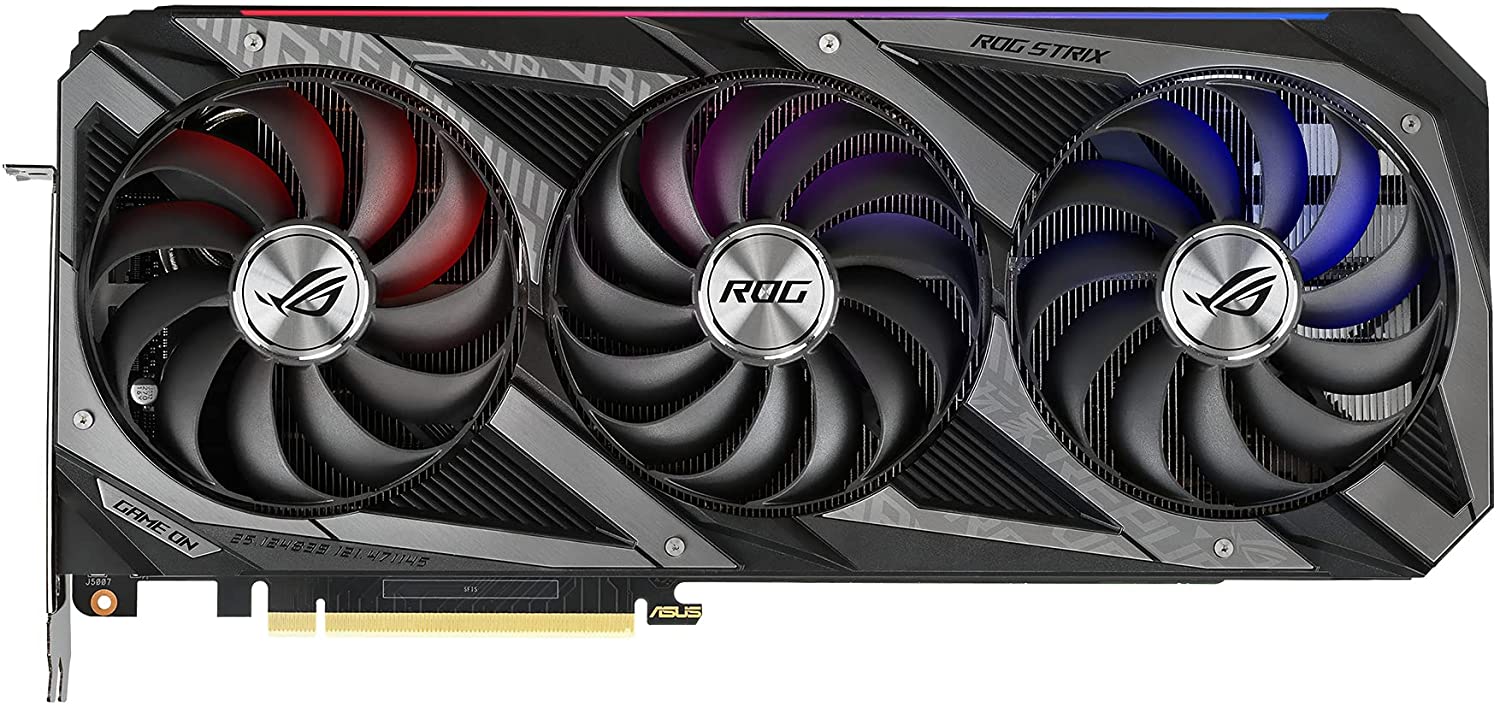

FANS

AXIAL TECNOLOG UPDATES

Our ñ or an axial technology fan has been optimized for a new large heat sink that has more fins and surface area than the latest generation &o. The blade count has been increased on the three fans, with 13 on the central fan and 11 on the auxiliary fans. The barrier ring on the side fans has been thinned to allow for further lateral entry and provide better air flow to the cooling matrix. The additional central fan blades and the full height ring provide an increased pressure to launch air directly on the heat spreader.

ALTERNATE SPIN

To reinforce the specialized functions of the central and auxiliary fans, the central fan rotation direction is reversed. This reduces the air turbulence within the cooling matrix for another boost to the overall t &e performance. The tambi fans are completely turned off when the power consumption of the card is low and the GPU temperature drops below 50 degrees Celsius, which keeps the noise levels low when the system is under a light load.

HEAT SINK

MAXCONTACT

To heat the heat sink matrix efficiently, so that the powerful axial technology fans can be removed quickly, a manufacturing process is used that improves the softness of the surface of the heat sink at the peak microsc level. The additional flatness allows for better contact with the matrix, which helps to improve the transfer t &eacermal.

DISE Ñ OR 2.9 SLOTS

The heat spreader attracts heat to heat pipes that bring it to the back of a stack of fins that occupies a large footprint of 2.9 slots. The increase of the ñ or heat sink in comparison with the latest generation &o provides m &arecos rmico margin to take into account the new high performance chipset.

PREMIUM COMPONENTS

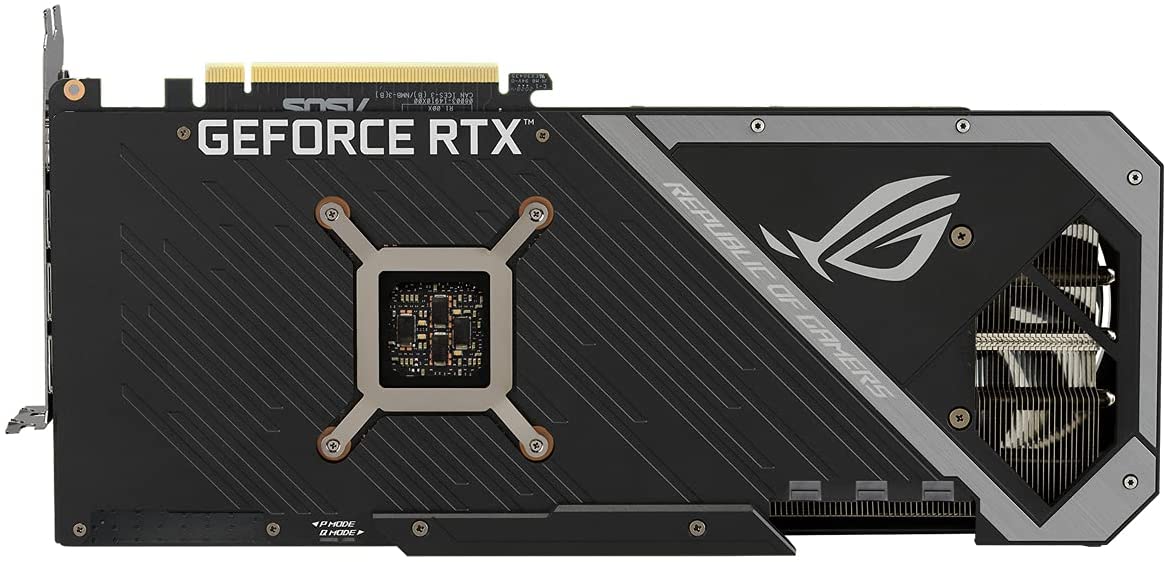

Capacitors, throttles, and first-category MOSFET are selected to effortlessly deliver hundreds of watts with a millisecond warning. The Super Alloy Power II parts are released to the PCB by the advanced Auto-Extreme automated manufacturing process. The smooth joints at the back of the PCB and the removal of human errors ensure that each gr card complies with the rigorous ASUS specifications.

FAN CONNECT II

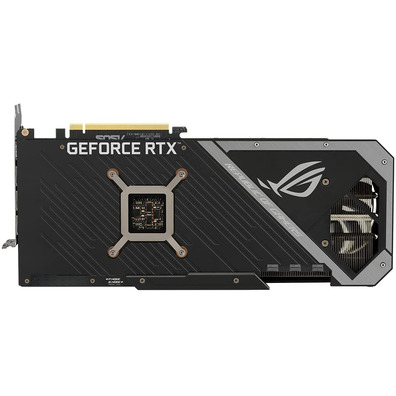

The back of the card has two PWM FanConnect headers that provide additional flexibility for construction. The chassis fans can connect directly to the card and adjust with a curve that is based on the CPU and GPU temperatures, which provides an additional input or output for demanding 3D tasks.

DISE Ñ O

CH &ASSIS

Adem &aecs of the changes of dise ñ or under the cap ó, the ROG Strix presents a new face with met accents that reflect the test of the dise ñ or the base plates ROG and ROG Strix. Texturized accents in a color-scale combination of colors are combined to perfect in subtle constructions or have a surprising impact while the card is mounted vertically and illuminated by LED on the chassis.

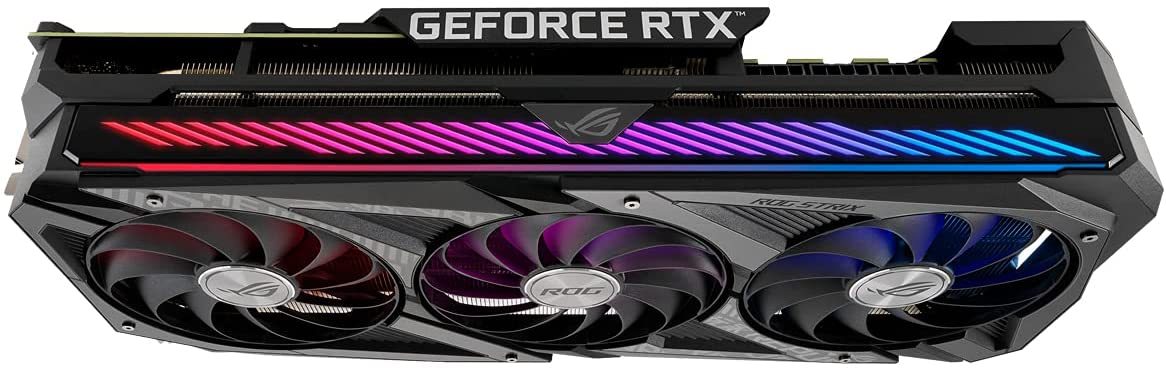

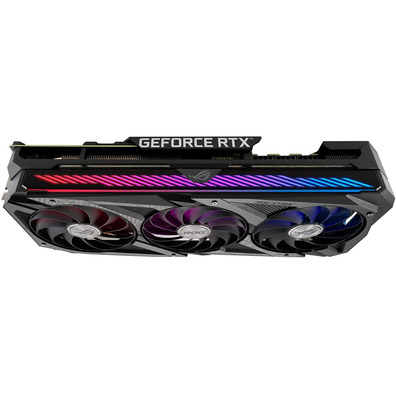

ILLUMINATING N

Much attention has been given to the front of the GPU, since it is the visible part of the card in the card settings. You can customize a new addressable RGB element with Armory Crate to create a uniform appearance along with other ROG components. To meet the demands of energy from the GeForce RTX 3070 Ti, three 8-pin power supply connectors are present, along with an integrated circuit that monitors the voltage of the power supply rail. The circuit is enough to detect any transient that causes the voltage of the rail to come down too much. If that happens, a red LED will be lit to indicate a problem with the feed source. The reinforced metal frame of the Strix also is visible, adding a literal layer of durability.

SOFTWARE

TWEAK II GPU

The ASUS GPU Tweak II utility takes the adjustment of the gr card to the next level. It allows you to adjust the íres, including the clock clocks of the GPU, the frequency of the memory, and the voltage configuration, with the option of monitoring everything in real time for a display of a customizable display. Advanced fan control is also included with many functions to help you take advantage of the maximum amount of your card.

Specifications:

• Processor
  • Processor Family: NVIDIA
  • Processor gr &aUfico: GeForce RTX 3070 Ti
  • CUDA: S &iute; s
  • N &uteacleos CUDA: 6144
  • Clock speed: 1840 MHz
  • Increase in processor clock speed: 1875 MHz
  • M &axime solution &oatuos n: 7680 x 4320 Pixels
  • M &aximes screens by video card: 4
  • Multi-GPU:
  • Memory
    • Memory: 8192 MB
    • Memory adapter memory type: GDDR6X
    • Memory bus: 256 Bit
    • Frequency: 19000 Mbps
  • V &iudero deo
    • Versi ón OpenGL: 4.6

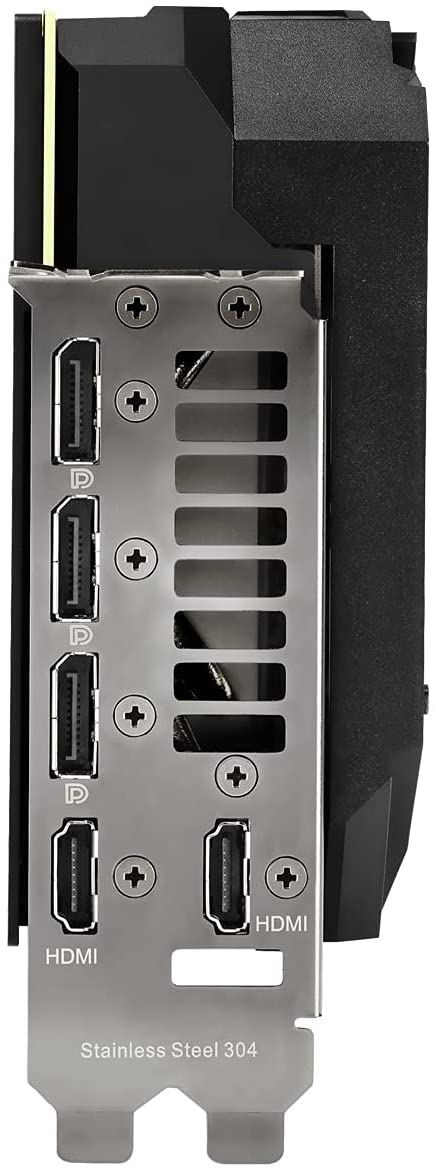

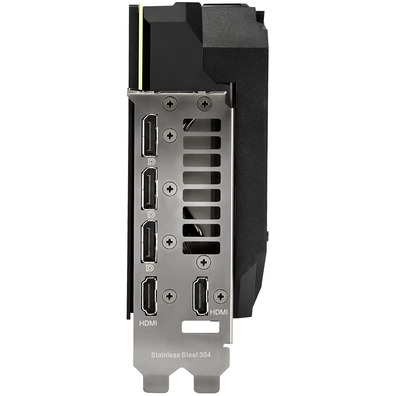

• Connectivity
  • Quantity of DisplayPorts: 3
  • N HDMI port number: 2

control &iuteres to

• Supply to the system m &iute; a
: 3 x 8-pin

Details t &eachets cnics

• Graphics chipset: NVIDIA
• Type of cooling: Active

Weight and dimensions

• Width: 140 mm
• Height: 58 mm
• Depth: 318.5 mm
• N Number of slots: 2.9
