Raspberry Pi 3 Model A

Raspberry Pi 3 Model A

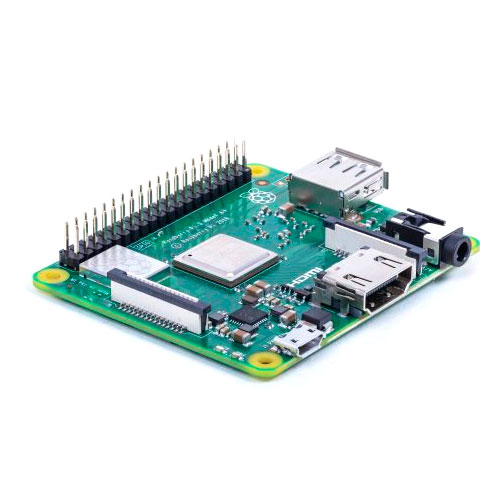

The Raspberry Pi 3 Model A is the computer motherboard more recent Raspberry Pi. It shares many features with the Raspberry Pi 3B , but it has the size of the Raspberry Pi 1 previous.

Why choose the Raspberry Pi 3A ?

If you are looking for a plate compact with exceptional speed, the Raspberry Pi 3 Model A is just what you need. If you want to learn computer programming or try to incorporate the Internet of things in your place of work, the model 3A can help you achieve your goals.
It would be impossible to tell you everything that you can do a Raspberry Pi, with some help of additional devices, there are no limits to your imagination. From media players to full integration with IoT, from training to video games, from control of working conditions to labor productivity, and even control of their own robot, the Raspberry Pi covers a wide range of applications. The advantage of the Raspberry Pi 3A is that it is smaller than most of the previous models and, therefore, ideal for integration into applications where space may be limited.

*Note: The Raspberry Pi 3 Model A is compatible with NOOBS_v2_9_0 or a later version.

Comparison between Raspberry Pi 3A and 3B

Both plates share a number of similar characteristics, such as the processing power. The main differences between these two plates lie in its size and in the memory. The new 3A has the same size as the 1A , which measures 65 x 56 mm 3B measures 85 x 56 mm therefore, 3A is more compact and is ideal for integration into smaller designs.

The 3A has a memory of 512 MB, while the 3B has 1 GB of memory. The 3A has no Ethernet connection.

Specifications For Raspberry Pi 3 Model A :

• Processor: processor quad-core Broadcom BCM2837B0 A53 (ARM v8) SoC 64-bit
• Memory: SDRAM LPDDR2 512 MB
• Bluetooth: wireless LAN IEEE 802.11 b/g/n/ac 2.4 GHz/5 GHz, Bluetooth/BLE
• USB: USB 2.0 port
• Connection: Connector GPIO 40 contacts
• HDMI: 1 full size
• Video: DisplayPort, MIPI DSI, port for camera MIPI CSI port and composite video and stereo output of 4-pole
• Multimedia: decoder H. 264, MPEG-4 (1080p30). Encoding H. 264 (1080p30). Graphics OpenGL ES 1.1, 2.0.
• Storage: microSD card slot for loading your operating system and data storage
• Power: USB Connector for 5 V / 2.5 A dc
