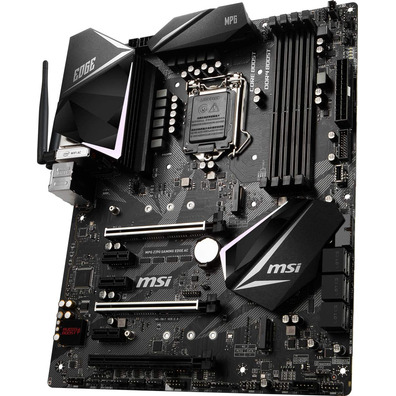

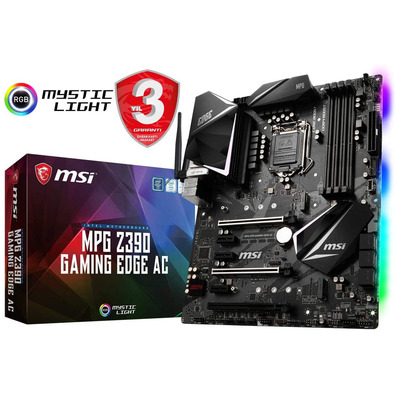

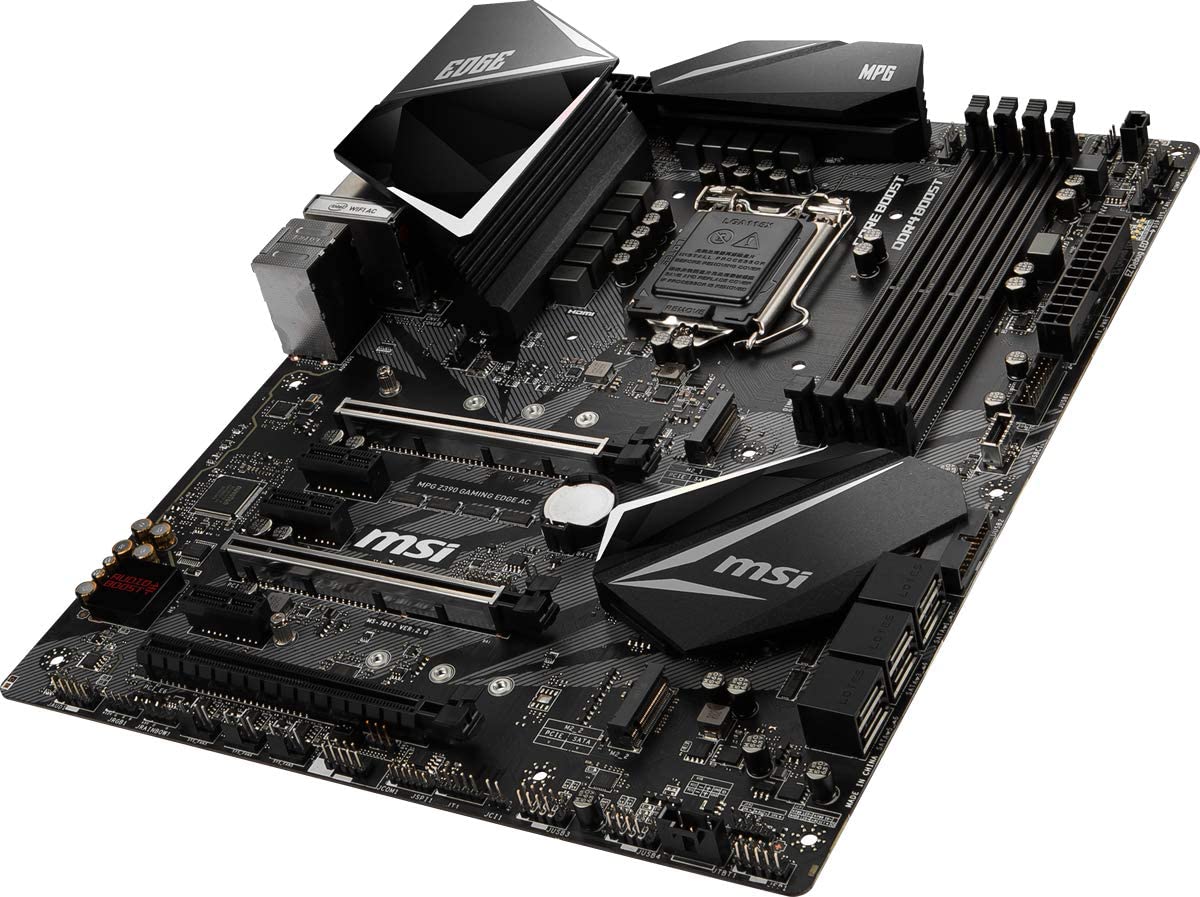

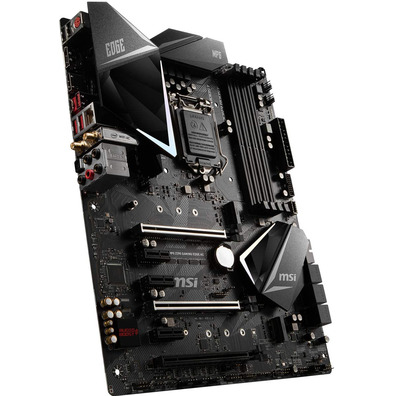

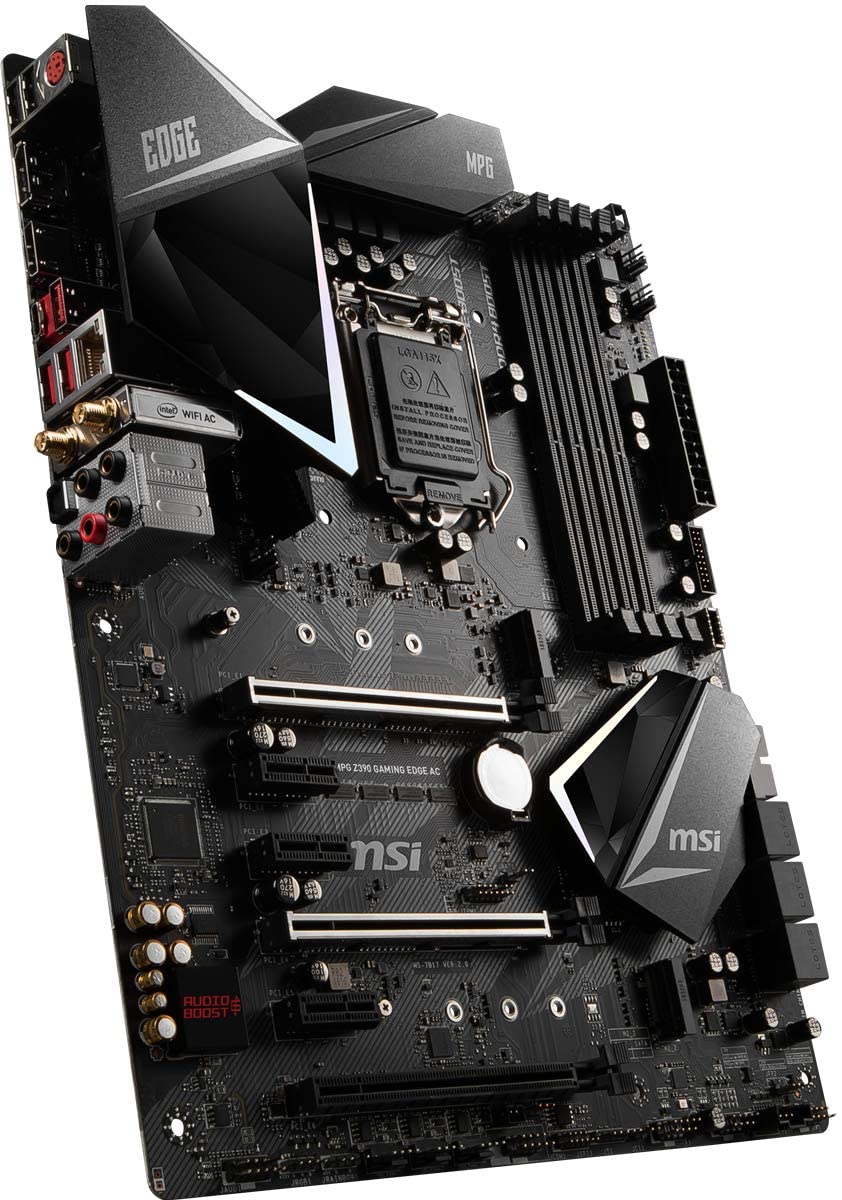

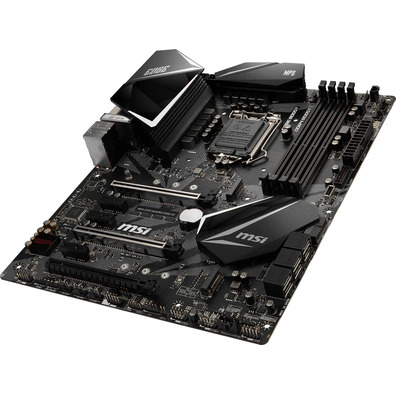

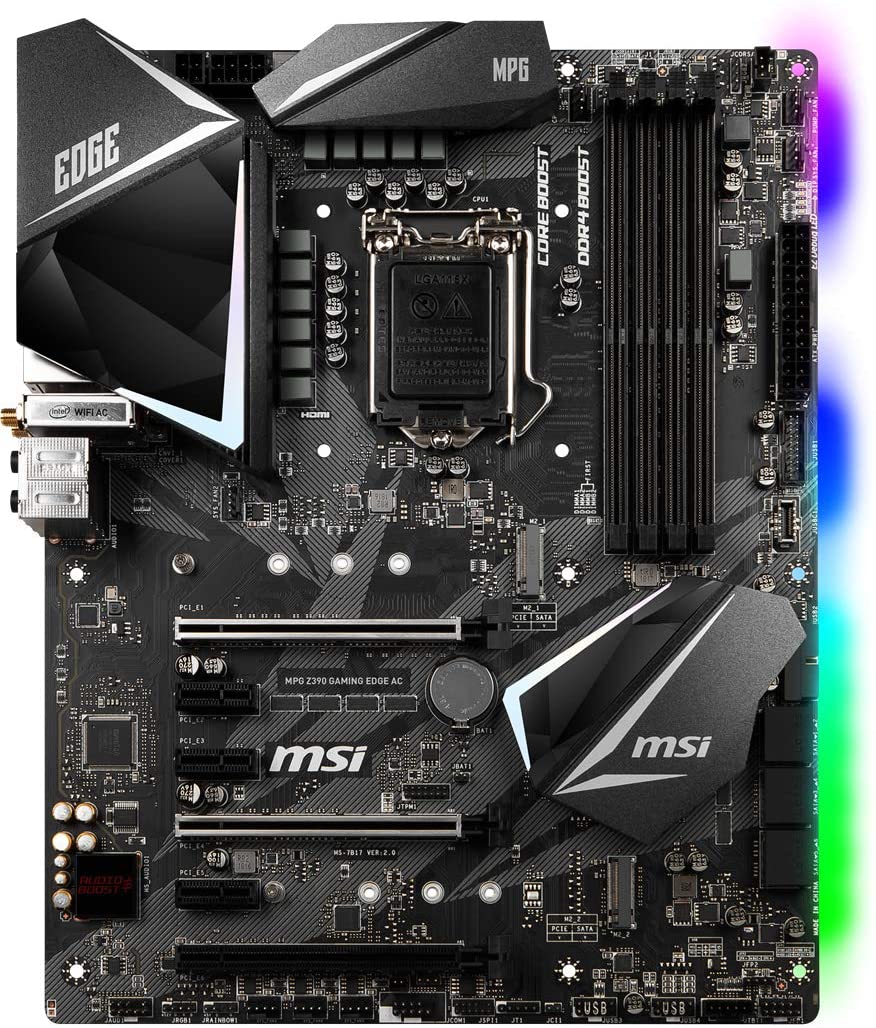

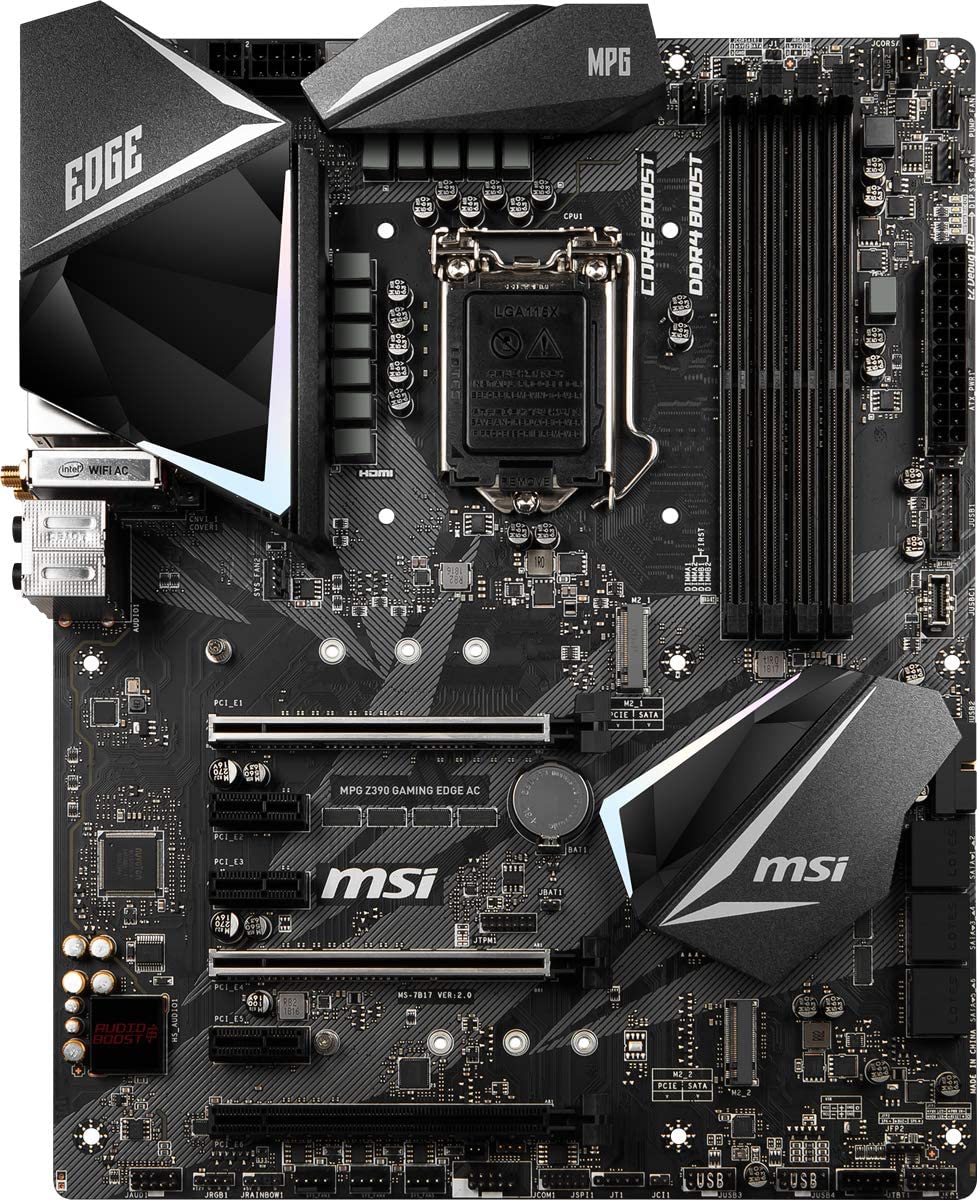

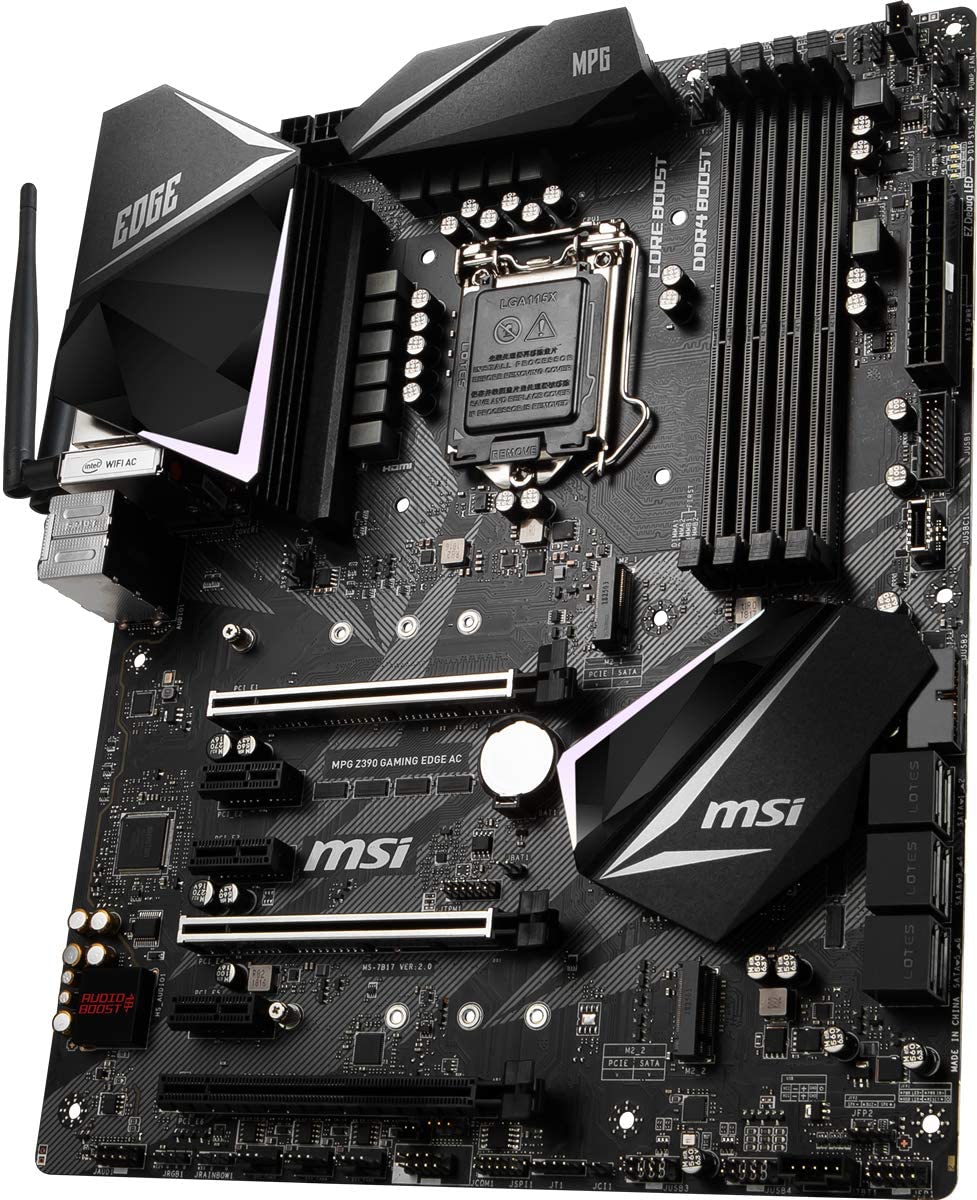

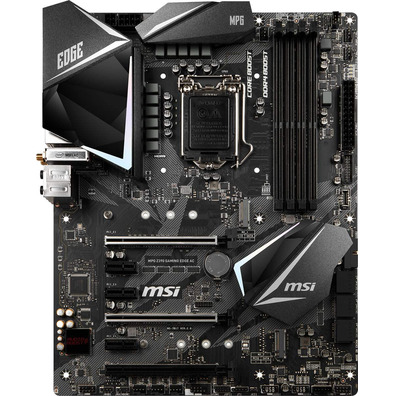

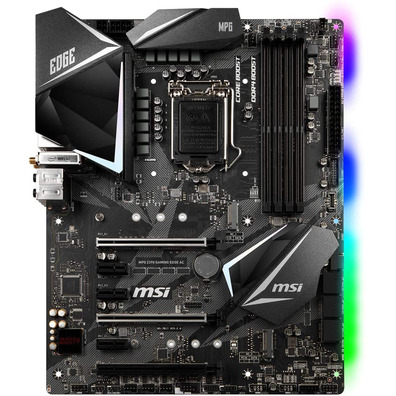

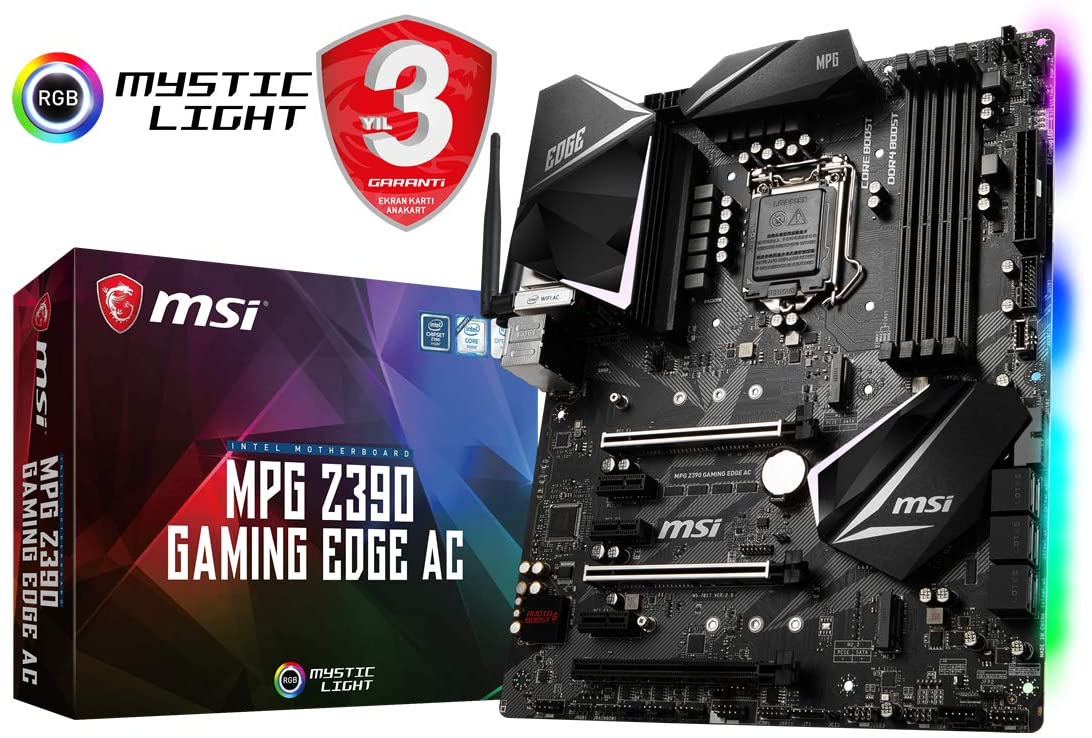

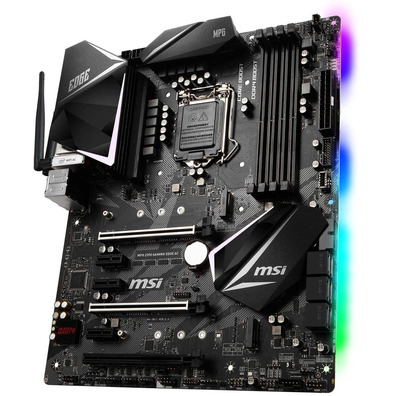

Base plate MSI MPG Z390 Gaming EDGE AC LGA1151

MSI MPG Z390 Gaming EDGE AC LGA1151 Base Plate

Gaming base plates are ñ ed to offer the maximum performance to gamers thanks to unique capabilities to gain advantage in competitive terrain.

Character íres:

• TWIN TURBO M. 2: With 2 M. 2 slots. Running on PCI-E Gen 3, maximizes x4 performance for NVMe SSDs
• DDR4 BOOST: advanced technology to provide pure ñ s offering the best performance and stability
• EXTENDED HEATSINK DESIGN: WWM extended and dise ñ or enhanced circuitry to ensure that up to the processors of m &aalds high end run at m &axime speed
• AUDIO BOOST 4: insulated audio with high quality audio processor EES DAC and Nahimic for the experience m &aws immersive

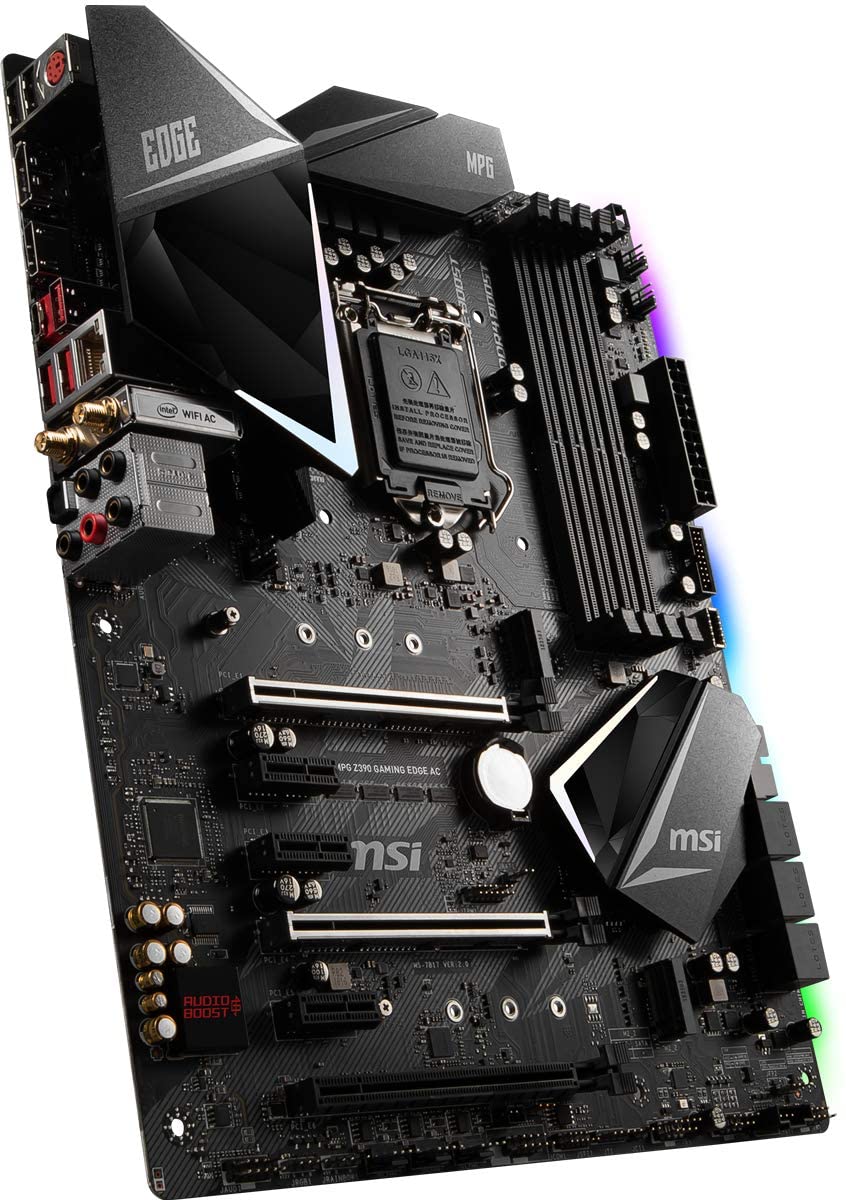

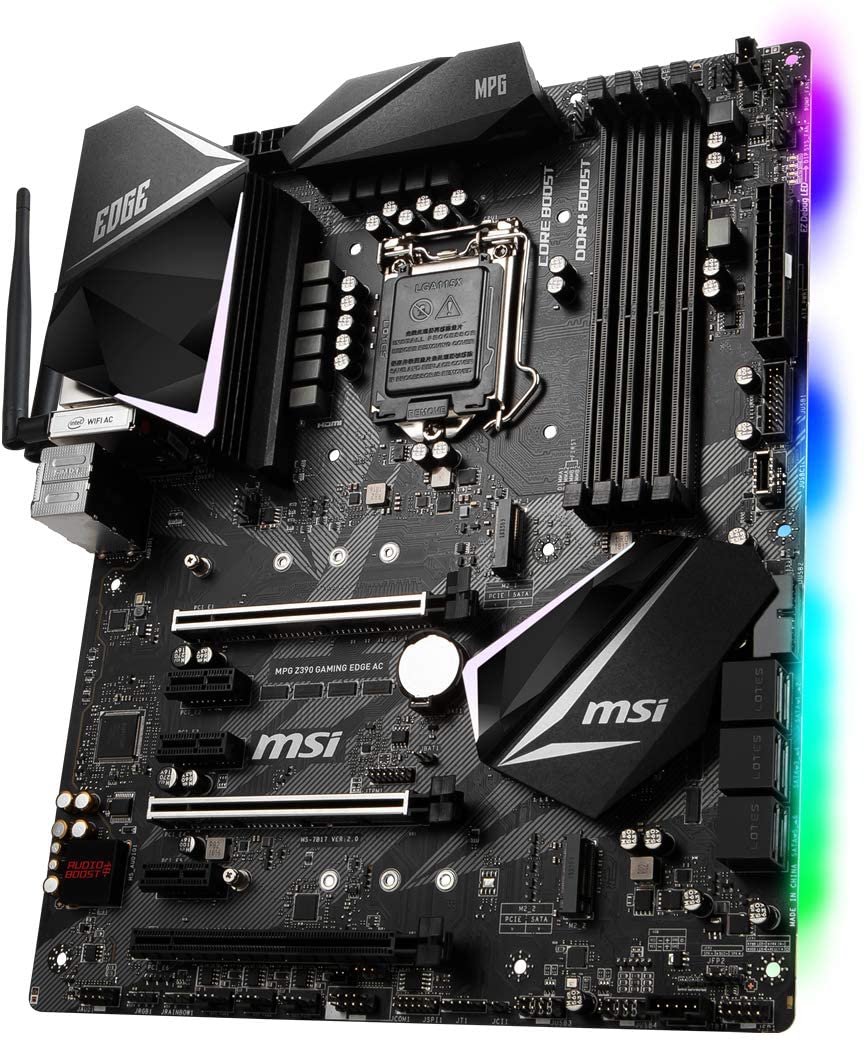

• MYSTIC LIGHT RGB LED: Customizes your PC with 16.8 million colors and 17 effects led
• Type of connectivity: SATA

MSI MPG Z390 Gaming EDGE AC Specifications:

• Brand: MSI
• Model: MPG Z390 GAMING EDGE AC (911-7B17-020)
• Platform: ATX (24.3 cm x 30.4 cm)
• Chipset: Intel   Z390 Chipset
• CPU Supported
  • Supports 9 ª/8 ª Gen Intel   Core  /Pentium   Gold/Celeron   processors for LGA 1151 socket
• Memory:
  • 4 x DDR4 memory slots, supports up to 128GB
  • Supports DDR4 4400 (OC)/4300 (OC)/4133 (OC)/3600 (OC)/3300 (OC)/3400 (OC)/3200 (OC)/3000 (OC)/ 2800 (OC)/2666/2400/2133 MHz
  • Supports Dual-Channel mode
  • Soporta non-ECC, un-buffered memory
  • Supports Intel   Extreme Memory Profile (XMP )

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
• Supports RAID 0, RAID 1 for M. 2 PCIe
USB
• 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps)
• 6 x USB 3.1 Gen1 (SuperSpeed USB)
• 6 x USB 2.0 (High-speed USB)
Network
• 1 x Intel   I219-V Gigabit LAN
• Wi-Fi
  • Intel   Wireless-AC 9462
  • Soporta 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz Up to 433 Mbps
  • Supports Bluetooth   2.1, 2.1 + EDR, 3.0, 4.0, 5
• Audio
  • Realtek   ALC892 Codec
  • 7.1-Channel High Definition Audio
