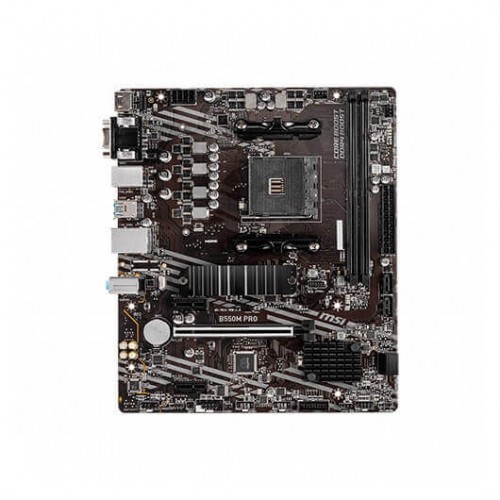

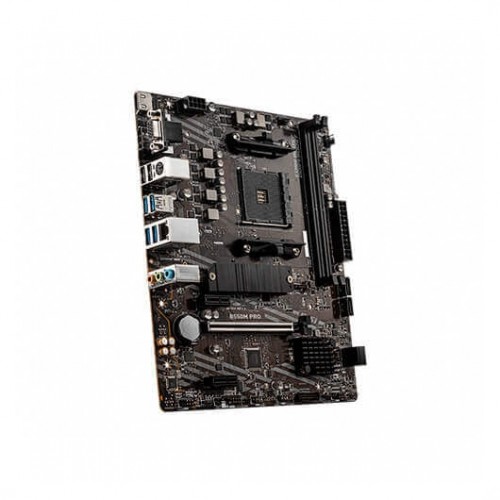

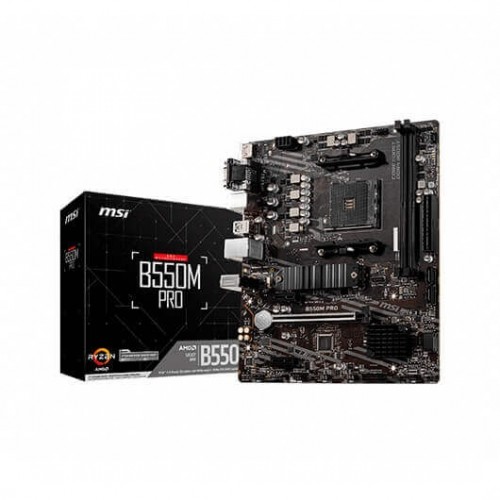

MSI B550 Pro AM4 Base Plate

MSI B550 Pro AM4 Base Plate

The PRO series helps users work smarter by providing an efficient and productive experience. With stable functionality and high quality assembly, the PRO series motherboards provide not only optimized professional workflows, but also less problem solving and longevity.

DISE Ñ OR USER-FRIENDLY

The MSI base plates have tons of ñ or convenient and intelligent tons for PC assemblers, countless adjustment tools and system problem solution. The system is designed to bring your system to new heights and satisfy even the demanding tweaker.

REFRIGERACI &OULDN

• M. 2 SHIELD FROZR

The world's SSDs can begin to reduce performance when they are heated. Part of the ñ or the thermal sink of the base plates, M. 2 SHIELD FROZR is the first-generation M 2 &oatuxime (R) solution to prevent this by offering the best protection &oatuesto rmica to ensure that SSD maintains the maximum performance.

• FULLY CONTROLLABLE IN BIOS AND SOFTWARE

The MSI motherboards allow you to manage speeds and temperatures for all system and CPU fans. Total Fan Control allows you to verify the &iacitims character of your primary system in a simplified graphical interface. You can also configure up to 4 temperature targets for the CPU and motherboard, which will adjust the speed of the autom fan.



DISE Ñ O

• EZ DEBUG LED

Integrated LEDs for key components will indicate the source of the problem so that you know exactly how to search to get back up and running.

• CLIP XL

The extended PCI-E clip helps you to change or remove your m &atits f devices. {\cs6\f1\cf6\lang1024}

\cs6\f1\cf6\lang1024}

&O. Ó s

• DOUBLE CACHE &O. ESD

The double protection against ESD doubles the earth layer around the mounting holes, preventing the downloads from being ñ on the motherboard.

• PCI-E STEEL ARMOR

The MSI PCI Express Steel Armor slots are secured to the motherboard with additional soldering points and support the weight of the heavy graphics cards. When all the advantages in the games count, Steel Armor protects the contact point of the &etictic interference.

CONNECTIVITY

The base plates of the MSI PRO series have many possibilities for assemblers ' needs. The stable LAN, the storage m &aaivals r &aaipido and the USB transfer speed and other expandable connectors enhance the flexibility of the assembly.

STORAGE

• request and future

The base plates of the MSI PRO series are compatible with the latest storage standards, allowing users to connect any ultra-high storage devices.

• LIGHTNING GEN 4 M. 2

Using third-generation Ryzen processors, the MSI B550 base plates have the latest Lightning Gen 4 M. 2 version, which is the storage solution on board m &aUtias r &apacas of the market with a transfer rate of up to 64 Gb/s.



USB

• USB 3.2 GEN 1

You can easily transfer large amounts of data, physical &uasties, and pel to USB. Both front and rear and rear s provide USB 3.2 ports, which can connect a variety of USB 3.2 devices.

ILLUMINATING N

• AMPL &IaUTS TO YOUR RGB EXPERIENCE WITH EASE

The Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB rich &eAts added to a system, without the need for a separate RGB controller.

Specifications:

• Details T &eUcics
  • Format: Micro ATX
  • Chipset: AMD B550
  • Multi-GPU: No
  • Number of PCI Express slots: 3
  • Processor family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 2
Processor
• Processor Socket: Socket AM4
• Processor Family: AMD Ryzen 3000, AMD Ryzen 4000 Series G
• Memory
  • Memory slots: 2x DIMM
  • Internal memory m &axime memory: 32 GB
  • Non-ECC: S &iute;
  • Memory without buffer: S &iute;
  • Channel support memory: Dual
  • compatible memory types: DDR4-SDRAM
  • Supported memory clock speeds: 1866 MHz, 2133 MHz, 2400 MHz, 2667 (OC), 2667 MHz, 2800 (OC), 2933 MHz, 3000 (OC), 3066 MHz, 3200 (OC), 3600 (OC), 4400 (OC), 4600 (OC)
    4400 (OC), 4600 (OC), 4400 (OC), 4600 (OC)
• Audio
  • Audio output channels
  7.1
  • Audio system: Realtek ALC892, Realtek ALC897
• Expand slots &oatecn
  • PCI Express Configurations: 1 x16, 2 x1
  • N &uatueros (total) PCI Express slots: 3
  • PCI Express slots: 2
  • PCI Express slots: 3.0, 4.0
Internal I/O connector
• • CPU: S &iute;
  ATX power connector (24 pins): S &irector
  • Jumper Clear CMOS: S &iute;
• Fan Connector: S &iuteres
  • USB 2.0 connectors: 2
  • USB connectors 3.2: 1
  • N chassis fan connector number: 1
  • N &uterer for SATA connectors 3: 4
  • Connectors M. 2: 1
  • RGB/LED strips connectors: 1

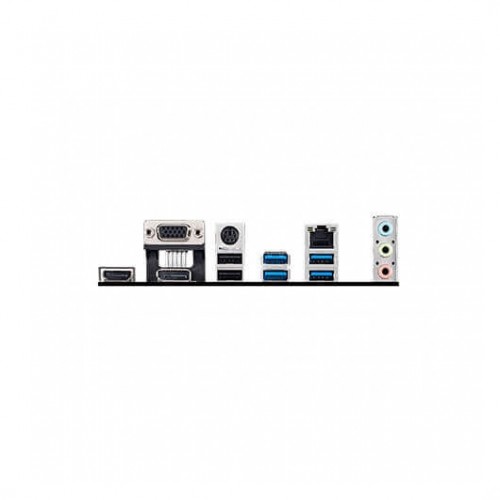

• Rear panel I/O (Input/Output)
  • Number
  DisplayPorts: 1
  • VGA (D-Sub): 1
  • Number of USB ports 2.0: 2
  • Number of USB ports 3.2: 4
  • Ethernet (RJ-45): 1
  • PS/2 Port &oatro n-keyboard:
Regulators
• RAID Levels: 0, 1, 10
• • Bluetooth: No
  • Network connection: S &iute;
  • LAN Controller: Realtek RTL8111H
  • Ethernet: S &iutejo
  • Wi-Fi:
  • Weight and dimensions
    • Width: 24.4 cm
    • Depth: 21 cm
  • Packaging contents
    • Material included: Controller CD, SATA
    • Gu &oPrompt: S í
