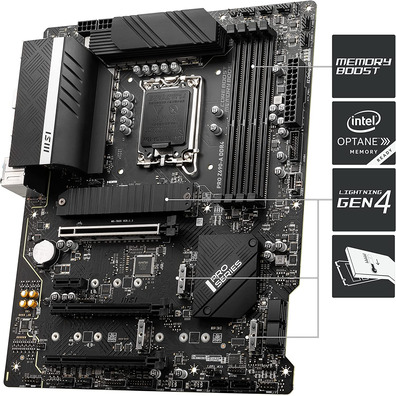

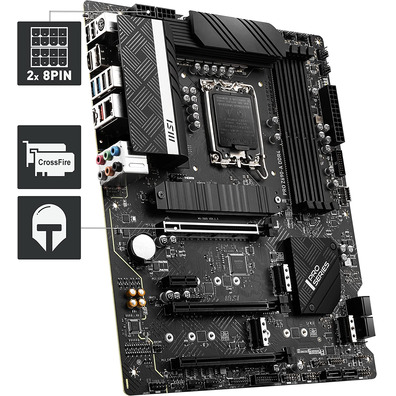

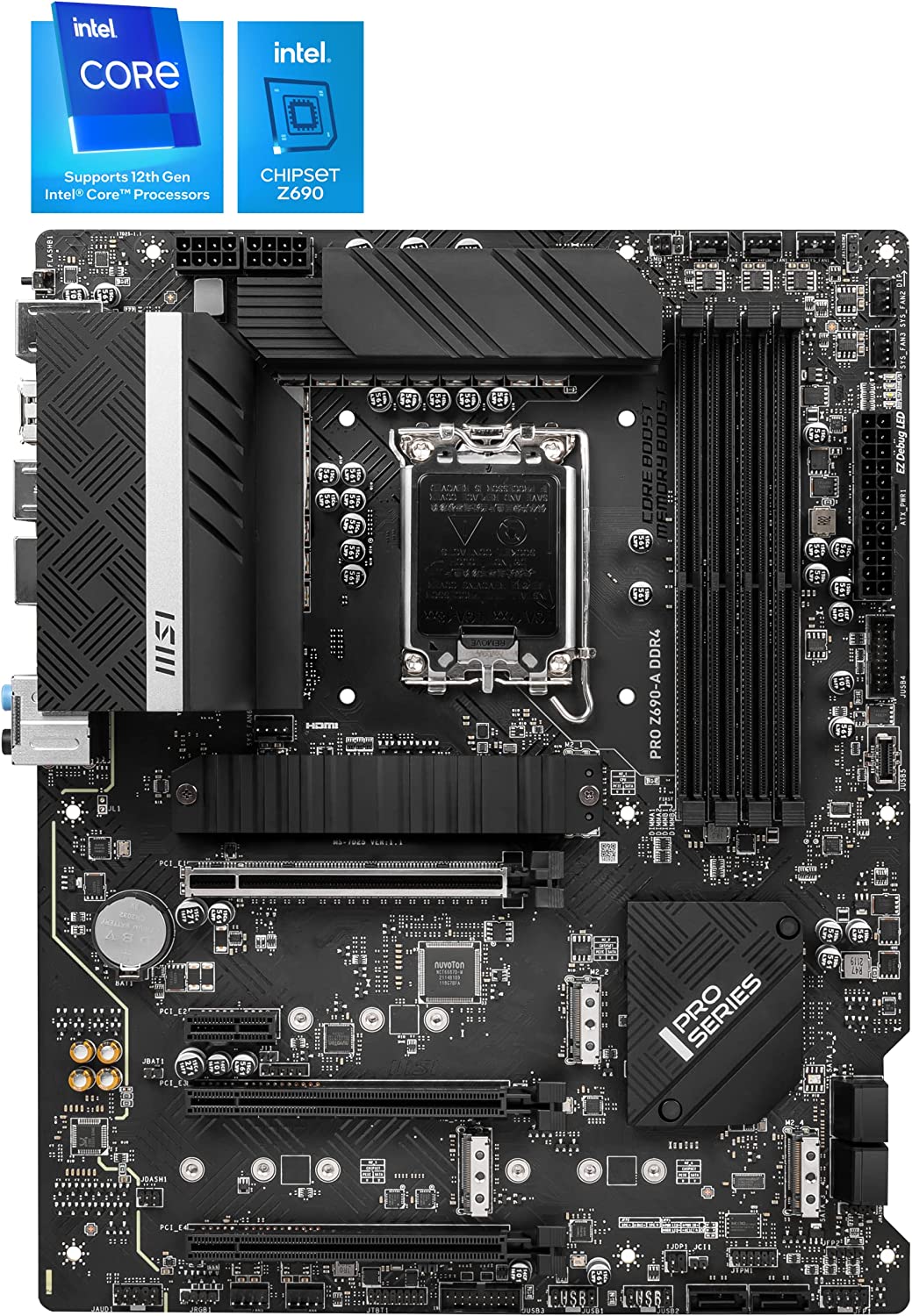

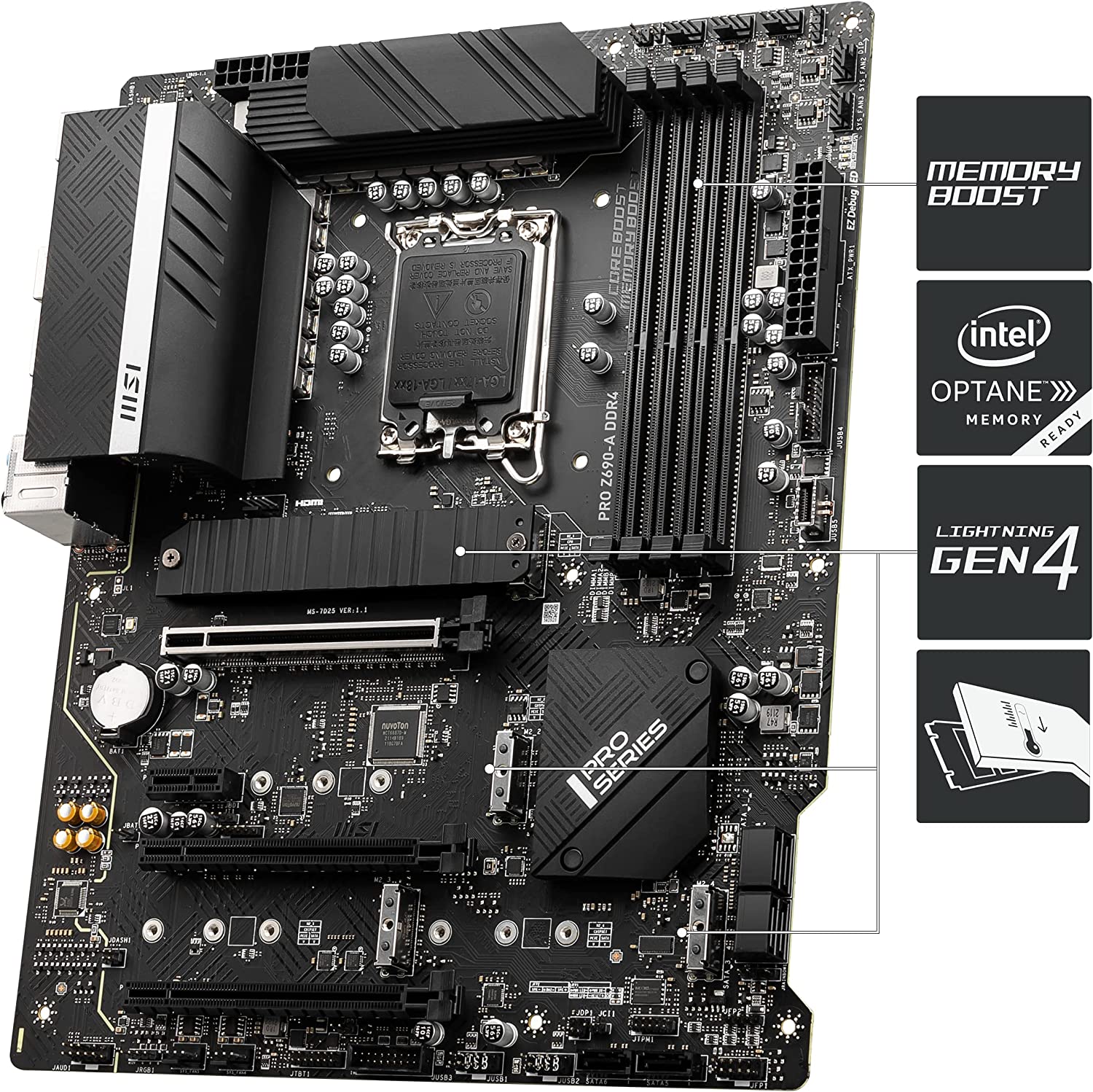

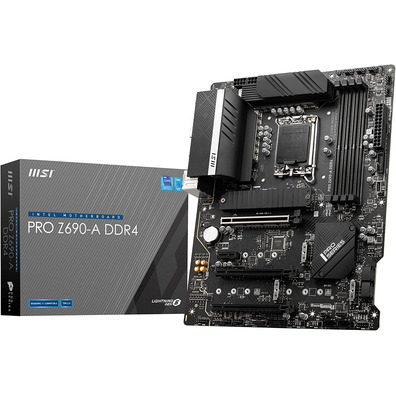

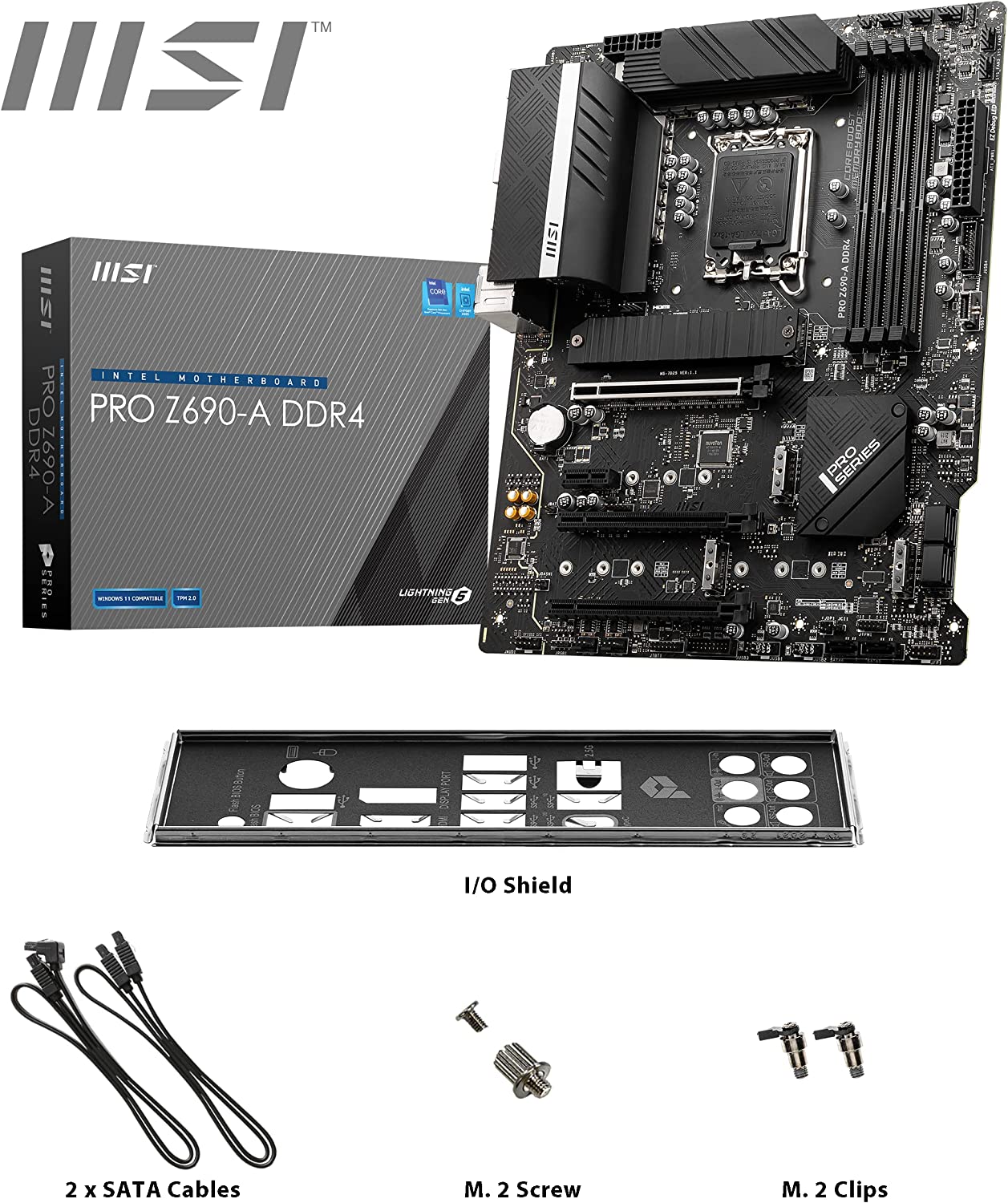

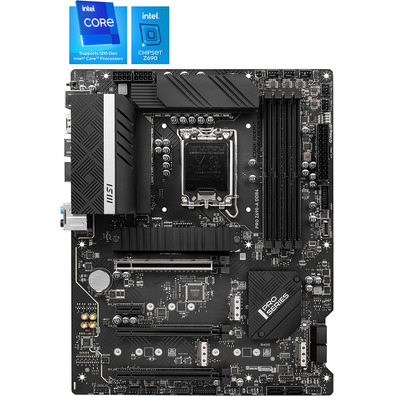

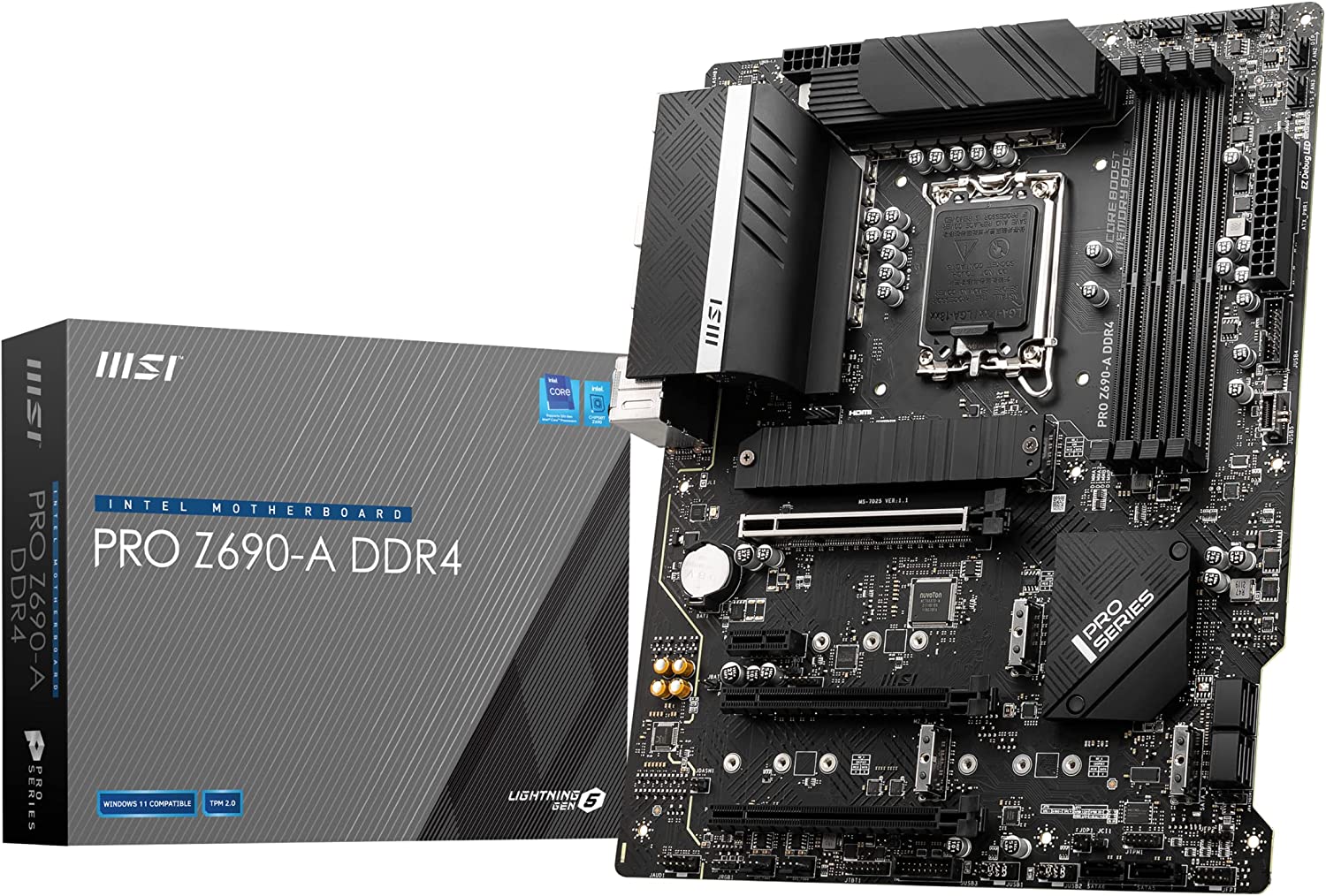

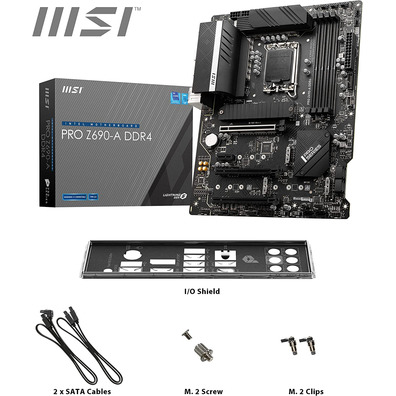

MSI 1700 Pro Z690-A DDR4 Base Plate

MSI 1700 Pro Z690-A DDR4 Base Plate

PRO SERIES

The PRO series helps users work smarter by providing an efficient and productive experience. With stable functionality and high quality assembly, the PRO series motherboards provide not only optimized professional workflows, but also less problem solving and longevity.

DISE Ñ OR F &AICL FOR USER

The MSI motherboards have a ñ or convenient and intelligent dise, countless adjustment and problem solving tools, which are designed to bring your system to new heights and satisfy even the demanding m. It makes it very easy to install it without a problem.

COOLING

SOLUCI &O N T &ETIS RMICA FOR M &AUCS N &UAteCLOS AND HIGHER PERFORMANCE

With m &aUteres n úres processors, the ñ or t &eetuermic and power &iacetos a is important to ensure that the temperature is low. MSI's extended PWM heat sink with 7 W/mK thermal t-pad ensures that even the high-end processors run at full speed with the MSI base plates.

M. 2 FROZR shield

The world's SSDs can begin to perform low when they are heated. As part of the ñ or the heat sink of the base plates, M. 2 SHIELD FROZR is the first-generation M 2 &oatuxime (M 2) solution to prevent this by offering the best protection protection to ensure that the SSD is maintained for maximum performance.

FROZR AI COOLING

Detects the CPU and GPU temperatures and adjusts the function of the system fans to an appropriate value by using the MSI AI ENGINE &oAtion.

TOTAL FAN CONTROL IN BIOS AND SOFTWARE

The MSI motherboards allow you to manage speeds and temperatures for all fans of your system and CPU. Total Fan Control allows you to verify the characteristics of your host system in a simplified graphical interface. You can also configure up to 4 temperature targets for the CPU and motherboard, which will adjust the speed of the autom fan.

OPTIMIZED FOR COOLING &O N &IQUIED

Dise ñ to support customized cooling solutions and all in one popular market. A dedicated water pump PIN head supports up to 2 amps, giving you full control of the speed of the water pump. A 'exclude zone ó n' clearly marked allows for easy and secure installation &oatutin and a perfect fit.

DISE Ñ O

DEPURACI LED &OAte; N EZ

¿ I got into trouble? Integrated LEDs for key components will indicate the source of the problem so that you know exactly how to search for it to run again.

CLIP XL

The extended PCI-E clip helps you to change or remove your m &atits f devices. {\cs6\f1\cf6\lang1024}

\cs6\f1\cf6\lang1024}

Clip EZ M. 2

MSI's innovative EZ M. 2 clip helps you to install an M. 2 SSD in a quick and effortless way.

EXCLUSIVE ZONE Ó N

The MSI base plate circuits ensure that the housing exclude zones are pure and clean, avoiding the contact of any component or ñ s on the motherboard.

F EASY PLACEMENT OF CABLES

The MSI ñ or PCB at í peak is not only the identity of the style, but it also facilitates the routing of SATA and USB cables. Arranges the cable in an orderly fashion even if it is not familiar with the system's construction.

TRUSTED COMPONENTS

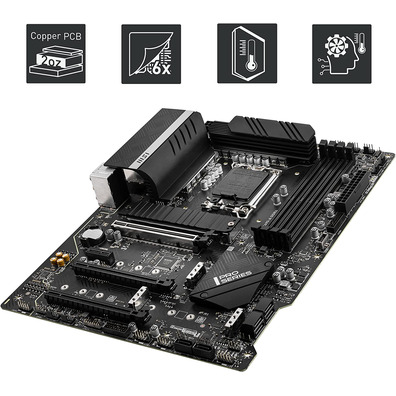

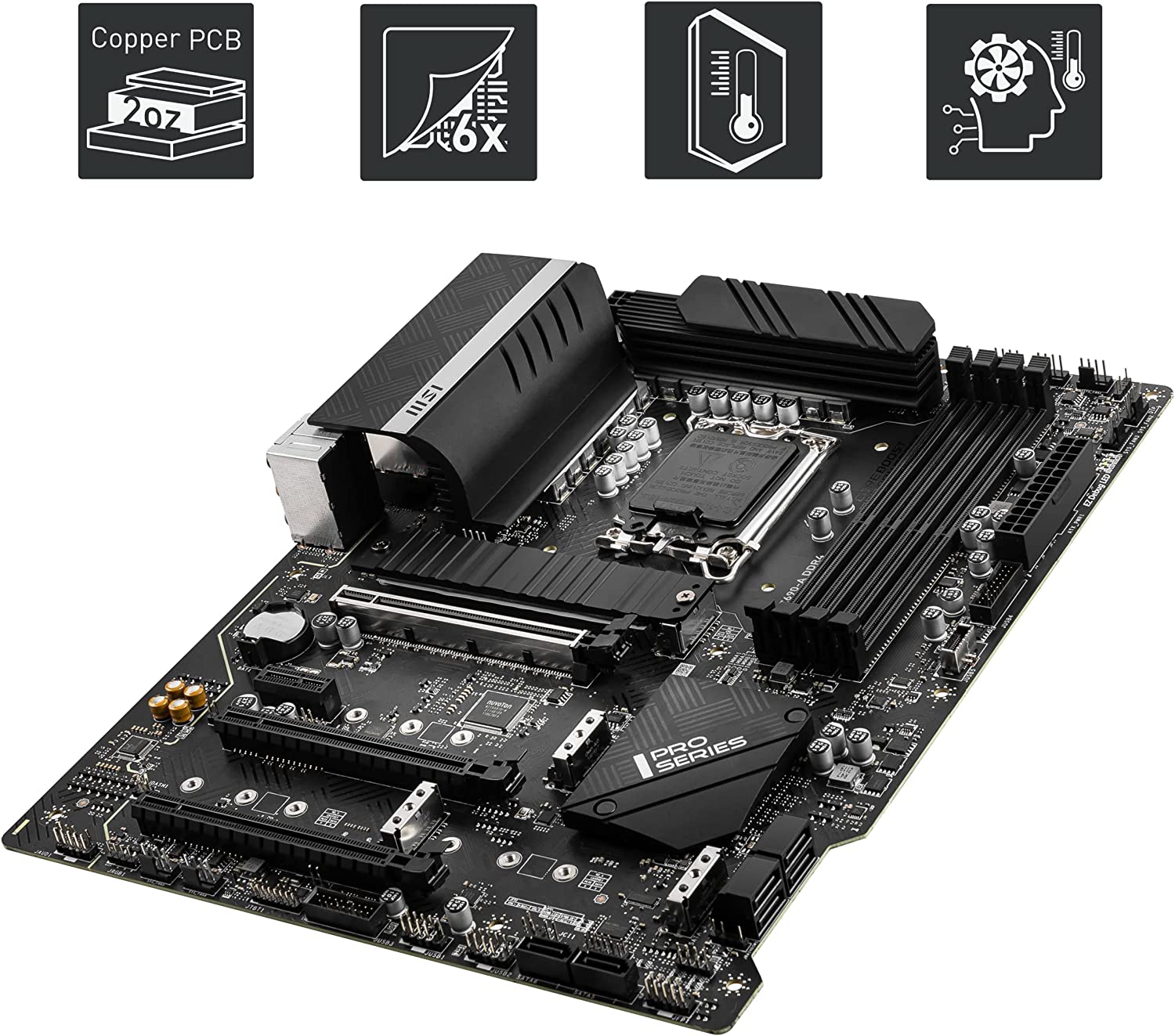

DISE Ñ OR PCB

The ñ or PCB has been optimized for increased bandwidth and transfer rates m &aectioned pidas, which is also beneficial for a reliable circuit transmission.

STEEL ARMOR

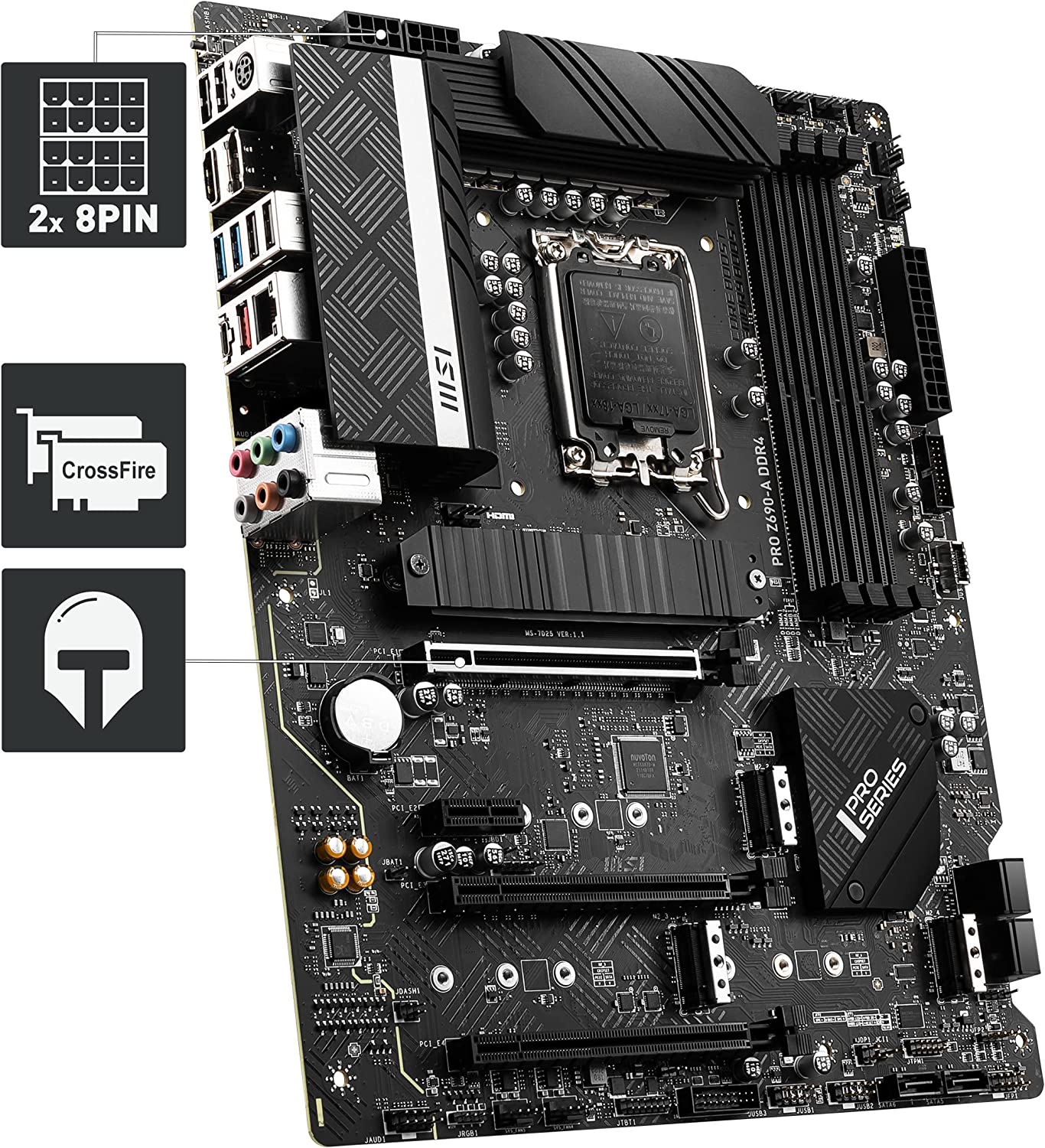

The MSI PCI Express Steel Armor slots are secured to the motherboard with additional soldering points and support the weight of heavy graphics cards. When each advantage in the games counts, Steel Armor protects the point of contact from the &etical interference.

MAXIMUM &O N &ACOTS FOR THE BASE BOARD

The double protection ESD protection doubles the connection layer to ground around the mounting holes, preventing the downloads from being ñ on the motherboard.

Specifications:

• Format: ATX
• Chipset: Intel Z690
• Multi-GPU: AMD CrossFire
• Amount of PCI Express slots: 4
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, Serial ATA III
• N Number of processors supported: 1
• • Processor Socket: Socket 1700
  • Processor Family: Intel Celeron, Intel Core i5-12 ª Gen, Intel Core i9-12 ª Gen, Intel Pentium
• Memory
  • Memory slots: 4x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 128 GB
  • ECC: No
  • No ECC: Yes
  • Memory channel support: Dual
  • Supported memory types: DDR4
  • Supported memory clock speeds: 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4000 + MHz, 4800 + (OC), 5200 + (OC)
  • Audio
    • Audio output channels: 7.1
    • Audio system: Realtek ALC897
• Expand slots &oatuas
  • PCI Express Configurations: 1 x1, 3 x16
  • N PCI Express slots (total): 4
  • X1 PCI Express slots: 1
  • PCI Express slots: 3.0
  5.0

I/O

• Internal I/O connector (8-pin): 1
• ATX power connector (24 pins): Yes
• Jumper Clear CMOS: Yes
• Intrusi connector to chassis: Yes
• Fan connector: Yes
• TPM Connector: Yes
• USB 2.0 Connectors: 2
• USB 3.2 connectors: 2
• USB connectors C: 1
• N &uidermof connectors to chassis fan: 6
• N &uterer of SATA connectors 3: 6
• Connectors M. 2: 4
• Strips RGB/LED Connectors: 1

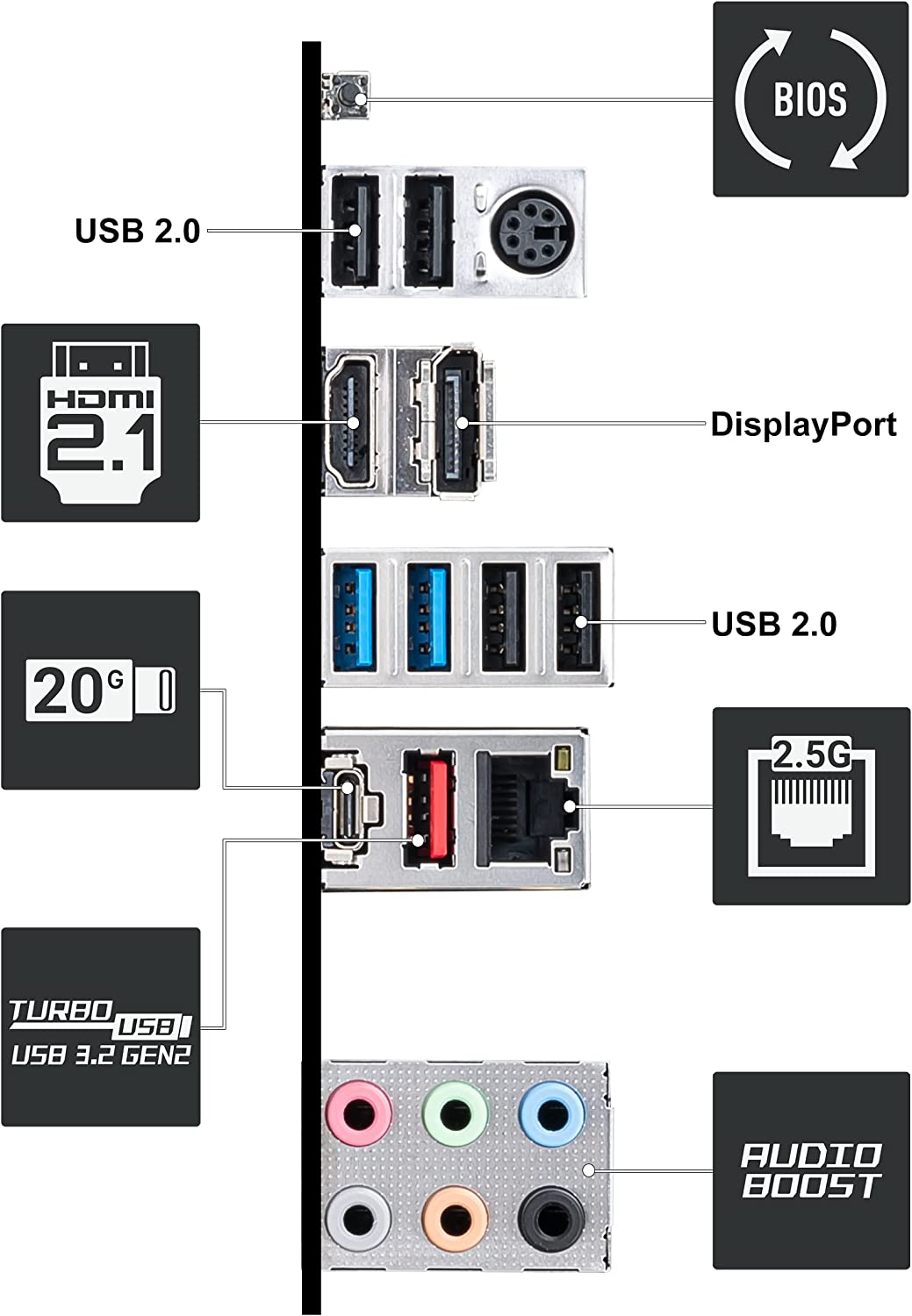

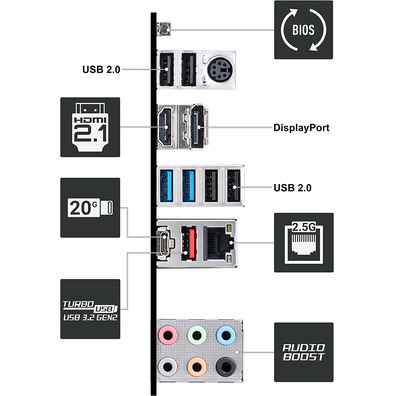

Rear Panel I/O Ports (Input/Output)

• Speaker, headphone, jack of output: 5
• Amount of DisplayPorts: 1
• Number of HDMI ports: 1
• Amount of USB 2.0 ports: 4
• Number of USB ports 3.2: 3
• Number of USB Type-C ports: 1
• Ethernet (RJ-45): 1
• Micr &o, jack of input: 1
• Port of rat ó keyboard PS/2: 1

Storage regulators

• RAID levels: 1, 10, 5, 0

• Character &iansports
Yes
• Ethernet Controller: Intel I225-V
• Ethernet:
Weight and dimensions
• Width: 24.4 cm
• Depth: 30.5 cm
