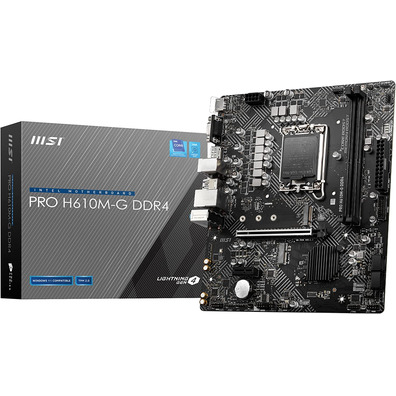

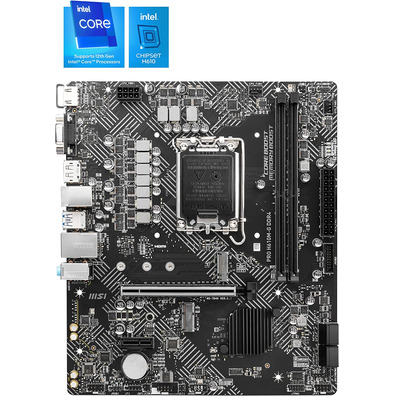

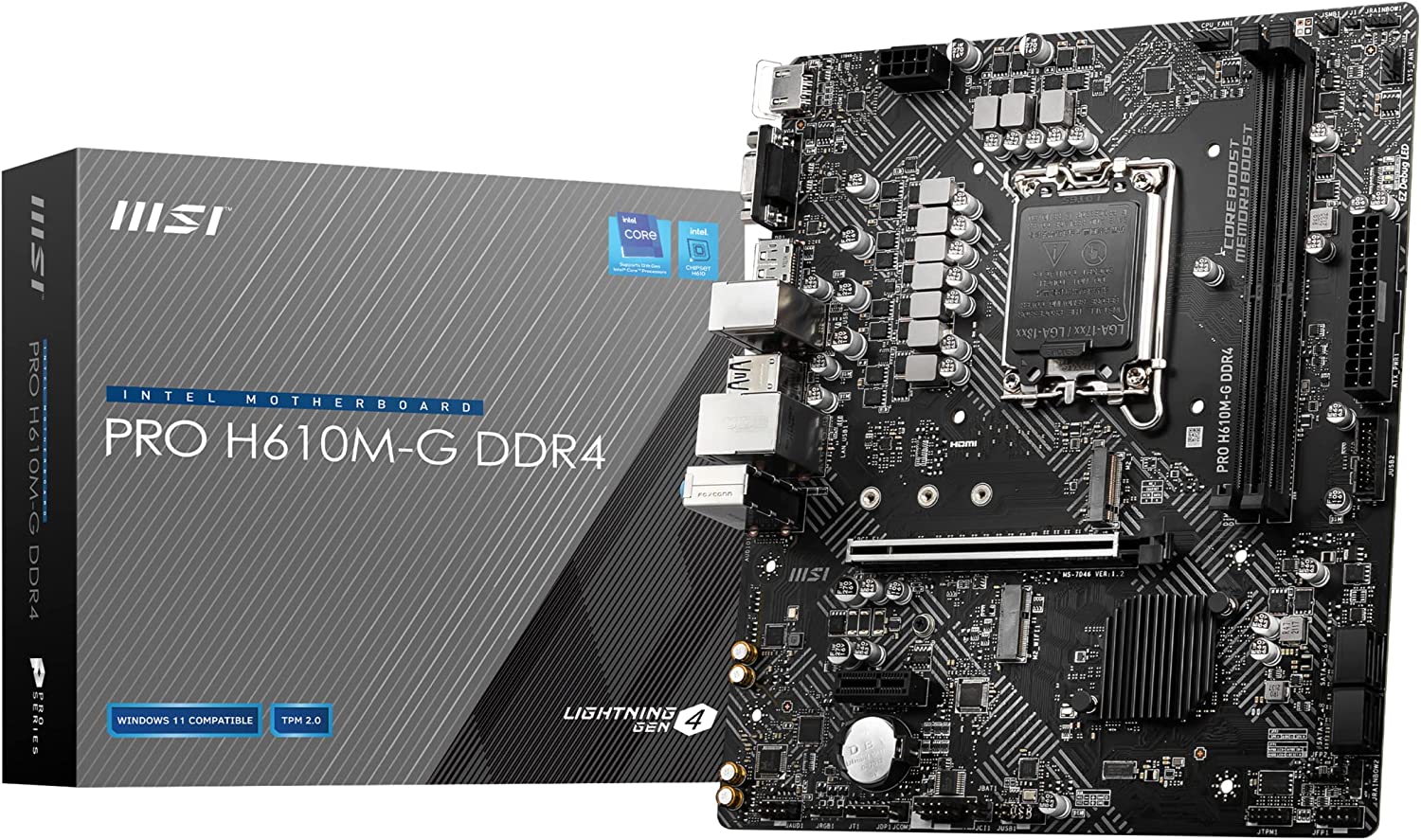

MSI 1700 H610M-G Base Plate

MSI Base Plate 1700 H610M-G

The PRO series helps users to work intelligently by providing an efficient and productive experience. With stable functionality and high quality assembly, the base plates of the PRO series do not provide optimized professional workflows, but also a smaller number of errors and longer longevity.

DISE Ñ OR USER-FRIENDLY

The MSI base plates have tons of ñ or convenient and intelligent for assemblers, countless system adjustment tools, and problem solving to bring the system to new heights and satisfy even the demanding user.

COOLING

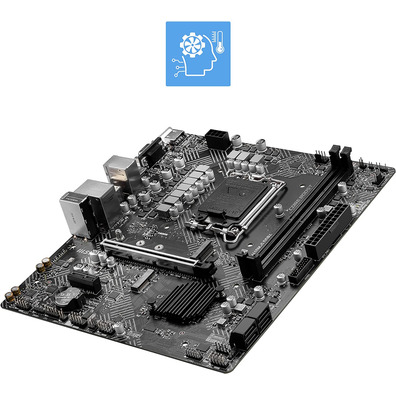

FROZR AI COOLING

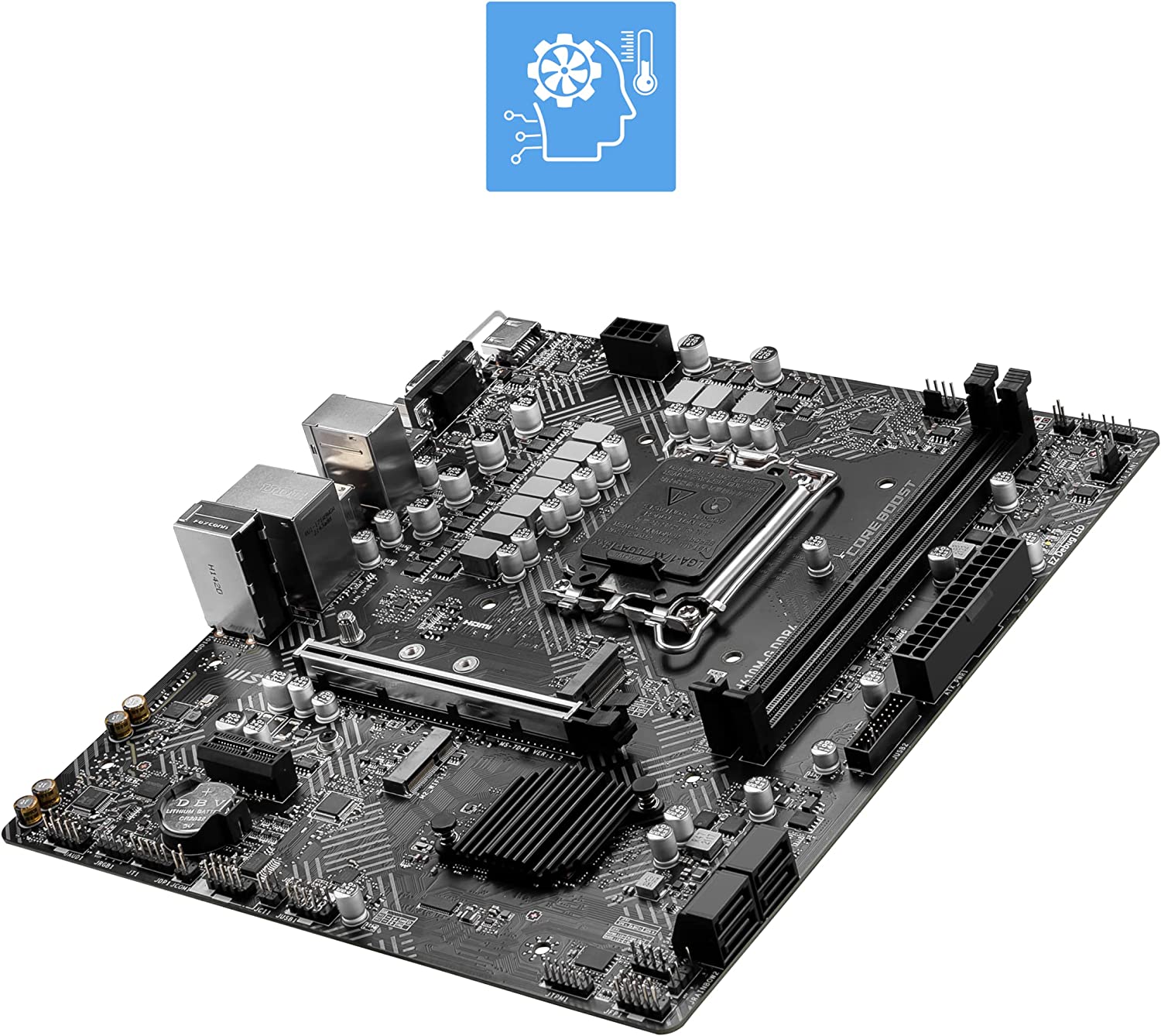

Detects CPU and GPU temperatures and adjusts the performance of system fans to an appropriate value by using the MSI AI ENGINE &oatro n.

TOTAL FAN CONTROL

The MSI motherboards allow you to manage speeds and temperatures for all fans of your system and CPU. Total Fan Control allows you to verify the main features of your system in a simplified graphical interface. You can also configure up to 4 temperature targets for the CPU and motherboard, which will adjust the speed of the autom fan.

DISE Ñ O

EZ DEBUG LED

¿ Have problems? The built-in LEDs for the key components will indicate the source of the problem so that you know exactly how to search for it to work again.

COMPATIBILITY

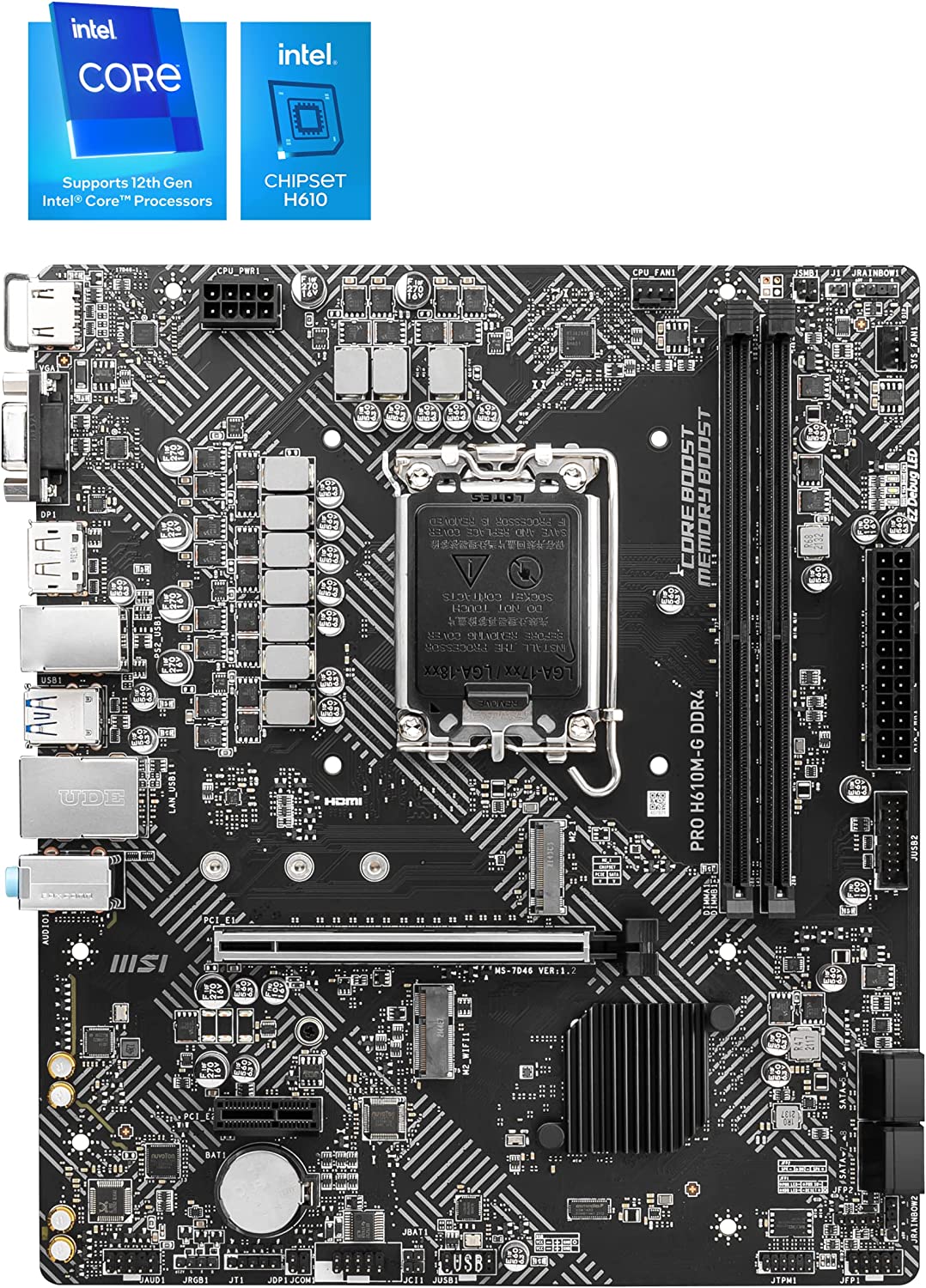

• 12 ª Intel Core Processor Support.
• Extreme stability and compatibility tests for memory.
• Certified for Windows 11.

TRUSTED COMPONENTS

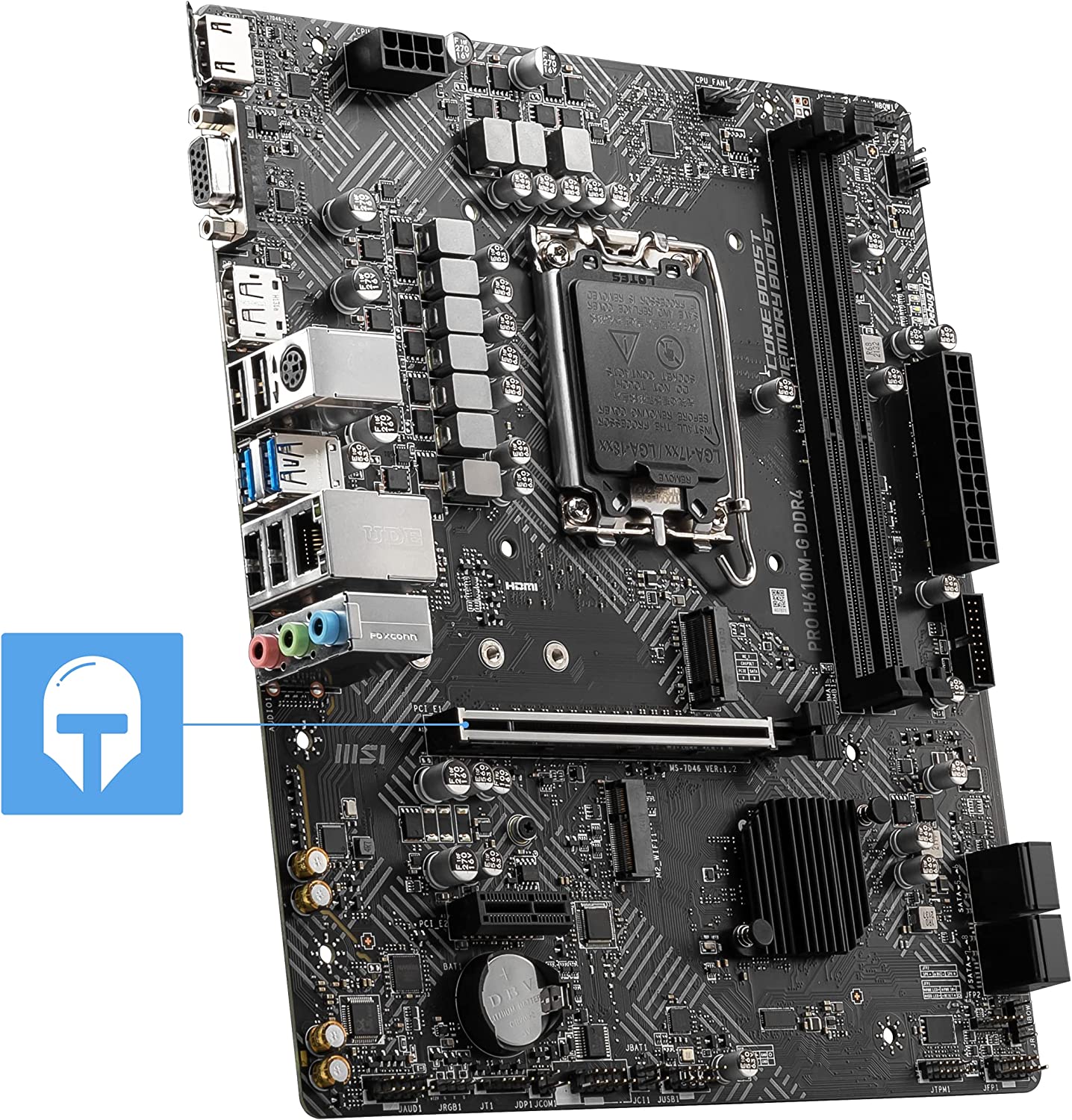

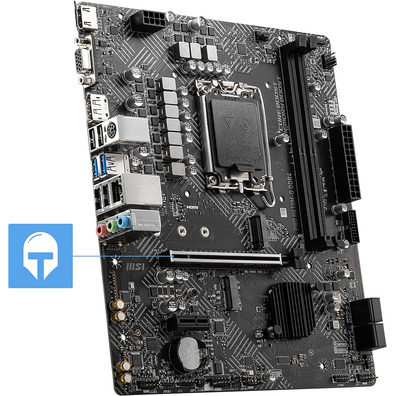

PCI-E STEEL ARMOR

The MSI PCI Express Steel Armor slots are secured to the motherboard with additional soldering points and support the weight of heavy graphics cards. When each advantage in the games counts, Steel Armor protects the point of contact from the &etical interference.

M &AICAS XIMA BASE PLACA &OAIDN

The double ESD protection doubles the connection layer to ground around the mounting holes, which prevents the downloads from being ñ on the motherboard.

CONNECTIVITY

What is important for the assembly is the ability to expand &o. The base plates of the MSI PRO series have many possibilities for the needs of the prosumers. Stable LAN, storage m &aaists r & USB transfer speed and other expandable connectors are ready to increase your flexibility.

RED

LAN ADMINISTRATOR

MSI LAN Manager classifies and prioritizes autom &athetically with latency-sensitive applications, bringing the best experience in the line with low latency.

STORAGE

STORAGE R &AACAS I ASK AND READY FOR THE FUTURE

The base plates of the MSI PRO series are compatible with the latest storage standards, allowing users to connect any ultra-high storage devices. Greater efficiency makes your job more efficient.

USB

USB 3.2 GEN 1

Transfer a lot of data, m &uosica sica, and pel &iacuticles a trav s of USB m &aecons f &ausefully. The USB 3.2 Gen 1 ports are ready for both front and rear I/O, providing a wide variety of options for connecting your USB 3.2 Gen 1 devices.

Specifications:

• Format: Micro ATX
• Chipset: Intel H610
• Amount of PCI Express slots: 2
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, Serial ATA III
• N Number of supported processors: 1
• • Processor Socket: Socket 1700
  • Processor Family: Intel Celeron, Intel Core i3-12 ª Gen, Intel Core i7-12 ª Gen, Intel Pentium Gold
• Memory
  • Slots of memory: 2x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 64 GB
  • Non-ECC: Yes
  • Memory without buffer: Dual
  • Supported memory types: DDR4-SDRAM
  • Supported memory clock speeds: 2133 MHz, 2666 MHz, 2933 MHz, 3200
• Audio
  • Audio output channels: 7.1
  • Audio system: Realtek ALC892, Realtek ALC897
• Expansion Slots &oatecn
  • PCI Express Configurations: 1 x1, 1 x16
  • N PCI Express slots (total): 2
  • X1 PCI Express slots: 1
  • PCI Express slots: 3.0, 4.0

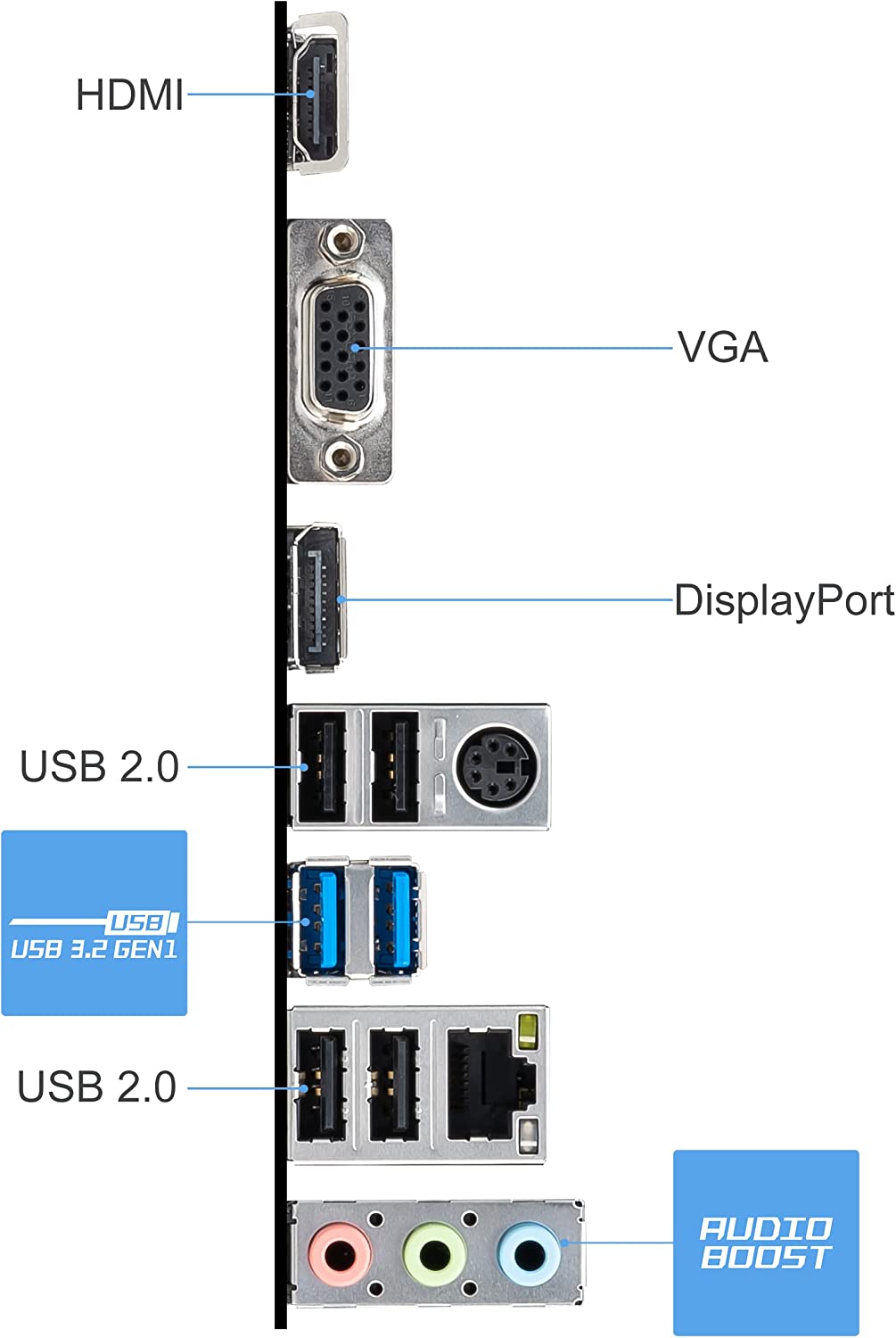

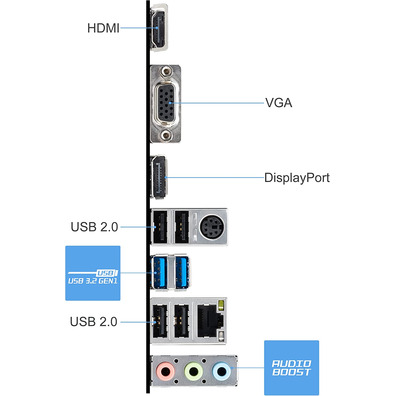

I/O
I/O connector: Yes
• Front panel audio connector: Yes
• Jumper Clear CMOS: Yes
• Intrusi connector to chassis: Yes
• Fan Connector: Yes
• TPM Connector: Yes
• USB 2.0 Connectors: 2
• USB connectors 3.2: 2
• N &uidermof connectors to chassis fan: 2
• N &uterer of SATA connectors 3: 4
• Connectors M. 2: 1
• RGB/LED strips (Input/Output
• Speaker, headphone, jack of output: 2
• Amount of DisplayPorts: 1
• N HDMI port number: 1
• Number of USB ports 2.0: 4
• Amount of USB ports 3.2: 2
• Ethernet (RJ-45): 1
• Micr &o, jack of input: 1
• Port of rat ón-keyboard PS/2: 1
