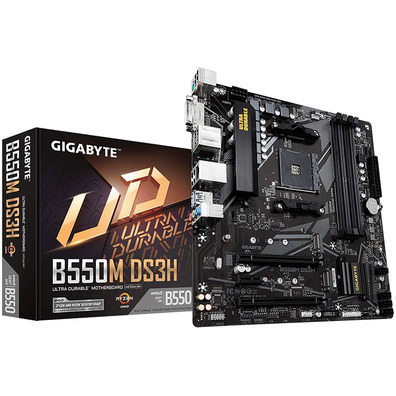

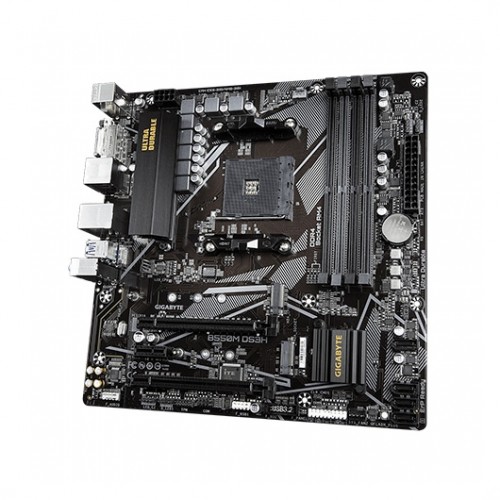

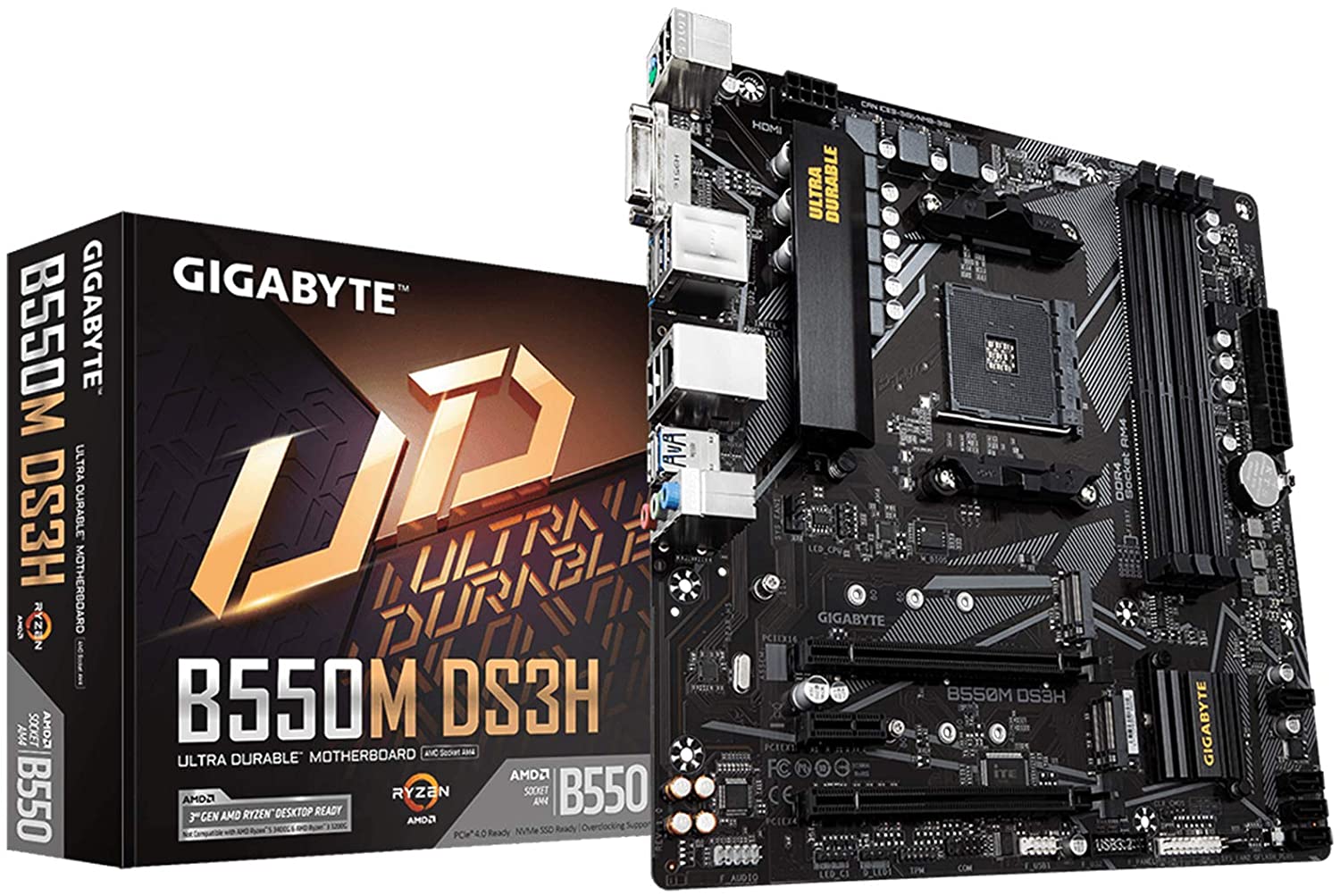

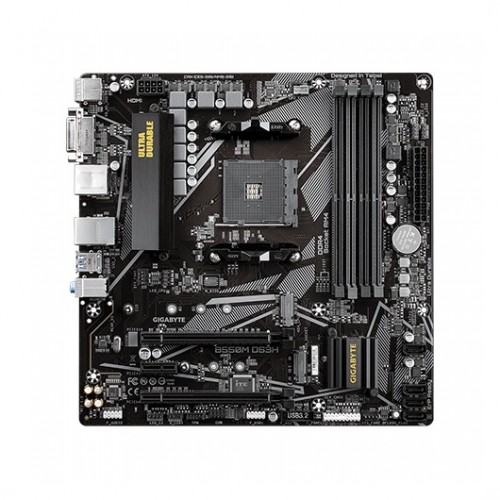

Gigabyte B550M DS3H AM4 Base Plate

B550M DS3H AM4 Gigabyte Base Plate

CURRENT Ó N

5 + 3 VRM digital with Low RDS

Gigabyte base plates use MOSFET Low RDS (on) which reduce energy waste &iachares a through the dissipation of unnecessary residual heat. All of this is equivalent to a power-to-tangible energy saving that is beneficial for both end users and the environment without affecting system performance.

CONNECTIVITY

NVMe PCIe 4.0/3.0 M. 2 Dual Connectors

With the integrated NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x2 M. 2 connectors, the GIGABYTE motherboards offer users the NVMe or SATA connectivity experience for M. 2 SSD devices. With a data transfer rate of up to 64 Gb/s, the ñ or the dual M. 2 connectors provides an ideal storage solution while supporting RAID modes.

Exclusive LAN for Realtek 8118 games

Realtek 8118 LAN is a high performance and friendly network chip for players with the use of bandwidth to ensure the highest network priority of the game or application. You can provide users with the complete m &aws and Internet experience m &aacors r & fluid experience.

HDMI 2.1 for 4K/60/21: 9/HDCP 2.3 Support

HDMI 2.1, which is compatible with previous versions of HDMI 2.0/1.4 and offers 48 Gb/s of bandwidth, twice m &aasties as the previous generation. This frees up the potential for users to transfer m &uantiples video transmissions, as well as a native 21: 9 release, Full HDR and HDCP 2.3 support, to provide the best visual experience for viewers.

COOLING

Smart Fan 5

With Smart Fan 5, users can ensure that PC for games can maintain performance while remaining cool. Smart Fan 5 allows users to exchange fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 have been introduced m &iactionals fan heads that support PWM and Voltage mode fans to make the motherboard friendly with cooling

.

Fan Stop

With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specific threshold. The fan stops, and the readings of the sensor are stopped, and the temperature can be customized to your liking.

ILLUMINATING N

RGB Fusion 2.0

With the B550 base plates, RGB Fusion 2.0 is better with addressable LEDs. The RGB Fusion 2.0 offers users the option of controlling RGB onboard and external RGB/addressable LED light strips for the construction of the PC. RGB Fusion 2.0 is now updated to improve addressable LED compatibility. With external addressable LED strips, where each LED is digitally addressable so that users can experience patterns, styles and illuminations.

AUDIO

High-end audio condensers

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high-resolution audio and high fidelity to provide realistic sound effects for players.

Audio Noise Protector

GIGABYTE motherboards feature an audio noise shield that essentially separates the sensitive ógous anal audio components from the possible PCB-level contamination plate.

ULTRA DURABLE

Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory, and gr card or enter the BIOS to update the BIOS. Simply download and save a new BIOS file on the USB flash drive, then press the dedicated Q-Flash Plus bot and ready.

Lido pin &oatecon feed connectors

The B550 motherboards feature ATX 12V 8pin-plated power supply connectors to provide a stable power supply while the CPU is overloaded.

Protecci &oatecn &oastin

Sulfur compounds in the air can penetrate the ñ as resistors on board, creating a change that is chemical and causing these resistances to open or shorten. If any of these occur, the motherboard will not work. By equipping the resistors with a ñ or anti-sulfur dise, GIGABYTE gives the ultra-durable motherboards a completely new meaning.

Specifications:

• Details t &eUcics
  • Format: Micro ATX
  • Chipset: AMD B550
  • Amount of PCI Express slots: 3
  • Processor family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4

Processor

• Processor Socket: Socket AM4
• Processor Family: AMD Ryzen 3000

Memory

• Memory slots: 4x DIMM
• Memory slot type: DIMM
• Memory internal memory: 32 GB
• ECC: S &iute;
• Memory without buffer: S &iute;
• Support for channels memory: Dual
• compatible memory types: DDR4-SDRAM
• Supported memory clock speeds: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3333 (OC), 3600 (OC), 4600 (OC), 4400 (OC), 4600 (OC), 4733 (OC)
• 4600 (OC), 4400 (OC)

Audio

• Audio output channels
2, 4, 5.1, 7.1
• Audio system: Realtek ALC887
• Expansion slots &oatucn
  • PCI Express configurations: 1 x1, 2 x16
  • NPCI Express slots (total): 3
  • X1 PCI Express slots: 1
  • PCI Express slots x16: 2
  • Versi PCI Express entries: 3.0, 4.0

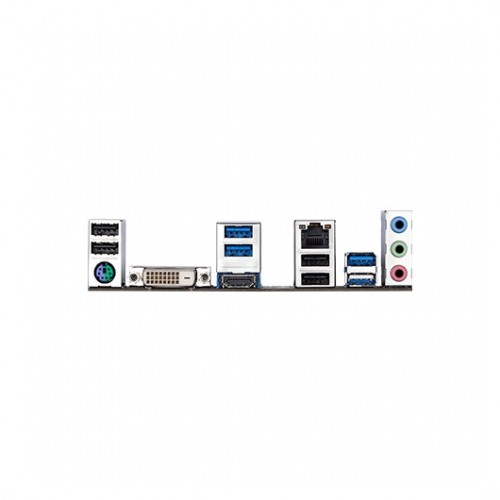

I/O
• Power connector &iUte; s (8-pin): 1
• ATX power connector (24 pins
:
• &iute;
• Jumper Clear CMOS: S &iute;
• TPM connector
S &iute;
• USB 2.0 connectors: 1
• USB 3.2 connectors: 1
• N chassis fan connector number: 2
• N SATA connector number &uendos 3: 4
• Connectors M. 2: 2
• RGB/LED strips: 4
• Serial port connector
  1
  • Speaker, headphone, output jack: 3
  • Number of DVI-D ports: 1
  • Number of USB 2.0 ports: 4
  • Number of USB ports 3.2: 4
  • Ethernet (RJ-45): 1
• Storage Regulators
  • RAID Levels: 0, 1, 10
• • Bluetooth: No
  • Networking &oatern: S &iaceras
  • Ethernet Controller: Realtek GbE
  • Wi-Fi:
  • BIOS
    • BIOS, tama ñ or memory: 256 MB
    • Versi &oacution ACPI
    5.0
    • Weight and dimensions
      • Width: 24.4 cm
      • Depth: 24.4 cm
