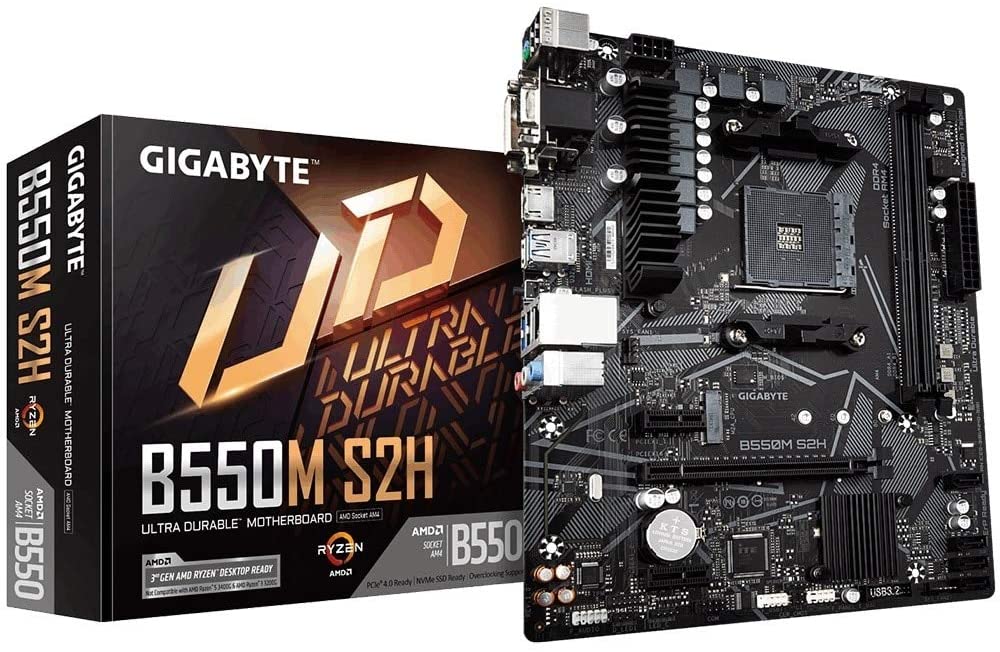

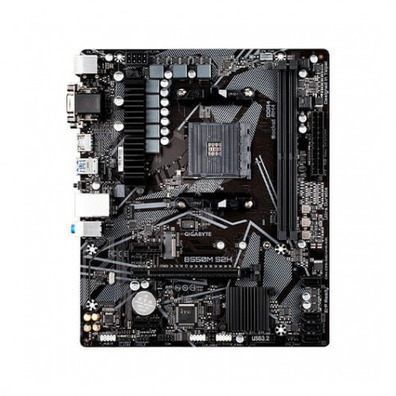

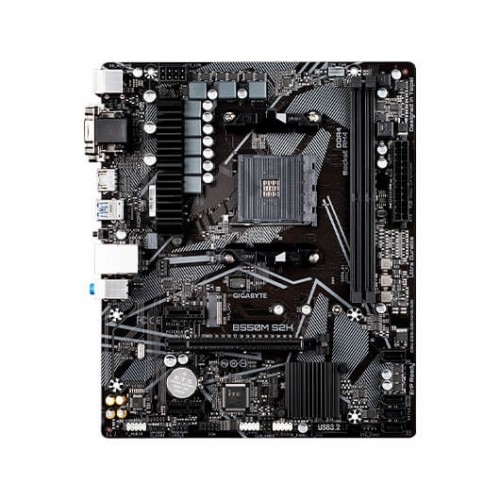

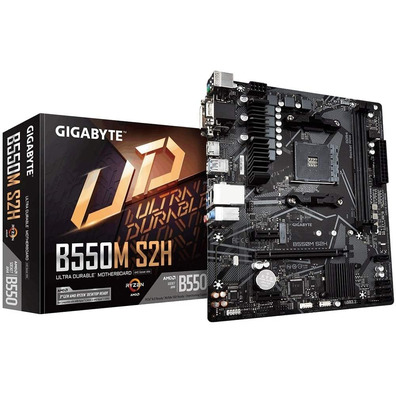

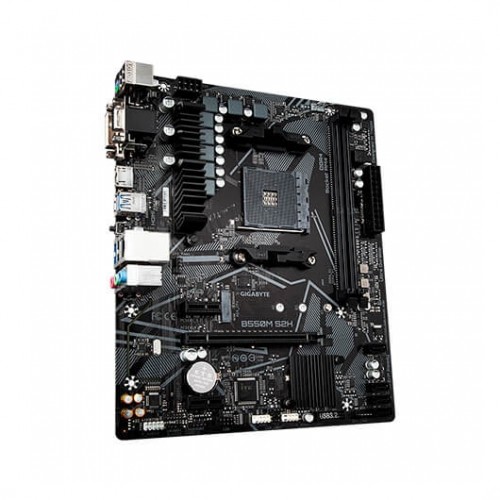

Gigabyte B550M AM4 S2H 1.0 Base Plate

B550M AM4 S2H 1.0 Gigabyte Base Plate

GIGABYTE B550 motherboards maximize your PC's potential with the AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce startup times and improve overall user experience. This easy-to-use f &aetule utility combines the speed of SSDs with the high capacity of HDDs in a single drive, improves the read/write speeds of the device to match SSDs, strengthens the performance of data to obtain an uncrate value and transforms the PC into a performance-driven system.

CURRENT Ó N

• 5 + 3 VRM digital with Low RDS

Gigabyte base plates use MOSFET Low RDS (on) which reduce energy waste &iachares a through the dissipation of unnecessary residual heat. All of this is equivalent to a power-to-tangible energy saving that is beneficial for both end users and the environment without affecting system performance.

• 4.0/3.0 M. 2 NVMe Connector

With the integrated NVMe PCIe 4.0/3.0 x4 connector, the GIGABYTE motherboards offer users the NVMe or SATA connectivity experience for M. 2 SSD devices. With a data transfer rate of up to 64 Gb/s.

• exclusive LAN for Realtek games 8118

Realtek 8118 LAN is a high performance and friendly network chip for players with the use of bandwidth to ensure the highest network priority of the game or application. You can provide users with the complete m &aws and Internet experience m &aacors r & fluid experience.

• The LAN l &iuderuder in the protection industry against surges and ESD

GIGABYTE's base plates use integrated circuits with up to 3 times the ESD resistance levels in comparison with traditional integrated circuits. This helps to better protect the motherboard and components against possible ñ s caused by electricity. The GIGABYTE base plates also feature special anti-overtensi integrated circuits that protect your motherboard and PC from any increase in power supply to it, which helps ensure your PC is equipped to deal with any potentially irregular and inconsistent power supply.

• 2.1 for 4K/60/21: 9/with HDCP 2.3 support

HDMI 2.1, which is compatible with previous versions of HDMI 2.0/1.4 and offers 48 Gb/s of bandwidth, twice m &aasties as the previous generation. This frees up the potential for users to transfer m &uantiples video transmissions, as well as a native 21: 9 release, Full HDR and HDCP 2.3 support, to provide the best visual experience for viewers.

• -end audio condensers

GIGABYTE's base plates use high-end audio capacitors. These high quality capacitors help deliver high resolution audio and fidelity to provide realistic sound effects for players.

Audio noise guard
GIGABYTE's base plates feature an audio noise shield that essentially separates the sensitive plate-sensitive anal audio components from the possible PCB level contamination.



COOLING

• Smart Fan 5

With Smart Fan 5, users can ensure that PC for games can maintain performance while remaining cool. Smart Fan 5 allows users to exchange fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 have been introduced m &iactionals fan heads that support PWM and Voltage mode fans to make the motherboard friendly with cooling

.
• Fan Stop

With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specific threshold. The fan stops, and the readings of the sensor are stopped, and the temperature can be customized to your liking.

• Brig fan pin headers

&iex; Assume full control over your cooling configuration &oatutin l &iaction! Smart Fan 5 receives updated information to the second on the water flow rate and temperature to bring the plug plug connectors h &iaceras or external thermistor sensors, which gives you an absolute mastery over your PC.

ILLUMINATING N

• Fusion 2.0

With the B550 base plates, RGB Fusion 2.0 is better with addressable LEDs. The RGB Fusion 2.0 offers users the option of controlling RGB onboard and external RGB/addressable LED light strips for the construction of the PC. RGB Fusion 2.0 is now updated to improve addressable LED compatibility. With external addressable LED strips, where each LED is digitally addressable so that users can experience patterns, styles and illuminations.

ULTRA DURABLE

• Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory, and gr card or enter the BIOS to update the BIOS. Simply download and save a new BIOS file on the USB flash drive, then press the dedicated Q-Flash Plus bot and ready.

• Lido pin &oatecon feed connectors

The B550 motherboards feature ATX 12V 8pin-plated power supply connectors to provide a stable power supply while the CPU is overloaded.

• Protecci &oastin &oatecn

Sulfur compounds in the air can penetrate the ñ as resistors on board, creating a change that is chemical and causing these resistances to open or shorten. If any of these occur, the motherboard will not work. By equipping the resistors with a ñ or anti-sulfur dise, GIGABYTE gives the ultra-durable motherboards a completely new meaning.

GIGABYTE EXCELLENCE

• updated BIOS

The BIOS is essential for users during the initial configuration to allow for the configuration. With a new GUI and functionality m &arecuciles to use, GIGABYTE has been able to reinvent the BIOS to give users a better experience when configuring your new system.

• Center

GIGABYTE APP CENTER is a useful portal for all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and driver versions.

• EasyTune

GIGABYTE EasyTune offers a simple and easy to use interface so that users can make fine adjustments to the configuration of your systems or adjust the clock and system voltages in a Windows environment. With Smart Quick Boost s &oacuerso you need a click to do overclocking the system's autom, which offers an additional push to the system performance when you need it.

• @BIOS

The GIGABYTE @BIOS application allows you to update your system BIOS from Windows using a simple and elegant user interface. @BIOS can download the latest version of the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image, and back up your BIOS in an image.

• Information Viewer

The system information viewer (System Information Viewer) of GIGABYTE is the central point that gives access to the current state of the system. It allows you to monitor components such as the clock and processor, set a fan speed profile, create alerts on temperature rises, or record system behavior.



Specifications:

• Details T &eUcics
  • Format: Micro ATX
  • Chipset :AMD B550
  • Amount of PCI Express slots: 3
  • Processor family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 2
Processor
• Processor Socket: Socket AM4
• Processor Family: AMD Ryzen 3000
• Memory
  • Memory slots: 2x DIMM
  • Memory slot type: DIMM
  • Memory internal memory: 32 GB
  • ECC: S &iute;
  • Memory without buffer: S &iute;
  • Support for channels memory: Dual
  • compatible memory types: DDR4-SDRAM
  • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3333 (OC), 3600 (OC), 4600 (OC), 4866 (OC), 5000 (OC), 5100 (OC)
    5000 (OC), 5100 (OC)
• Audio
  • Audio output channels
  2, 4, 5.1, 7.1
  • Audio system: Realtek ALC887
  • Expansion slots &oatucn
  • PCI Express Configurations: 1 x16, 2 x1
  • N &uatueros (total) of PCI Express slots: 3
  • PCI Express slots: 2
  • PCI Express slots: 1
  • Versi &o. of PCI Express entries: 3.0, 4.0
  • Internal I/O
    • Connector to EPS (8-pin): 1
    • ATX power connector
    24 pins): S &irector
    • Jumper Clear CMOS: S í
    • Intra-to-chassis connector: S &iute;
    • Fan connector: S &iute;
    • TPM Connector: S &iUtias
    • USB 2.0 Connectors: 1
    • USB connectors 3.2: 1
    • N &uiders-only connectors to chassis fan: 2
    • N &uterer of SATA connectors 3: 4
    • Connectors M. 2: 1
    • RGB/LED strips connectors: 1

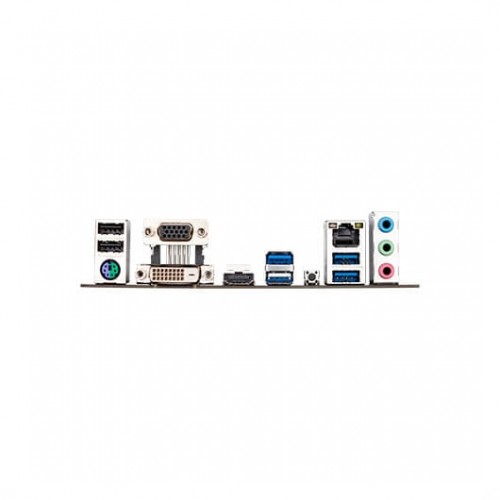

  • Rear Panel I/O (Input/Output)
    • Number
    DVI-D ports: 1
    • VGA (D-Sub): 1
    • Number of USB 2.0 ports: 2
    • Quantity of USB 3.2: 4
    • Ethernet (RJ-45) ports: 1
    • PS/2 Port &oatro Port: 1
• Storage Regulators
  • RAID Levels: 0, 1, 10
• • Bluetooth
  No
  • Ethernet:
  • Wi-Fi: No
  BIOS
  • BIOS, tama ñ
  memory: 256 MB
  • BIOS Types: UEFI AMI
  • Versi &oatuente ACPI: 5.0
  • Weight and dimensions
    • Width: 24.4 cm
    • Depth: 20.5 cm
