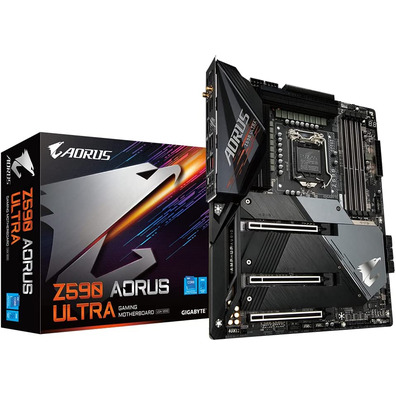

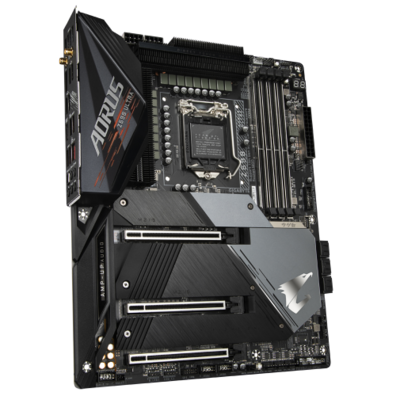

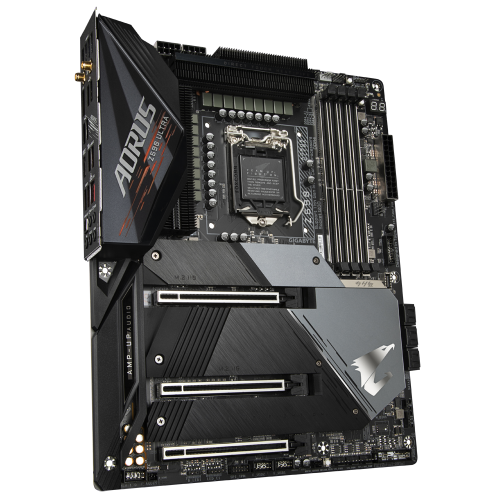

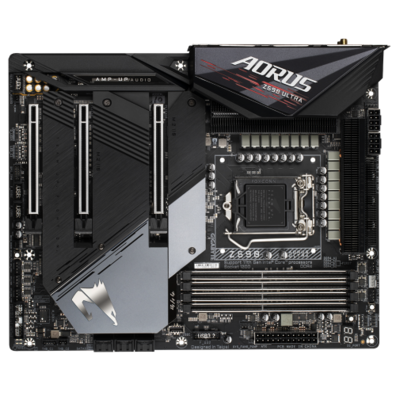

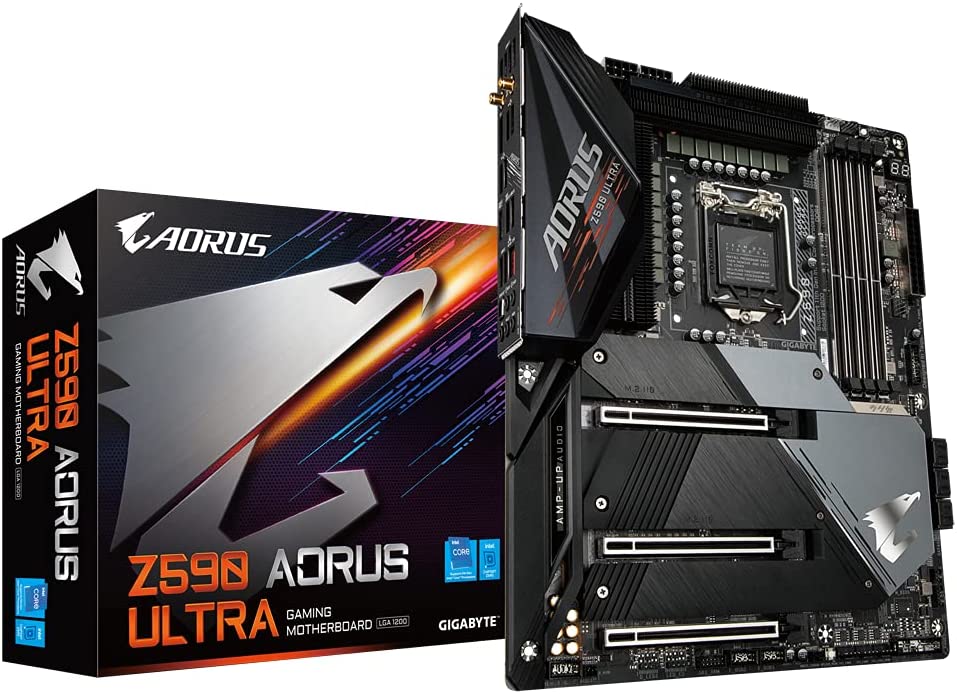

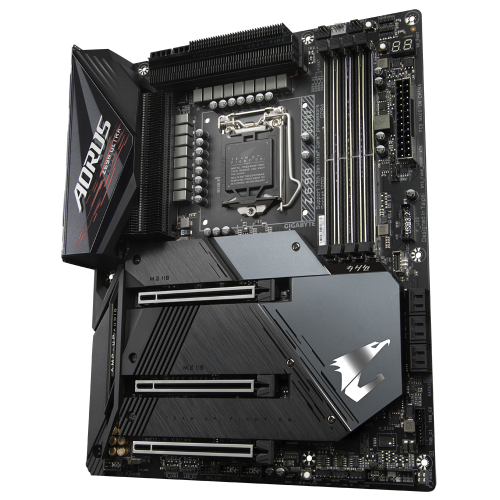

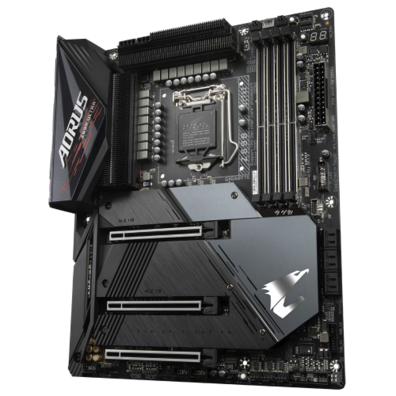

Gigabyte 1200 Z590 Aorus Ultra Base Plate

Gigabyte 1200 Z590 Aorus Ultra Base Plate

The Z590 AORUS ULTRA comes with an improved energy performance &o &o n &o, all dise ñ or PCIe 4.0 and outstanding connectivity to bring your gaming experience to the next level.

To fully support the latest 11 ª generation CPU &o, the Z590 AORUS ULTRA is equipped with the power of the final generation &iUtites with the desired characteristics: direct, digital and m &utillas phases. After countless experiments and tests, GIGABYTE presents the unbeatable Z590 AORUS ULTRA for Gamers and enthusiasts.

8 + 8 CPU FEED CONNECTOR 8 + 8 S &OAIDLAS WITH MET SHIELDING

Z590 AORUS ULTRA uses a ñ or a pure digital CPU power that includes a digital PWM controller with intelligent power stages and is capable of providing 90 A power of each phase for a total of 1440 A. This 100% digital controller, the new matrix of the top-of-the-line polymer and the 8 + 8-pin CPU power connectors offer a precision &o-power supply to the energy-consuming base-plate components.&iute; a.

VRM ARCHITECTURE

To unleash the full performance of the new high-n &ueudos number of cleos, GIGABYTE uses real power phases, a fully balanced Dñ or VRM with duplicators and a matrix of tantalum-grouse pol capacitors. When using duplicators, the ñ or power íres ensures that the high power consumption of the CPU is completely balanced in all MOSFET to achieve better efficiency and low temperatures. On the contrary, the MOSFET of the competitors The dise ñ traditional power in parallel is not so well balanced, leading to lower efficiency and high temperatures. For sudden changes between the idle and high CPU load states, GIGABYTE uses a matrix of the tantalum-grouse pol &iuders directly below the CPU's z &oquiescent as a b &uacuerdo to improve the transient response and stability under high CPU frequencies.

ENHANCED TRANSIENT RESPONSE

When using the new Dñ or VRM and the matrix of tantalum-grouse pol &iacerus condensers, the transient response and stability of the Z590 AORUS motherboard improve greatly in overclocking and heavy loading conditions.

UNMATCHED PERFORMANCE

For the Z590 series, the protective and optimized memory trace improves performance; higher reading and writing speed that saves time and improves efficiency; and the generous support for M. 2 storage with thermal protection guarantees a read and write performance without the use of the mittes. Future updates to the Z590 are made possible by the use of PCIe 4.0-ready components.

SUPPORT FOR DDR4 XMP UNTIL 5000MHZ AND M &AaTS

AORUS offers a proven and proven platform that ensures proper compatibility with profiles up to 5000 MHz and m &aws. All users must do to achieve this performance increase is to ensure that their memory module is compatible with XMP and that the XMP function is enabled and enabled on its AORUS motherboard.

DISE Ñ OR MARGARITA TYPE STRING

With chain-optimized routing, the Z590 AORUS motherboard provides a proven speed of up to DDR4-5000 + MHz with high-density memory-module. The chain-optimized routing eliminates the stub effect, pushes a DIMM per channel in the two-channel interleaving mode to reach high-memory frequencies, providing the professional players with a memory experience of the dense and r &apacas system.

ARMORED MEMORY ROUTING

All memory routing is below the internal layer of the PCB protected by a large layer of land to protect it from external interference.

ADVANCED RMICA &O N &O ' S

The unthrottled performance is guaranteed by the enhanced solution of the improved thermal performance incorporating Fins-Array II, Heatpipe II and Thermal Guards II. The integral solution offers an excellent heat dissipation. The Z590 AORUS ULTRA remains fresh in VRM and SSD M. 2 even with full load, which makes it suitable for enthusiasts, overclockers and professional players.

FINS II MATRIX

Fins-Array II uses a new technology of blind-stacked fins that is usually only used in industrial equipment that needs compact heat exchangers. It has a special secondary fin structure that improves heat transfer performance.

DIRECT CONTACT HEATPIPE II

With an 8 mm extra large heat pipe and manufactured from a new manufacturing process to reduce the gap between the heat pipe and the heat sink, the new Direct-Touch Heatpipe II helps greatly to transfer heat in the MOSFET.

RMICO ATORUS M. 2 II

Considering durability, GIGABYTE offers a new solution for large capacity SSD M. 2 devices with double-sided flash. The M. 2 Thermal Guard II uses a ñ or double-sided heat sink and avoids bottlenecks and bottlenecks on high-speed M. 2 SSD when dissipating heat before it becomes a problem.

SMART FAN 6

Smart Fan 6 contains several úal cooling features that ensure that the gaming PC maintains its performance while remaining cool and silent. Multiple fan heads can support PWM/DC fans and fans, and users can easily define each fan curve in the function of different temperature sensors in all the MBites using an intuitive user interface.

FAN STOP

Achieves the silence of the fan. With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specified threshold. What fan is stopped, and the readings of the sensor are stopped, and the temperature, everything can be customized to your liking.

NOISE DETECTION

With the new noise detection function, you can monitor the noise level of all devices, including fans, CPU coolers, grt cards, etc. in real time, and you can determine what the speed of your fan should be. The included noise detection cable does not include any sound recording functions.

Specifications:

• Details T &eUcics
  • Format: ATX
• Chipset: Intel Z590
  • Multi-GPU: 2-Way AMD CrossFire, AMD Quad CrossFire
  • Processor Family: Intel
  • Supported Hard Disk Drive Interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4

• Processor Socket: Socket 1200
• Processor Family:   Intel Celeron, Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-11 ª Gen, Intel Core i9-10 ª Gen, Intel Core i9-11 ª Gen, Intel Pentium
