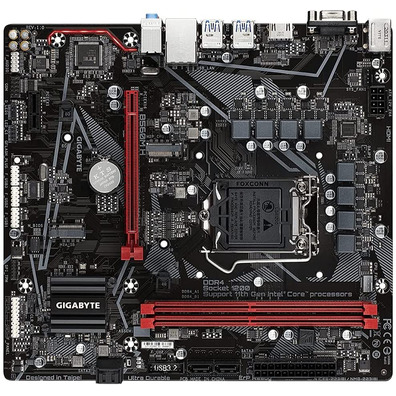

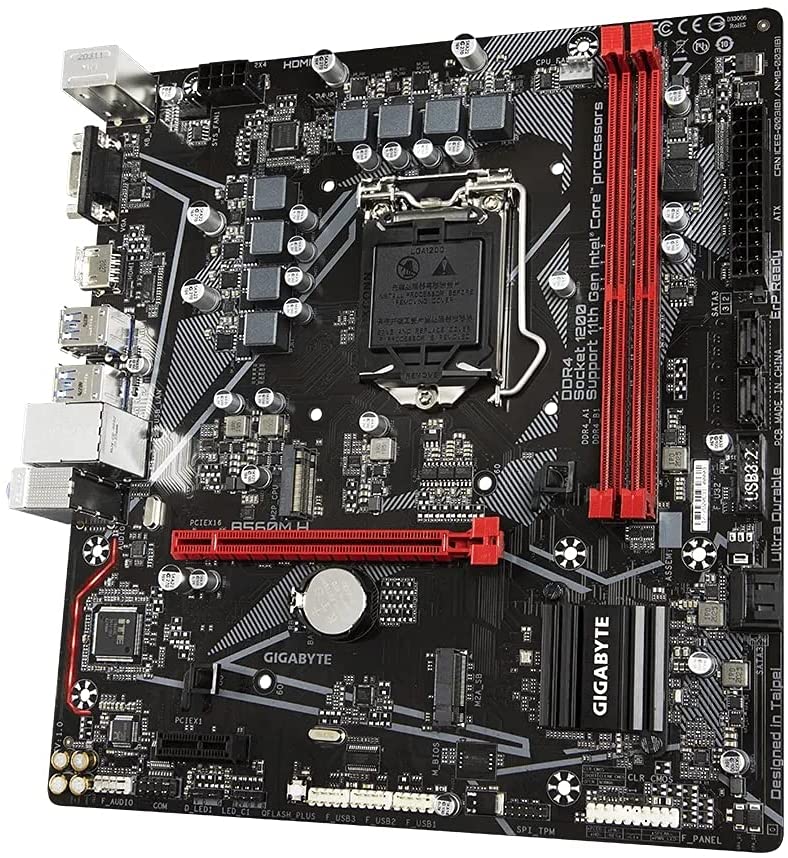

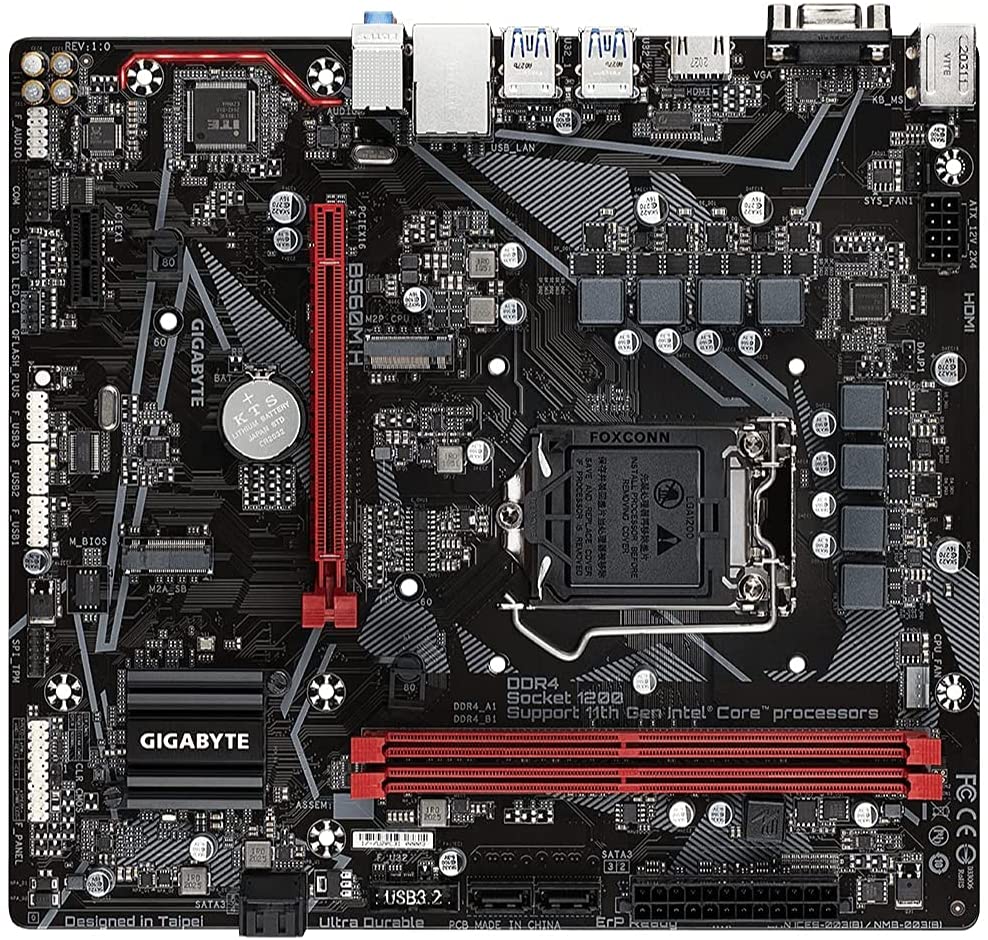

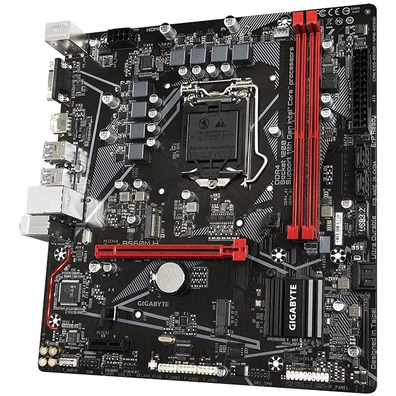

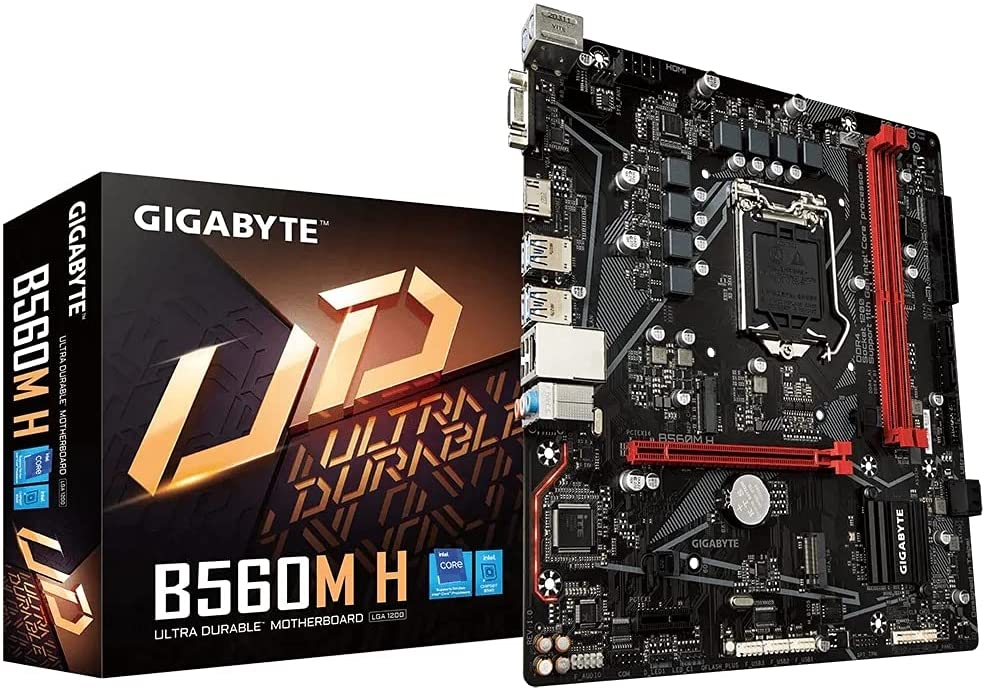

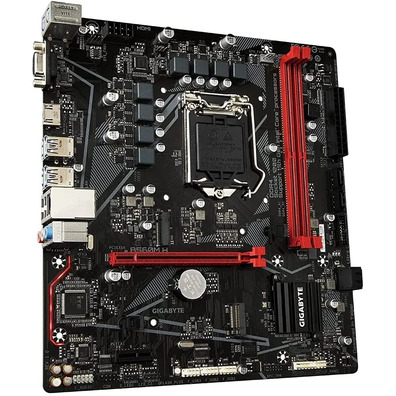

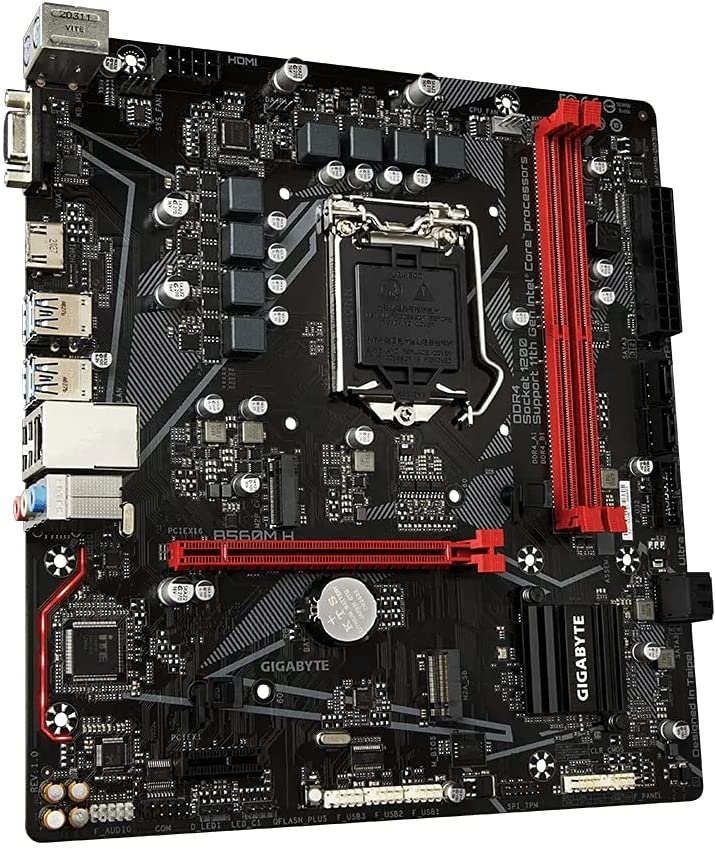

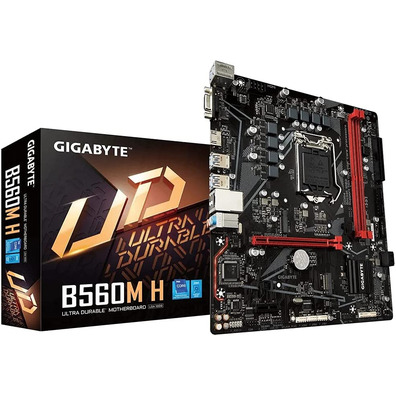

Gigabyte Base Plate 1200 B560M H

Gigabyte Base Plate 1200 B560M H

COOLING

• SMART FAN 6

Smart Fan 6 contains several úal cooling features that ensure that the gaming PC maintains its performance while remaining cool and silent. Several fan heads can support fans and PWM/DC pumps, and users can easily define each fan curve in function of different temperature sensors in all the mbitohs to bring up an intuitive user interface.

• STOP

With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specific threshold. The fan stops, and the readings of the sensor are stopped, and the temperature can be customized to your liking.

CURRENT Ó N

• FOR DDR4 XMP HASTA 4600MHZ AND M &AaTS

GIGABYTE offers a proven and proven platform that ensures proper compatibility with profiles of up to 4600 MHz and m &aws. All users should do to achieve this performance increase is to ensure that their memory module is compatible with XMP and that the XMP function is enabled and enabled on your motherboard.

• GB NICO SUPPORT

The maximum memory capacity of this B560 motherboard is 64 GB. After Intel has performed the memory reference code, a single slot can support up to 32 GB. Therefore, with 2 DIMMs occupied per channel on both channels, the total memory capacity is 64 GB, which was only available on high-end desktop platforms (HEDT). For users who always run out of memory, there are now bandwidth for applications that consume a lot of memory, such as rendering and video.

AUDIO

• -END AUDIO CAPACITORS

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution audio and fidelity to provide realistic sound effects for players.

• AUDIO NOISE PROTECTOR

GIGABYTE motherboards feature an audio noise shield that essentially separates the sensitive ógous anal audio components from the possible PCB-level contamination plate.

CONNECTIVITY

• REALTEK 8118 GAMING LAN

Realtek 8118 LAN is a high performance and friendly network chip for players with the use of bandwidth to ensure the highest network priority of the game or application. You can provide users with the complete m &aws and Internet experience m &aacors r & fluid experience.

• USB TYPE-C

The USB Type-C is a new reversible connector that is loaded with &uteutile functions, such as USB 3.2 Gen1 compatibility for a 10 Gb/s transfer rate. Powered by the Intel USB 3.2 driver Gen1 driver, this ñ or port provides the best type C-USB experience possible.

• HIGH DEFINITION DIGITAL OUTPUTS

Enjoy true HD display capability using the digital technology output technology integrated on the current HD screens and TVs.

ILLUMINATING N

• FUSION 2.0

With the B560 motherboard, RGB Fusion 2.0 is better with addressable LEDs. RGB Fusion 2.0 provides users with the option to control built-in RGB and addressable LED light strips/external RGB for your PC. With color-filled &iacuties and patterns, the RGB Fusion 2.0 motherboards on the B560 series base plates are now updated with addressable LED compatibility. With external addressable LED strips, where each LED is digitally addressable, users can experience patterns, styles, and illuminations.

• RGB SOFTWARE MERGE

With an integrated intuitive user interface, RGB Fusion 2.0 gives you a better solution for customizing the lighting effects on all compatible devices. From motherboards, cards to the rich, you can customize your playing platform with your own style and show your build &oatun sharing the profiles. In addition, the new game mode makes the lighting effects interactive with selected games to give you the immersive game experience.

• APPLY &Oatesn GIGABYTE RGB MERGE

Don't just make your PC shine, I've found it in a work of art that your friends envy. With the application of the GIGABYTE RGB Fusion, users can see how they control the illumination within their PC for games. This gives users ease of access while trying to adjust colors and speeds for different modes, all of which can be achieved away from your PC's keyboard and monitor.

ULTRA DURABLE

• LIDO S &OAIDN N-PIN FEED CONNECTORS

GIGABYTE motherboards are equipped with solid-form-plated feed connectors to provide a stable power supply during CPU overload.

• Q-FLASH PLUS

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory, and gr card or enter the BIOS to update the BIOS. Simply download and save a new BIOS file (by changing the name to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus bot and ready.

• SULPHUR

Sulfur compounds in the air can penetrate the ñ integrated resistors by creating chemical changes and causing these resistances to be opened or short-circuited. If any of these situations occur, the motherboard will not work. By equipping the resistors with a ñ or anti-sulfur dise, GIGABYTE gives the ultra-durable motherboards a completely new meaning.

SOFTWARE

• UPDATED BIOS

The BIOS is essential for users during the initial configuration to allow for the configuration. With a new GUI and functionality m &arecesses f &arecesses to use, GIGABYTE has been able to reinvent the BIOS to give users a better experience while configuring their new system.



• CENTER

GIGABYTE APP CENTER is a useful portal for all the GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest version of utilities and drivers.

• EASYTUNE

EasyTune of GIGABYTE is a simple and easy to use interface that allows users to adjust the configuration of their system or adjust the system and clocks and memory voltages in a Windows environment. With Smart Quick Boost, one click is all that is needed to overclocking autom &athetically the system, which provides an additional performance boost when you need it.

• ' S INFORMATION VIEWER

The GIGABYTE system information viewer is a central location that gives you access to the current state of your system. Monitor components such as clocks and the processor, configure your preferred fan speed profile, create alerts when temperatures are too high, or record your system behavior; these are the capabilities of the System Information Viewer.

Specifications:

• Details T &eUcics
  • Format: Micro ATX
  • Chipset: Intel B560
  • Multi-GPU: No
  • Amount of PCI Express slots: 2
  • Processor family: Intel
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 2
Processor
• Processor Socket: Socket 1200
• Memory
  • Memory slots: 2x DIMM
  • Memory slot type:
  GB
  • Non-ECC: Yes
  • Memory without buffer: Yes
  • Memory channel support: Dual
  • Supported memory types: DDR4
  • Clock speeds of supported memory: 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
• V &iutedeo
  • HDCP: Yes
  • M &axime resoluci &oatun: 4096 x 2160 Pixels
• Audio
  • Audio output channels: 2, 4, 5.1, 7.1
  • Audio system: Realtek
• Expansion slots &oatecn
  • PCI Express configurations: 1 x1, 1 x16
  • N &uetos number (total) of PCI Express slots: 1
  • PCI Express slots: 3.0, 4.0

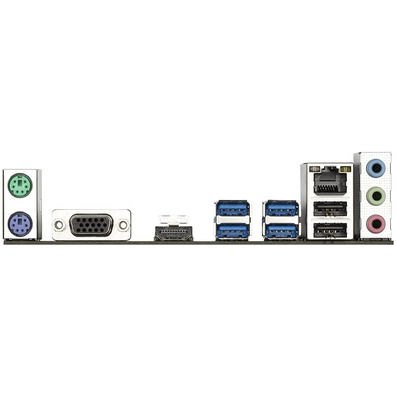

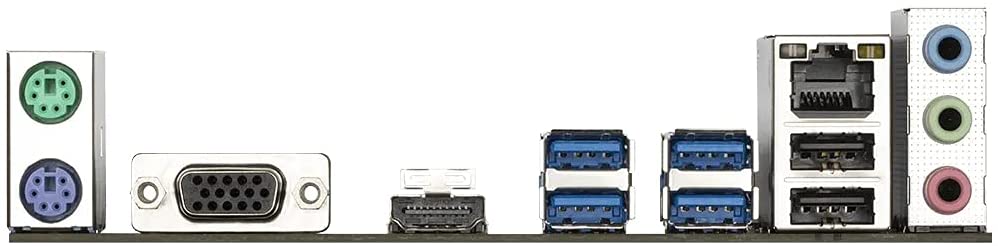

I/O
• Power Connector to EPS (8-pin): 1
• Connector CPU fan: Yes
• ATX power connector (24 pins): Yes
• Front panel audio connector: Yes
• Jumper Clear CMOS: Yes
• TPM connector: Yes
• USB 2.0 connectors: 1
• N &uterer connectors to chassis fan 3: 4
• Plug-ins M. 2: 2
• RGB/LED strips (Input/Output
• • Speaker, headphone, jack of output: 2
  • VGA (D-Sub): 1
  • N HDMI port number: 1
  • Number of USB 2.0 ports: 2
  • Number of USB ports 3.2: 4
  • Ethernet (RJ-45): 1
  • Micr &o, jack of input:   1
  • PS/2 port &obution port: 2
• Bluetooth
No
• Ethernet: Yes
• ethernet interface type: Gigabit Ethernet
• Wi-Fi:
• BIOS
  • BIOS, tama ñ or memory: 256 MB
  • Types BIOS: UEFI AMI
  • Versi &oacutin ACPI: 5.0
  • Weight and dimensions
    • Width: 24.4 cm
    • Depth: 22.5 cm
