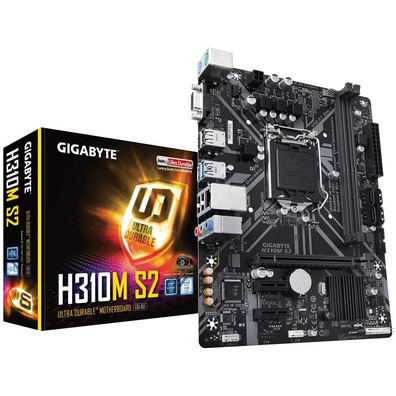

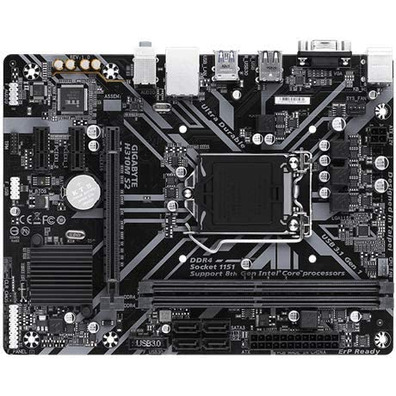

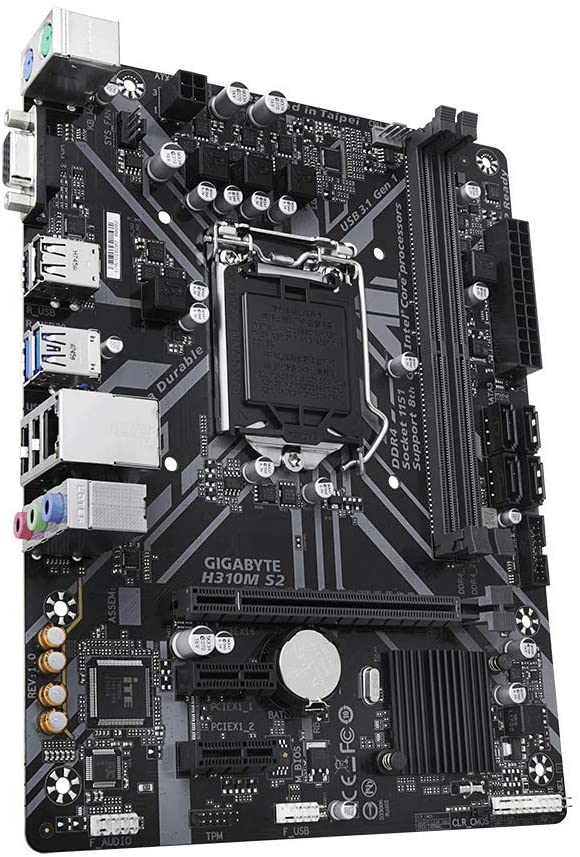

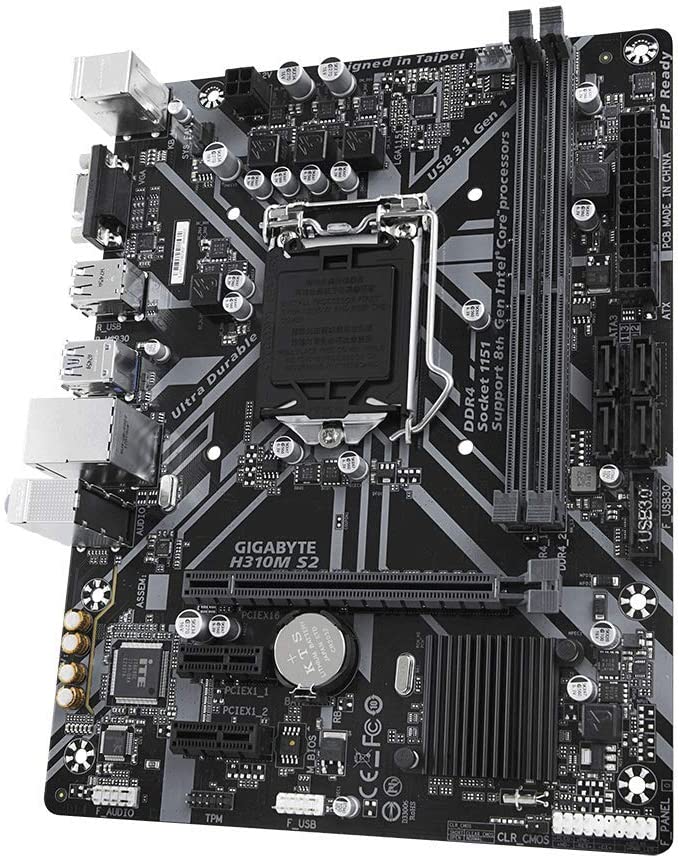

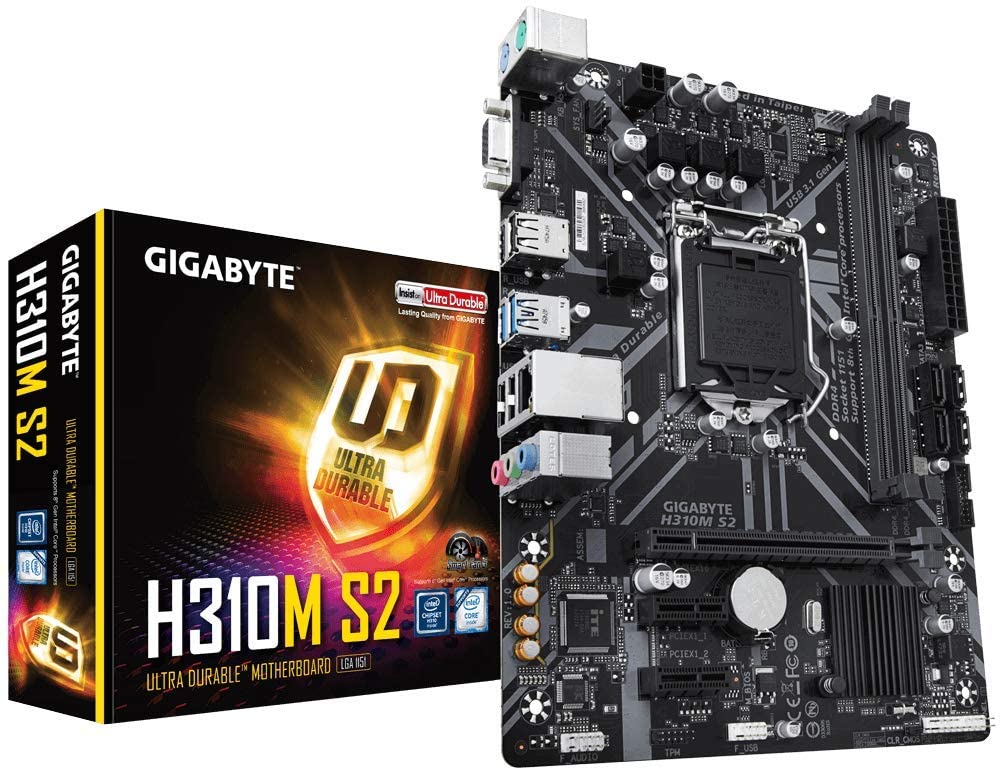

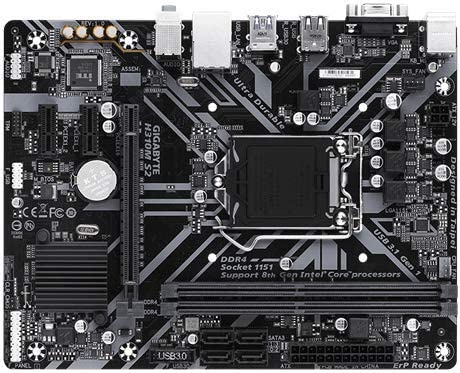

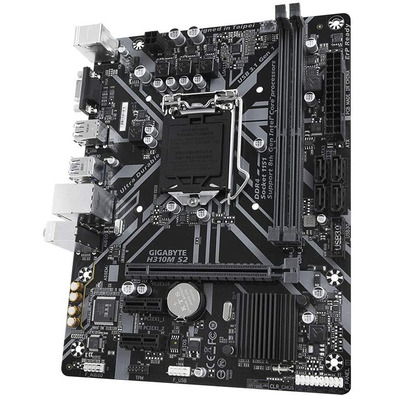

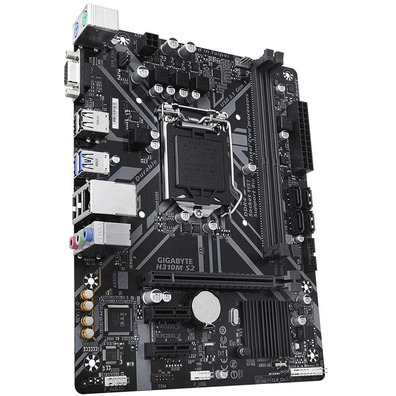

Gigabyte 1151 H310M S2 Base Plate

Gigabyte 1151 H310M S2 Base Plate

CONNECTIVITY

• exclusive LAN for Realtek games 8118

Realtek 8118 LAN is a high performance and friendly network chip for game players with the use of bandwidth to ensure the highest network priority of the game or application. You can provide users with the complete m &aws and Internet experience m &aacors r & fluid experience.

COOLING

• Smart Fan 5

With Smart Fan 5 users can ensure that the PC Gaming can maintain steady performance while remaining refrigerated. Smart Fan 5 allows users to exchange their connectors for fans to reflect different thermal sensors at different locations on the motherboard. In addition, with Smart Fan 5 the h íbrat connectors for the fan support PWM and voltage fans, this causes the motherboard to be adapted to mount refrigeration.

• Fan Stop

Achieves the silence of the fan. With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specified threshold. What fan is stopped, and the readings of the sensor are stopped, and the temperature, everything can be customized to your liking.

• Brig fan pin headers

All the head of the fan h íres can detect the type of cooling device, either fan or pump with different PWM or voltage modes.

AUDIO

• -end audio condensers

GIGABYTE's base plates use high-end audio capacitors. These high quality capacitors help deliver high resolution audio and fidelity to provide realistic sound effects for players.

• from noise

GIGABYTE's base plates have an audio noise shield that essentially separates the sensitive anal audio components from the plate of possible contamination at the PCB level.

ULTRA DURABLE

• Proteci n &oatecn against sulfurization

Sulfur compounds in the air can penetrate the ñ integrated resistors by creating chemical changes and causing these resistances to be opened or short-circuited. If any of these situations occur, the motherboard will not work. By equipping the resistors with a ñ or anti-sulfur dise, GIGABYTE gives the ultra-durable motherboards a completely new meaning.

• The protection against over-voltages l &iuderas in the industry

GIGABYTE's base plates also have a special integrated anti-overtensi circuit that protects your motherboard, which helps to ensure that your PC is equipped to deal with any potentially irregular power supply.

• moisture protection glass fabric PCB

GIGABYTE's 9-series base plates have been dñ to ensure that moisture is not a problem, and they incorporate a new technology í a Glass Fabric PCB that repels the condensing caused by the humidity conditions. The technology of the Glass Fabric PCB makes it difficult for the condensing to penetrate the plate by using a new PCB material that reduces the space between the fibers that form it. You can offer a much higher protection against short circuits and system malfunction caused by humidity conditions.

• Dise ñ or protecci high temperature &ooptionn under RDS (on) MOSFETs

GIGABYTE base places use low RDS MOSFETs that reduce energy waste í s to bring unnecessary dissipation of waste heat. This is equivalent to a power saving that does not affect performance but is beneficial for both end users and the environment.

GIGABYTE EXCELLENCE

• Updated BIOS

The BIOS is essential for users during the initial configuration to set up adjustments. With a new graphical user interface f &arecucil to use and new functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience in establishing their computer.

• App Center

GIGABYTE APP CENTER is a useful portal for all GIGABYTE utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and drivers.

• OSD

3D OSD detects and automatically displays the system information during the games, which allows you to easily obtain system information without switching between screens.

• Information Viewer

The GIGABYTE System Information Viewer is a central location that gives you access to the current state of your system. Control components such as clocks and the processor, set your preferred fan speed profile, create alerts when temperatures rise too high, or record your system behavior; these are the capabilities of the System Information Viewer.



Specifications:

• Details T &eUcics
  • Format: Micro ATX
  • Chipset: Intel H310
  • Amount of PCI Express slots: 3
  • Processor family: Intel
  • Supported hard disk drive interfaces: Serial ATA III
  • N &uteer; number of supported processors: 2
Processor
• Processor Socket: Socket 1151
• Processor Family: Intel Celeron, Intel Core i3-9 ª Gen, Intel Core i5-8 ª Gen, Intel Core i5-9 ª Gen, Intel Core i7-8ª Gen, Intel Core i7-9 ª Gen, Intel Core i9-8 ª Gen, Intel Core i9-9 ª Gen, Intel Pentium
• Memory
  • Memory slots: 2x DIMM
  • Memory slot type: DIMM
  • Memory internal m &oaxime memory: 16 GB
  • Non-buffer memory: S &iute;
  • Memory channel support: Dual
  • compatible memory types: DDR4-SDRAM
  • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz
• V &iutedido deo
  • M &axime resoluci ón n: 1920 x 1200 Pixeles
Audio
• Audio output channels: 2, 4, 5.1, 7.1
• Audio system: Realtek ALC887
• Expansion slots &oatecn
  • PCI Express configurations: 1 x16, 2 x1
  • PCI Express slots: 2.0, 3.0

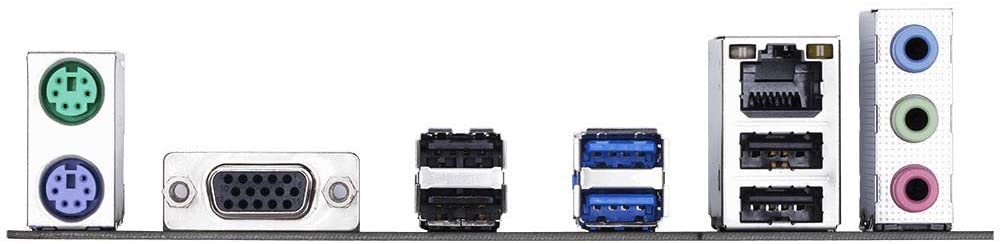

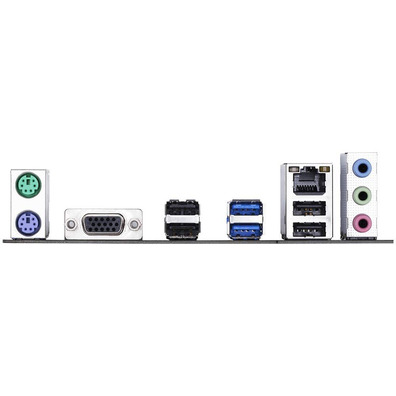

I/O
• CPU fan connector: S &iute;
• ATX power connector (24 pins): S í
• Front-panel audio connector: S &iute;
• Jumper Clear CMOS: S &iute;
• Fan connector: S &iute;
• TPM connector: S &iUte;
• USB 2.0 connectors: 2
• USB connectors 3.1: 1
• N &ute; number of connectors to chassis fan: 1
• N &o. number of SATA connectors 3: 4
• Speaker, headphone, jack of output: 3
• VGA (D-Sub): 1
• Number of USB ports 2.0: 4
• Number of USB ports 3.1: 2
• Ethernet (RJ-45): 1
• The PS/2: 2
• • Bluetooth: No
  • Network connection: S &iaceros
  • LAN Controller: Realtek GbE
  • Ethernet: S &iacas
  • Wi-Fi:
  BIOS
  No
  • BIOS
    • BIOS, tama ñ or memory: 128
    • Types of BIOS: UEFI AMI
  • Weight and dimensions
    • Width: 22.6 cm
    • Depth: 17.4 cm
