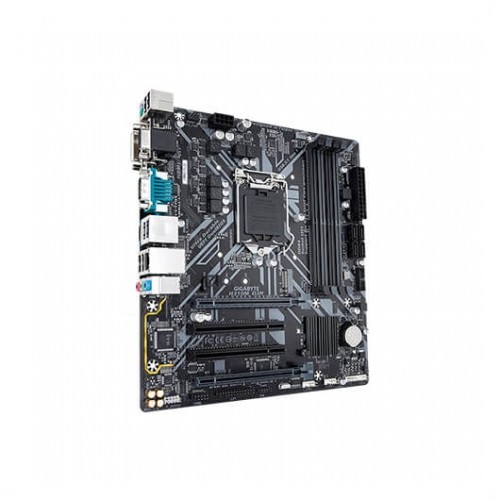

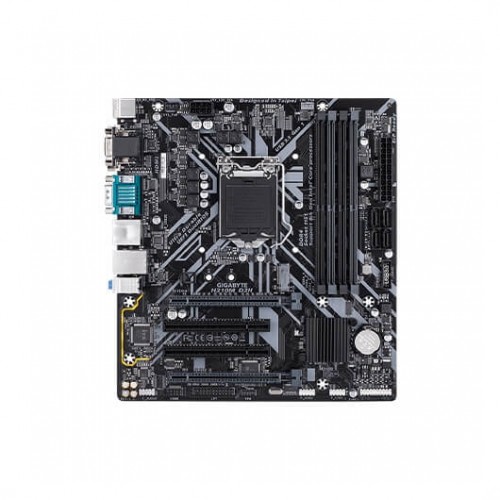

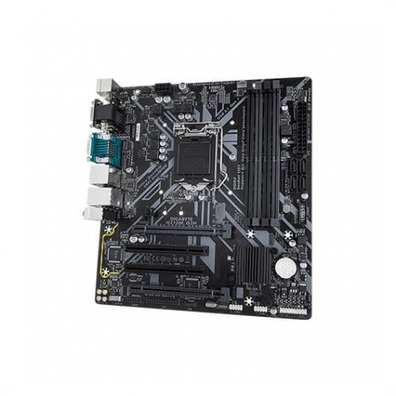

Gigabyte 1151 H310M D3H Base Plate

Gigabyte 1151 H310M D3H Base Plate

CONNECTIVITY

• exclusive LAN for Realtek games 8118

Realtek 8118 LAN is a high performance and friendly network chip for game players with the use of bandwidth to ensure the highest network priority of the game or application. You can provide users with the complete m &aws and Internet experience m &aacors r & fluid experience.

• 2 2280 Connector

GIGABYTE's motherboards are focused on providing technology to M. 2 for enthusiasts who want to maximize the potential of their system.

• -definition digital outputs

Enjoy the ability to display the real high definition &o real with the use of digital output technology &uâtiços com &uânmente integrated in the screens and TV sets of high definition today in d &iuteres a.

COOLING

• Smart Fan 5

With Smart Fan 5 users can ensure that the PC Gaming can maintain steady performance while remaining refrigerated. Smart Fan 5 allows users to exchange their connectors for fans to reflect different thermal sensors at different locations on the motherboard. In addition, with Smart Fan 5 the h íbrat connectors for the fan support PWM and voltage fans, this causes the motherboard to be adapted to mount refrigeration.

• Fan Stop

Achieves the silence of the fan. With Fan Stop, it maps any fan so that it stops completely when temperatures fall below a specified threshold. What fan is stopped, and the readings of the sensor are stopped, and the temperature, everything can be customized to your liking.



• Brig fan pin headers

All the head of the fan h íres can detect the type of cooling device, either fan or pump with different PWM or voltage modes.

AUDIO

• -end audio condensers

GIGABYTE's base plates use high-end audio capacitors. These high quality capacitors help deliver high resolution audio and fidelity to provide realistic sound effects for players.

• from noise

GIGABYTE's base plates have an audio noise shield that essentially separates the sensitive anal audio components from the plate of possible contamination at the PCB level.

ULTRA DURABLE

• Dise ñ or DualBIOS patented by GIGABYTE

The GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, a GIGABYTE-exclusive íg technology that possibly protects one of the important components of your PC, the BIOS. DUALBIOS of GIGABYTE means that your motherboard has a 'BIOS main ' and a 'backup BIOS ', which protects users from BIOS failures due to virus, hardware malfunction, incorrect PO configurations, or power outages during the upgrade process.

• Proteci n &oatecn against sulfurization

Sulfur compounds in the air can penetrate the ñ integrated resistors by creating chemical changes and causing these resistances to be opened or short-circuited. If any of these situations occur, the motherboard will not work. By equipping the resistors with a ñ or anti-sulfur dise, GIGABYTE gives the ultra-durable motherboards a completely new meaning.

• The protection against over-voltages l &iuderas in the industry

GIGABYTE's base plates also have a special integrated anti-overtensi circuit that protects your motherboard, which helps to ensure that your PC is equipped to deal with any potentially irregular power supply.

• moisture protection glass fabric PCB

GIGABYTE's 9-series base plates have been dñ to ensure that moisture is not a problem, and they incorporate a new technology í a Glass Fabric PCB that repels the condensing caused by the humidity conditions. The technology of the Glass Fabric PCB makes it difficult for the condensing to penetrate the plate by using a new PCB material that reduces the space between the fibers that form it. You can offer a much higher protection against short circuits and system malfunction caused by humidity conditions.

• Dise ñ or protecci high temperature &ooptionn under RDS (on) MOSFETs

GIGABYTE base places use low RDS MOSFETs that reduce energy waste í s to bring unnecessary dissipation of waste heat. This is equivalent to a power saving that does not affect performance but is beneficial for both end users and the environment.



Specifications:

• Details t &eUcics
  • Format: Micro ATX
  • Chipset: Intel H310
  • Amount of PCI Express slots: 2
  • Processor family: Intel
  • Supported hard disk drive interfaces: M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4
• Processor
  • Processor Socket: Socket 1151
  • Processor Family: Intel Celeron, Intel Core i3-8 ª Gen, Intel Core i5-8 ª Gen, Intel Core i7-8 ª Gen, Intel Core i9-8 ª Gen, Intel Core i9-9 ª Gen, Intel Pentium
• Memory
  • Memory slots: 4x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 64 GB
  • Supported memory module capacities: 16 GB
  • Non-ECC: S &iute;
  • Memory without buffer: S &iute;
  • Memory channel support: Dual
  • compatible memory types: DDR4-SDRAM
  • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666
• V í s
• HDCP: S &oidas
• Audio
  • Audio output channels: 2, 4, 5.1, 7.1
  • Audio system: Realtek ALC887
slots &oatecn
• PCI Express Configurations: 2 x16
• N &uetuos (total) of PCI Express slots: 2
• PCI slots: 2
• PCI Express slots: 2.0, 3.0
• Internal I/O
  • Connector to EPS (8-pin): 1
  • ATX Power Connector
  24 pins): S &irector
  • Jumper Clear CMOS: S &iute;
  • Parallel connector: S &iute;
  • TPM connector: S &iute;
  • USB 2.0 connectors: 2
  • USB connectors 3.1: 1
  • N &ute; number of connectors to chassis fan: 1
  • N &o number of SATA connectors 3: 4

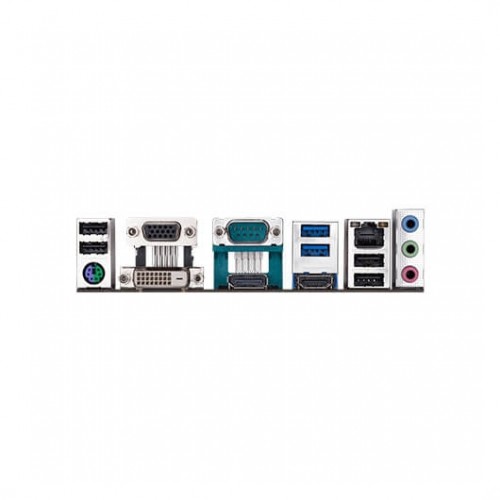

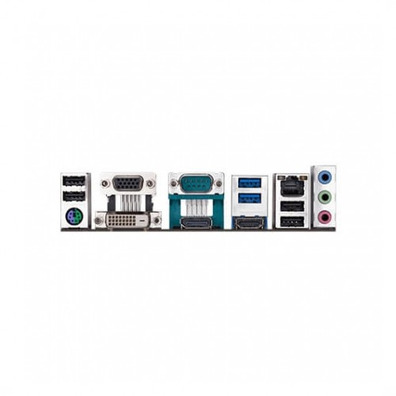

  • I/O connectors
  Input/Output
  • Speaker, headphone, jack of output: 3
  • Quantity of DisplayPorts: 1
  • VGA (D-Sub): 1
  • Number of HDMI ports: 1
  • Quantity of USB 2.0 ports: 4
  • Quantity of USB 3.1: 2
  • Ethernet (RJ-45): 1
  • Port of rat &oatro-keyboard PS/2: 1
• • Bluetooth: No
  • Network connection: S &iute;
  • Ethernet: S &iute;
  • Wi-Fi:
  BIOS
  • BIOS, tama ñ or memory: 2x 128 MB
    • Versi &oatuos ACPI: 5.0
  • Weight and dimensions
    • Width: 24.4 cm
    • Depth: 22.5 cm
  • Packaging contents
    • Gu &iacas a de installaci &oatun r &aetuas: S í
