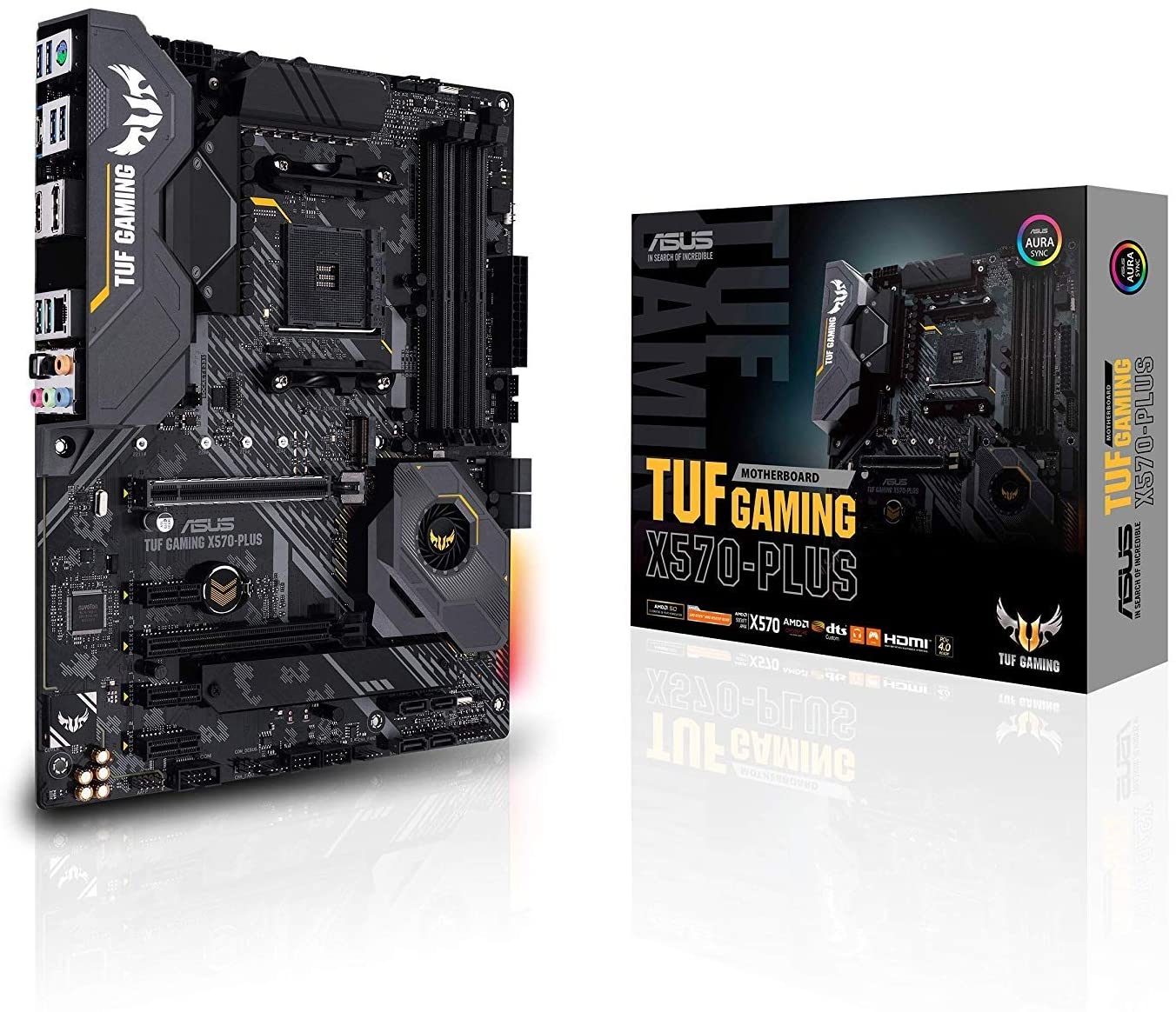

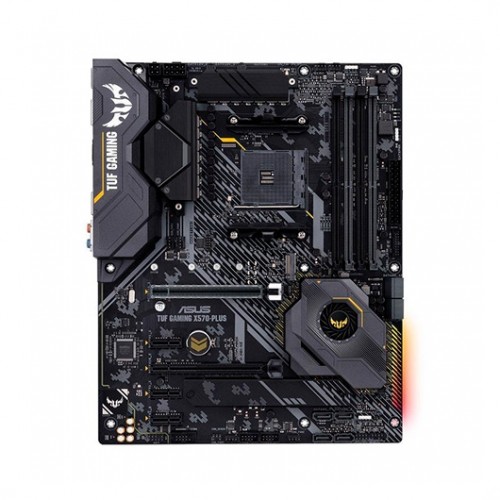

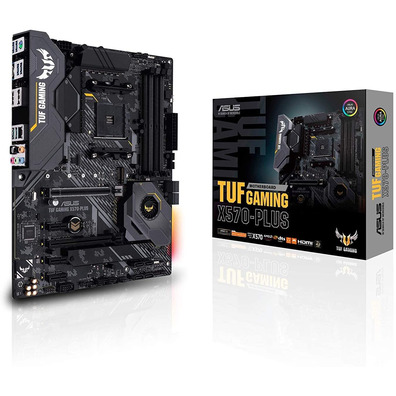

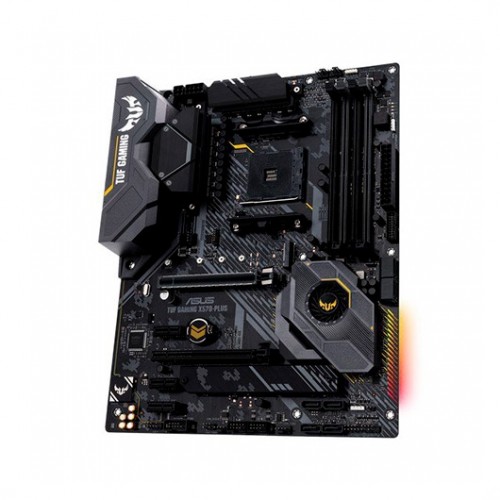

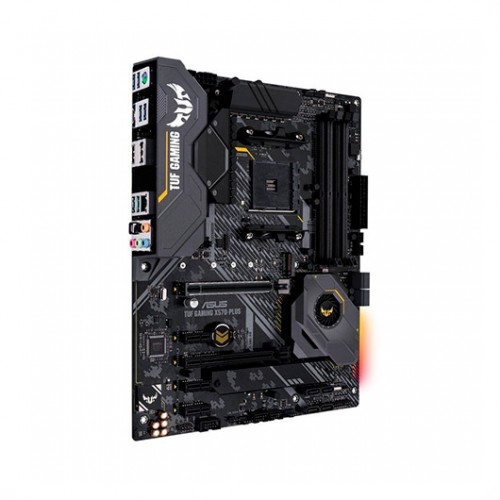

ASUS TUF Gaming X570-Plus AM4 Base Plate

ASUS TUF Gaming X570-Plus AM4 Base Plate

The TUF Gaming X570-Plus distils the essential elements of AMD's latest platform and combines them with gaming capabilities and proven durability. With military-grade components, improved power supply solutions, and complete cooling options, these motherboards offer sound performance and unbreakable stability.

By choosing a TUF Gaming board, you will benefit from the TUF Gaming Alliance, a close collaboration between ASUS and a selected partner &oatern to facilitate easy assembly and provide chassis and components with a game-play and guaranteed compatibility.

PERFORMANCE S &O

Equipped with a refreshed power supply and complete cooling options, the TUF Gaming X570-Plus is the perfect base for mounting your AMD gaming and AMD gaming.

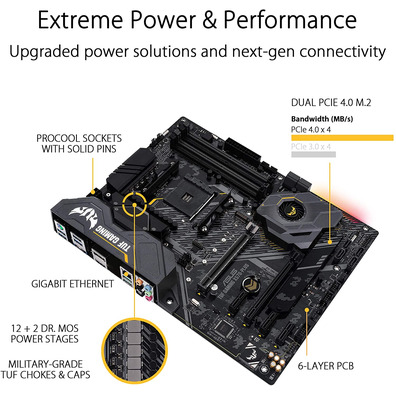

FEIMENTACI Ó N

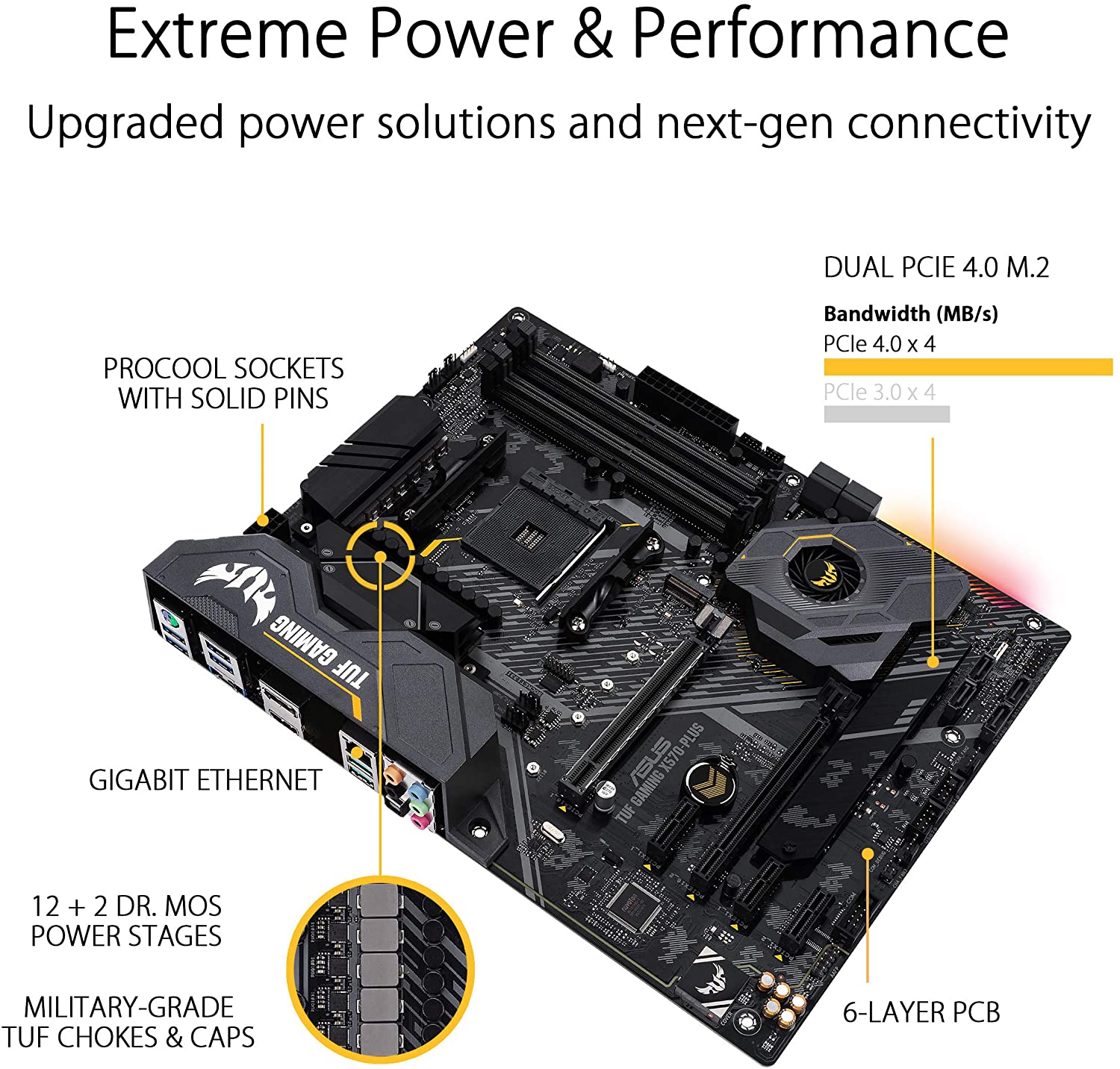

• Dr. MOS
  • The VRM of the TUF Gaming X570-Plus (Wi-Fi) uses Dr. MOS power stages that consolidate low/high profile MOSFETS and controllers into a package capable of delivering the power and efficiency required for new AMD processors
• ProCool connector
  • Compared to traditional ñ s, the feed intake is manufactured according to strict specifications that improve contact with the PSU's load-lines. In this way, it is possible to reduce the impedance and to support the robustness of the connections

  TUF COMPONENTS

  • TUF CHOKES
    • The TUF coils with military certification enhance the stability of the system by providing a CPU-consistent feed.
  • TUF CAPACITORS
    • Tolerate 20% m temperature &arectors and last 5 times m &arecuds.



    CONTROLLER

    • Digi + VRM
      • The m &onodulo tensi &oatun Digi + (VRM) regulator is one of the best in the industry when it comes to supplying a clean, accurate CPU to the CPU

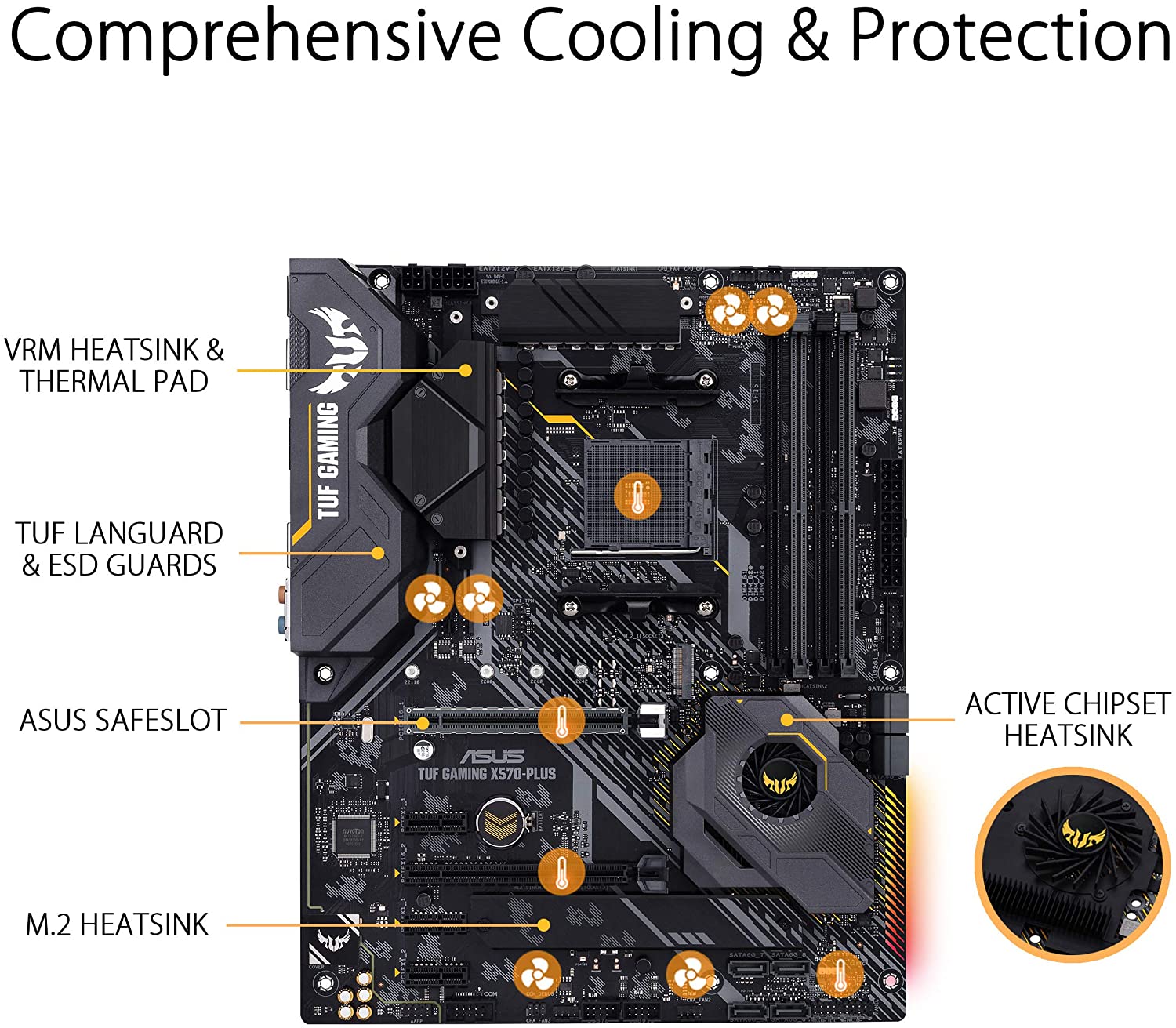

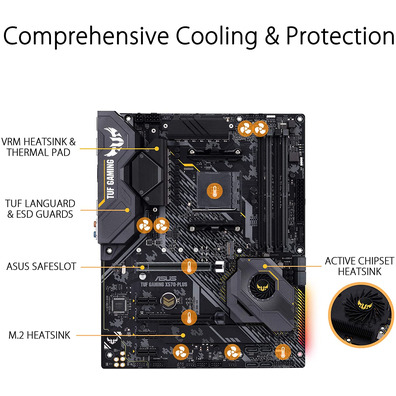

      REFRIGERACI &OULDN

      • VRM DISIPATOR
        • Large, large mass, large-mass, large-surface, and large-surface, large-mass-covering surface covering the VRM and the chokes.
      • PADS t &Equalms
        • High-quality, high-quality, t-pads help transfer the heat from the inductor and the phase matrix to the heat sink.
      • The PCH DISIPATOR
        • The PCH dissipator incorporates a fan that controls the temperature of the chipset and helps maintain the stability of the equipment.
      • DISIPATOR M. 2
        • The M. 2 dissipator maintains the M. 2 SSD at the temperature id &oteacnea so that it works at full performance and lasts for time.

        MEMORY AND STORAGE

        • Two M. 2 PCIe 4.0
          • The two M. 2 PCIe 4.0 slots support up to 22110 drives and NVMe RAID SSD configurations. You configure a RAID storage system with two PCIe 4.0 drives and enjoy the m &aasties r &aecatos data transfers with the AMD Ryzen platform of 3. ª Gen.
        • DISE Ñ OR MEMORY EXCLUSIVE
          • The ASUS OptiMem memory circuit allows you to take advantage of the full potential of AMD's Infinity Fabric architecture, reaching high frequencies and reducing latency



          Specifications:

          • Details T &eUcics
            • Format: ATX
            • Chipset: AMD X570
            • Multi-GPU: CrossFireX
            • Amount of PCI Express slots: 5
            • Processor family: AMD
            • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
            • N Number of supported processors: 1
            • N Slot number: DIMM4
        • Processor
          • Processor Socket: Socket AM4
          • Processor Family: AMD Ryzen 2000, AMD Ryzen 3000
      • Memory
        • Memory slots: DIMM
        • Internal memory m &axime:
        GB
        • Memory without buffer: S &iute;
        • Memory channel support: Dual
        • compatible memory types: DDR4-SDRAM
      • V &iudero deo
        • M &axime resoluci ón: 4096 x 2160 Pixeles
      • Audio
        • Audio output channels: 7.1
      slots &oatecn
      • PCI Express Configurations: 2 x16, 3 x1
      • N &uendering (total) PCI Express slots: 3
      • PCI Express slots: 3.0, 4.0
      • Internal I/O
        • Connector to EPS (8-pin): 1
        • CPU Fan Connector: S &iacuties
        • ATX Power Connector (24 pins): S &iute;
        • Front panel audio connector: S &iute;
        • Jumper Clear CMOS: S &iute;
        • USB 2.0 connector:
        • USB connectors 3.2: 1
        • N &uendos number of connectors to chassis fan: 3
        • connectors M. 2: 2
        • RGB/LED strips:
        • Speaker, headphone, jack of output: 4
        • Quantity of DisplayPorts: 1
        • N HDMI port number: 1
        • Number of USB ports 3.2: 6
        • Number of USB Type-C ports: 1
        • Ethernet (RJ-45): 1
        • Micr &o, jack of input: 1
        • Port of rat &obution-keyboard PS/2: 1
        controllers
        • RAID levels: 1, 10, 0
      • • Network &iUtims
        • Ethernet: S &iute;
        • Ethernet: Gigabit Ethernet interface type
        • BIOS
          • BIOS, tama ñ or memory: 256 MB
            • BIOS types: UEFI AMI
            • Versi &oatuos ACPI: 6.2
            Weight and dimensions
            • Width: 30.5 cm
            • Depth: 24.4 cm

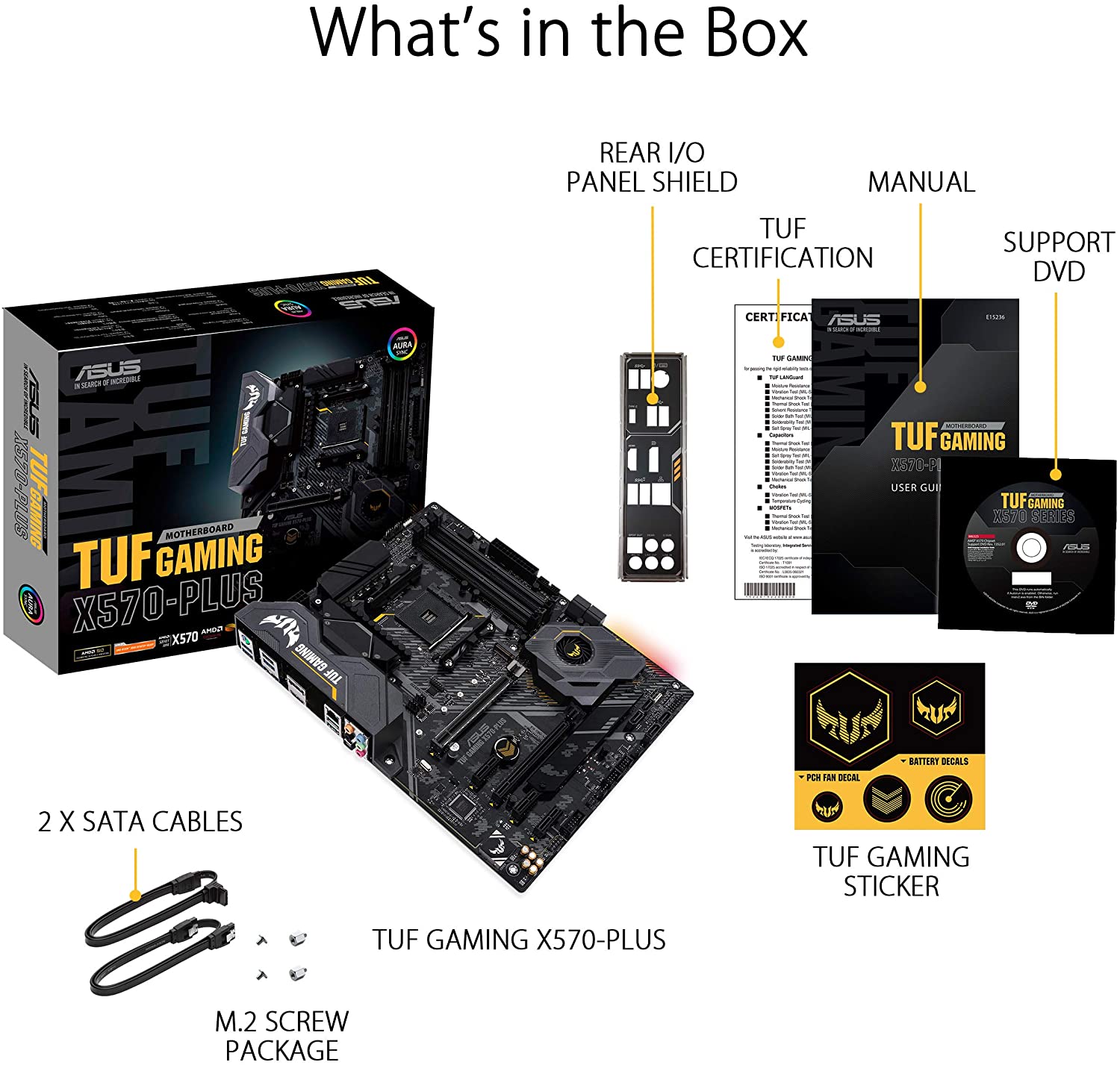

            contents
            • Gu &aituas to install &oatuos: S í
          • Operating system/software
            • Windows operating system supported: Windows 10
