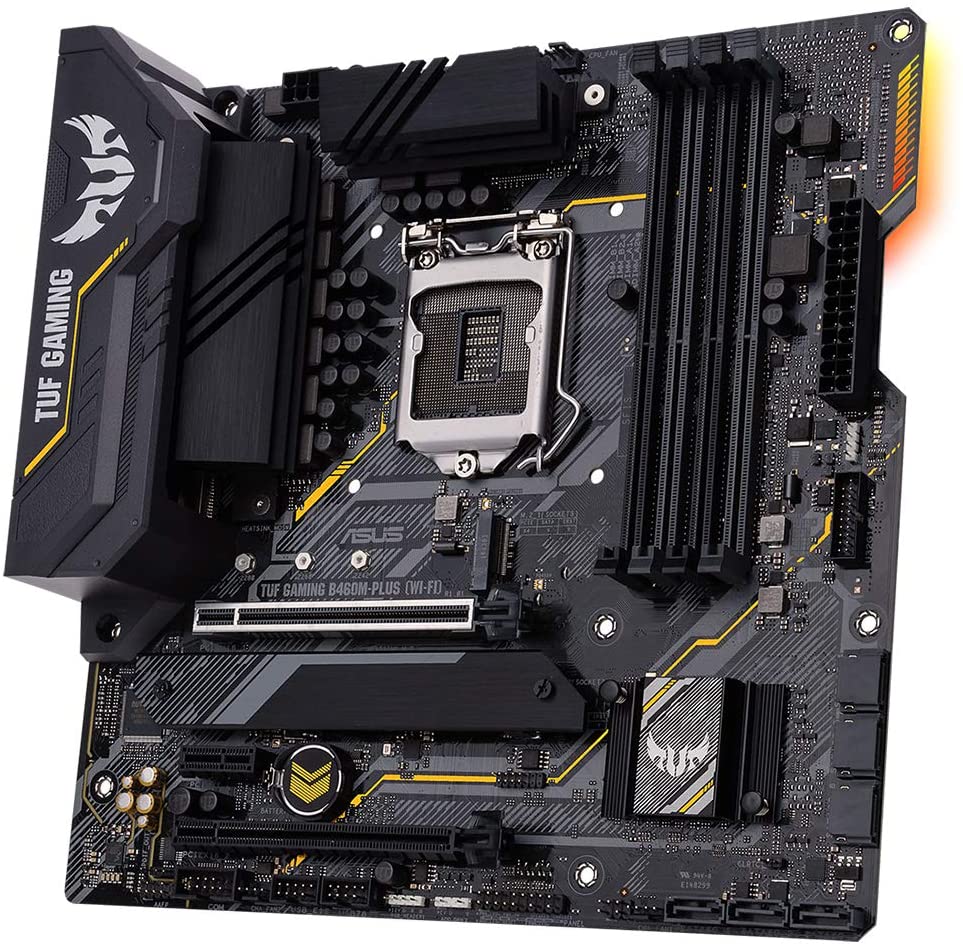

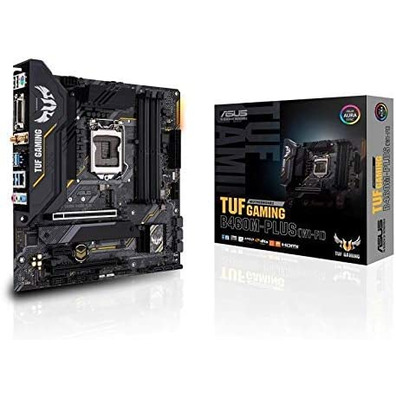

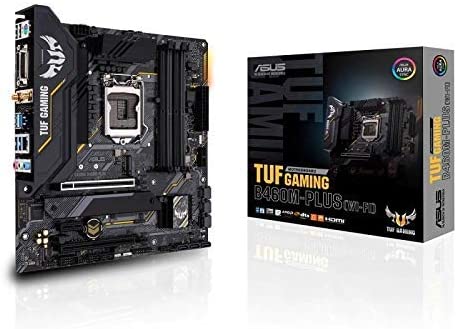

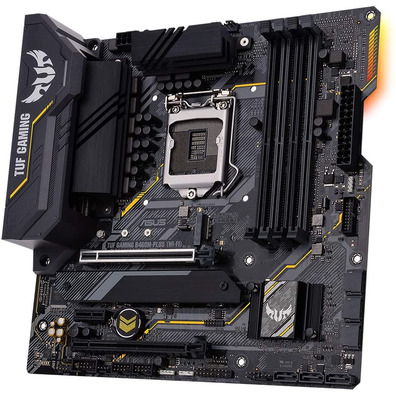

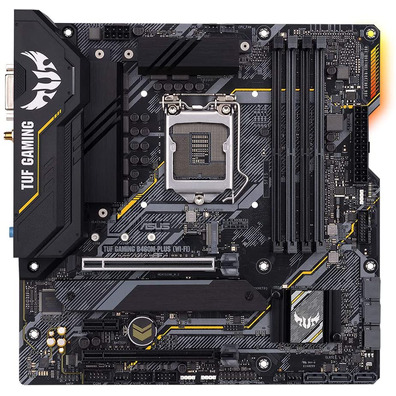

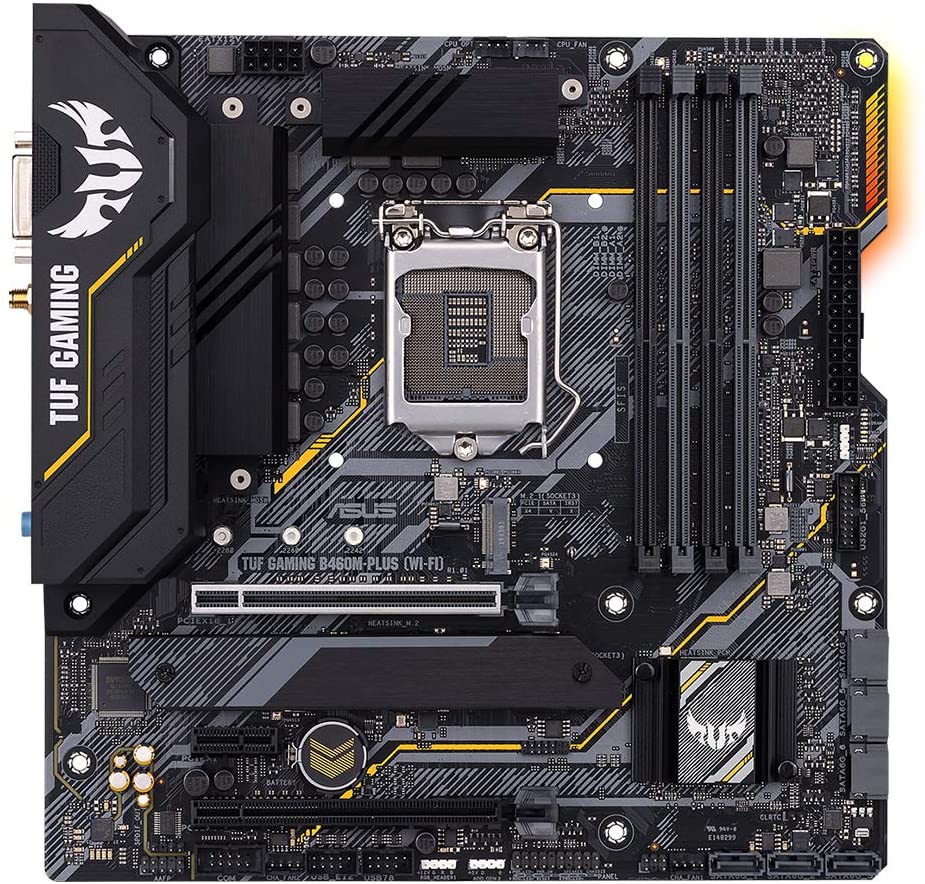

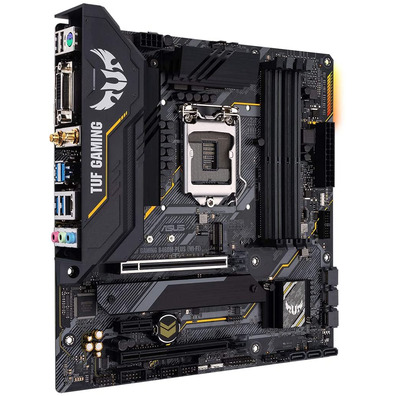

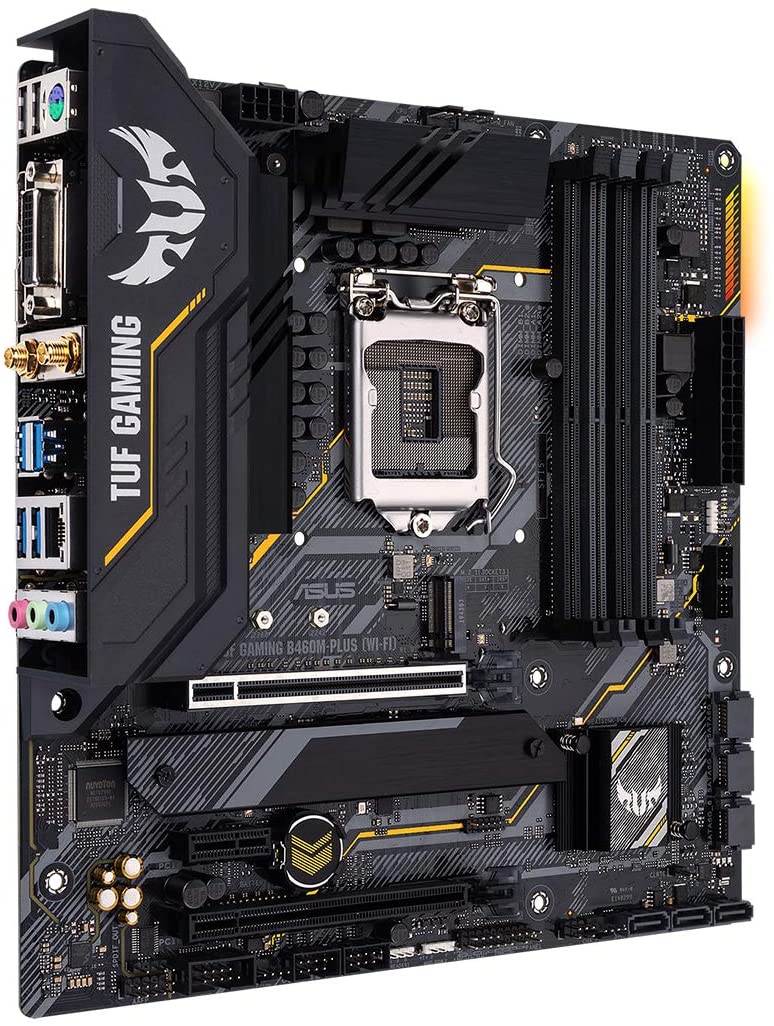

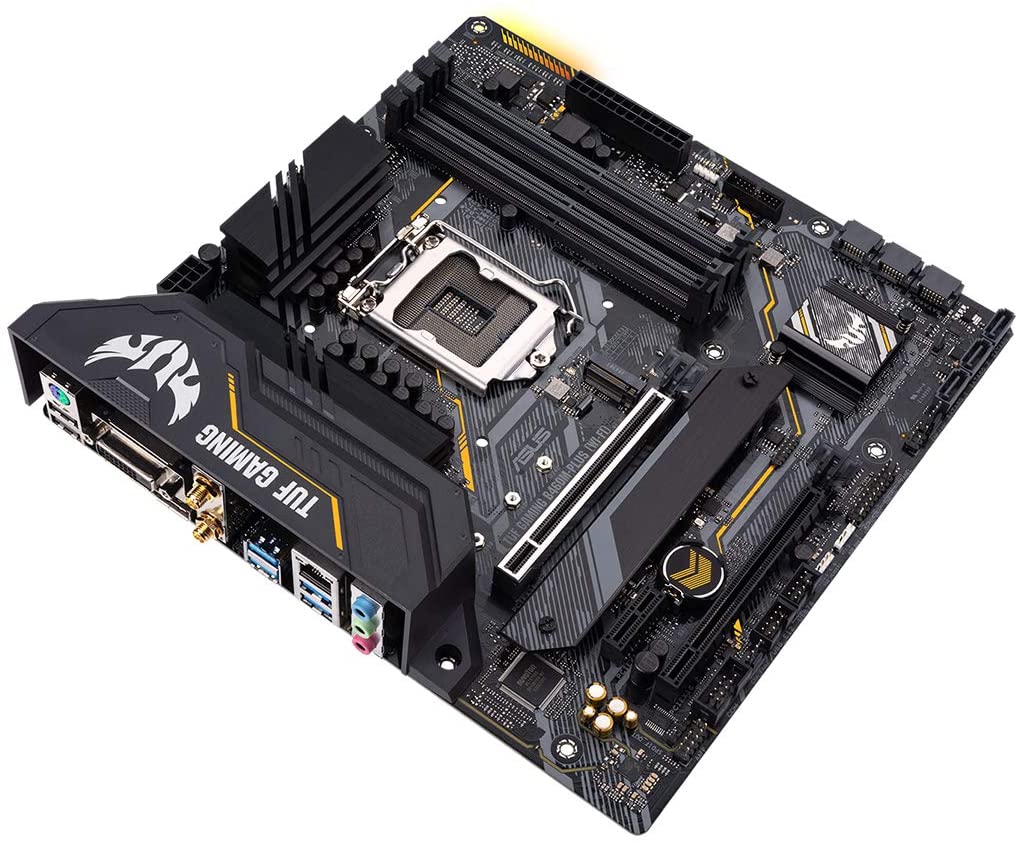

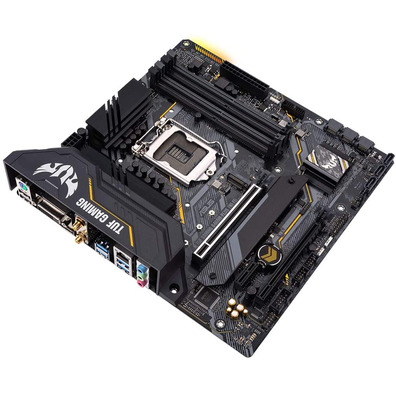

ASUS TUF Gaming B460M Plus (Wifi) LGA 1200

ASUS TUF Gaming B460M Plus (Wifi) LGA 1200 Base Plate

TUF Gaming B460M-Plus distils the essential elements of the latest Intel platform and combines them with game-ready and proven durability. With military-grade components, a power-to-improved power &o &o solution, and a complete set of cooling options, this motherboard provides a performance s ó with an unbreakable stability in the games. When you use a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance, an ASUS collaboration with trusted industry partners that ensures a construction &oatecs f &ausecil, the best compatibility, and a complementary test of the components to the housing.

With improved power delivery and comprehensive cooling options to power the latest Intel CPU, memory support and storage support, TUF Gaming B460M-Plus is the perfect base for your high-count battle equipment.

COOLING

• magnetic vRM
  • A large, large mass heat sink with an extensive surface covering the VRM and throttling areas improves the heat dissipation.
• RMICO T &ETIAS
  • The high-quality, high-quality, chemical pads help to transfer heat from the inductor and the phase matrix to the sink-sink.
• WIRELESS M. 2
• TUF Gaming B460M PLUS presents integral fan controls
  can be configured to bring up the Fan Xpert 2 + utility or to bring the award-winning ASUS UEFI BIOS.
• PCIE DUAL 3.0 M. 2
  • The M. 2 double slots support data transfer speeds up to 32 Gbps in the x4 PCI Express 3.0 bandwidth, making it perfect for operating system units or For applications for boot times and application loading m &aUtedos r &aetups.
  • ASUS OPTIMEM
    • The base board trace routing revisions provide the Intel processors with recent unlimited access to the memory bandwidth. The technology for ASUS OptiMem carefully maps the paths of the ñ to the memory through the different layers of PCB to reduce the v &irectias and adds protection zones that significantly reduce the diafon to.

    The TUF Gaming base plates are ñ ed to be either constraint or set up the way you want, even for first-time builders. The TUF Gaming Alliance ecosystem facilitates the selection of compatible parts, while the Armory Crate software provides complete control of the system configuration through a single board. The TUF Gaming motherboards give you everything you need to build your sue ñ s gaming platform without adding complexity.



    TUF EXCELLENCE

    • TUF Gaming Alliance is a collaboration between ASUS and reliable PC component brands to ensure compatibility with a wide range of parts, such as PC boxes, power supplies, CPU coolers, memory kits, and m &aws. With the regular addition of associations and components, the TUF Gaming Alliance will continue to grow with strong &uatals.
    • SafeSlot Core + is the exclusive PCIe slot of ASUS fortified with a one-piece stainless steel bracket that protects the slot to protect it from the ñ s. The metal cover is firmly secured to the groove with hooks, and the entire assembly is firmly anchored to the PCB with reinforced soldering points to provide a secure base for large weight-to-weight cards.
    • Armory Crate is a new software utility that is used to provide centralized control of compatible gaming products. From a single intuitive interface, Armory Crate allows you to customize the RGB lighting and effects for each compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting.

    TUF Gaming B460M-PLUS (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrarr networks for a game in the fluid, flawless audio with ñ positional ales for integrated FPS and RGB games and light-up, which synchronizes with the attachments to help you create a custom gaming sphere.

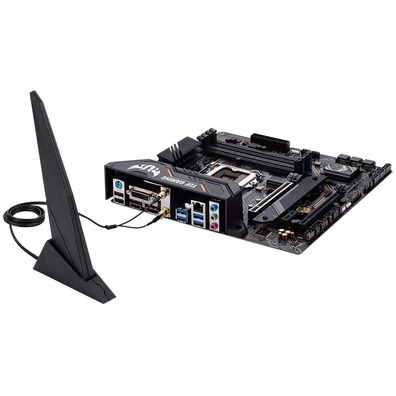

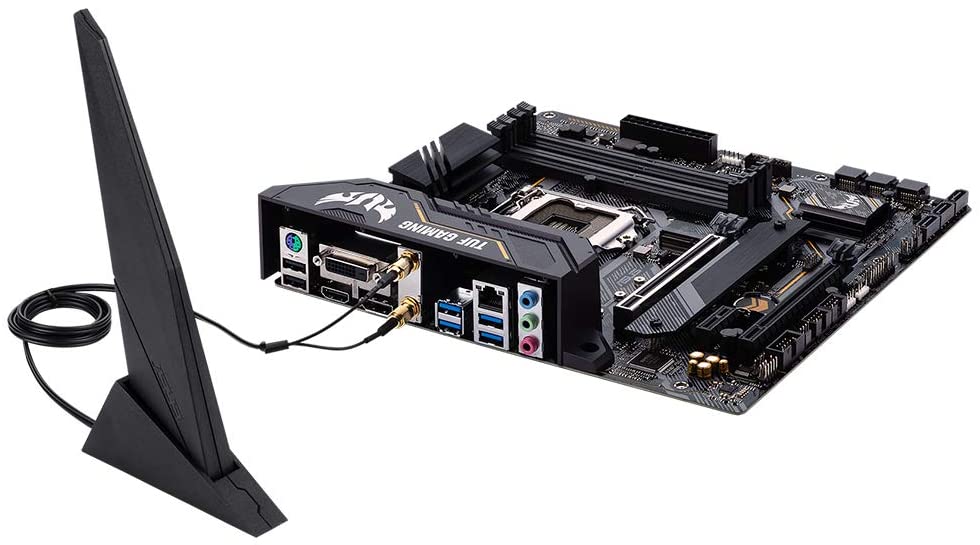

    The Intel WiFi 6 AX200 module is compatible with the 802.11ax standard and increases the maximum bandwidth up to 2.4 Gbps incre &ibles. Optimized for an efficient operation in crowded networks with a lot of competition. Match your motherboard with ASUS's WiFi 6 routers to fully experience the potential for WiFi 6 network connection.

    Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP performance for a quick and fluid transfer of data.



    ASUS TUF Gaming B460M Plus (Wifi) Specifications:



    • Format: Micro ATX
    • Chipset: Intel B460
    • Multi-GPU: 2-Way AMD CrossFireX
    • Amount of PCI Express slots: 3
    • Component for: PC/server
    • Processor Family: Intel
    • Supported hard disk drive interfaces: SATA, M. 2 PCIe, M. 2. SATA
    • N Number of supported processors: 1
    • N DIMM slots: 4
    • • Processor Socket: Socket 1200
      • Processor Family: Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-10 ª Gen
    • Memory
      • Memory slots: 4x DIMM
      • Internal memory m &axime: 128 GB
      • Non-ECC: S &iute;
    • Memory without buffer: S í
      • Memory channel support: Dual
      • compatible memory types: DDR4-SDRAM
      • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz
  • V &iudero deo
    • M &axime resoluci &oatuos n: 4096 x 2304 Pixels
  • Audio
    • Audio Output Channels: 7.1
    • Audio System: Realtek ALC S1200A
    • PCI Express Configurations: 1 x1, 2 x16
    • N PCI Express slots: 3
    • X1 PCI slots Express: 1
    • PCI Express slots x16: 2
    • Versi PCI Express entries: 3.0
• Internal I/O
  • Power connector &iUte; to EPS (8-pin): 1
  • CPU fan connector: S &iute;
  • ATX power connector (24 pins): S &iute;
  • Frontal:   S &iute;
  • Jumper Clear CMOS: S í
Intra-to-chassis connector: S í
• Ventilator connector:   S &iute;
• USB 2.0 connectors: 2
• USB connectors 3.2: 1
• N number of connectors to chassis fan: 2
• N Number of connectors COM: 1
• N &uterer of SATA connectors 3: 6
• Connectors M. 2: 2
• RGB/LED strips:
  2

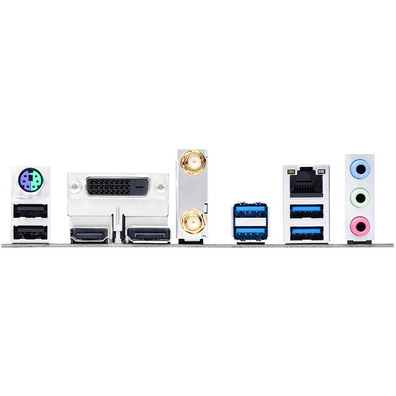

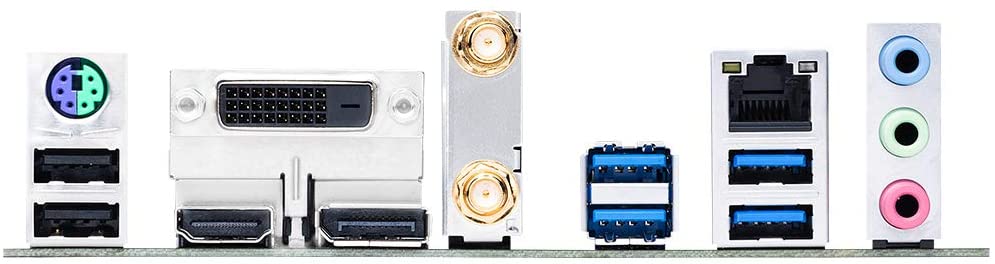

• Alter, headphone, jack of output: 3
• Quantity of DisplayPorts: 1
• Number of ports DVI-D: 1
• N number of HDMI ports: 1
• Number of USB 2.0 ports: 2
• Number of USB ports 3.2: 4
• Ethernet (RJ-45): 1
• Micr &o, jack of input: S &iaceras
• PS/2 Port &oatuon-keyboard &o n-keyboard: 1
regulators
• RAID levels: 0, 1, 10, 5
