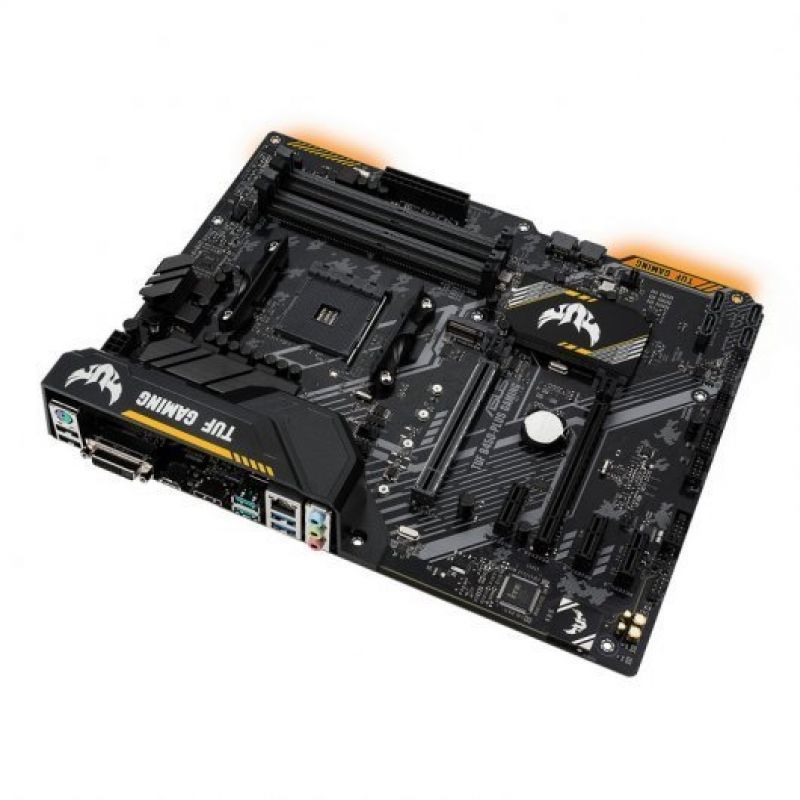

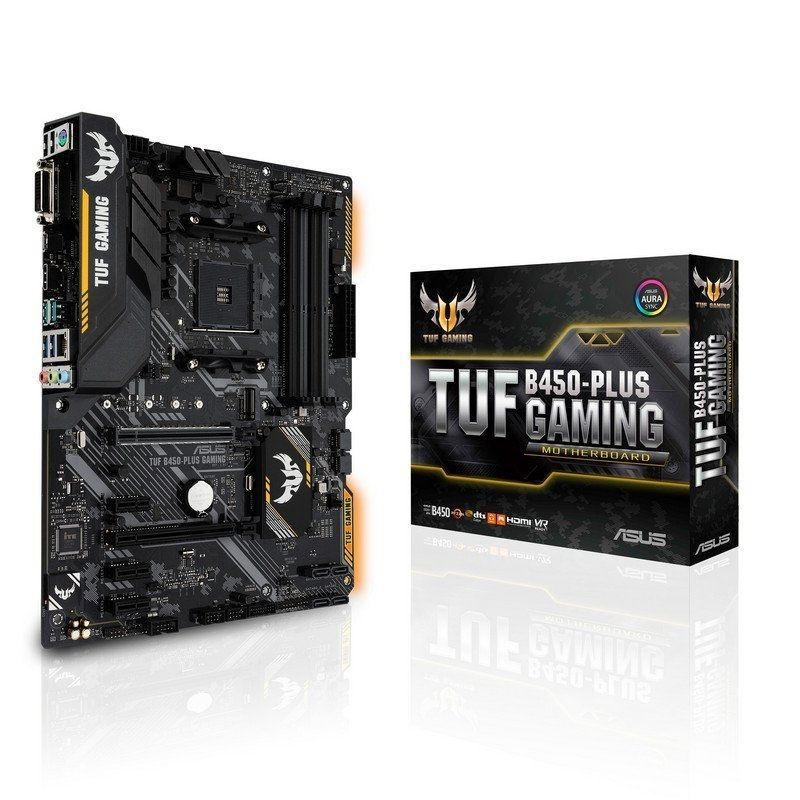

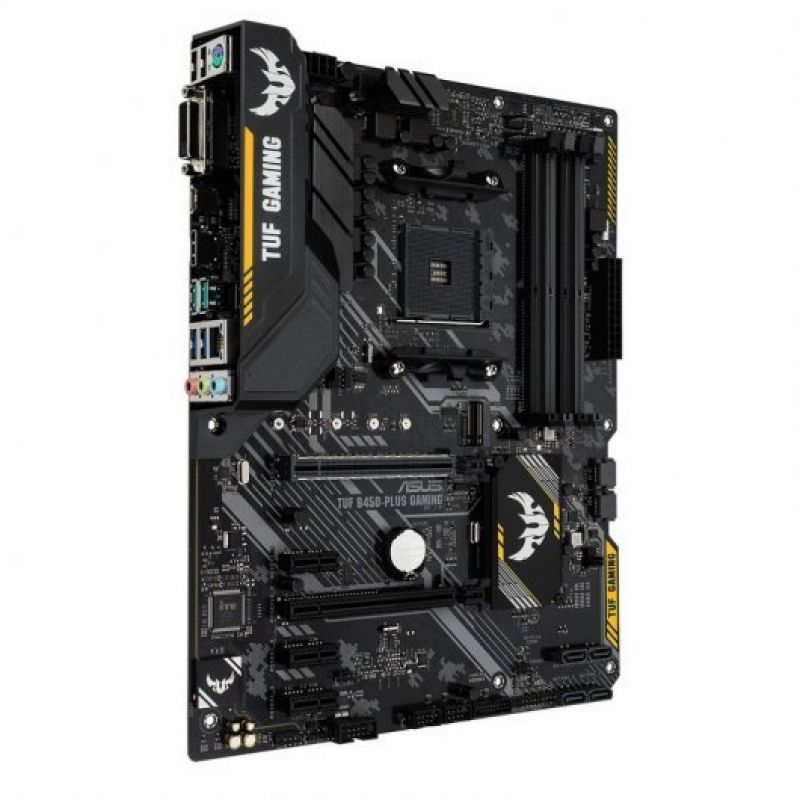

ASUS TUF B450 Plus Gaming AM4 ATX Base Plate

ASUS TUF B450 Plus Gaming AM4 ATX Base Plate

The TUF Gaming base plates are ñ ed and tested to survive in environments that are impossible for other plates. With long-lasting components, these motherboards allow you to play without rest without your reliability being compromised.

By choosing a TUF Gaming board, you will benefit from the TUF Gaming Alliance, a close collaboration between ASUS and a selected partner &oatern to facilitate easy assembly and provide chassis and components with a game-play and guaranteed compatibility.

Dise ñ raised to awareness, loaded with new functions and provided with associations with the main component manufacturers, the TUF Gaming motherboards facilitate a simple and secure assembly process. With unparalleled combination of military grade components, TUF protection functions and the TUF Gaming Alliance, you can assemble a team with a formidable durability.

TUF GAMING ALLIANCE

The

TUF Gaming Alliance is the result of collaboration between ASUS and other hardware manufacturers with the will to create an ecosystem of parts to ensure compatibility with a wide variety of hardware, such as: chassis, coolers, DRAM memory kits, and power supplies. Also we continue to expand the number of partners to enrich todav &iacetos a m &aUtits the offer of TUF Gaming Alliance

Character íres:

• ASUS TUF B450-Plus AMD Ryzen 2 AM4 DDR4 HDMI DVI M. 2 ATX Motherboard
• Second generation AMD   Ryzen   AM4 processor maximizes connectivity
• Speed with NVMe M. 2, USB 3.1 Gen2 and LAN gigabit
• Military grade components, TUF LANGuard, TUF Chokes, TUF capacitors, and TUF MOSFET maximize durability
• The protection of the TUF with SafeSlot and the protection of the components
• Incomparable personality with illuminationASUS exclusive Aura Sync RGB and additional RGB header

ASUS TUF B450 Plus Gaming Specifications:

• Model: Tuf B450-Plus Gaming (90MB0YM0-M0EAY0)
• Platform: ATX (30.5 cm x 24.4 cm)
• Chipset: AMD B450 chipset
• CPU Supported
  • AMD AM4 Socket Ryzen (supports Ryzen from 1 ª and 2 ª generation &oatuos n/gr &aUdifics Ryzen with Radeon Vega
• Memory:
  • 4 x DIMMs, Max. 64GB, DDR4 3200 (O.C. )/2800 (O.C. )/2666/2400/ 2133 MHz Un-buffered Memory
  • Dual Channel Memory Architecture
• Slots Expanse &oatecon n
  • 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • 1 x PCIe 2.0 x16 (max at x4 mode)
  • 3 x PCIe 2.0
• Gr &aplicas:
  • HDMI 2.0b, 4096 x 2160 @ 60 Hz
  • DVI-D, 1920 x 1200 @ 60 Hz
-GPU Compatible
• Supports AMD CrossFireX   Technology
• I/O Ports
  • Internal
    • 1 x Aura RGB Strip Header
    • 1 x USB 3.1 Gen 1
    • 2 x USB 2.0
    • 1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    • 6 x SATA 6Gb/s
    • 1 x CPU Fan (1 x 4 -pin)
    • 1 x S/PDIF out header (s)
    • 1 x 8-pin ATX 12V Power
    • 1 x Front panel audio (s)
    • 1 x Clear CMOS jumper (s)
    x COM port

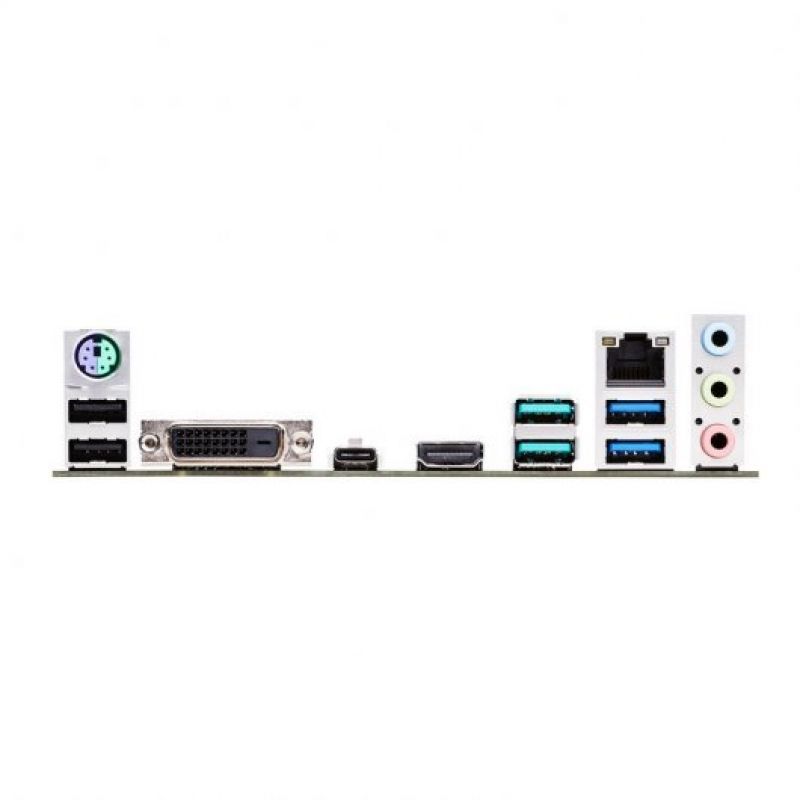

• External
  • 1 x
  PS/2 keyboard/mouse combo port (s)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x LAN (RJ45)
  • 1 x 5Gb/s USB Type-C
  • 2 x USB 3.1 Gen 2 Type-A
  • 2 x USB 3.1 Gen 1 Type-A
  • 2 x USB 2.0
  • 3 x Audio jack (s)

Storage

• 1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices
SATA & PCIE 3.0 x 4 mode) * 1

• 2 x USB 3.1 Gen 1 (Type-A)
• 1 x USB 3.1 Gen 1 (Type-C)
• 2 x USB 3.1 Gen 2 (Type-A)
• 2 x USB 3.1 Gen 1
• 6 x USB 2.0

Network

• Realtek   RTL8111H
• TUF LANGuard

Audio

• Realtek   ALC887-VD2 8-Channel High Definition Audio CODEC

Windows   10 64-bit
