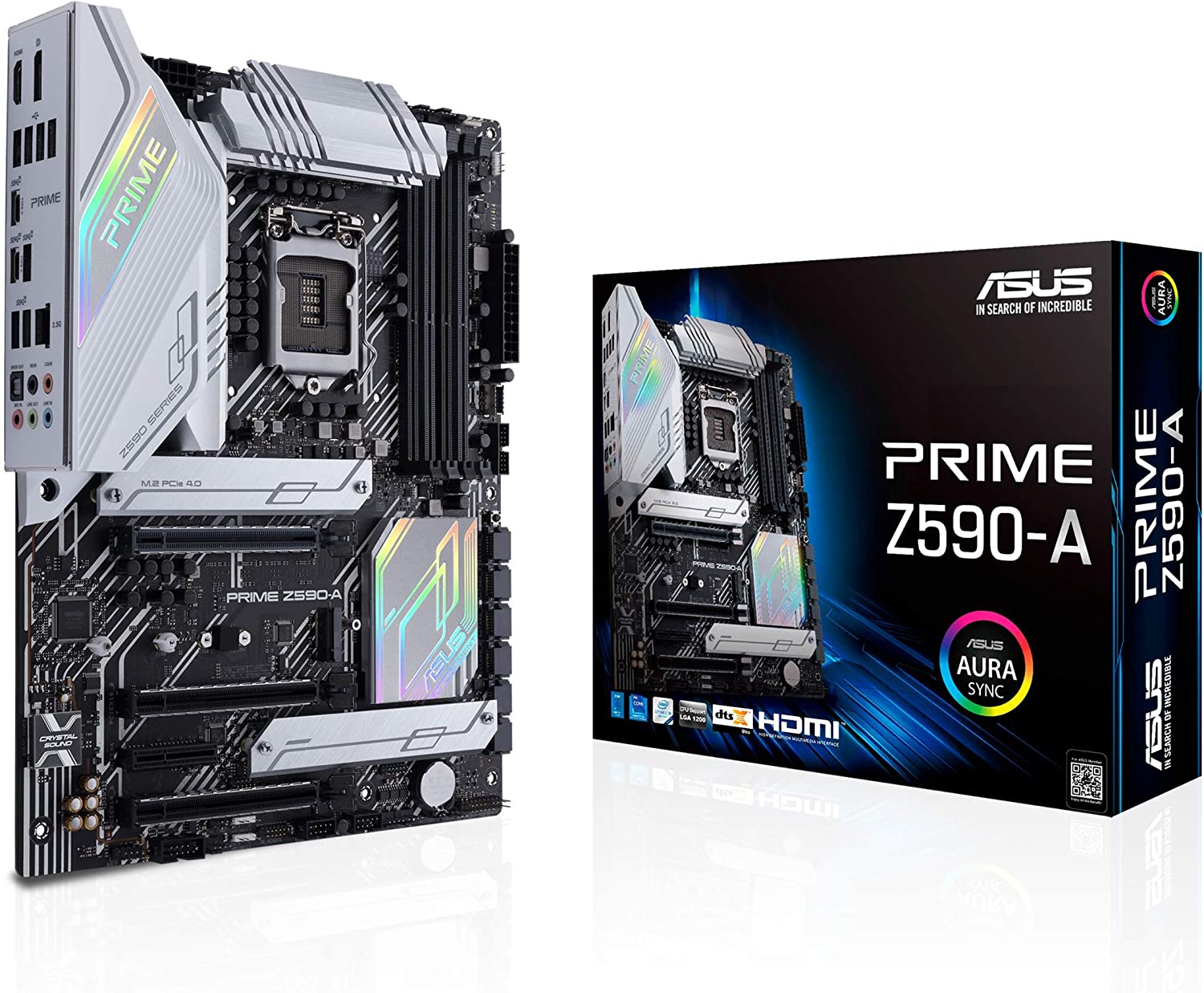

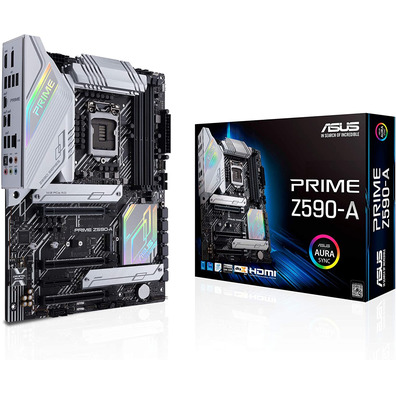

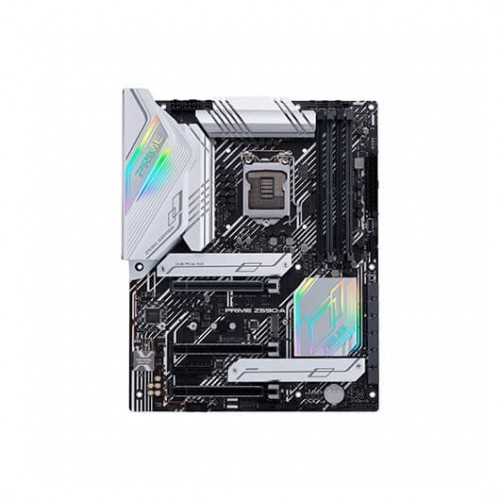

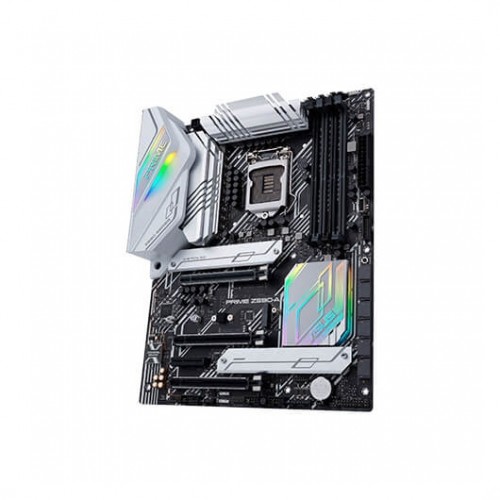

ASUS Prime Z590-A Base Plate

ASUS Prime Z590-A Base Plate

The ASUS Prime series base plates are ñ ed by experts to unlock the full potential of the Intel Core processors from the top and the top generation. With a ñ or energy-to-robust power, comprehensive cooling solutions and smart tuning options, Prime Z590-A gives daily users and PC builders DIY a range of performance tuning options for intuitive software and firmware functions.

SINTON &XX_ENCODE_CASE_ONE zalo IT YOUR WAY

Comprehensive controls form the basis of the ASUS Prime series. The Prime Z590 motherboard includes flexible tools to fit all aspects of your system, allowing performance adjustments to suit your way of working to maximize productivity.

• 5-Way Optimization

ASUS 5-Way Optimization makes your PC smart, running complex settings with a single click. This technology optimizes the essential aspects of your PC with cooling and overclocking profiles created for your system.

• Energy Efficiency

The Power Processing Unit (EPU) optimizes autom &aUtitically the power consumption to and maximizes the power saving &iacte; a with the Away mode, a smart configuration that creates an end-to-end power saving scenario when turning off unused E/S drivers.

• Overclocking by IA

Overclocking by AI is a smart utility that helps you get the most out of your system. To do this, it analyzes your CPU and cooling system and anticipates voltage and frequency adjustments. Accessible through AI Suite (Windows) or in the UEFI directly, the AI Overclocking interface is ideal for users at all levels. Tambi &eatuín n includes pair &arecentros for experienced overclockers and autom settings for beginners.

• IIA Refrigeration

The AI-assisted refrigeration function manages and controls autom the fans connected to the motherboard to provide system temperature and load-based adjustments.



• UEFI BIOS

The renowned ASUS UEFI BIOS offers everything you need to set up and adjust your system. It offers intelligently simplified options for PC DIY beginners, as well as integral functions for experienced veterans.

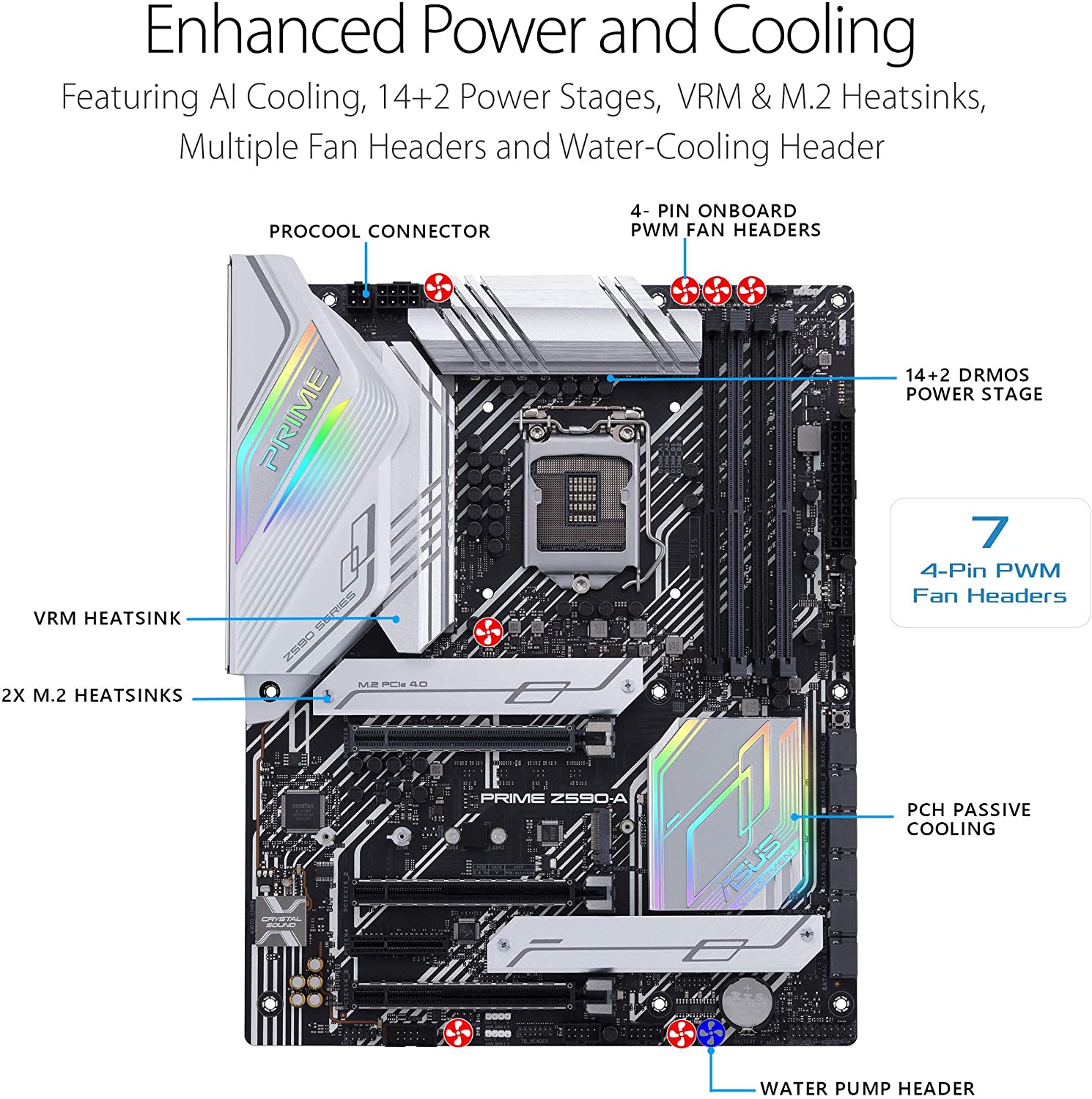

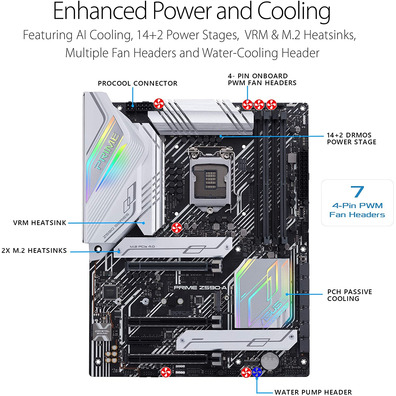

ADVANCED COOLING

The Prime Z590 series is ñ ada with integrated heat dissipation ltiples and a variety of hot fan heads to ensure your equipment stays cool and stable under intense workloads.

• M. 2 Heatsink

The M. 2 unit is under a passive sink that prevents temperature accumulation from reducing performance. The sink is fastened by captive screws that allow you to move it to another M. 2 slot.

• VRM heat dippers and pads

Two massive VRM heat sinks and chemical pads improve the heat transfer of the MOSFET and the chokes for better cooling performance.

• M &aecons fresh by dise ñ or

The Prime Z590 series features comprehensive cooling controls that can be configured using the Fan Xpert 4 software or the UEFI BIOS.

• Stack Cool 3 +

The 2-ounce copper layers keep the heat from the cr &iacutic components so that they maintain their operating temperature.

BUILD ON A LIDA S &OASTIDE BASE

The Prime Z590 series is ñ ada to handle the additional n &uantios and the largest bandwidth of the 11 ª Intel Core processors. The ASUS Z590 motherboards provide all the basics for increasing daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

• Dise ñ or power robust í

The stable power is essential to extract up to the last performance bit of the 11 ª Intel Core processors. Prime Z590 is &ntise ñ to meet the demands of these high-n &uatecs.

• ASUS OptiMem II

Revisions to the base board tracking routing provide the latest Intel processors with unrestricted access to memory bandwidth. The technology to ASUS OptiMem II carefully maps the routes of the se ñ to the memory through the various layers of PCB to reduce the v &irectias and adds protection zones n that significantly reduce the diafon to.

• Three M. 2 slots (up to 64 Gbps)

Prime Z590 offers a total of three M. 2 slots, with one slot supporting data transfer speeds of up to 64 Gbps over PCI Express 4.0 &eatals, allowing for m &arecesses r &aechauas application load and boot time with the operating system or application units n.

• 4.0 Slot

ASUS Z590 Base Plates are ñ debased specifically for the 11 ª Generaci &oatecn Intel Core and offer PCIe 4.0 connectivity for the latest GPU &utimes;. The wide bandwidth and the transmission speeds of ultrarr &aetups allow you to create rich builds in functions that can handle large loads without effort.

• USB 3.2 Gen 2x2 Type-C

Numerous USB ports support high-end equipment loaded with rich perif, including a USB Type-C rear USB connector with USB 3.2 Gen 2x2 r &aectos for transmission speeds up to 20 Gbps.

• Thunderbolt 4 head support

Prime Z590-A has Thunderbolt 4 support for a built-in head. With the latest Intel-certified ASUS TunderboltEX 4 supplemental card, you can enable two-way speeds of up to 40 Gbps on a single cable. In addition, this card has a network connection function for the connection of m &uantil ltiples screens and supports a resolution screen of up to 8K. Also, you can provide up to 100 watts of power to request load devices.

• Intel 2.5Gb Ethernet

The Intel Ethernet I225-V connection reduces CPU overhead and offers exceptionally high TCP and UDP performance for a fast and fluid transfer of data.



Specifications:

• Details T &eUcics
  • Format: ATX
  • Chipset: Intel Z590
  • Processor Family: Intel
  • Supported Hard Disk Drive Interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4
• Processor
  • Processor Socket: Socket 1200
  • Processor Family: Intel Celeron, Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-10 ª Gen, Intel Core i9-10 ª Gen, Intel Core i9-11 ª Gen, Intel Pentium
• Memory
  • Memory slots: 4x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 128 GB
  • Supported memory module capacities: 32 GB
  • Non-ECC: S &iute;
  • Memory without buffer: S &iute;
  • Memory channel support: Dual
  • compatible memory types: DDR4-SDRAM
  • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz, 3400 MHz, 3333 (OC), 3600 (OC), 4133 (OC), 4500 (OC), 4600 (OC), 4700 (OC), 4800 (OC), 5000 (OC), 5133 (OC), 5333 (OC)
• Audio
  • Audio Output Channels: 7.1
  • Audio System: Realtek ALC S1220A
• Expansion Rains
  • PCI Express Configurations: 1 x4, 3 x16
  • PCI Express Slots x16 Slots: 3.0
  4.0
• Internal I/O
  • Connector to EPS (8-pin): 1
  • ATX Power Connector
  24 pins): S &iute;
  • Jumper Clear CMOS: S &iute;
  • TPM Connector: S íals
  • USB 2.0 Connectors: 2
  • USB connectors 3.2: 1
  • USB connectors C: 1
  • N &uidermor of connectors to chassis fan: 3
  • N &uterer of SATA connectors 3: 6
  • Plug-in connectors RGB/LED: 4
  • Plug-in for Thunderbolt: 1
• Rear Panel I/O (Input/Output)
  • Number
  DisplayPorts: 1
  • Number of HDMI ports: 1
  • Quantity of USB 2.0 ports: 4
  • Quantity of USB 3.2: 3
  • Ethernet (RJ-45) ports: 1
  • S/PDIF outbound port: 1
• Bluetooth: No
• Network connection: S &iute;
• Ethernet: S &iute;
• Wi-Fi:
• BIOS
  • BIOS, tama ñ or memory: 256 MB
  and dimensions
  • Width: 305 mm
  • Depth: 244 mm

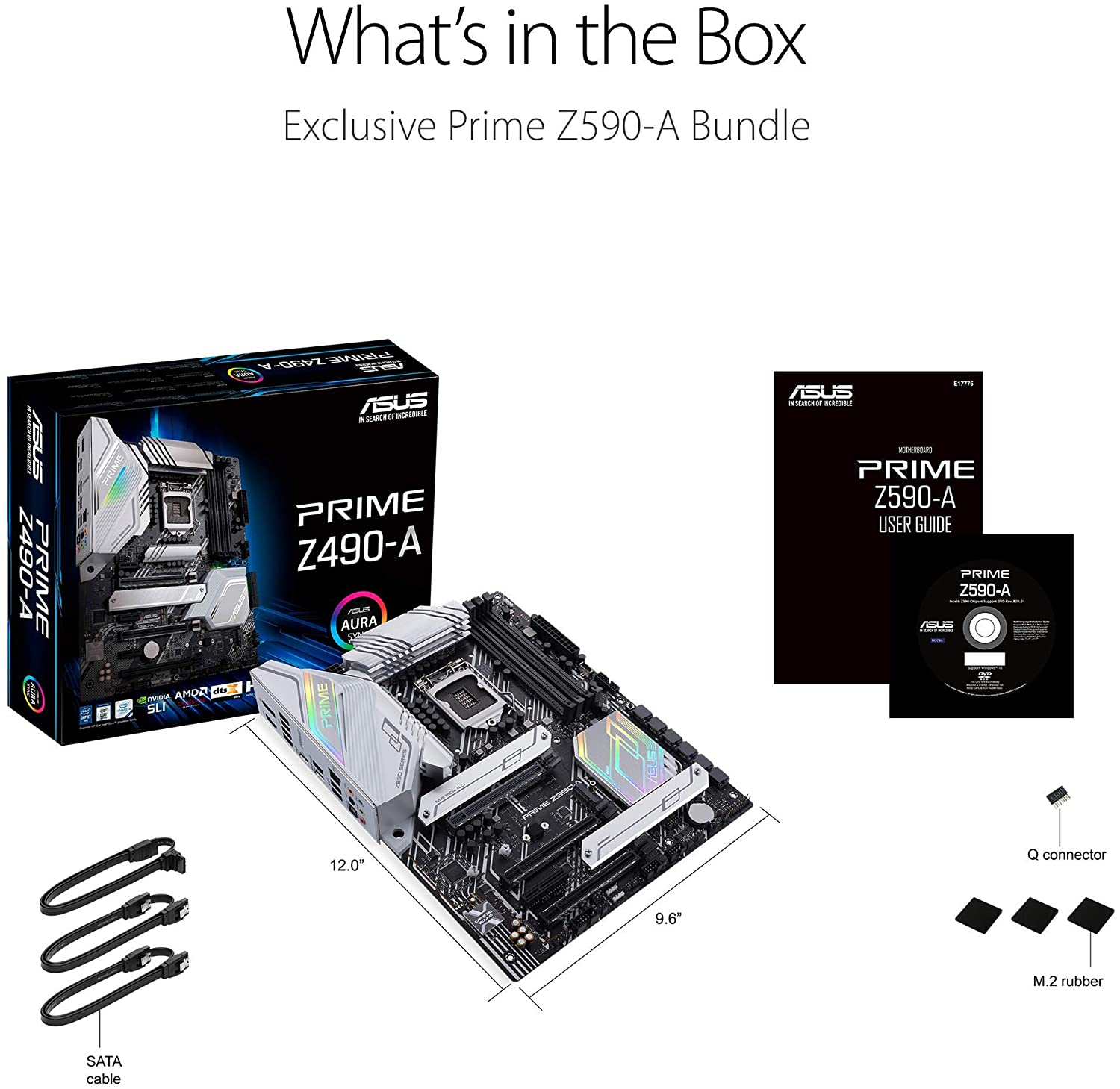

• Packaging contents
  • Material included: Controller CD, SATA, screws M. 2
