ASUS Prime H410M-D LGA Base Plate 1200
£68,14
You will receive your order within 5 - 6 days if you do it from Monday to Friday before 18 pmView options

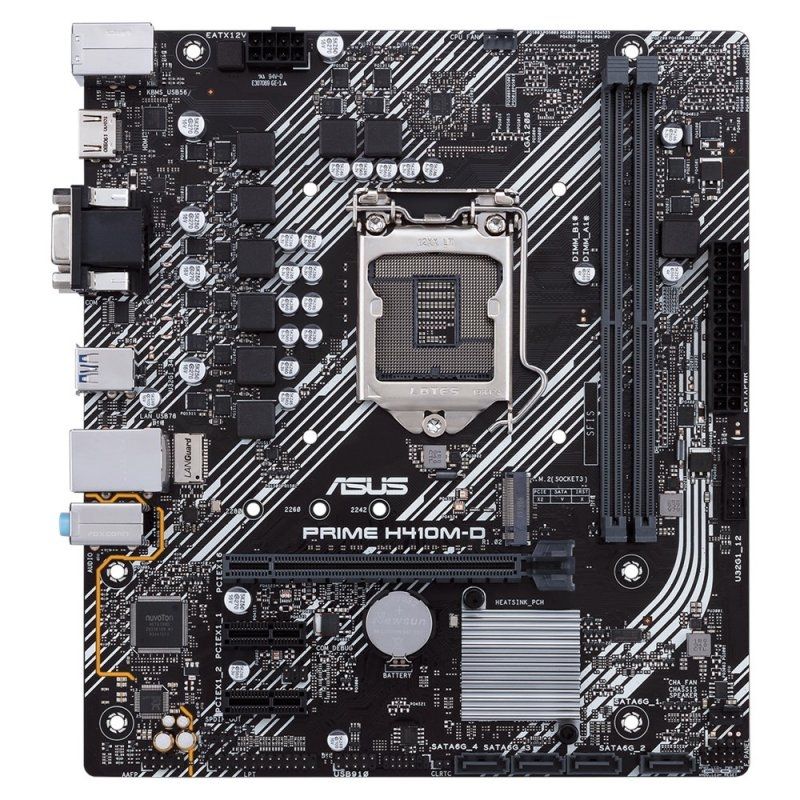

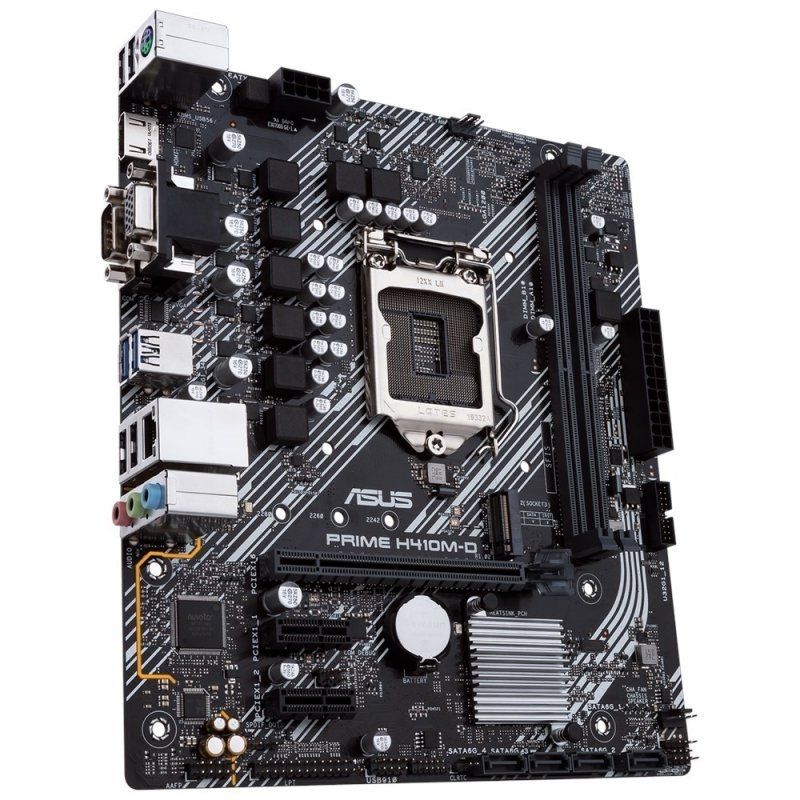

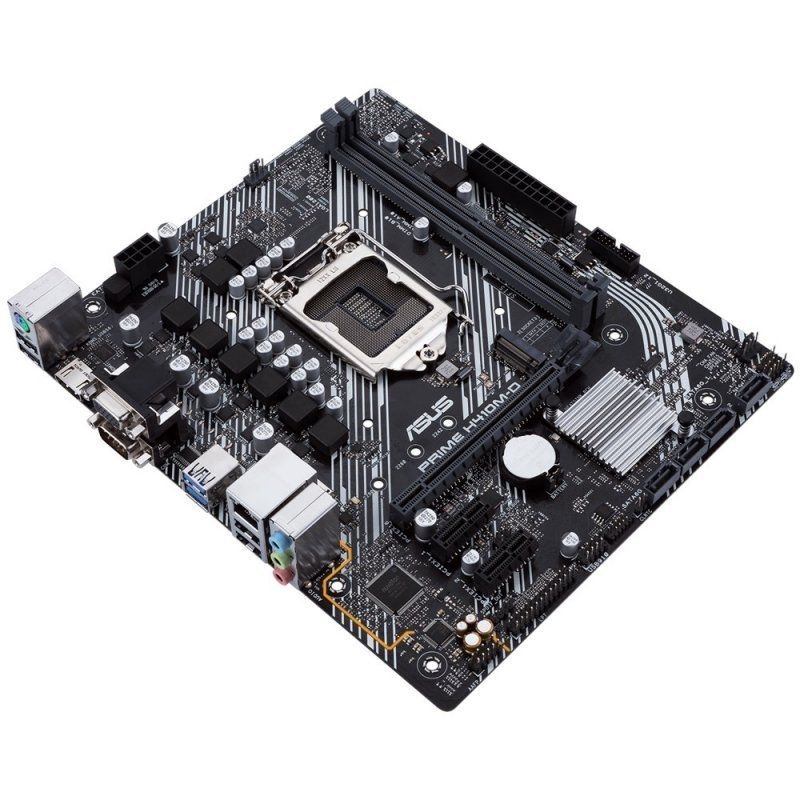

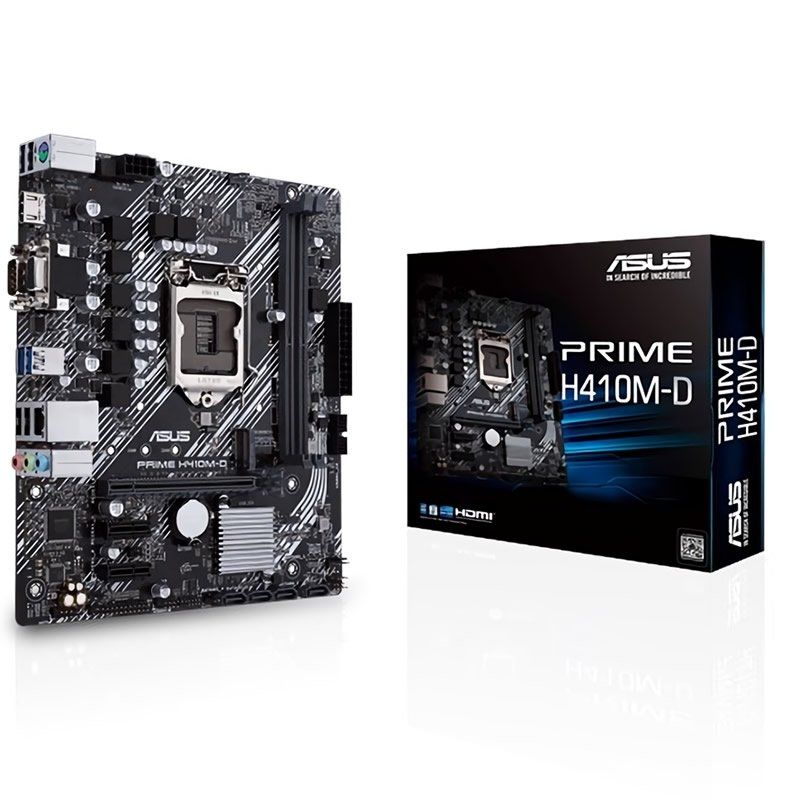

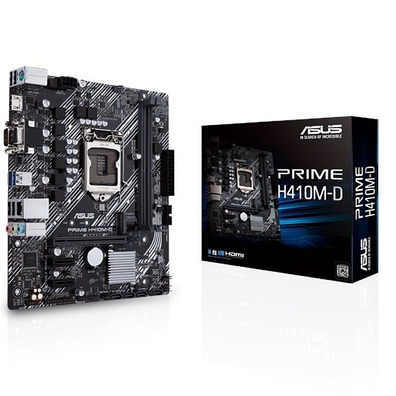

ASUS Prime H410M-D LGA 1200
The ASUS Prime series is an expert ñ ad to take advantage of the full potential of Intel Core processors in the 10. ª Gen. Equipped with a powerful ñ or power-supply solution, comprehensive cooling solutions and smart tuning options, the Prime H410 series base plates include very intuitive performance tuning options.
The ASUS Prime series incorporates a variety of controls. The Prime H410 motherboards include options that help you customize and adjust every aspect of your system so you can work your way, have the maximum performance and be productive.
The Prime H410 series is ñ ada to handle the additional n &uantios and the bandwidth of the 10. ª Gen of Intel Core processors. The H410 motherboards have a stable power supply system, intuitive cooling, and useful connectivity options and everything you need to boost your daily productivity.
ASUS Prime H410M-D Specifications:
- CPU
- Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 * *
- * Refer to www.asus.com for CPU support list
- ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Intel H410
- 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP )
- OptiMem
- * 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Integrated Graphics Processor *
- 1 x D-Sub
- 1 x HDMI 1.4b
- *Graphics specifications may vary between CPU types.
- Intel 10th Gen Processors
- 1 x PCIe 3.0 x16 (x16 mode)
- Intel H410 Chipset
- 2 x PCIe 3.0
- Total supports 1 x M. 2 slots and 4 x SATA 6Gb/s ports
- Intel H410 Chipset:
- 1 x M. 2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) * 1
- 4 x SATA 6Gb/s port (s
- Realtek RTL8111H
- Realtek ALC887 7.1-Channel High Definition Audio CODEC * 2
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature:
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Rear USB Port (Total 6)
- 2 x USB 3.2 Gen 1 port (s) (2 x Type-A)
- 4 x USB 2.0 port (s)
- 2 x USB 3.2 Gen 1 port (s)
- Character &iacitists special
- ASUS 5X PROTECTION VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design

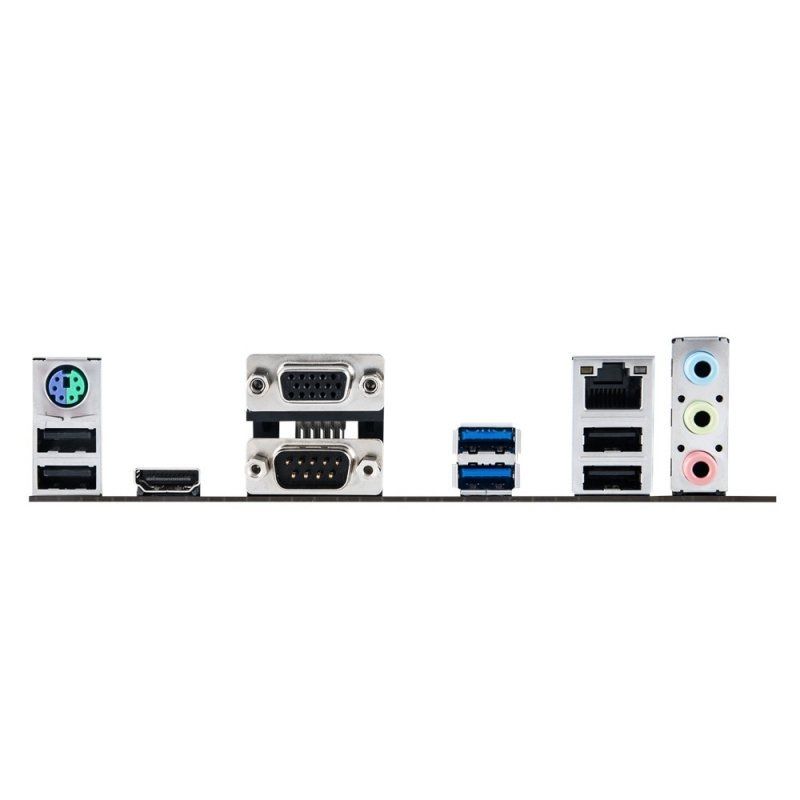

- 1 x PS/2 keyboard/mouse combo port (s)
- 1 x D-Sub
- 1 x LAN (RJ45) port (s)
- 1 x USB 2.0
- 1 x COM port (s) Internal connectors
- 1 x CPU Fan connector (s)
- 1 x Chassis Fan connector (s)
- 1 x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
- 1 x USB 2.0 connector (s) support (s) additional 2 USB 2.0 port (s)
- 1 x M. 2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
- 4 x SATA 6Gb/s connector (s)
- 1 x 24-pin EATX Power connector s)
- 1 x Front panel audio connector (s) (AAFP)
- 1 x Clear CMOS jumper (s)
- 1 x System connector panel
- 1 x Speaker
- Windows 10 64Bits
- Micro ATX: 22.6 x 20.1 cm
