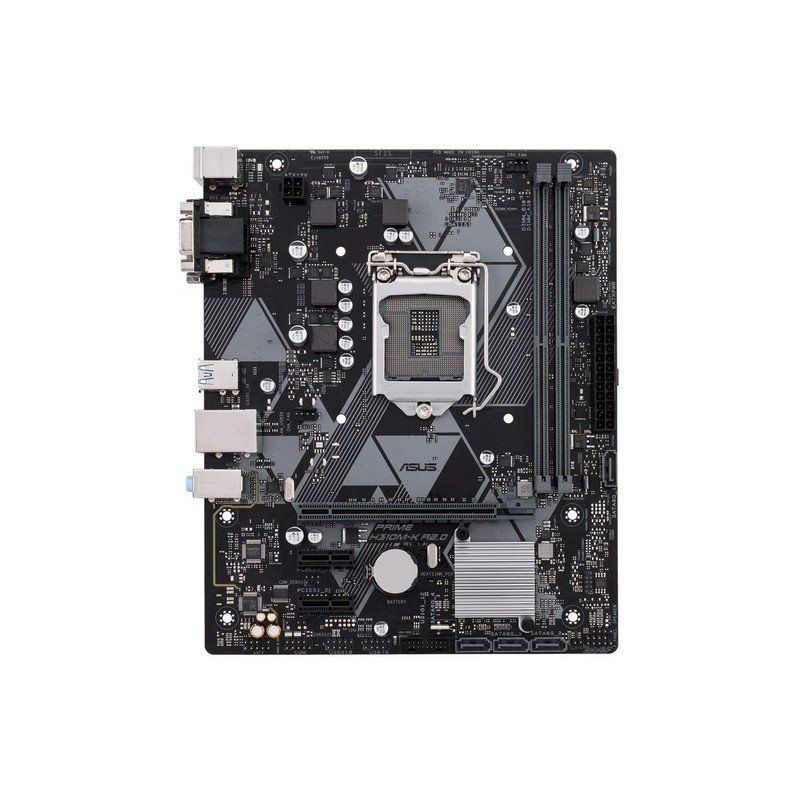

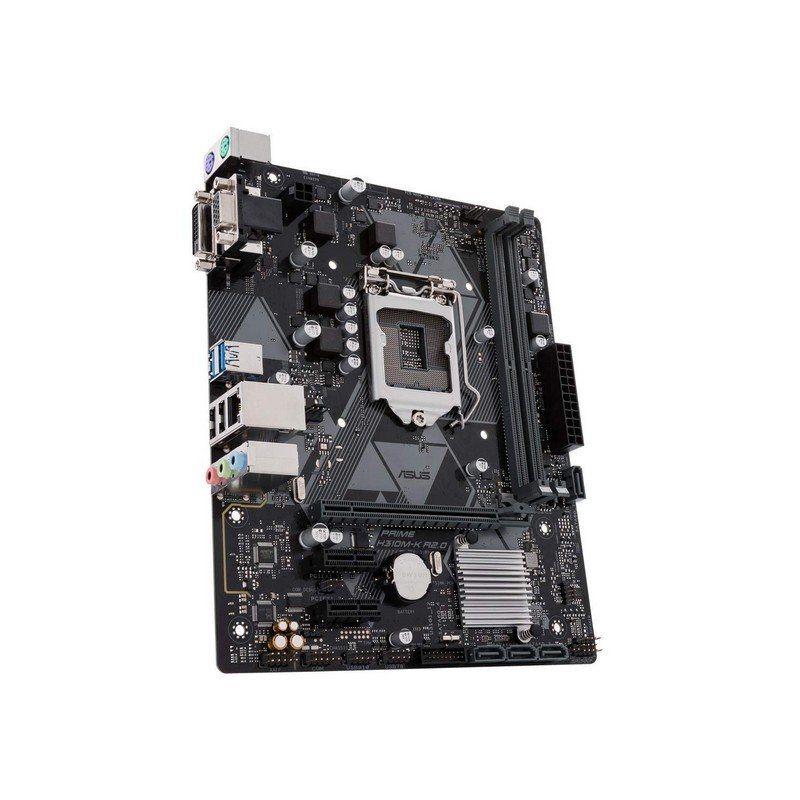

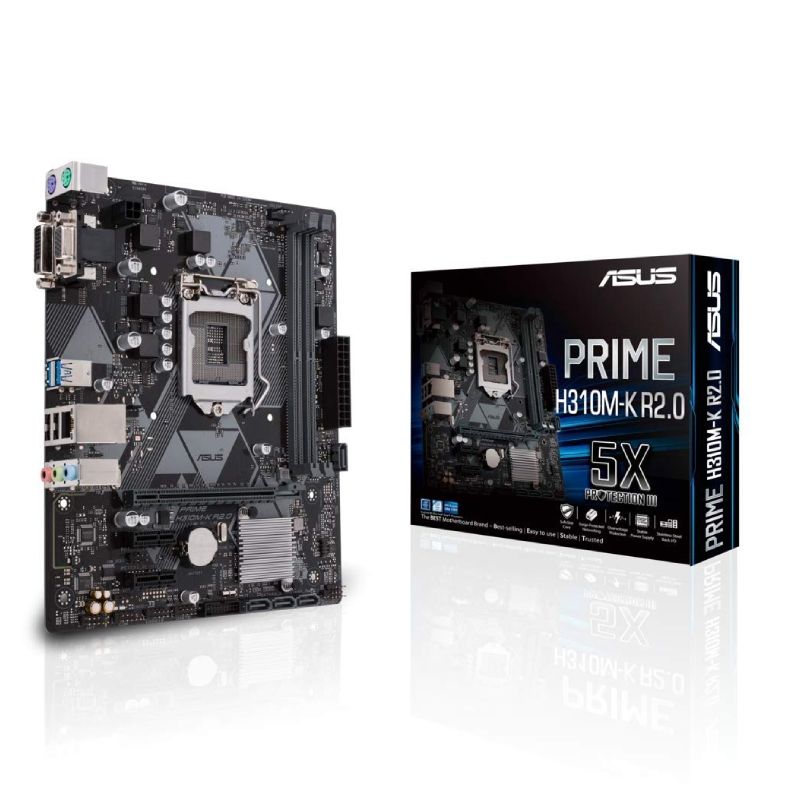

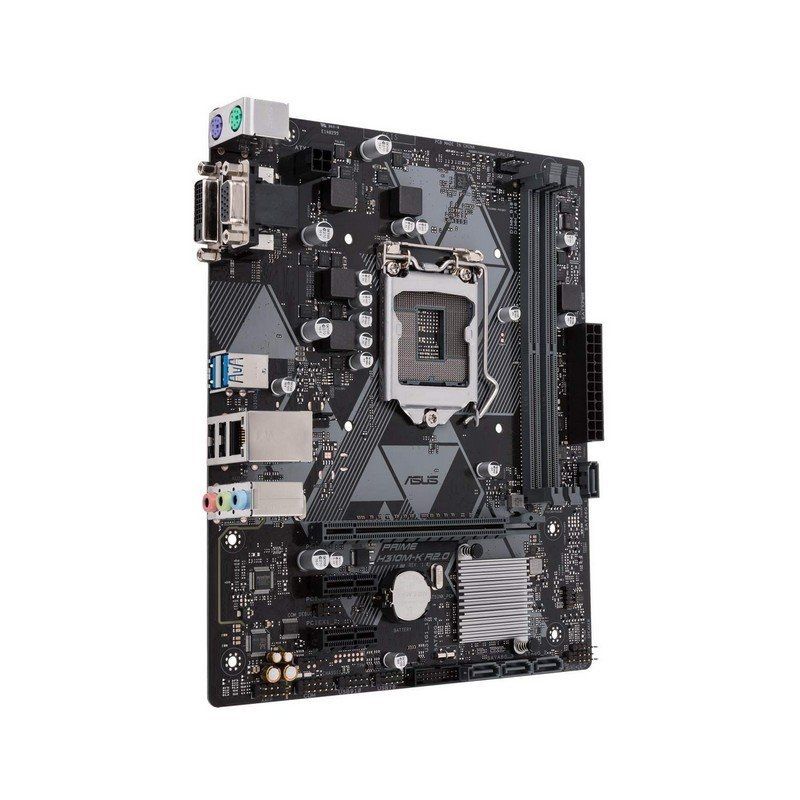

ASUS Prime H310M-K R2.0 LGA 1151 Base Plate

ASUS Prime H310M-K R2.0 LGA 1151 Base Plate

ASUS Prime Series 300 provides the base s &oaculida required for your armed, adem &aplies of the flexibility to update it in the future.

With all the features of the 8th generation Intel Core processors with the ASUS ñ or engineer í s, it includes self-tuning system &aUtetic and integral cooling as controls and immersive audio. When you have your equipment with an ASUS Prime Series 300 motherboard, you build smart, easy and affordable.

ASUS OptiMem preserves the integrity of the se ñ to the memory by routing memory traces and v &iudias to the PCB layer, our ñ or T-Topology ensures the ñ s time aligned in time by balancing trace lengths between memory slots. These enhancements enable TUF Gaming boards to support a wide range of dual and dual-memory DIMM memory kits, while providing your platform with the stability you need to address any workload, whether you are playing or running intensive applications.

Control Q-Fan

You can manually configure the fan speed, or use the pre-configured fan profiles such as: Silent, Silent, Turbo, or Full Speed, adem &arecos of a change autom speed at speed m &axime if the temperature reaches 75 ° C.

Function B &utebution

When you are ready for a deep dive, the Advanced mode allows you to complete control over each aspect of the motherboard, with a function of B &ute; s embedded to find the configuration that you need in the blink of an eye.

ASUS Prime H310M-K Specifications:

• CPU
  • Z CPU LGA1151 CPU for Intel processors   Core 9th/8th Generaci Intel   Core, Pentium   Gold and Celeron Processors
  • Admit a 14nm CPU
  • Admit Intel   Turbo Boost Technology 2.0 *
  • * Compatibility with the Intel   Turbo Boost 2.0 technology depends on the CPU types.
  • ** See the Intel CPU compatibility list at www.asus.com
  • Chipset
    • Chipset Intel   H310 Chipset
  • Memory
    • 2 x DIMMs, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC memory without buffer
    • Dual-channel memory architecture
    • Admit Intel   Extreme Memory Profile (XMP )
    • * The memory frequency m &axime allowed to vary &iUtits to the processor.
    • ** DDR4 2666MHz and the upper memory modules will operate &aetuxime to a maximum of. 2666MHz on Intel   8th Gen. 6-core or higher processors.
    • Gr &apacities
      • Integrated pgr processor-Intel HD
      • Multi-VGA output support: port/DVI-D/D-sub
      • Admit DVI-D with m áx. 1920 x 1200 x 1200 @ 60Hz
      • Admit D-SUB with m &aacuties x. resoluci 1920 x 1200 @ 60Hz
      • Memory shared m &axime of 1024 MB (for iGPU exclusively
      • Expansion slots &oatecn
        • 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
        • 2 x PCIe 2.0
      • • 4 x SATA 6Gb/s
        (s),
      • LAN
        • Realtek   RTL8111H, 1 x Gigabit LAN
      • Audio
        • Realtek   ALC887 8 channels * high-definition audio
        • • Chipset Intel  H310
          • 4 USB 3.1 Gen 1 ports (up to 5 Gbps) (2-port rear panel, turquoise blue, type A, 2-port half-board)
          • Intel   H310 chipset
          • 6 USB 2.0/1.1 ports (4 ports at half the board, 2 ports @ rear panel)

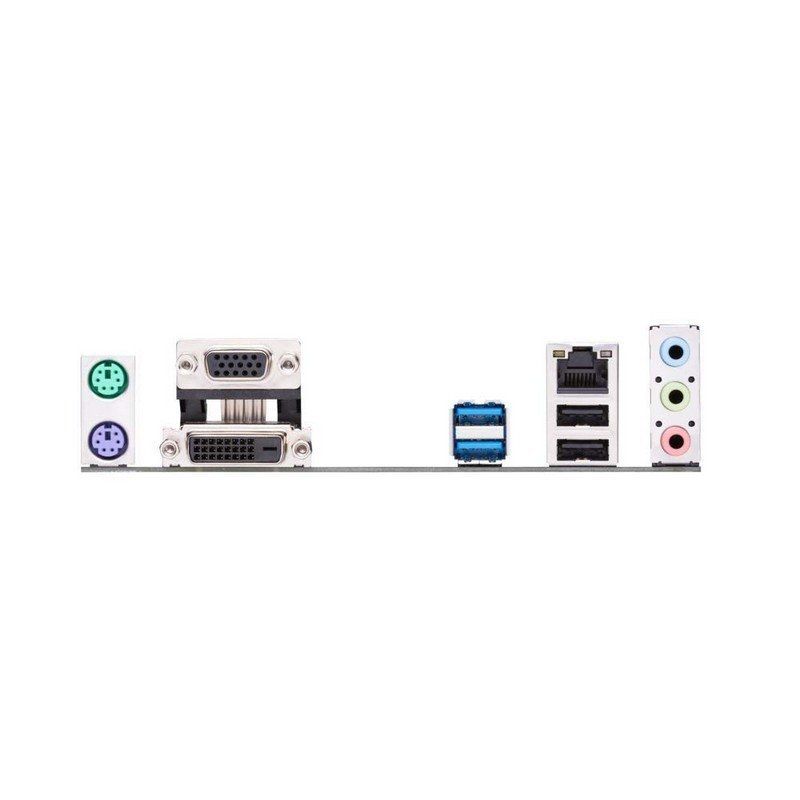

          Rear panel I/O ports
          • 1 x PS/2 keyboard (green)
          • 1 x DVI-D
          • 1 x LAN (RJ45) port (s)
          • 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
          • 3 x Audio jack (s)
          E/S connectors internal
          • 1 x USB 3.1 Gen 1 connector (up to 5Gbps) compatible with 2 additional USB 3.1 Gen 1 (19 pins)
          • 2 x connector (s) USB 2.0 are compatible with 4 additional USB 2.0 ports
          • 1 x connector (s) COM
          • 4 x SATA 6Gb/s connector (s)
          • 1 x chassis fan connector (s) (1 x 4 pins)
          • 1 x 24-pin EATX power connector
          s)
          • 1 x Front panel audio connector (s)
          • 1 x clear CMOS bridge (s)
          • 1 x system panel connector
          • 1 x speaker
          • BIOS
            • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
          • Factor
            • mATX 22.6cm x 18.5 cm
