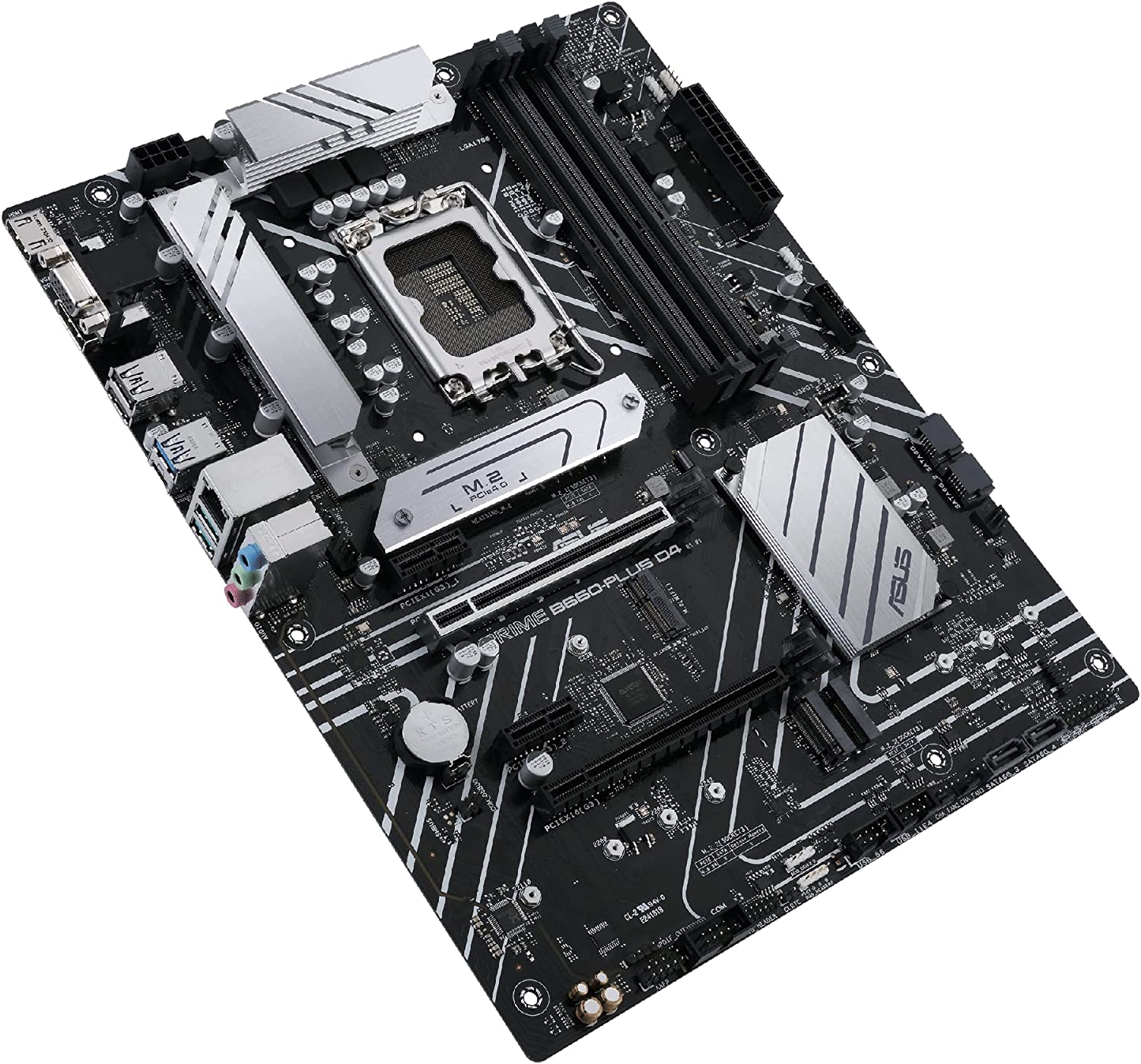

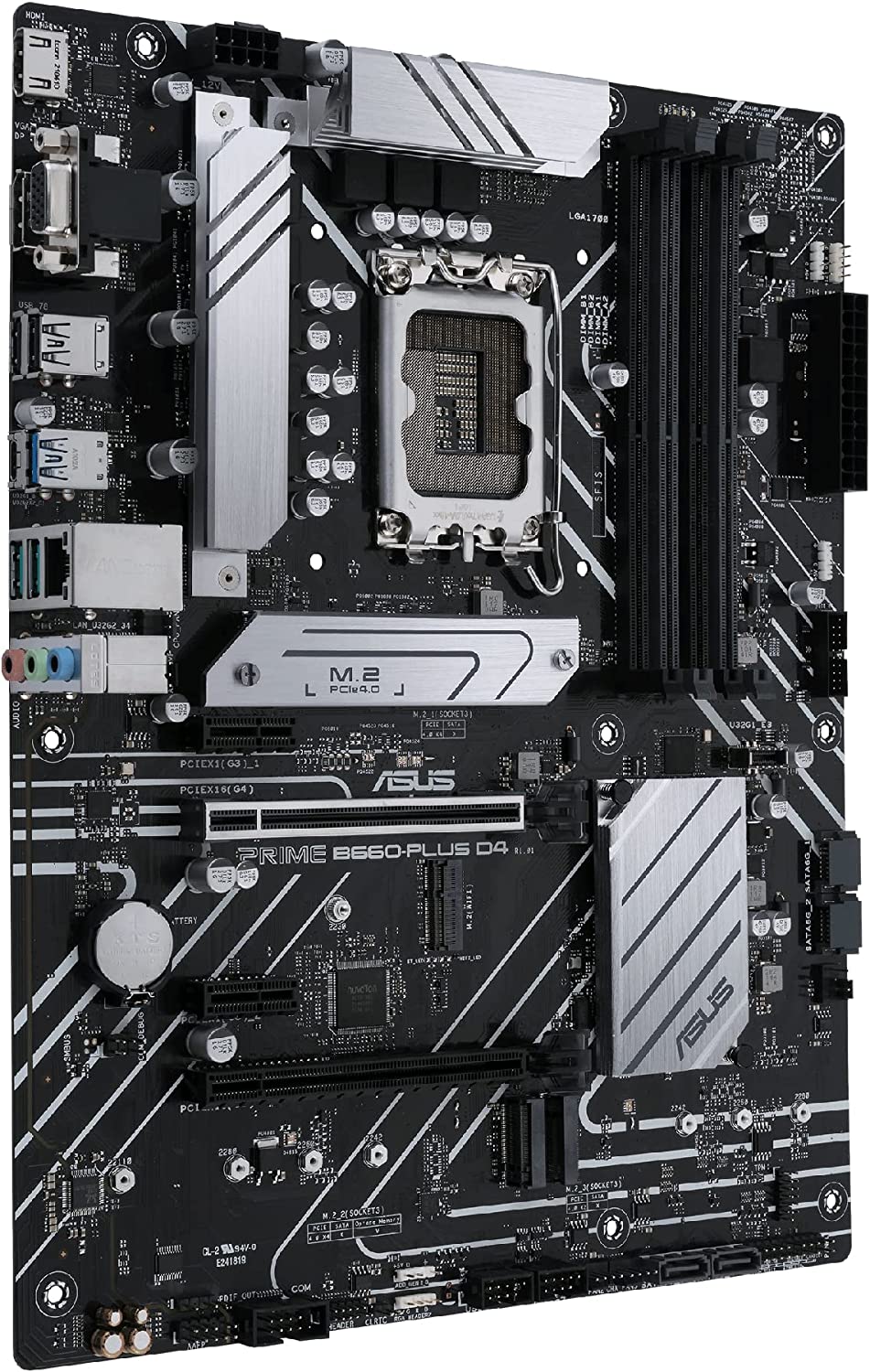

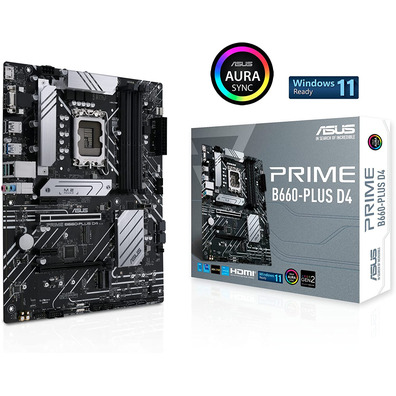

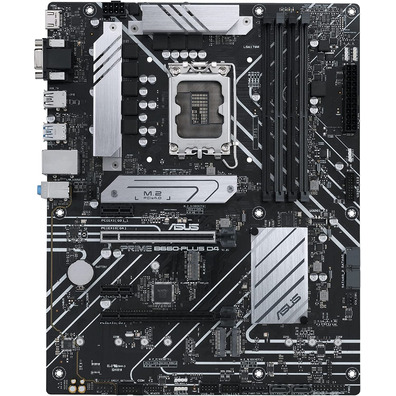

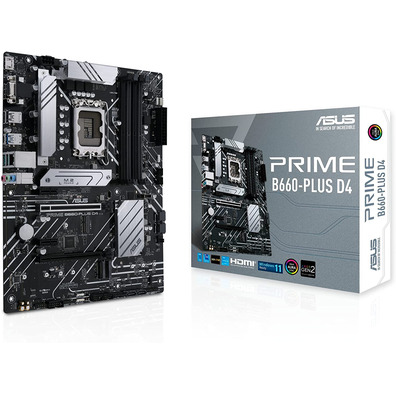

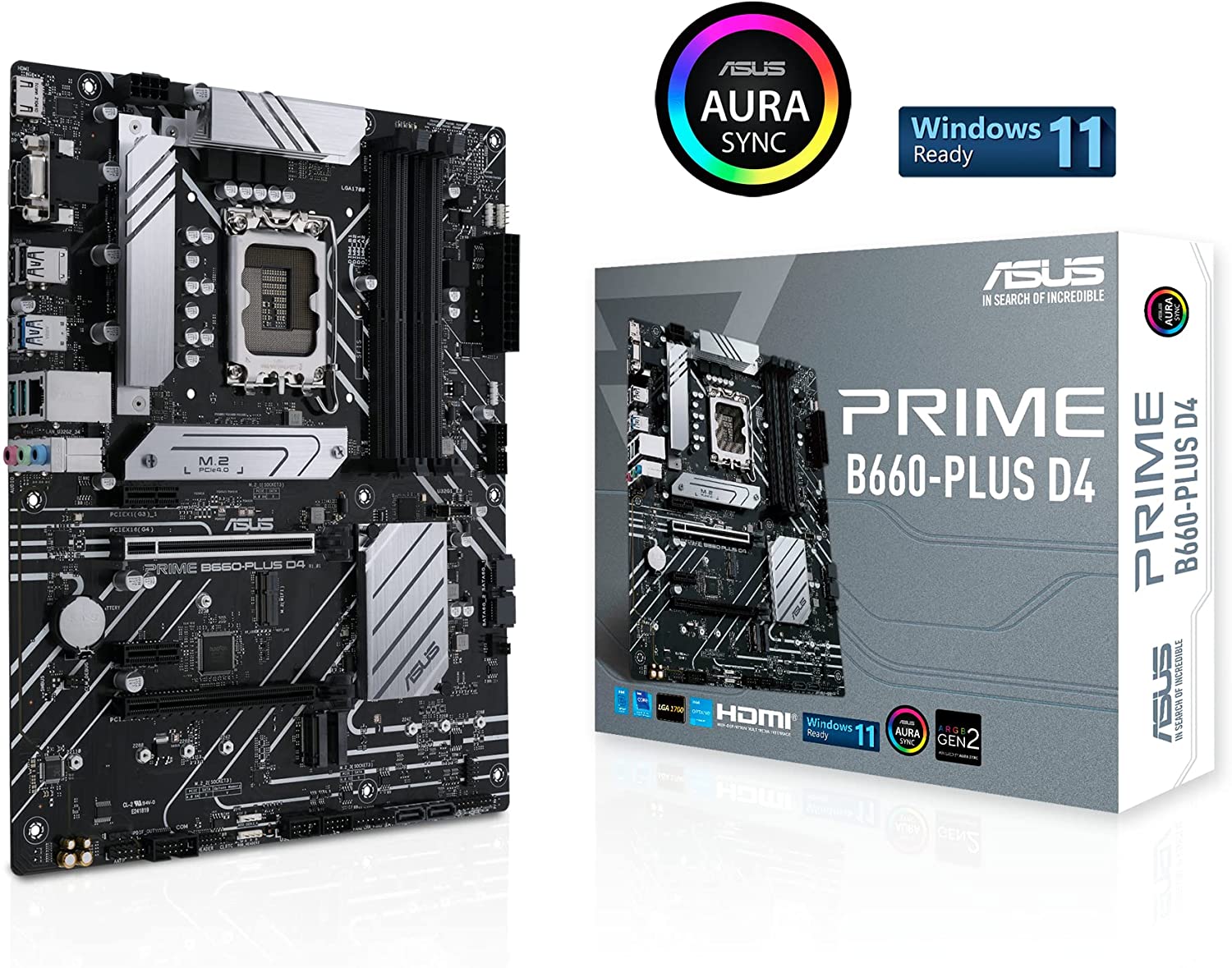

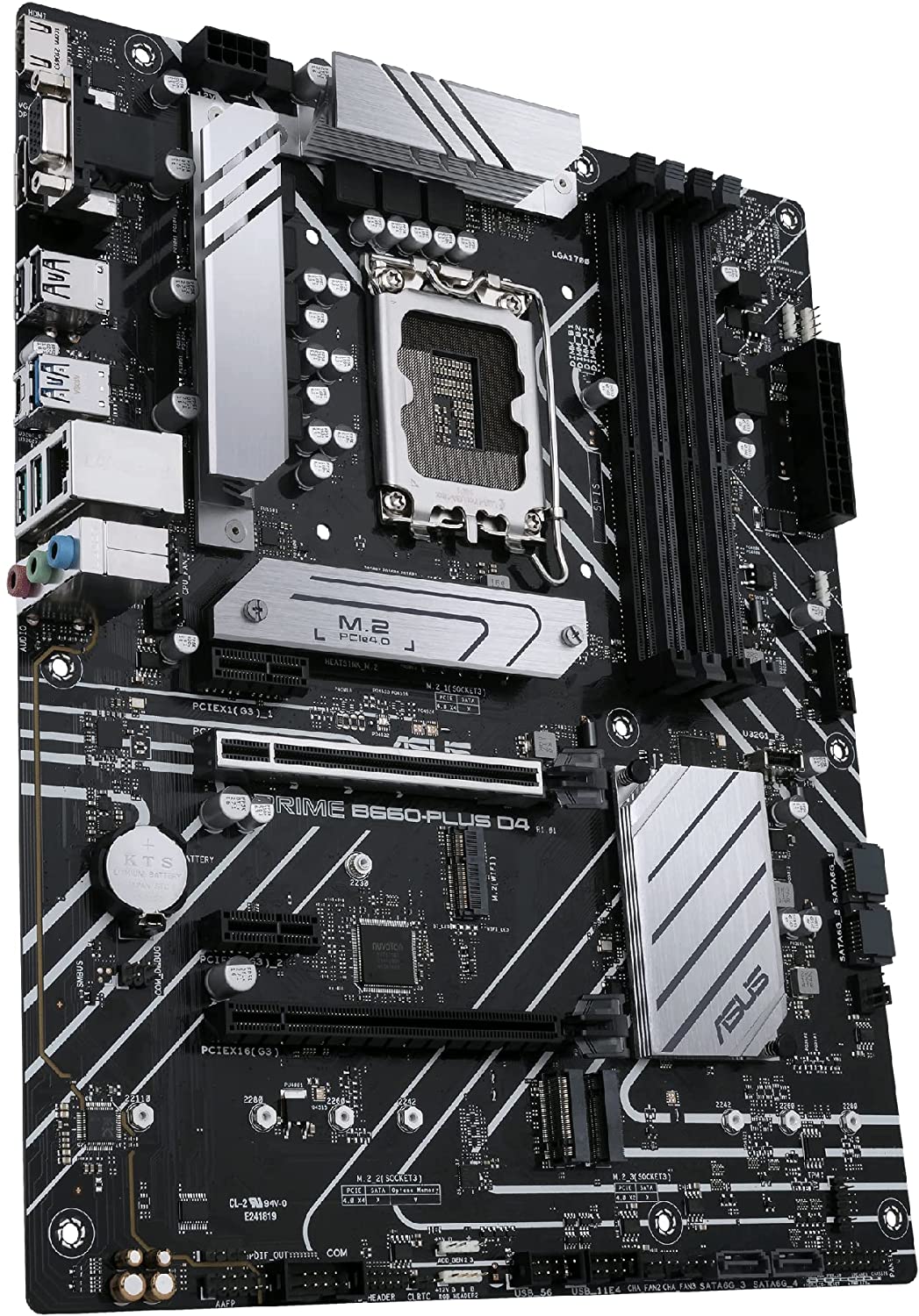

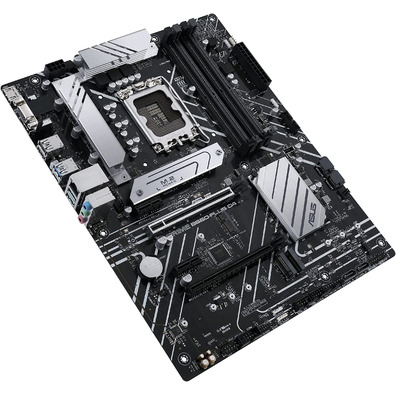

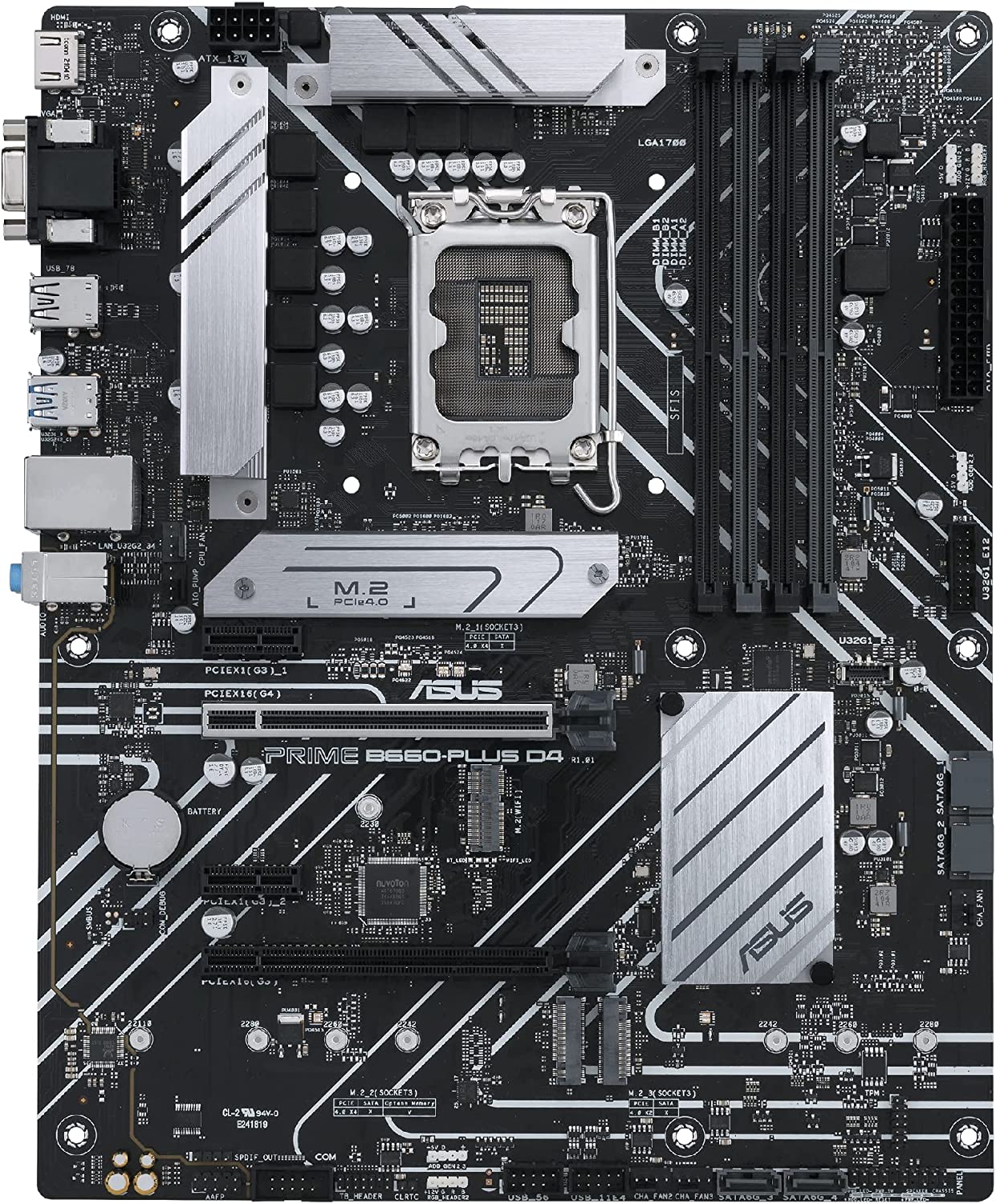

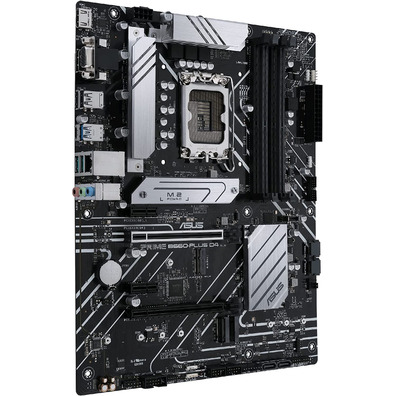

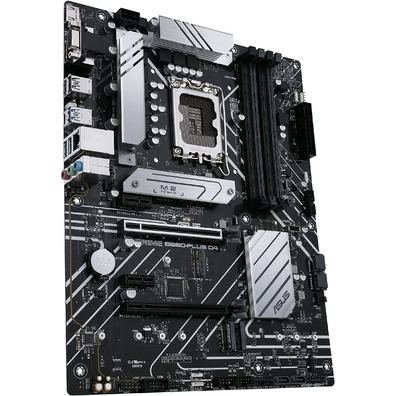

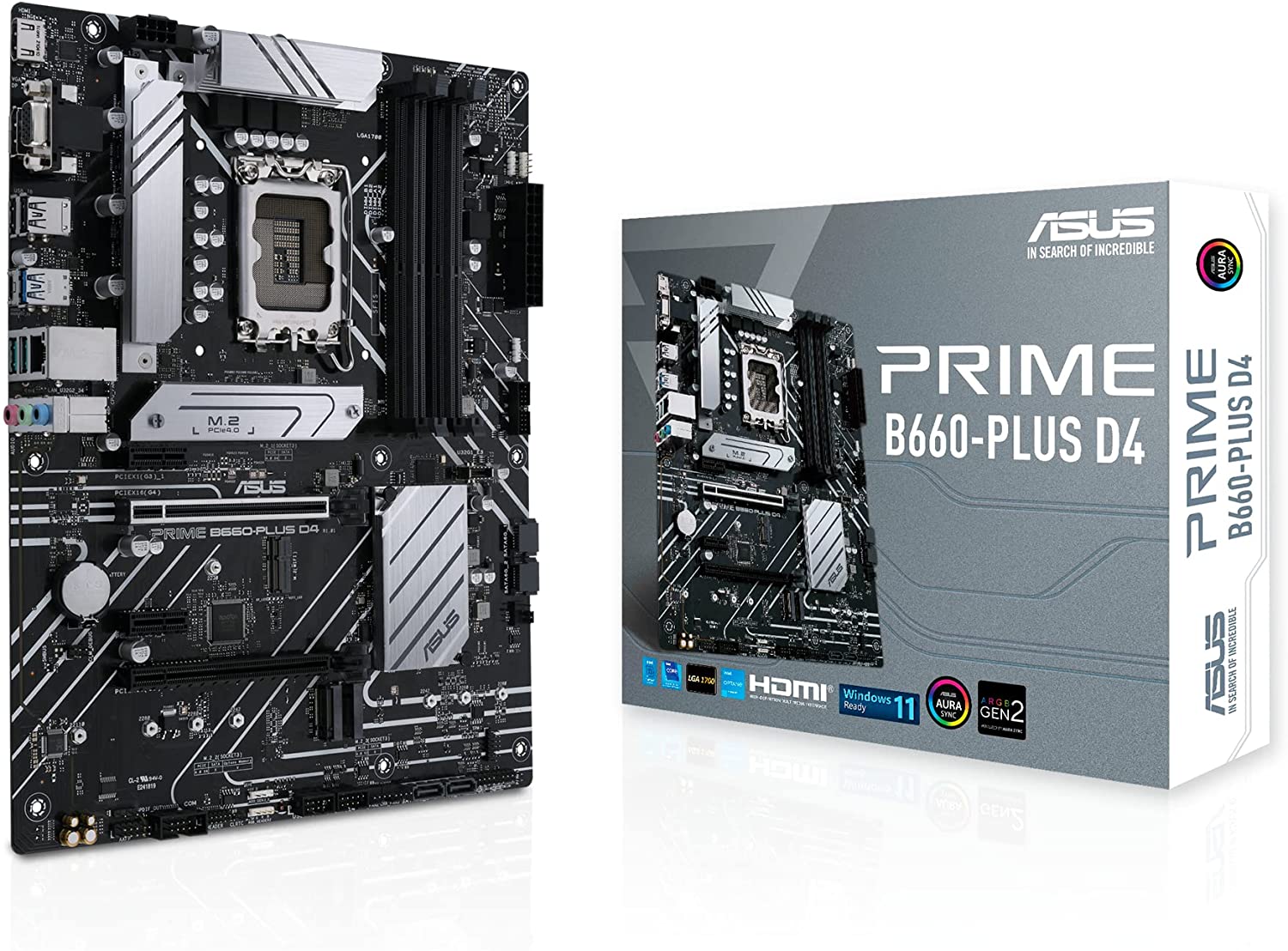

Asus Prime B660 Base Plate-PLUS D4 Socket 1700

Asus Prime B660 Base Plate-PLUS D4 Socket 1700

The ASUS Prime series base plates are ñ ed by experts to unlock the full potential of the 12 ª Intel processors. With a robust ñ or power í, comprehensive cooling solutions and smart tuning options, Prime B660 provides PC users and builders with a range of performance tuning options for intuitive software and firmware function. ASUS PRIME B660 PLUS D4 offers an elegant and futuristic-looking construction with a black and white finish, elements of the ñ or space shuttle, identification plate & PCB cover.

FLEXIBILITY

Comprehensive controls form the basis of the ASUS Prime series. The Prime B660 motherboard includes flexible tools to fit all aspects of your system, allowing performance adjustments to suit your way of working to maximize productivity.

SMART CONTROL

Comprehensive energy efficiency

The Power Processing Unit (EPU) optimizes autom &aUtitically the power consumption to and maximizes the power saving &iacte; a with the Away mode, a smart configuration that creates an end-to-end power saving scenario when turning off unused E/S drivers.

Flexible air and air cooling controls

The ASUS Fan Xpert 2 + software provides complete control over fans, water pumps and all-in-one refrigerators (AiO). Whether it is your with air or liquid, a self-tuning mode intelligently configures all the pair of meters with a single click. Also, there is an extremely quiet mode that reduces all the fan speeds below the default minimum level to keep your system quiet when you perform light tasks. Fans, water pumps, and AiO refrigerators can be controlled through the UEFI BIOS.

Accurate digital power control

Digi + voltage regulator module (VRM) provides real time control over the voltage ac &iacuity, changing the frequency settings and energy efficiency. Also, it allows you to adjust your CPU to achieve the maximum stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to set up and adjust your system. It offers intelligently simplified options for PC DIY beginners, as well as integral functions for experienced veterans.

Advanced tuning for serious tweakers

An intuitive advanced mode that is offered to the UEFI &ealds allows you to take full control. A built-in b &uenteel seda function facilitates the b &ualtiment of options, and several advanced functions allow you to make smart adjustments so that you can mark the performance in the way you want.

Quick and Simple &oatutin r &oatuas

The EZ mode shows vital &iacuity and configuration settings and also provides guided wizards, drag-and-drop functionality, and an application of important configurations with a single click, all to help you get your equipment up and running in a short time.

COOLING

The Prime B660 series is ñ ada with a variety of hot fan heads to ensure your equipment stays cool and stable under intense workloads.

CALOR DISIPERS

M. 2 Heat Disiper

The M. 2 heat sink avoids the bottleneck that can occur with M. 2 storage during sustained transfers. The heat sink is held in place by captive screws.

Heat Disiper and VRM Rmica T-pad

The heat sink and the VRM thermal t-pad improve the heat transfer of the MOSFET and the chokes for better cooling performance.

M &AECONS FRESH BY DISE Ñ O

The Prime B660 series features comprehensive cooling controls that can be configured using the Fan Xpert 2 + software or the UEFI BIOS.

Multiple temperature sources

Each header can refer to three &eacermic t-sensors. Fan Xpert 2 + allows you to map the temperature of the compatible ASUS gr cards to optimize the cooling for CPU and GPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC head for water-cooling nomas.

Smart &oatement protection

A dedicated integrated circuit protects each fan head from overheating and overcurrent.

4-pin PWM/DC Fan

Each integrated head supports either the PWM or DC fan autom &oattics.

Specifications:

• Format: ATX
• Chipset: Intel B660
• Multi-GPU: No
• Amount of PCI Express slots: 3
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, Serial ATA III
• N Number of processors supported: 1
• • Processor Socket: Socket 1700
  • Processor Family: Intel Core i3-12 ª Gen, Intel Core i7-12 ª Gen
  Intel Core i9-12 ª Gen
  • Memory
    • Memory slots: 4x DIMM
    • Memory slot type: DIMM
    • Internal memory m &axime: 128 GB
    • Supported memory module capacities: 32 GB
    • Non-ECC: Yes
    • Memory without buffer: Dual
    • Supported memory channels: DDR4
    • Supported memory types: 2133 MHz, 2400 MHz, 2666 MHz, 3400 MHz, 3400 (OC), 3600 (OC), 4266 (OC), 4300 (OC), 4400 (OC), 4600 (OC), 4800 (OC), 5000 (OC), 5066 (OC)
    • V &iudero deo
      • Graphics chipset: Intel
      • M &axime resoluci &oatun: 4096 x 2160 Pixels
    Audio
    • Audio output channels: 7.1
    slots &oatu. n
    • PCI Express Configurations: 1 x1, 2 x16
    • N &uenderumer (total) PCI Express slots: 1
    • PCI Express slots: 3.0, 4.0
    • Internal I/O
      • Power Connector to EPS (8-pin): 1
      • CPU Fan Connector: Yes
      • ATX Power Connector (24 pins): Yes
      • Front panel audio connector: Yes
      • Jumper Clear CMOS: Yes
      • TPM connector: Yes
      • USB 2.0 connectors: 1
      • USB connectors C: 1
      • N &uterer connectors to chassis fan: 1
      • N &o number of SATA connectors 3:
      • RGB connectors/LED connectors: 2
      • Cooling Connectors &oatecon L íto: 1
      • Connector for Thunderbolt: 1

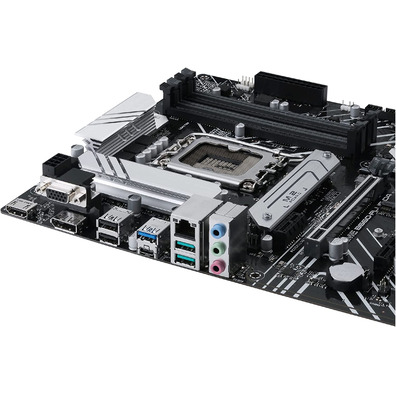

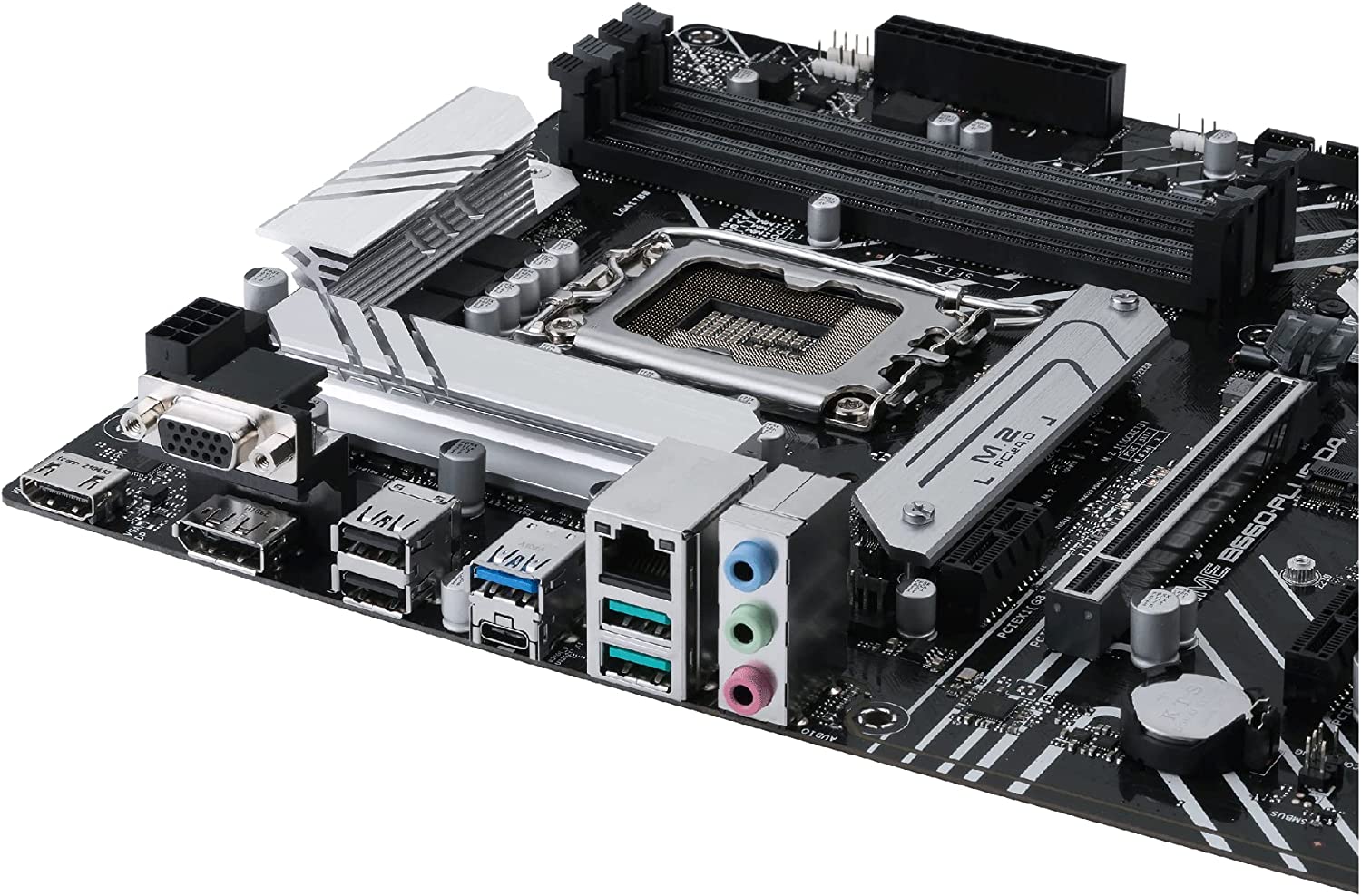

      • Rear Panel I/O Ports (Input/Output)
        • Speaker, headphone, output jack: 2
        • Quantity of DisplayPorts: 1
        • VGA (D-Sub): 1
        • Number of USB ports 2.0: 2
        • Number of USB ports 3.2: 3
        • Ethernet (RJ-45) port quantity: 1
        • Micr &o, jack of input:
        • Storage regulators
          • RAID levels: 0, 1, 10, 5
        • • Bluetooth: No
          • CharacterNetwork statistics: 10/100/1000 Mb/s
          • Network &o &o: Yes
          • Ethernet: Yes
          • ethernet interface type: Gigabit Ethernet
          • Wi-Fi:
          • BIOS
            • BIOS, tama ñ or memory: 128 MB
            • BIOS types: UEFI AMI
          Weight and dimensions
          • Width: 30.5 cm
          • Depth: 24.4 cm
