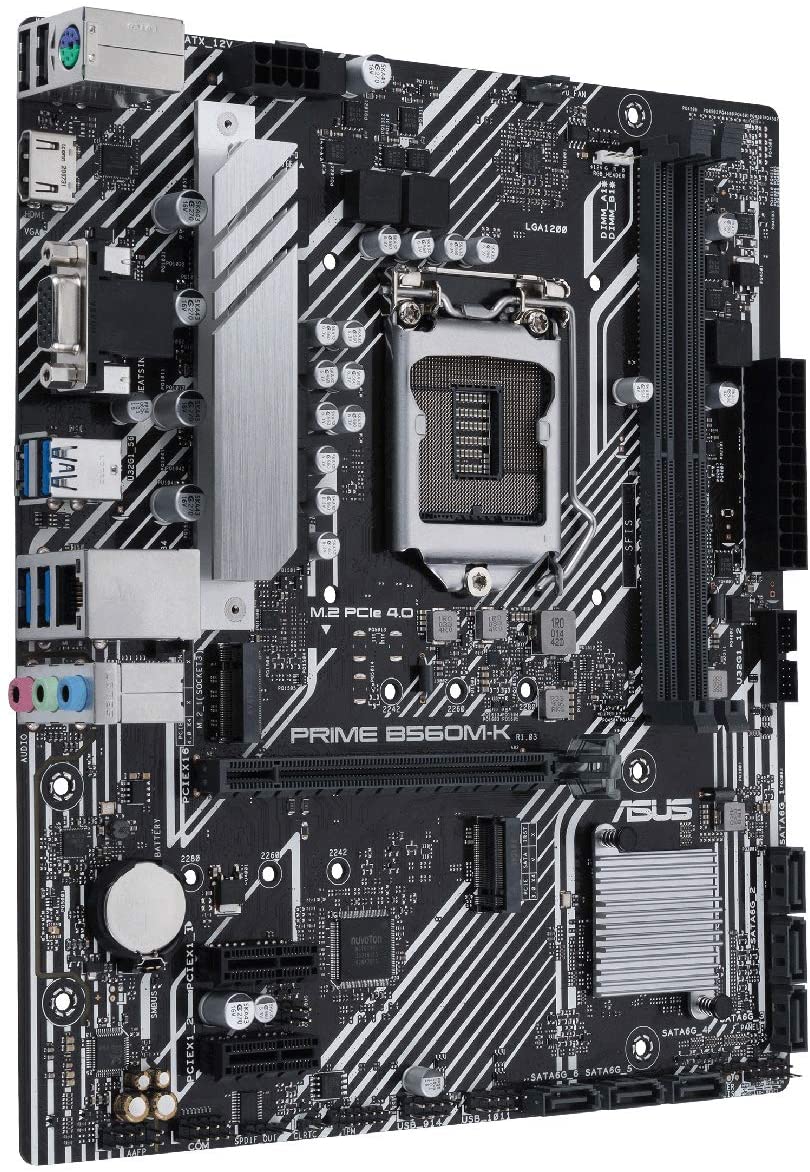

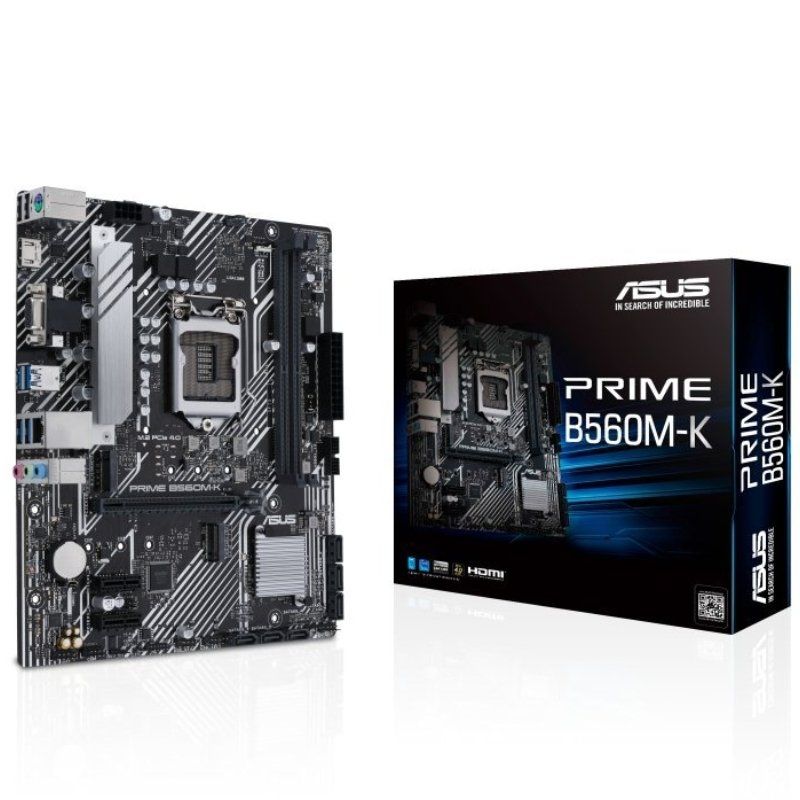

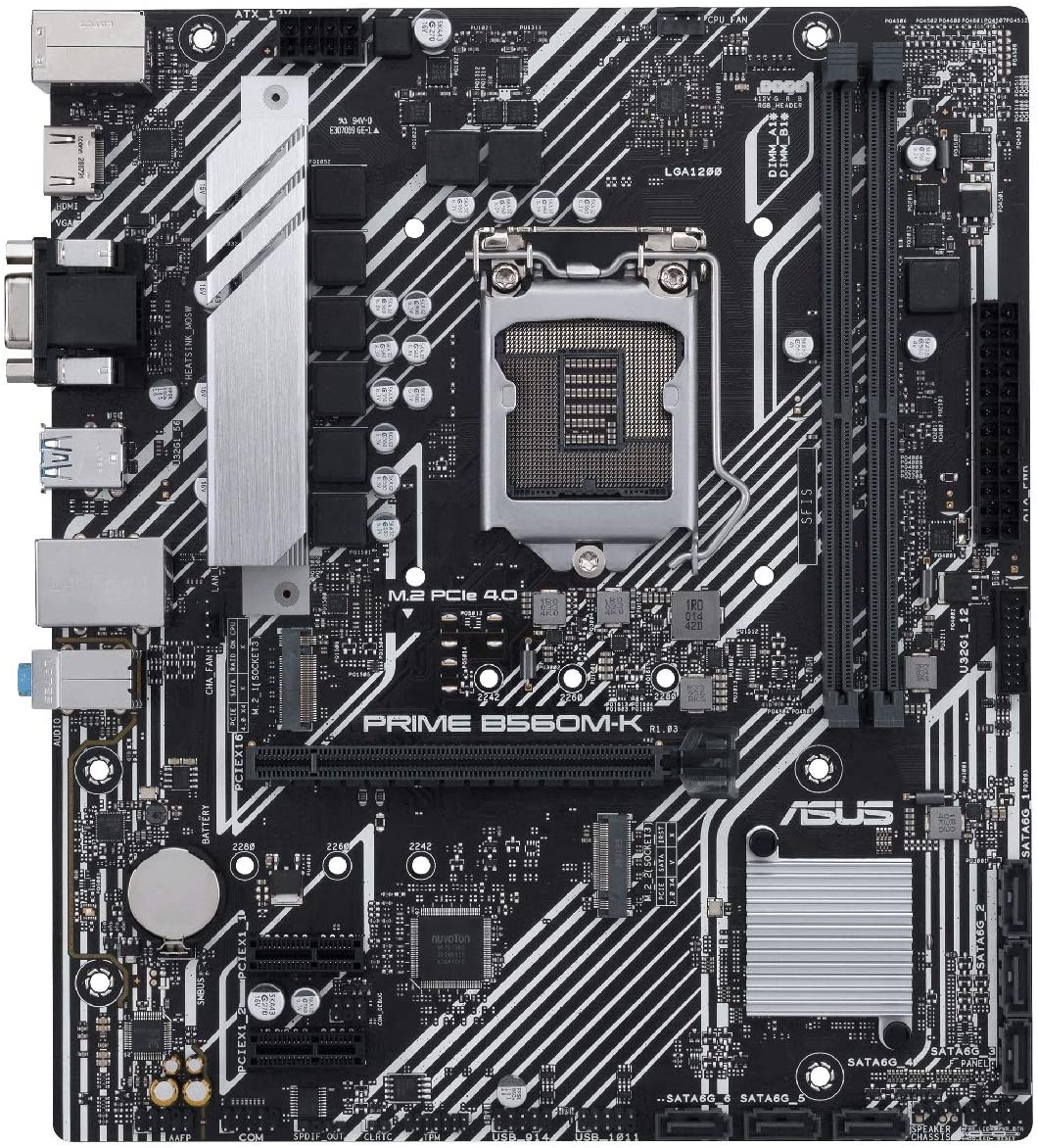

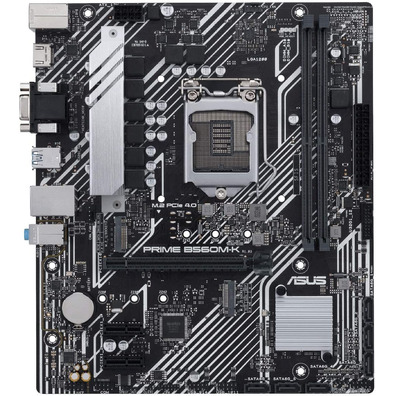

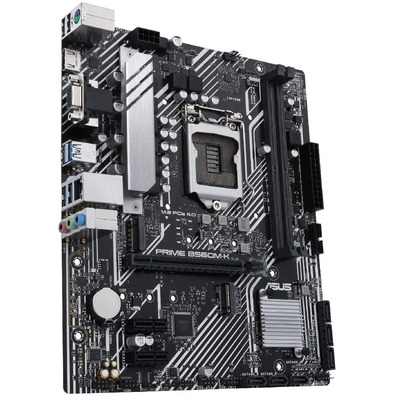

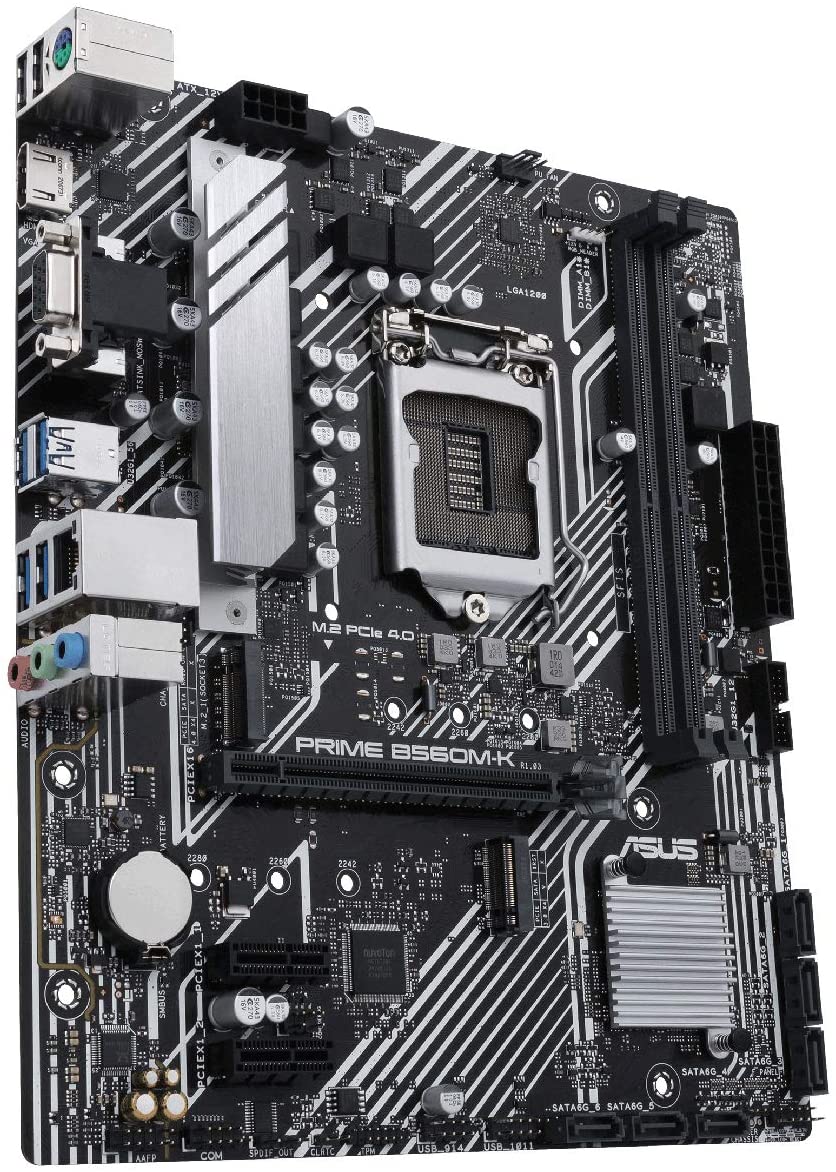

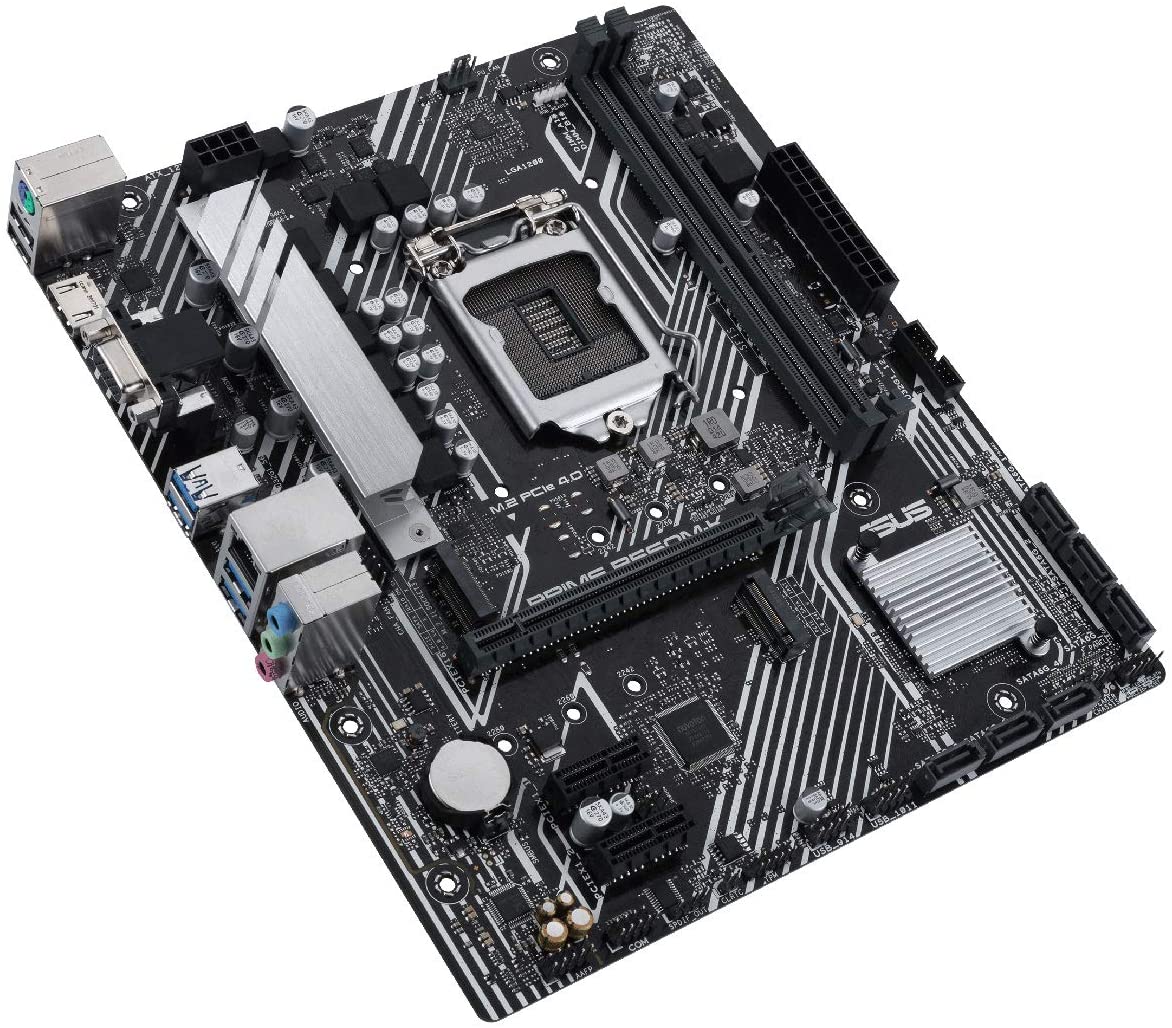

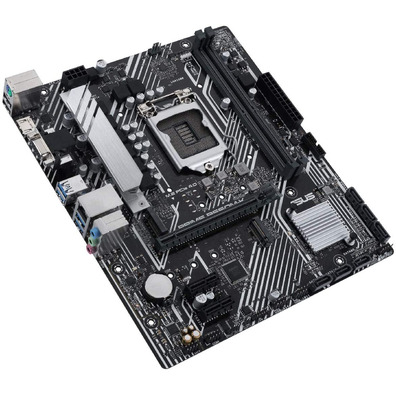

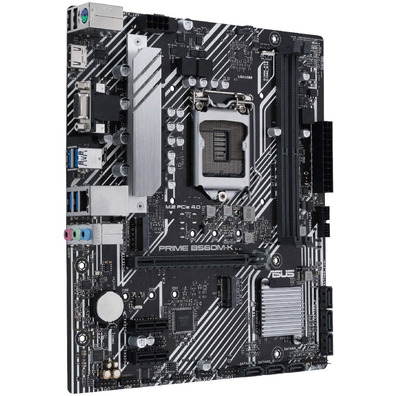

Base Plate Aus Prime B560M-K Socket 1200 Micro ATX

Asus Prime B560M-K Socket 1200 Micro ATX Plate

ASUS Z590 series base plates are ñ ed to extract up to the latest performance drop of the 11. ª Gen. of Intel   Core processors. We have strengthened the new ñ s power supply and the latest connectivity options with technical engineering techniques that leverage Artificial Intelligence to keep you at the forefront of performance.

Character íres:

• CPU
  • Intel   Socket LGA1200 for Intel Core Intel Core processors and Intel Core processors, Pentium   Gold, and Celeron   from the top generation &oatecon
  • Admit Intel CPU   from 14 nm
  • Admit the technology technology to Intel   Turbo Boost 2.0 and the technology &iacto to Intel   Turbo Boost Max 3.0 **
  • * See www.asus.com for the list of CPU support.
  • ** Compatibility with the Intel   Turbo Boost Max 3.0 depends on the CPU types.
• Chipset
  • B560
• Memory
  • Memory channels: 2DDR4 (double channel)
  • Tama ñ or m &aUth memory: 64 GB
  • DDR4 5000 (OC)/4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/3600 (OC)/3466 (OC)/3333 (OC)/3200 (OC)/2933/2800/2666/2400/2133 MHz Non-ECC
  memory without b &ueru; fer *
  • Support Intel   Extreme Memory Profile (XMP )
  • * 10 ª Gen Intel Core i7/i9 processors support natively 2933/2800/2666/2400/2133,
  • * See www.asus.com for memory QVLs (qualified vendor lists)
  compatibility with the frequency of memory depends on the CPU types.
• Gr &aUtephics
  • 1 x D-Sub
  • 1 x HDMI   2.0 **
  • * * * * * * * * * * * * * * * * * * * * * * * * * *Intel   11 º Gen processors help HDMI 2.0 with max. {\cs6\f1\cf6\lang1024} 1 {\cs6\f1\cf6\lang1024} {\cs6\f1\cf6\lang1024} 4K @ 30Hz solution. Refer to www.intel.com for updates
  • Expand slots &oatern
    • Intel processors   out of 11. ª and 10. ª generation &oatern
    • 1 x PCIe 4.0/3.0 x16 slot
    • The Intel   processors from 11.a generation &oatern are compatible with the PCIe 4.0 x16 mode
    • The Intel   10 th Gen processors are compatible with the PCIe 3.0 x16 mode
    • 2 x PCIe 3.0 x1
• Storage
  • Admit 2 M. 2 slots and 6 SATA 6Gb/s ports
  • Intel   processors from 11.a generation &oatecn
  • Slot M. 2_1 (key M), type 2242/2260/2280
  • Only Intel   processors from 11a generation &oatutin are compatible with PCIe 4.0 x4 mode, this slot will be turned off &aecas for other CPUs
  • Intel B560 chipset
  • Slot M. 2_2 (key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) *
  • 6 SATA 6Gb/s
  • * The M. 2_2 shares bandwidth with SATA6G_2. When M. 2_2 runs the SATA mode, SATA6G_2 will be turned off &aquires.
  Ethernet
  • 1 x Intel   I219-V 1Gb Ethernet ASUS LANGuard
  • USB
    • USB rear: 6 ports in total
    • 4 USB ports 3.2 Gen 1 (4 x Type A)
    • 2 x USB 2.0 ports (2 x type A)
    • 1 x USB 3.2 Gen 1 compliant
    • 2 additional
    2.0 ports that support 4 additional USB 2.0
    • Audio
      • ALC887/897
      • Realtek ALC897 Sound 7.1 CODEC High-End Audio CODEC surround
      : I detect jack, transmit &o n m &utiple, reassign jack of the front panel
      • Admit reproduci &obution of up to 24 bits/192 kHz
    • Audio Capabilities
    • • Premium Japanese Audio Condensers
      • * A chassis with a m &oacuity of HD audio is required on the front panel to support the output of audio with surround sound 7.1

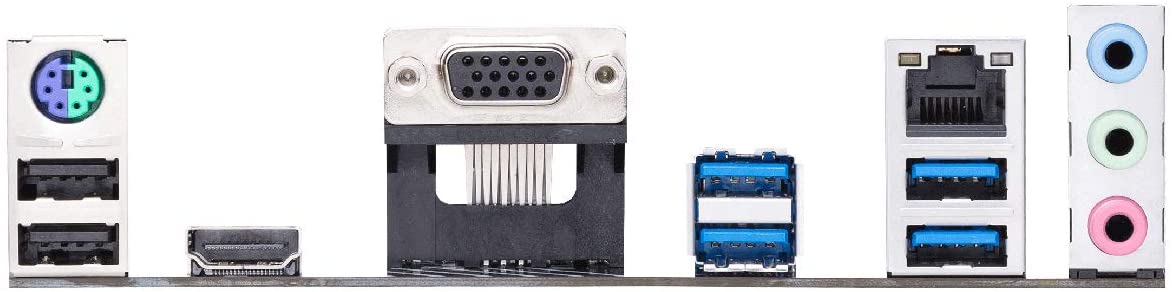

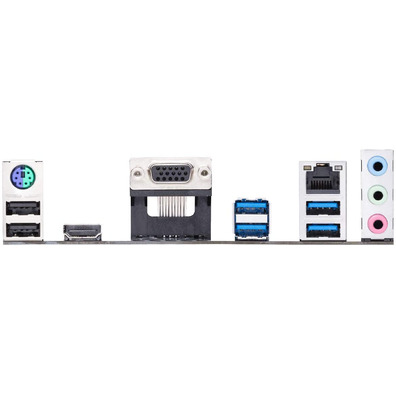

      E/S Ports of the Rear panel
      • 4 USB ports 3.2 Gen 1 (4 x Type A)
      • 2 x USB 2.0 ports (2 x type A)
      • 1 x D-Sub port
      • 1 x 1 Gb Intel I219-V Ethernet port
      • 3 x audio connectors
      • 1 x Internal E/S connector
      • 1 x 4-pin CPU fan head
      • 1 x 4-pin chassis fan head
      • Power
      • 1 main 24-pin power connector
      • 1 x 8 pins + 12V
      • Related to storage
      • 2 x M. 2 slots (key M)
      • 6 SATA 6Gb/
    • 1 x USB 3.2 Gen 1 compatible with 2 additional USB 3.2 Gen 1
      • Diverse
        • 1 x RGB header
        • 1 x front panel audio header
        AAFP)
        • 1 x S/PDIF output header
        • 1 x speaker head
        • 1 x TPM SPI (14-1 pines)
        • 1 x 10-1 pin system panel
    Special &irectic features
    • PROTECT N 5X III
    • DIGI + VRM
    • LANGuard
    • SafeSlot Core
    • SafeSlot Core
    • ASUS Q-Design
    • Q-DIMM
    • Q-slot
    • Soluci &oatrun t &eUtegrde; or VRM heat sink
    • ASUS Lighting Control
    • RGB Header
    • software
    • ASUS exclusive software
    • Armer box &iacheto
    • AI Suite 3
    • Power saving utility &iacuity and performance
    • TurboV EVO
    • EPU
    • Digi + VRM
    • Fan Xpert
    • ASUS CPU-Z
    • Software Norton
    -virus versi trial &oatron)
    • ASUS EZ DIY
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ
    • BIOS
    • ROM flash 128 Mb, BIOS UEFI AMI
    • Manageability
    • WOL by PME, PXE
    • Cables
    • 2x SATA 6Gb/s
    • Diverse
      • 1 x E/S shield
    x Support DVD
    x User
  • • Windows 10 64-
  Factor
  • microATX
  • 9.6 inches x 8.3 inches (24.4 cm x 21.1 cm)
