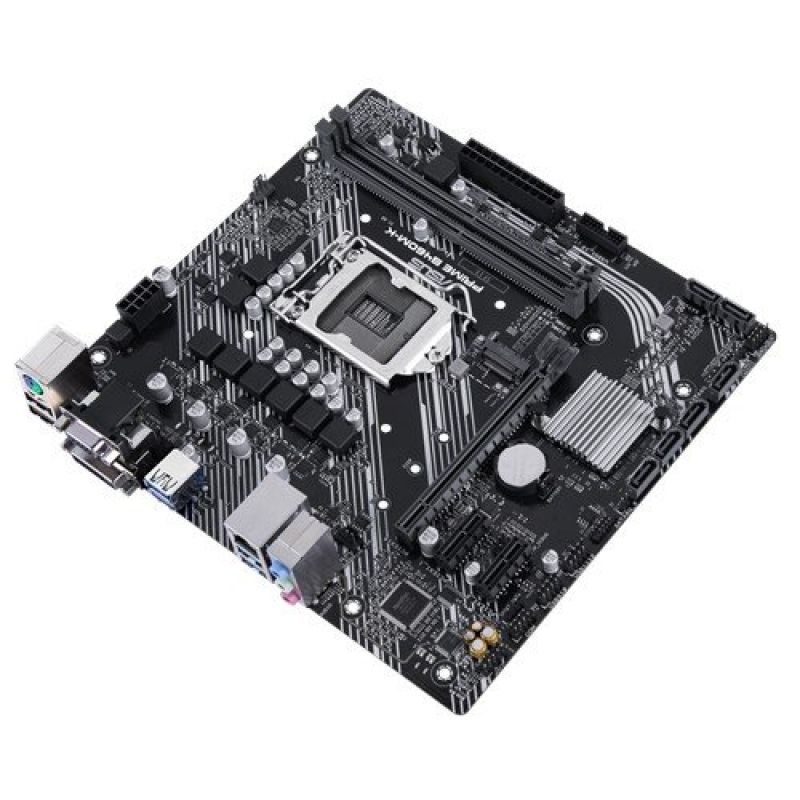

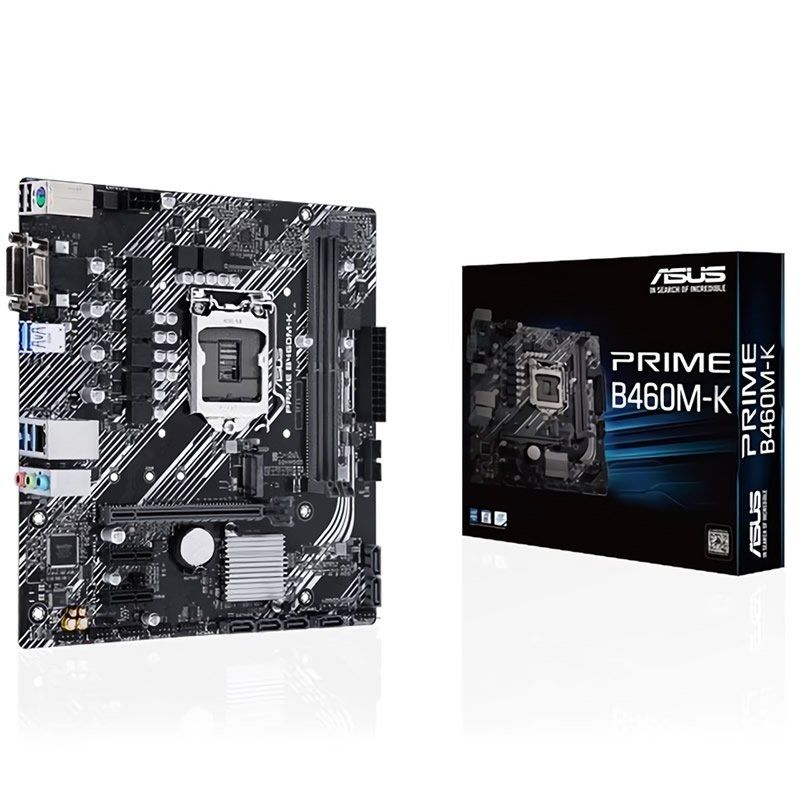

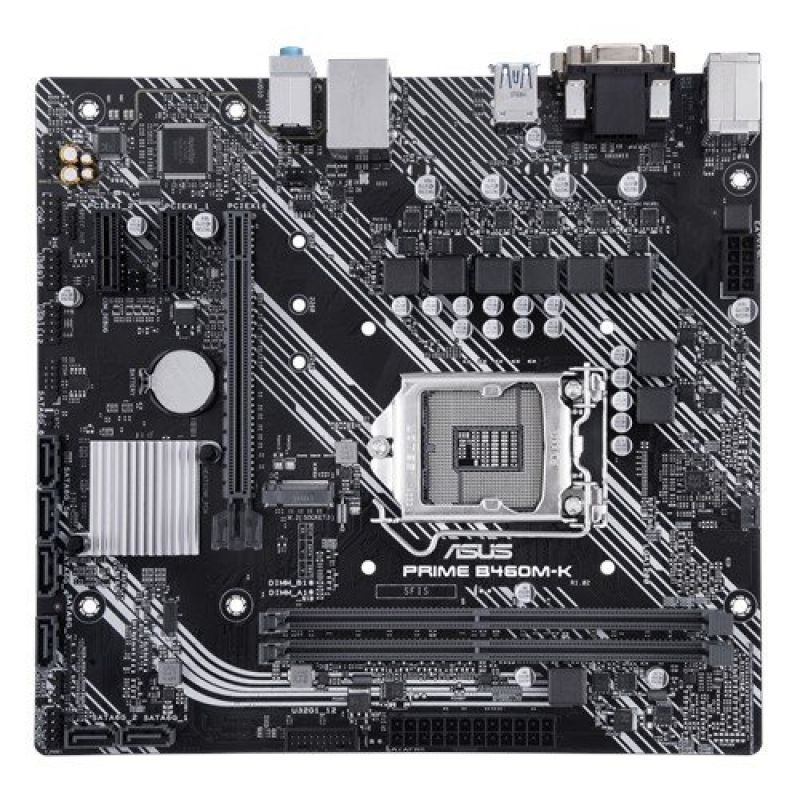

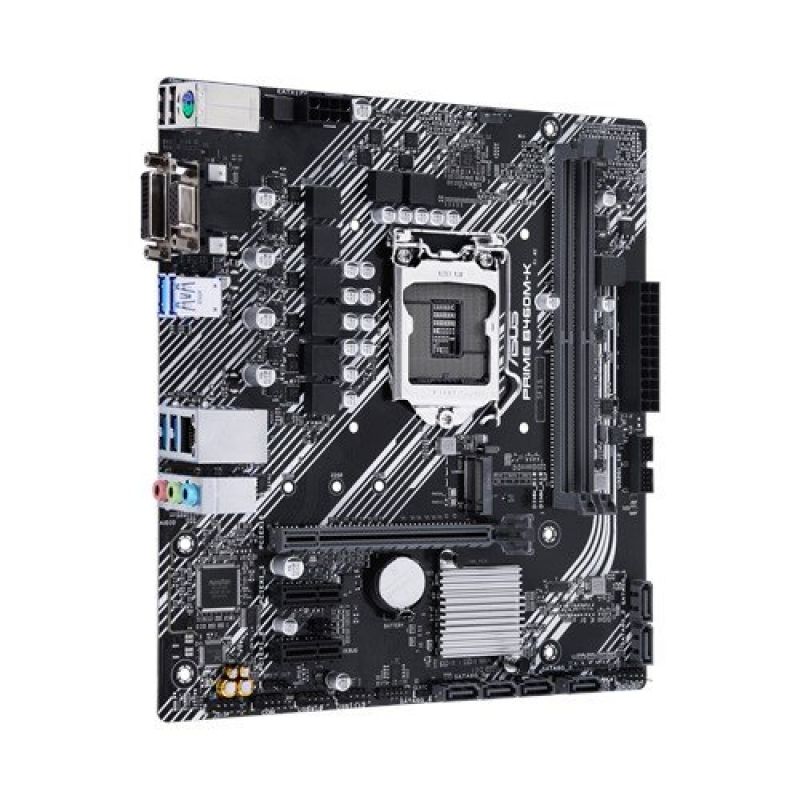

ASUS Prime B460M-K LGA Base Plate 1200

ASUS Prime B460M-K LGA 1200 Base Plate

General energy efficiency

The power processing unit &iUteres to EPU decreases the overall power consumption of the equipment. The Away mode is an extreme energy saving configuration &ientia to disable I/O controllers while they are not being used.

Flexible air and l &iactionn refriferation controls

In the Fan Xpert + 2 software, the base plates of the Prime 400 series include very complete controls for fans and cooling systems. The AutoM Adjustment mode configures all the pair of meters with a simple click.

Digi + VRM Control

The Digi + voltage regulator (VRM) controls the tensions in real time, changes the frequencies and the configuration of the power ía, and allows you to regulate the voltage of the CPU so that you enjoy the maximum performance without compromising the stability of the system.

Dise ñ or m &aalds fr &iacitio or

The Prime B460 series includes very comprehensive cooling controls that you can configure from Fan Xpert 4 and the UEFI BIOS.

M &uantiples temperature sources

PPwm/dc 4-contact fan

ASUS OptiMem

The revised base board circuit allows the last Intel processors to access the unconstrained memory bandwidth. The technique of the ASUS OptiMem II carefully maps the memory tracks to the various layers of the PCB to significantly reduce the interferences.

M. 2 (up to 32 Gbps)

The M. 2 slot supports data transfers up to 32 Gbps through the x4 PCI Express 3.0 &eatos, this results in a boot and load times m &aecaros pidos for both the operating system and the applications.

* The actual transmission rates will be less than the speed m &axime.

SafeSlot Core

SafeSlot is the ñ or the exclusive PCIe slot of ASUS. This is reinforced with a steel support that protects it against possible ñ s. The metallic cover is attached to the groove with hooks, and the entire assembly is firmly anchored to the plate with reinforced soldering points that support the heavy and heavy cards.

ASUS Prime B460M-K Specifications:

• CPU
  • Intel   Socket 1200 for 10th Gen Intel   Core, PentiuM Gold and Celeron
  • Soporta Intel 14 nm CPU
  • Supports Intel   Turbo Boost Technology 2.0 and Intel   Turbo Boost Max Technology 3.0
• Chipset
  • Intel B460
• Memory
  • Intel   B460 Chipset
  • 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel
  • Supports Intel   Extreme Memory Profile (XMP )
  • OptiMem
• Gr
  • 1 x D-Sub
  • 1 x D-Sub
  • 1 x DVI-D

x DVI-D

• Intel   10th Gen Processors
• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• Intel   B460 Chipset
• 2 x PCIe 3.0/2.0

• Capacity: 1 x M. 2 and   6 x SATA 6Gb/s ports
• Intel   B460 Chipset:
  • 1 x M. 2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  • 6 x SATA 6Gb/s port (s)
  • Support Raid 0, 1, 5, 10
• Intel   Rapid Storage Technology supports
• Intel   Optane   Memory Ready
• Networks
  • Realtek   RTL8111H, 1 x Gigabit LAN Controller (s), support LANGuard
• Audio
  • Realtek   ALC887 7.1-Channel High Definition Audio CODEC
• USB
  • 4 x USB 3.2 Gen 1 (up to 5Gbps) port (s) (4 x Type-A)
  • 2 x USB 2.0 port (s) (2 x Type-A)

USB Frontal (Total 6)

• 2 x USB 3.2 Gen 1 (up to 5Gbps) port (s)
• 4 x USB 2.0 port (s)

Character &iacitists special

• ASUS 5X PROTECTION III
• ASUS Q-Design

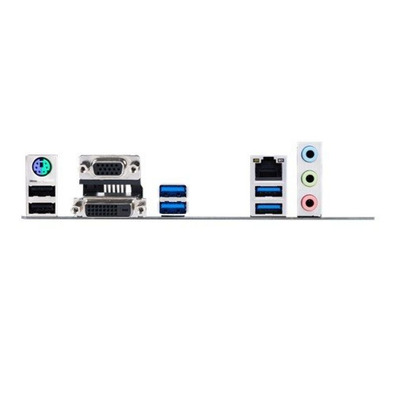

ports

• 1 x PS/2 keyboard/mouse combo port (s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x LAN (RJ45) port (s)
• 3 x Audio jack (s)

Internal connectors

• 1 x CPU Fan connector (s) (1 x 4 -pin)
• 1 x AAFP connector
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
• 2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
• 1 x M. 2 Socket 3 with M key, type 2242/2260/2280 storage devices support
• 6 x SATA 6Gb/s connector (s)
• 1 x 8-pin ATX 12V Power connector (s)
• 1 x Clear CMOS jumper (s)
• 1 x COM port

Format

• Micro ATX: 22.6 x 21.1 cm
