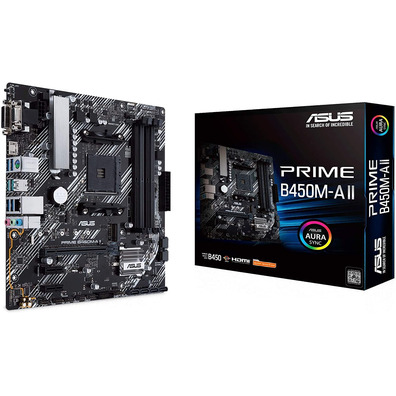

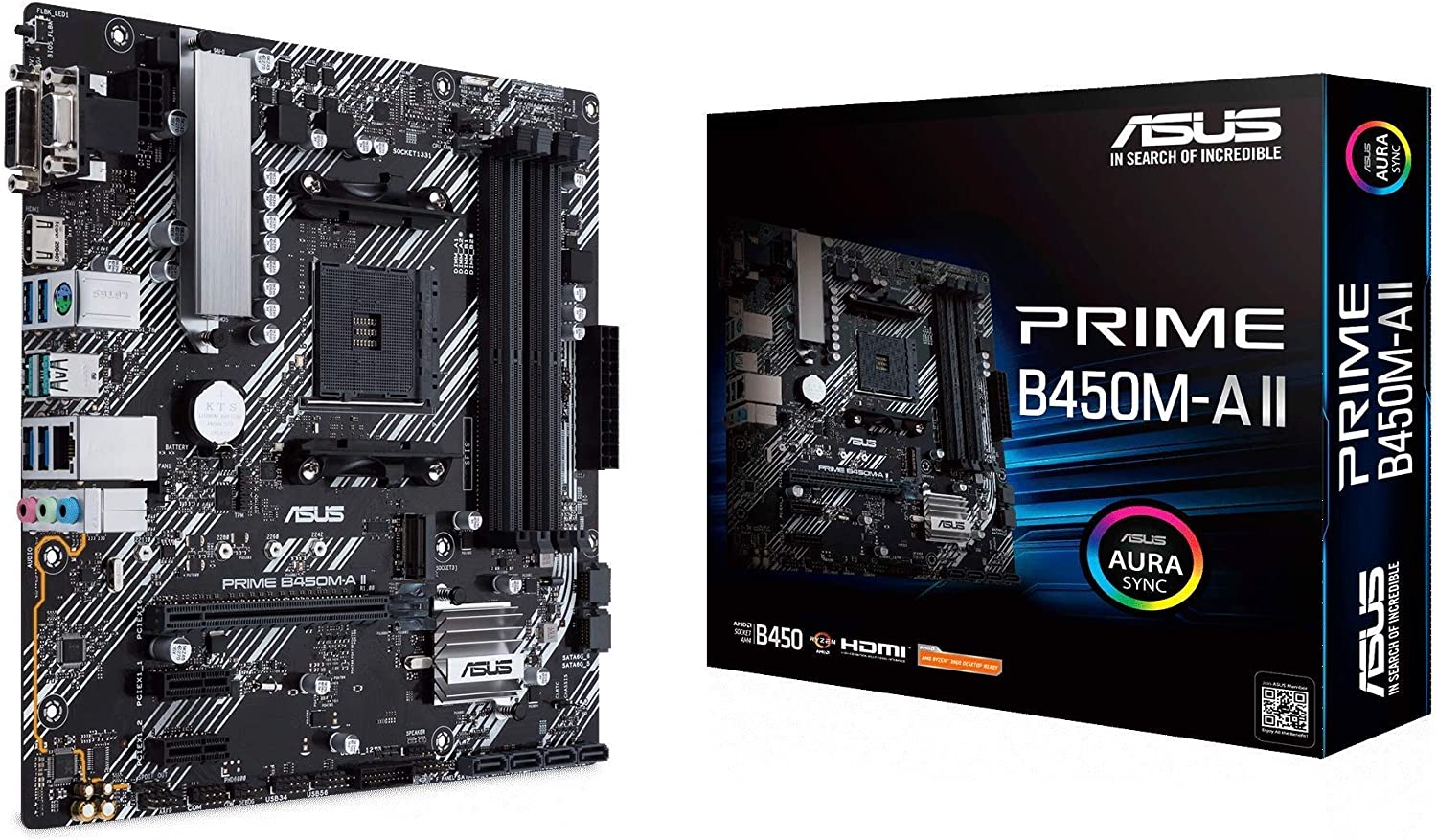

Asus Prime B450M-A II AM4 Base Plate

Asus Prime B450M-A II AM4 Base Plate

The ASUS Prime B450 II series base plates provide a solid foundation for mounting your first team and the flexibility needed for your ambitions. This series of motherboards combines the best of AMD Ryzen processors with ASUS exclusive technology that includes system-wide auto settings, advanced cooling controls, and immersive integrated sound. Easily and intelligently assemble your team with the ASUS Prime B450 series.

AJ &UTE; STALA AS YOU WANT

Comprehensive controls form the basis of the ASUS Prime series. The Prime B450M II motherboard includes flexible tools to adjust all aspects of your system, which allows you to adjust the performance configuration so that it fits perfectly with your way of working, maximizing productivity.

Comprehensive energy efficiency

With the Energy Processing Unit (EPU), enjoy energy savings íto throughout the system.

Flexible cooling controls

The Fan Xpert 2 + software provides complete control over system fans. The Auto-Tuning mode intelligently configures all the pair of meters with a single click. Also, there is an extremely quiet mode that reduces the speed of the chassis fan below the default minimum &iuteño to keep your system quiet when you perform light tasks. The fans also can be controlled through the UEFI BIOS.

Accurate digital power control

The Digi + voltage regulator module (VRM) provides real time control over the voltage ac &iactiona, changing the frequency and the configuration of the energy efficiency. Also, it allows you to adjust your CPU to achieve the maximum stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS offers everything you need to set up and adjust your system. It offers intelligently simplified options for PC DIY beginners, as well as integral functions for experienced veterans.

REFRIGERACI &OULDN

The Prime B450M II series is ñ ada with integrated heat sinks and a variety of hot fan heads to ensure your equipment stays cool and stable under intense workloads.

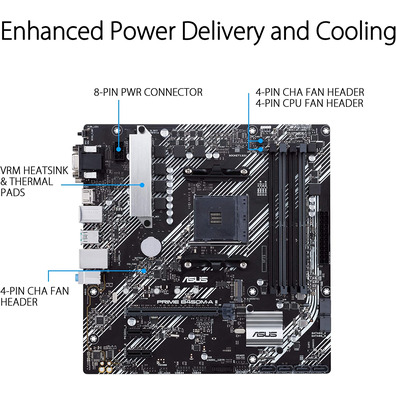

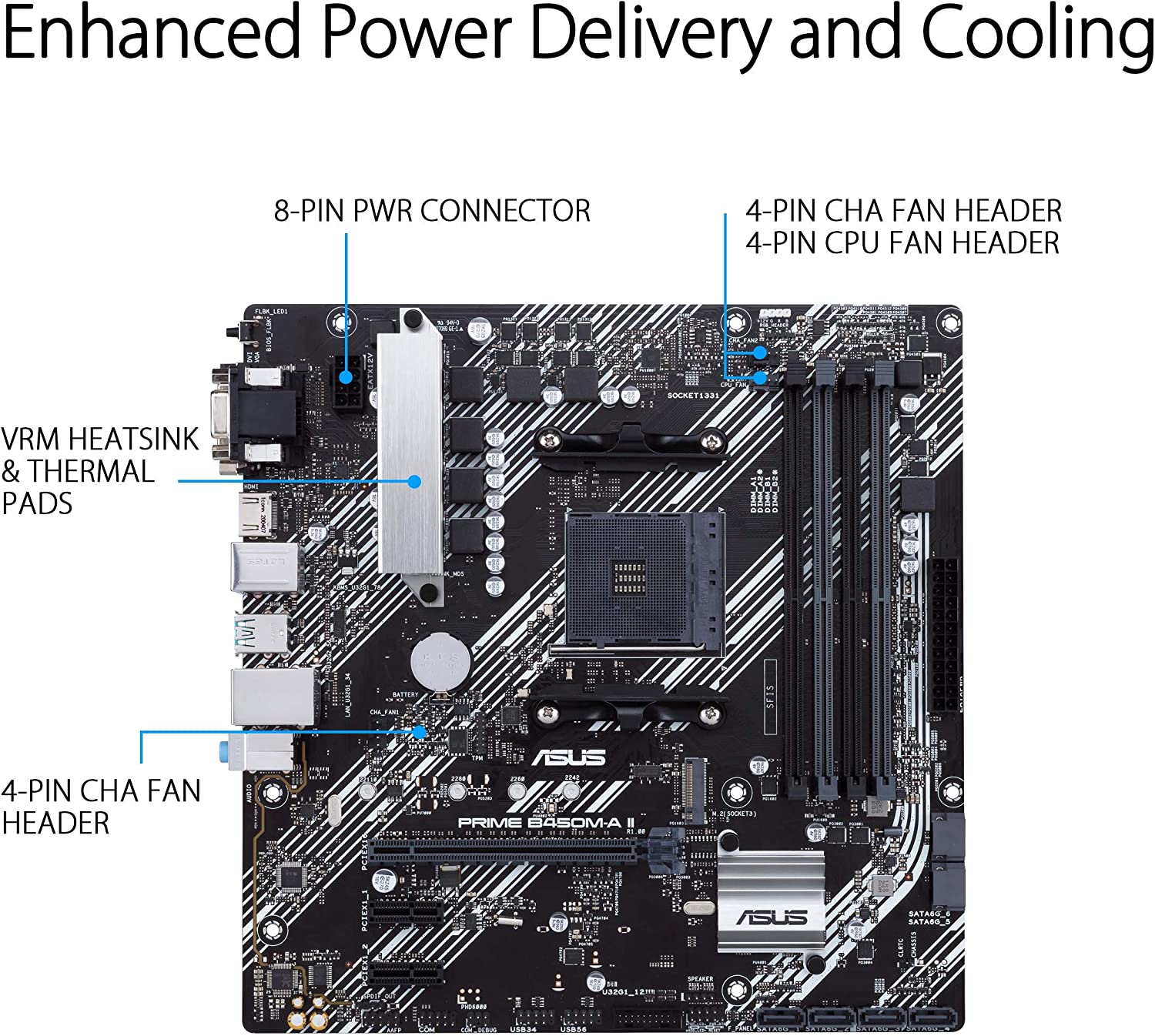

VRM heat sink and t &eacuermic pads

A VRM heat sink with thermal pad below improves the heat transfer of the MOSFET for better cooling performance.

M &aecons fresh by dise ñ or

Prime B450M-A II is ñ with a variety of fan headers h íbras and features integral cooling controls that can be configured to bring the Fan Xpert 2 + software or the UEFI BIOS, ensuring that your computer stays cool and stable under intense workloads.

BUILD ON A LIDA S &OASTIDE BASE

The Prime B450M II motherboard provides all the basics to drive daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

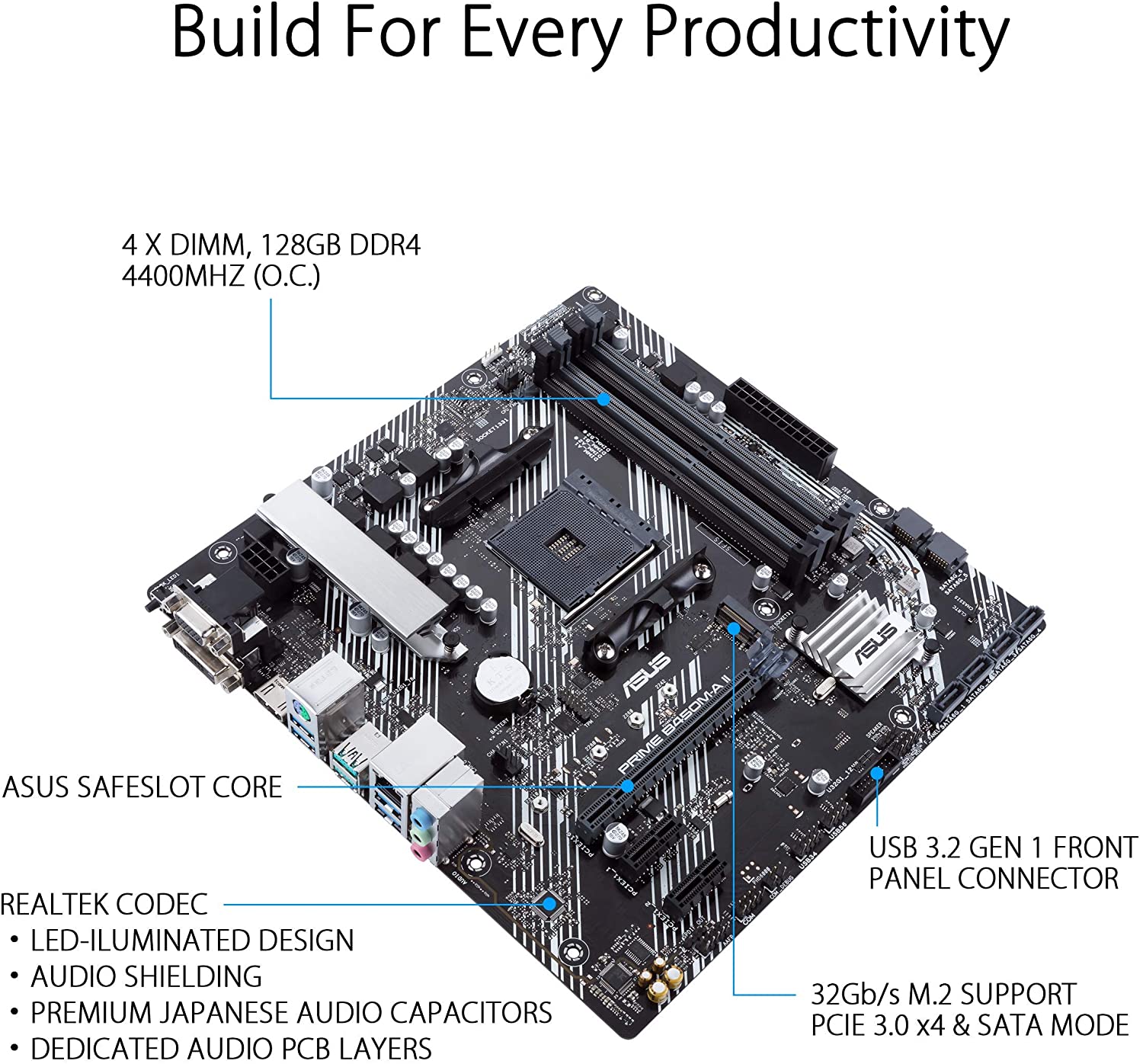

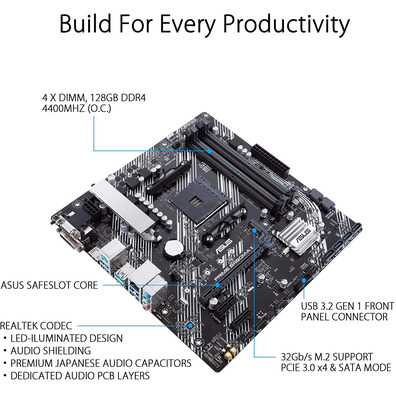

PCIe 3.0 M. 2

The M. 2 slot supports up to 22110 and a data transfer rate of up to 32 Gbps to bring up to an x4 PCI Express 3.0 bandwidth. This is the perfect choice for an operating system or application unit, as it provides a request to the data.

USB 3.2 Gen 2 Type A

Numerous USB ports support high-end equipment loaded with rich perif, including two USB-type A connectors on the rear panel with USB 3.2 Gen 2 USB 2.0 Gen 2 connectivity.

THE PEQUE Ñ AS THINGS MAKE A BIG DIFFERENCE

The Prime B450M II series adds the nuanced details that enhance each experience, from exclusive c óres that provide impeccable audio quality to intuitive RGB lighting controls that allow you to customize your system to create a unique personal appearance.

Exceptional Audio

The ñ or smart dise and premium hardware create an audio quality unlike any other you've experienced.

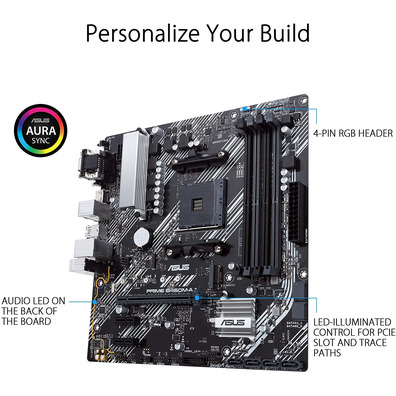

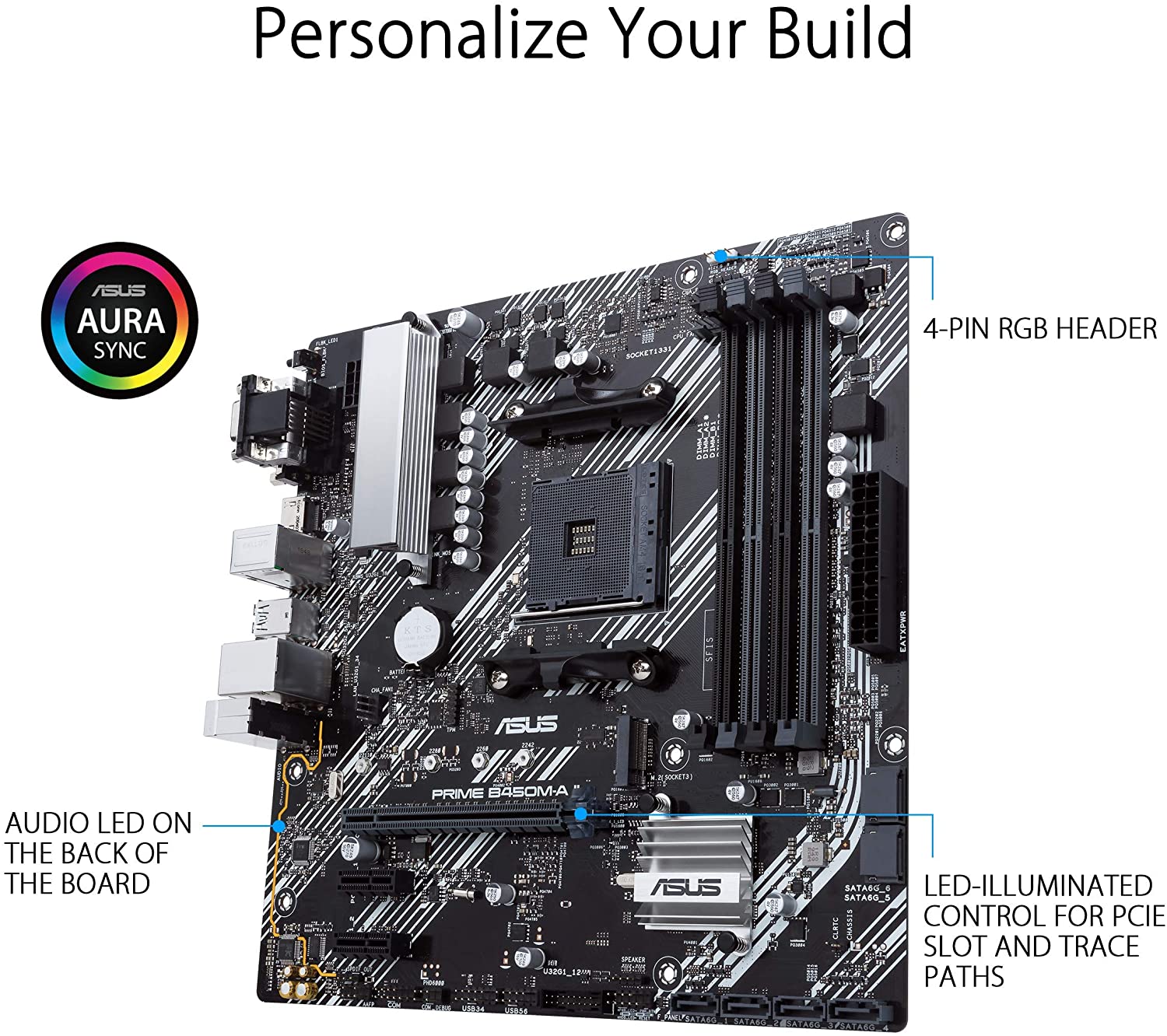

Aura Sync

A well-tuned system deserves a game-play. ASUS Aura offers full RGB lighting control with a variety of pre-established functional settings for RGB LED strips connected to integrated RGB headers. And everything can be synchronized with an ever-growing portfolio of Aura-compliant hardware.

Armory Crate

Armory Crate is a new software utility that ñ is used to provide centralized control of compatible products. From a single intuitive interface, Armory Crate allows you to customize the illumination and the RGB effects for each compatible device in your arsenal. The software also provides control of the configuration of ASUS products, including keyboard and mouse preferences. Armory Crate even has dedicated and highlighted product registration to help keep you in touch with the ASUS community.

FLASHBACK BIOS

BIOS FlashBack is the most simple and secure BIOS update (UEFI) update. Simply place the BIOS file (UEFI) in a USB memory in FAT32 format, with the USB BIOS FlashBack USB port and press the bot. Updates can be made even without having the memory or CPU installed.

SafeSlot Core

SafeSlot Core is the exclusive PCIe slot of ASUS. With a dise ñ or reinforced that is attached to the base plate by a special hook, SafeSlot Core provides a retainer n 1.6 times strong and a shear strength 1.3 times greater than the expansion slots &oatuas est.

Specifications:

• Details t &eUcics
  • Format: Micro ATX
  • Chipset: AMD B450
  • Amount of PCI Express slots: 3
  • Processor family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4

Processor

• Processor Socket: Socket AM4
• Processor Family: AMD Ryzen, AMD Ryzen 2000, AMD Ryzen 3000

Memory

• Memory slots: DIMM
• Internal memory m &axime: 128 GB
• Non-ECC: Yes
• Memory channel support: Dual
• Memory types
compatible: DDR4

4400

OC)

4000 (OC), 4400 (OC), 4000

OC)

4400 (OC), 4400 (OC)

• 4400 (OC)
4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC)
• 4400 (OC), 4400 (OC)
4400 (OC), 4400 (OC), 4400 (OC), 4400 (OC), 4400 ( )
• (OC)
• Internal I/O
  • Power Connector to EPS (8-pin): 1
  • CPU Fan Connector: Yes
  • ATX Power Connector (24 pins): Yes
  • Jumper Clear CMOS: Yes
  • TPM connector: Yes
  • S/PDIF, output connector: Yes
  • USB 2.0 connectors: 1
  • N &uterer connectors to chassis fan: 1
  • N SATA connector number 3: 6
  • M. 2 connectors: 1
  • RGB/LED strips: 1

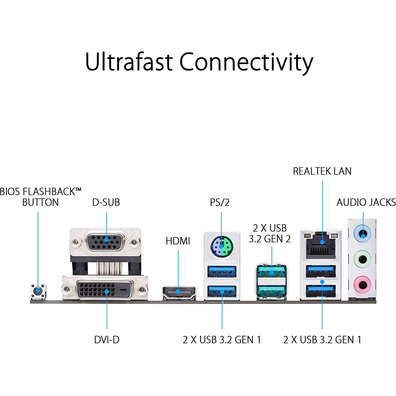

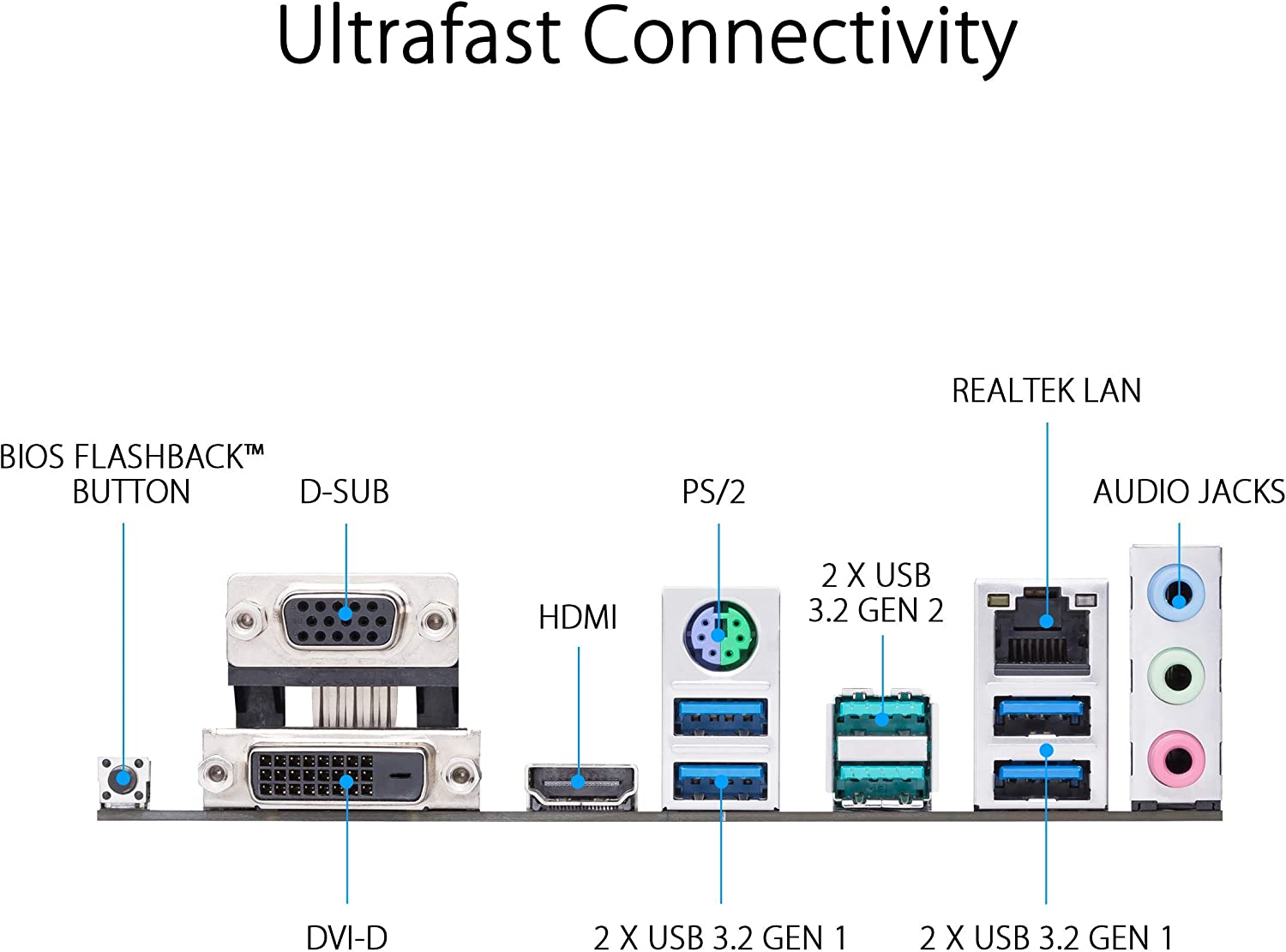

• Rear Panel I/O Ports (Input/Output)
  • Speaker, headphone, output jack: 3
  • Quantity of DVI-D ports: 1
  • VGA (D-Sub): 1
  • Number of USB ports 3.2: 6
  • Ethernet (RJ-45): 1
  controllers
  • RAID levels: 0, 1, 10
• • Bluetooth: Yes
  • LAN Controller: Realtek RTL8111H
  • Ethernet: Yes
  • Wi-Fi:
  • BIOS
    • BIOS switch BIOS &oatern: Yes
    • BIOS, tama ñ or memory: 256 MB
    • BIOS types: UEFI AMI
  • Weight and dimensions
    • Width: 24.4 cm
    • Depth: 24 cm

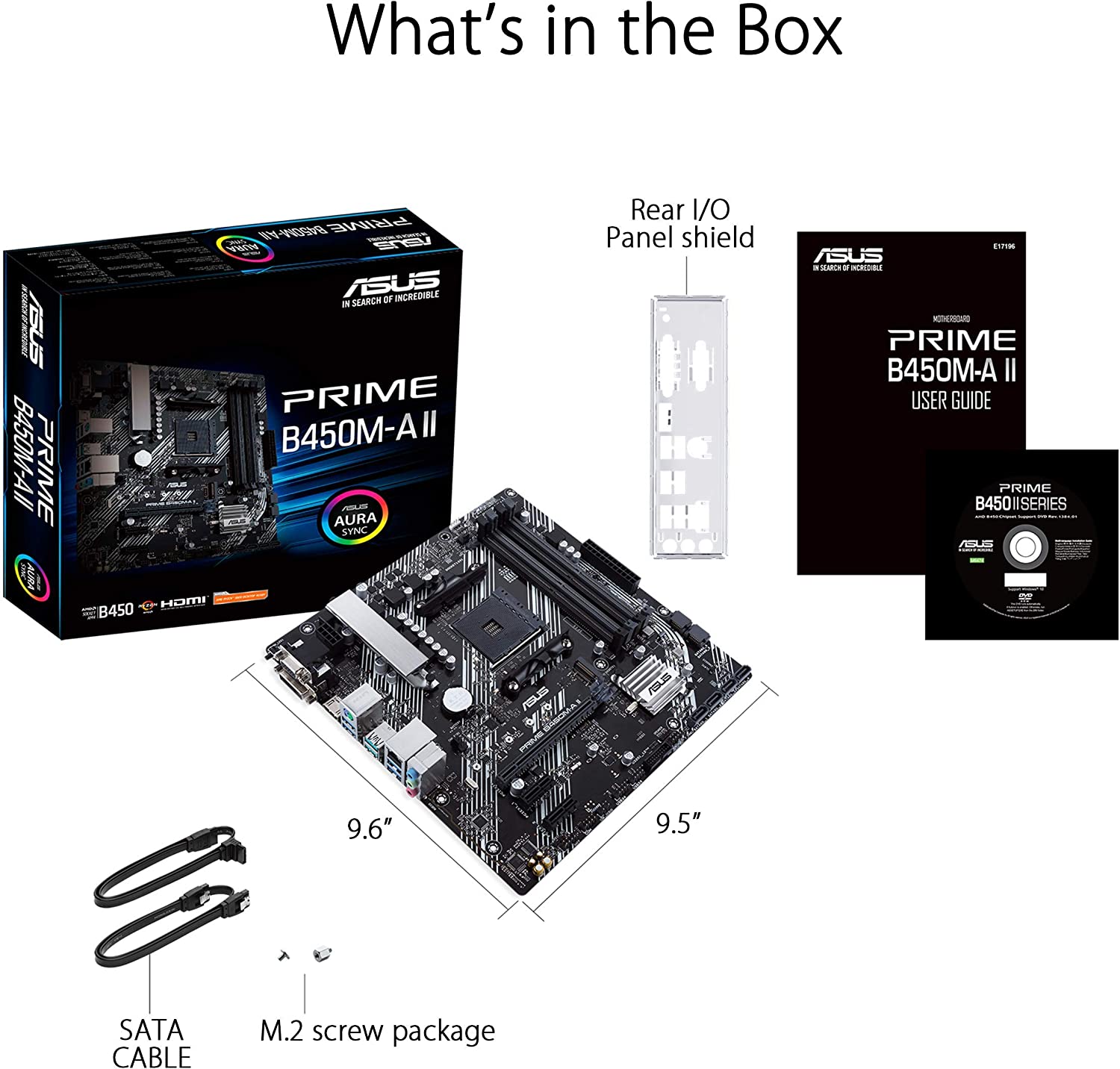

  • Packaging contents
    • Material included: Controller CD, SATA, screws M. 2
    • Gu &iaci a install &oatuas r &aetuas:
