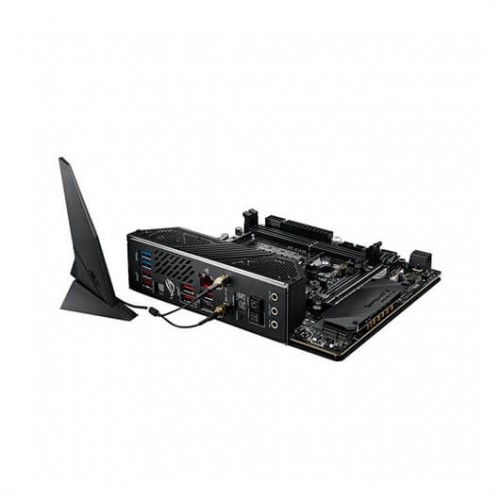

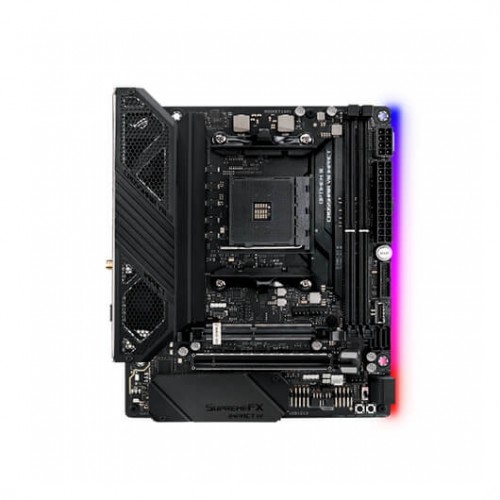

ASUS AM4 ROG CrossHair VIII Impact Board

ASUS AM4 ROG CrossHair VIII Impact Base Plate

The ROG Crosshair VIII series announces the arrival of Impact, a compact motherboard with a colossal potential. Prepared for the new AMD Ryzen CPU 3. ª Gen., the Crosshair VIII Impact Mini-DTX comes equipped with ATX-format proprietary &iacutites such as advanced power supply systems í n, two M. 2, Wi-Fi 6 (802.11ax) of the highest generation &o-and integrated sound SupremeFX. It is the perfect choice to mount a compact gaming platform capable of competing with full or ñ tama gaming systems.

DISE Ñ OR COMPACT

The unusual Mini-DTX format of the Impact is well thought out. Many Mini-ITX chassis have enough space for a two-slot grout card, which means that there is usually no use under the lower PCIe slot, which can be used to mount components or enable additional functions. Being a bit more high than the mini-ITX plates, it includes additional functions without losing compatibility with many mini-ITX chassis.

OPTIMIZED PERFORMANCE

The ROG Crosshair VIII Impact is equipped with an optimized ñ or power supply and a comprehensive cooling system that allows you to exploit all the prodigious performance of the latest AMD Ryzen processors without incurring any problems. Tambi &eacutin includes innovations to double memory and increase frequencies to the maximum.

PODER

DISE Ñ OR FEED &Oatesn

The latest multi-core processors require a power circuit capable of responding to enormous current changes. Equipped with 10 dynamically deployed strat power phases, the VRM of the Impact is ready to respond to any type of workload.

8-CONTACTS TAKE COOL II

Apart from being resistant, the 8-contact ProCool II-type power supply offers less impedance to prevent temperature building and the connections fail. The new dise ñ or includes met &arecallic reinforcements and lidos contacts that better dissipate the temperature.

CHAKES OF ALEACI &OTE; N MICROFINE

The power stages are accompanied by ñ s of a choke coil with a high permeability alloy capable of supporting 45 amps.

10K BLACK METALLIC CAPACITORS MANUFACTURED IN JAP Ó N

Condensers that filter input and output are ñ ed to last thousands of hours working at extreme temperatures.

MEMORY

OPTIMEM III DDR4 4800 + MHZ (O.C.)

With an optimized memory circuit that enhances the integrity of the ñ to the noise and mitigates the noise, OptiMem III allows your memory kit to work with less latency, low voltages and high frequencies. Install your favorite dules on the Impact and take advantage of Ryzen 3000 for applications that use high bandwidth and balance Infinity Fabric with memory performance for different workloads.

RAMCACHE III

RAMCache transforms milliseconds into microseconds, speeds up the load of the games, and is compatible with the NVM Express storage units. Your smart technology saves each drive files so that your favorite games and applications are loaded at the speed of the drive.

SUPPORTS DOUBLE CAPACITY DIMM

The Crosshair VIII Impact incorporates a single-memory circuit that supports a maximum of 32 GB of memory per channel (total of 64 GB). With the dual-capacity UDIMMs, the iMPACT offers the memory bandwidth of 4 DIMMs in a compact dise ñ or 2 DIMM.

CONNECTIVITY

The advanced connectivity of the ROG Crosshair VIII Impact improves your online gaming experience. It is equipped with Intel Ethernet and Wi-Fi 6 (802.11x), as well as 2 M. 2 slots integrated into the SO-DIMM and the integrated SupremeFX audio &oacution present on the rest of the ROG motherboards.

REDES

WIFI 6 (AX200)

The ROG Crosshair VIII Impact incorporates Wi-Fi 6 (802.11ax), an ndar test that offers high-speed connections, enhanced network capacity, and superior performance in saturated Wi-Fi environments. Enjoy an exceptional experience of gaming online without having to use cables.

INTEL ETHERNET

The ROG Crosshair VIII Impact incorporates Intel Ethernet (I211-AT), which offers data transfers m &aUte; s in your network and with the outside world. The Intel LAN reduces CPU overhead and increases TCP and UDP performance, maintaining greater processing capacity.

AUDIO

SupremeFX

The ROG Crosshair VIII Impact's SupremeFX Sound &ooptionn presents a dedicated card to limit interference and contains the SupremeFX S1220 c &odeudek, the ESS ES9023P DAC, and high-end capacitors to deliver high quality sound.

SONIC STUDIO III

Sonic Studio supports HRTF-based virtual surround sound for virtual reality glasses. The result is a unique environment that gets you full in the action. The Sonic Studio interface also includes options for equalization for adjustments to the reproduction of your preferences and the &iacitized character of your RV glasses.

STORAGE

TWO SLOTS M. 2 PCIE 4.0

The two M. 2 PCIe 4.0 slots support up to 22110 drives and NVMe RAID SSD configurations. You configure a RAID storage system with two PCIe 4.0 drives and enjoy the m &aasties r &aepidas data transfers with the AMD Ryzen platform of 3. ª Gen.

ROG SO-DIMM.2

ROG SO-DIMM.2 is an innovative expansion card that allows you to connect two PCIe 4.0 M. 2 drives to the Impact SO-DIMM interface. You can add met dissipation devices to control temperatures, obtain the maximum performance and improve the test.

ASUS NODE​

ASUS Node is a two-way interface that allows ASUS motherboards to communicate with other system components, creating new opportunities when you assemble your computer.​

Specifications:

• Details T &eUcics
  • Format: Mini DTX
  • Chipset: AMD X570
  • Multi-GPU: No
  • Amount of PCI Express slots: 1
  • Component for: PC/server
  • Processor Family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 2

Processor

• Processor Socket: Socket AM4
• Processor Family: AMD Ryzen, AMD Ryzen 2000, AMD Ryzen 3000

Memory

• Memory slots: DIMM
• Internal memory m &axime: 32 GB
• Memory without buffer: S &iute;
• Memory channel support: Dual
• types Compatible memory: DDR4-SDRAM
• Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 (OC), 3200 (OC), 3400 (OC), 3466 (OC), 3600 (OC)

Audio

• Audio output channels:
S1220

Express slots:

x16
• PCI Express slots: 1
• Versi PCI Express entries: 4.0

Internal I/O

• CPU Fan Connector: S &iute;
• ATX Power Connector (24 pins): S &iute;
• Front Panel Audio Connector: S í
  • Jumper Clear CMOS: S í

Fan connector: S &iute;

USB 2.0 connectors: 1

N &utegr; number of connectors to chassis fan: 1

N &ute; number of SATA connectors 3: 4

Connectors M. 2: 2

Backstrips RGB/LED:

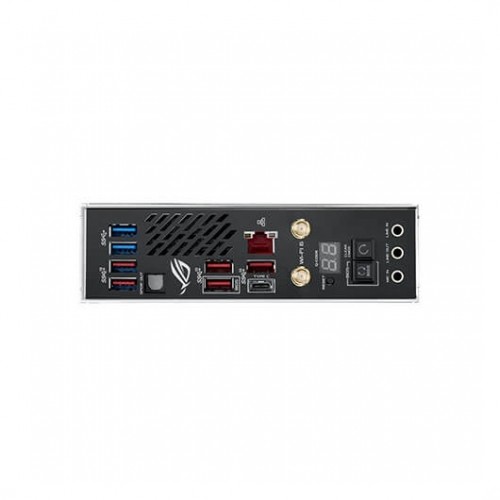

Rear Panel   Ports of I/O (Input/Output)

• Number
USB ports 3.2: 7
• Number of USB Type-C ports: 1
• Ethernet (RJ-45): 1
• S/PDIF output port: 1

Storage regulators

• RAID levels: 0, 1, 10

• Bluetooth: S &iaceras
• Network &oatu.
• Ethernet Controller: Intel I211-AT
• Ethernet: S &iute;
• Wi-Fi est &aUte; s: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Versi Bluetooth: S í
• BIOS
  • BIOS, tama ñ
  • memory switch: 256 MB
  • BIOS types: UEFI AMI
  • Versi &oacutin ACPI: 6.2
  • Weight and dimensions
    • Width: 20.3 cm
    • Depth: 17 cm

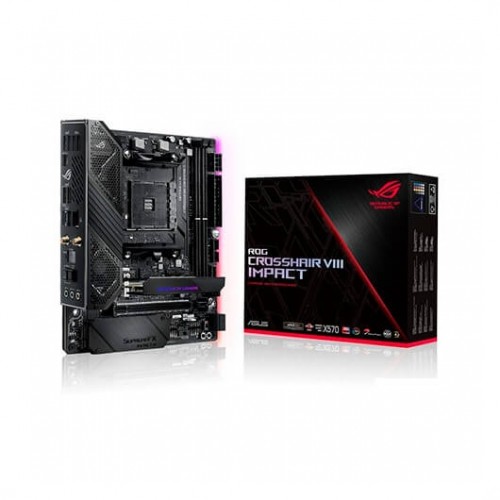

  • Packaging contents
    • Material included: Antena, driver CD, SATA, screws M. 2
    • Gu í a prompt: S í
