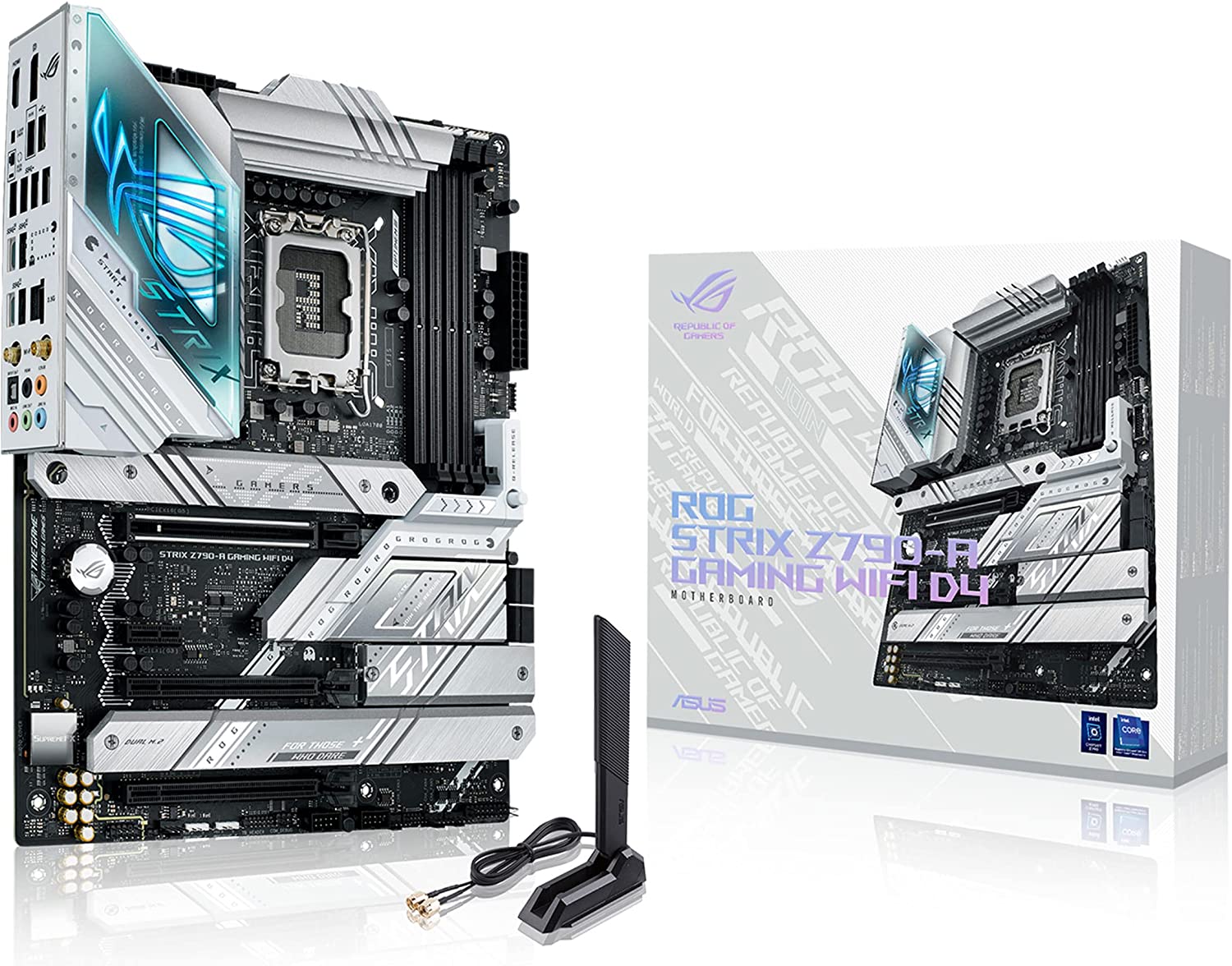

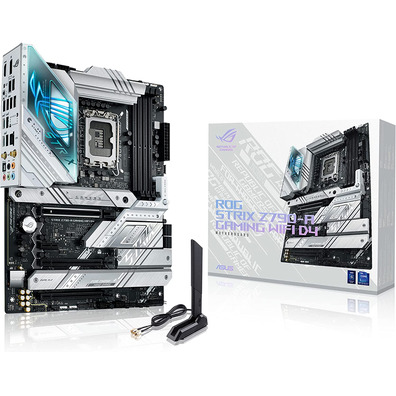

ASUS 1700 RoG Strix Z790-A Gaming Wifi D4

ASUS 1700 RoG Strix Z790-A Gaming Wifi D4 Base Plate

Under its dark heat dissipation and its disturbing test, the ROG Strix Z790 base plates include a power solution and overclocking functions that lead Intel Core 13th Gen processors to new heights. Equipped with advanced thermal management for quiet constructions, along with support for PCIe 5.0 and WiFi 6E, this well-equipped motherboard offers massive bandwidth for everything.

PC DIY F &ILC

PCIE Q-RELEASE SLOT

A &o &iactionsico bot unlocks the security latch from the first PCIe slot with a single pulsaci &oatern, which greatly simplifies the process of removing a PCIe card from the motherboard when it comes time to upgrade to a new GPU or other compatible device.

M. 2 Q-LATCH

The innovative Q-Latch facilitates the installation or extraction of an SSD of an M. 2 slot. The ñ or uses a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLEAR CMOS

The Clear CMOS &oatern n bot resets the BIOS configuration to the default settings of the \line} {\cs6\f1\cf6\lang1024}. You can also use the same to restart the PC if incorrect BIOS settings have been selected.

FLASHBACK BIOS

BIOS FlashBack is a safe and simple way to update the BIOS. Simply release the BIOS file (UEFI) into a USB memory in FAT32 format, with the USB BIOS FlashBack USB port and press the bot. Updates can even be made without memory or an installed CPU.

START &START N

This convenient bot eliminates the need to manually jump the dif pins to reach during testing and troubleshooting.

Q LED

Four integrated LEDs indicate the status of the power í to and identify problems with the CPU, memory, the gr card or the boot device for a &o.

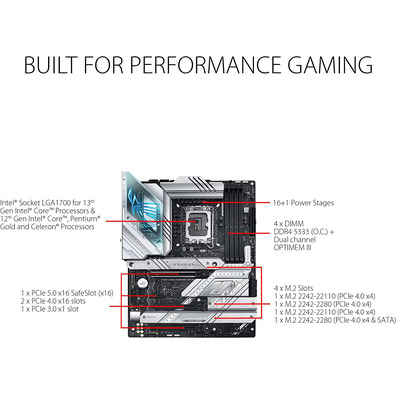

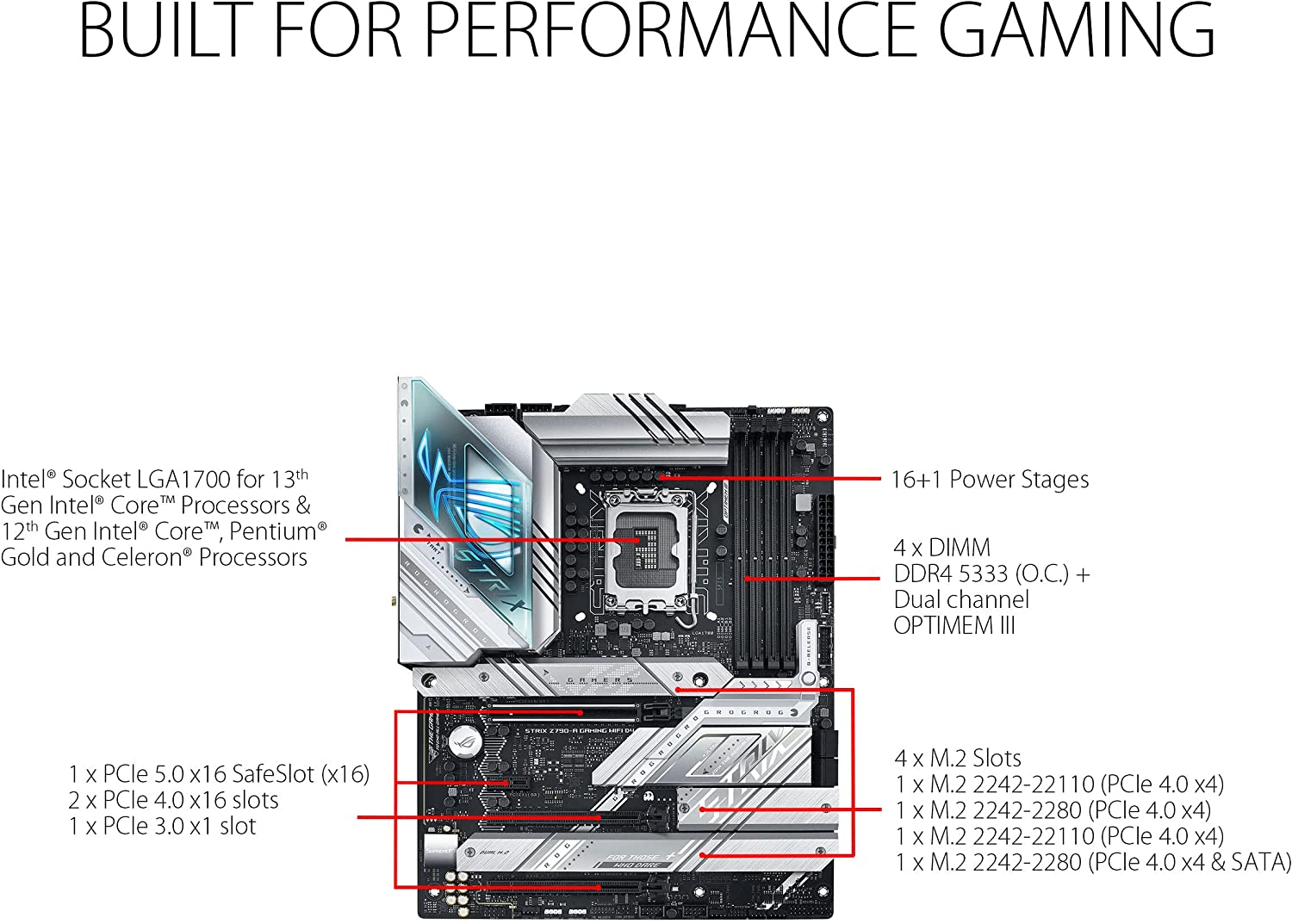

TOTAL PERFORMANCE

The delivery of energy to robust, storage and memory r &aaipdos, and the integral cooling lift any construction &oatucn with the base plates ROG Strix Z790 at its center.

OVERCLOCKING

IA OVERRIDE

ASUS AI Overclocking profiles the CPU and cooling to predict the configuration and bring the system to the limit. Predicted values can be activated autom or used as a starting point for further experience.

NEW GENERACI PCIE ÓN

PCIE 5.0

The top-of-the-line SafeSlot PCIe 5.0 x16 is well equipped for the largest ñ or bandwidth of the highest generation &orecoxime pr cards. Zippy storage options abound with four PCIe 4.0 M. 2 slots, all with robust heat sinks to maximize performance.

DISE Ñ OR ENERG &IateA

POWER ARCHITECTURE

Power stages provide a great deal of power to boost the Intel Core 13 ª and 12 ª generation processors to bring in any workload with ease.

DURABLE CAPACITORS

High-end chokes and long-lasting capacitors are ñ ed to withstand extreme temperatures, enabling performance that exceeds industry standards.

8 + 8 PINES

FEED CONNECTORS

The ProCool II connectors are precisely manufactured to ensure a level contact with the power supply lines of the feed source. A metal cover improves the heat dissipation and reduces the impedance of the electrical &o.

PCB

A multi-layer printed circuit board or circuit board disclaims the heat around the voltage regulators to improve the overall stability of the system and provide the CPU with free space for overclocking.

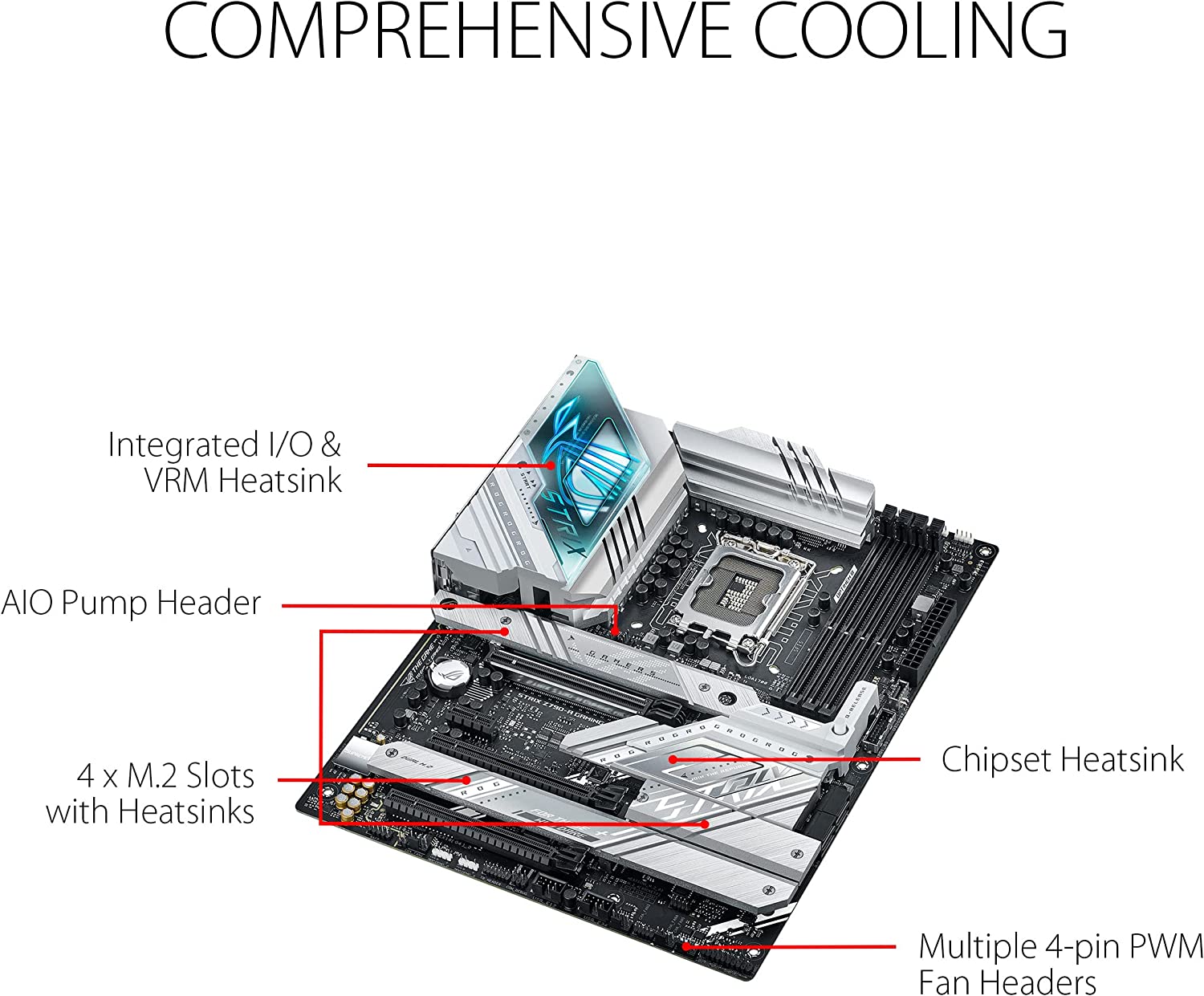

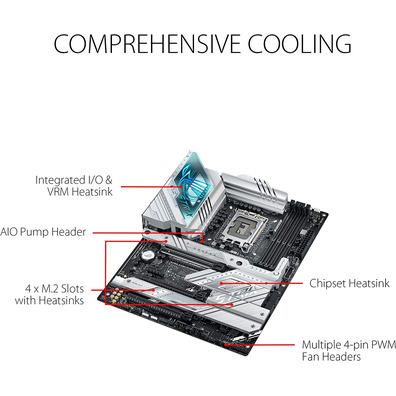

COOLING

VRM HEAT SINK ASSEMBLY

The energy solution is covered by two thick heat sinks connected by a heat pipe, which share the cooling capacity between the VRM and provide a wide area and mass area to handle the power needs of the 13 ª Intel processors.

HEAT AND REAR LICENSE PLATES M. 2

Large and rear plates provide a wide area of surface area to maintain mounted M. 2 units.

CPU FAN HEADER

A dedicated PWM/DC fan header provides easy access to CPU sinks.

AIO PUMP FAN HEADER

A dedicated PWM/DC header connects to the water-cooling nomas.

4-PIN FAN HEADS

Each header supports the PWM &oatutica &oatutica detection or CC fans.

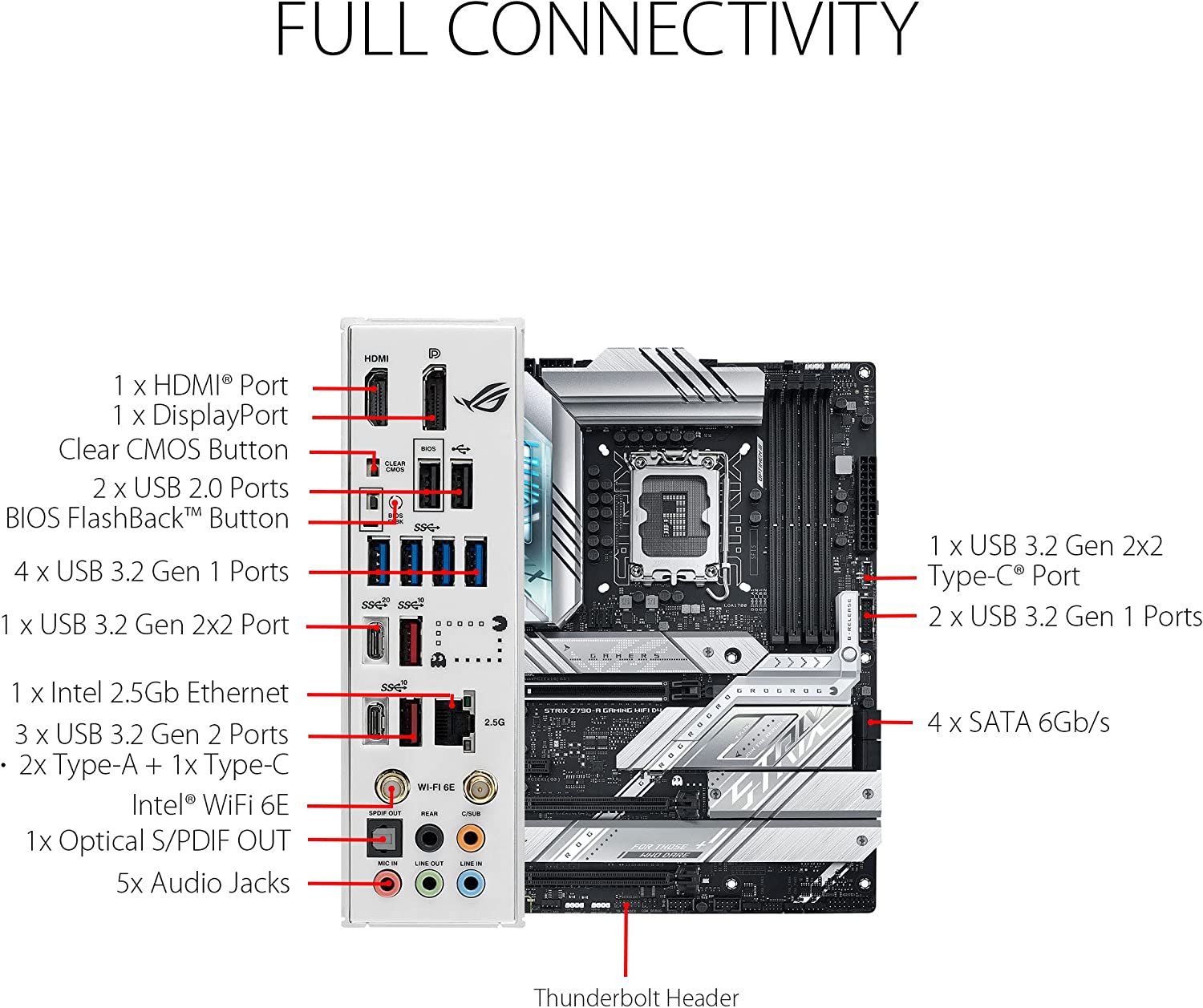

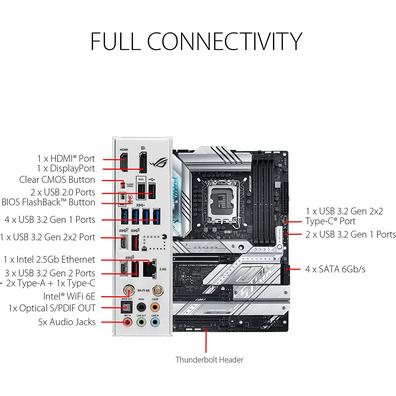

DER CONNECTIVITY

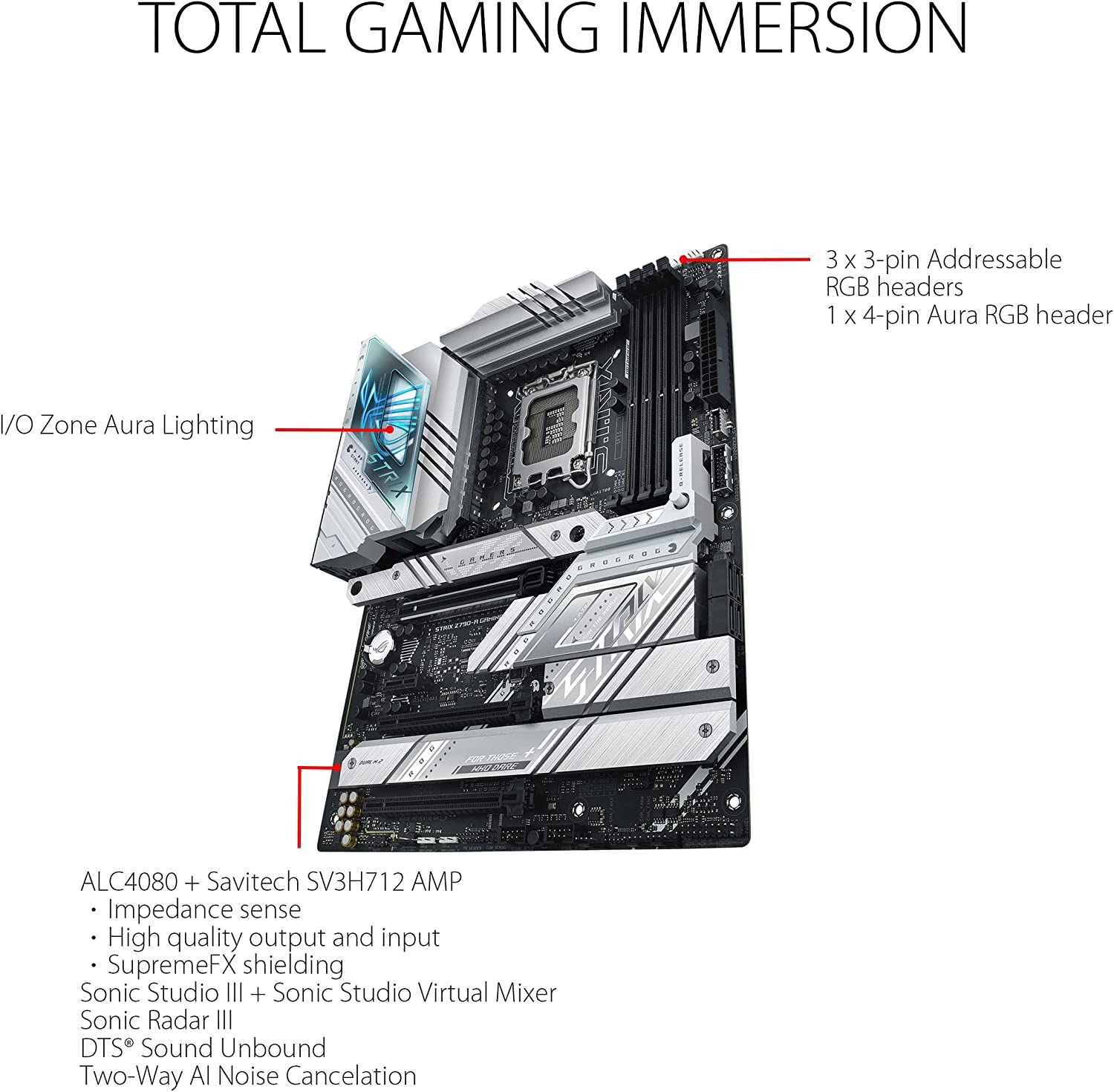

The ROG Strix Z790 motherboards offer top-generation pr connectivity for ultrarr data transfers and low latency networks. These advantages are attached to an advanced audio solution that allows you to select the ñ s m &arecuds peque ñ as and concentrate on your opponents.
