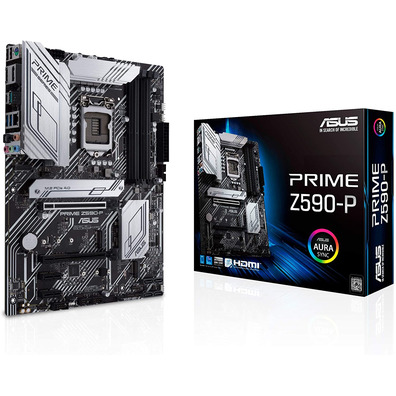

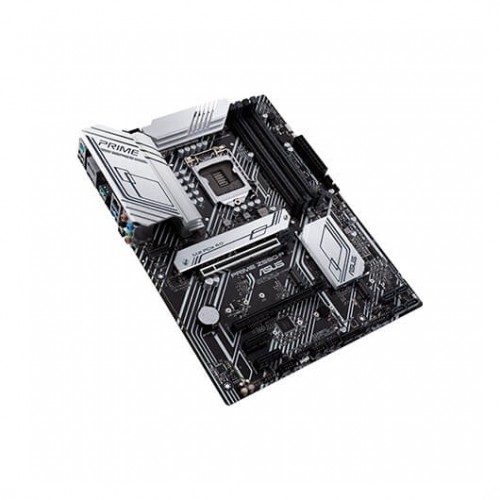

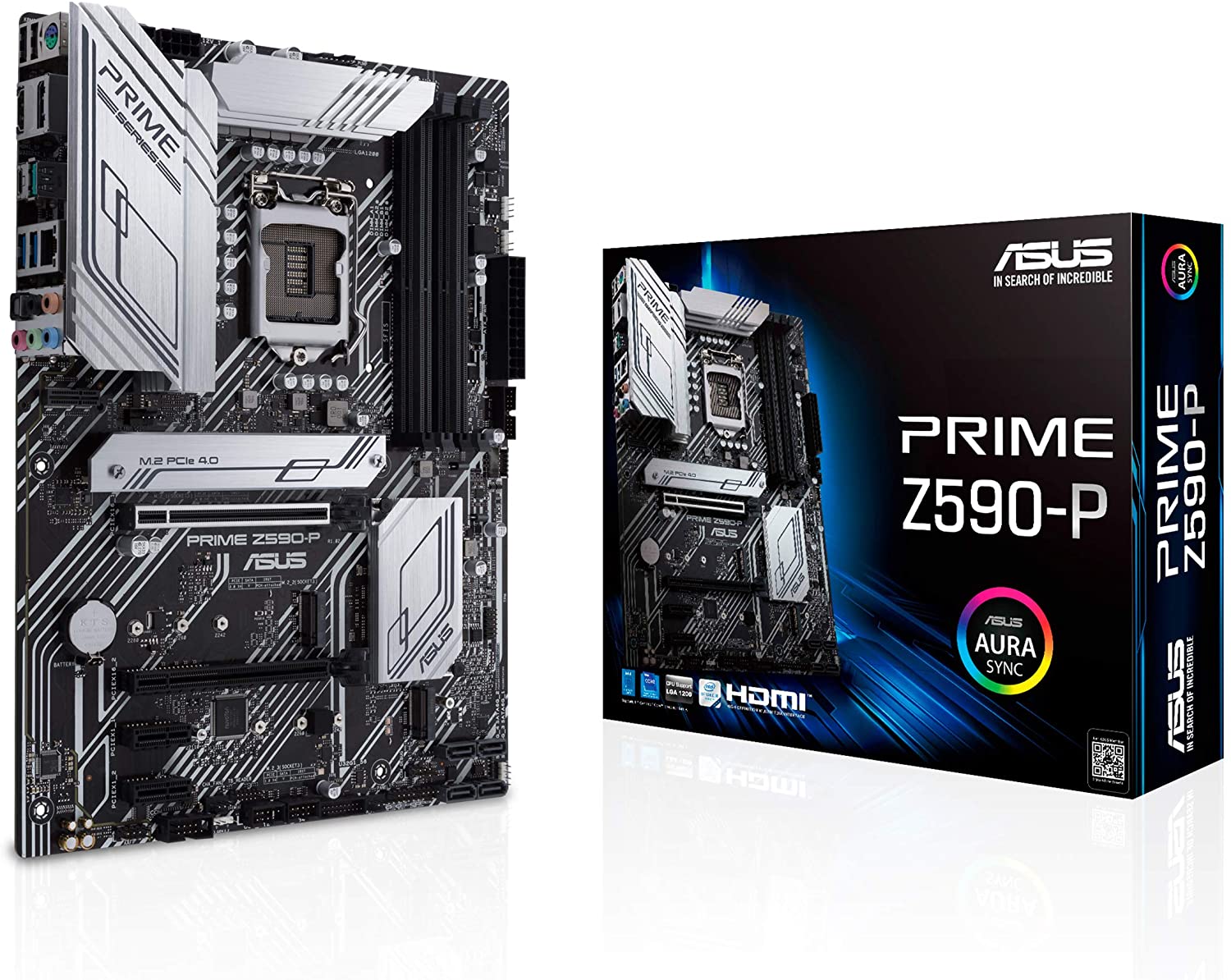

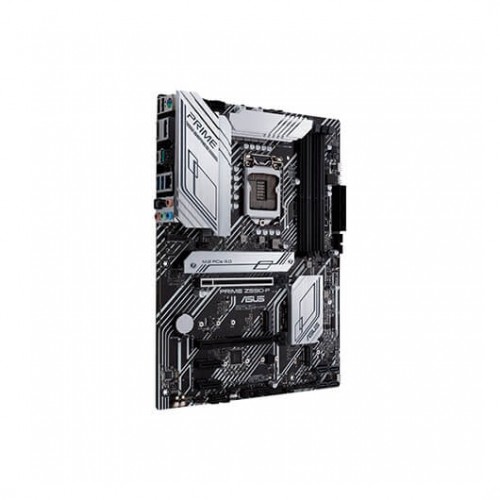

ASUS 1200 Prime Z590P Base Plate

ASUS 1200 Prime Z590P Base Plate

The ASUS Prime series base plates are ñ ed by experts to unlock the full potential of the Intel Core processors from the top and the top generation. With a ñ or energy-to-robust power, comprehensive cooling solutions and smart tuning options, Prime Z590-P offers daily users and PC builders DIY a range of performance tuning options for intuitive software and firmware functions.

SINTON &XX_ENCODE_CASE_ONE zalo IT YOUR WAY

Comprehensive controls form the basis of the ASUS Prime series. The Prime Z590 motherboard includes flexible tools to fit all aspects of your system, allowing performance adjustments to suit your way of working to maximize productivity.

Comprehensive energy efficiency

The Power Processing Unit (EPU) optimizes autom &aUtitically the power consumption to and maximizes the power saving &iacte; a with the Away mode, a smart configuration that creates an end-to-end power saving scenario when turning off unused E/S drivers.

Flexible air and air cooling controls

The ASUS Fan Xpert 4 software provides complete control over all-in-one (AiO) fans and refrigerator. Whether it is cold and air or water, a self-tuning mode intelligently configures all the pair of meters with a single click. Also, there is an extreme Silent mode that reduces all fan speeds below the default minimum &iuteño to keep your system quiet when performing light tasks.

Accurate digital power control

Digi + voltage regulator module (VRM) provides real time control over the voltage ac &iacuity, changing the frequency settings and energy efficiency. Also, you can adjust your CPU to achieve the maximum stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS offers everything you need to set up and adjust your system. It offers intelligently simplified options for PC DIY beginners, as well as integral functions for experienced veterans.

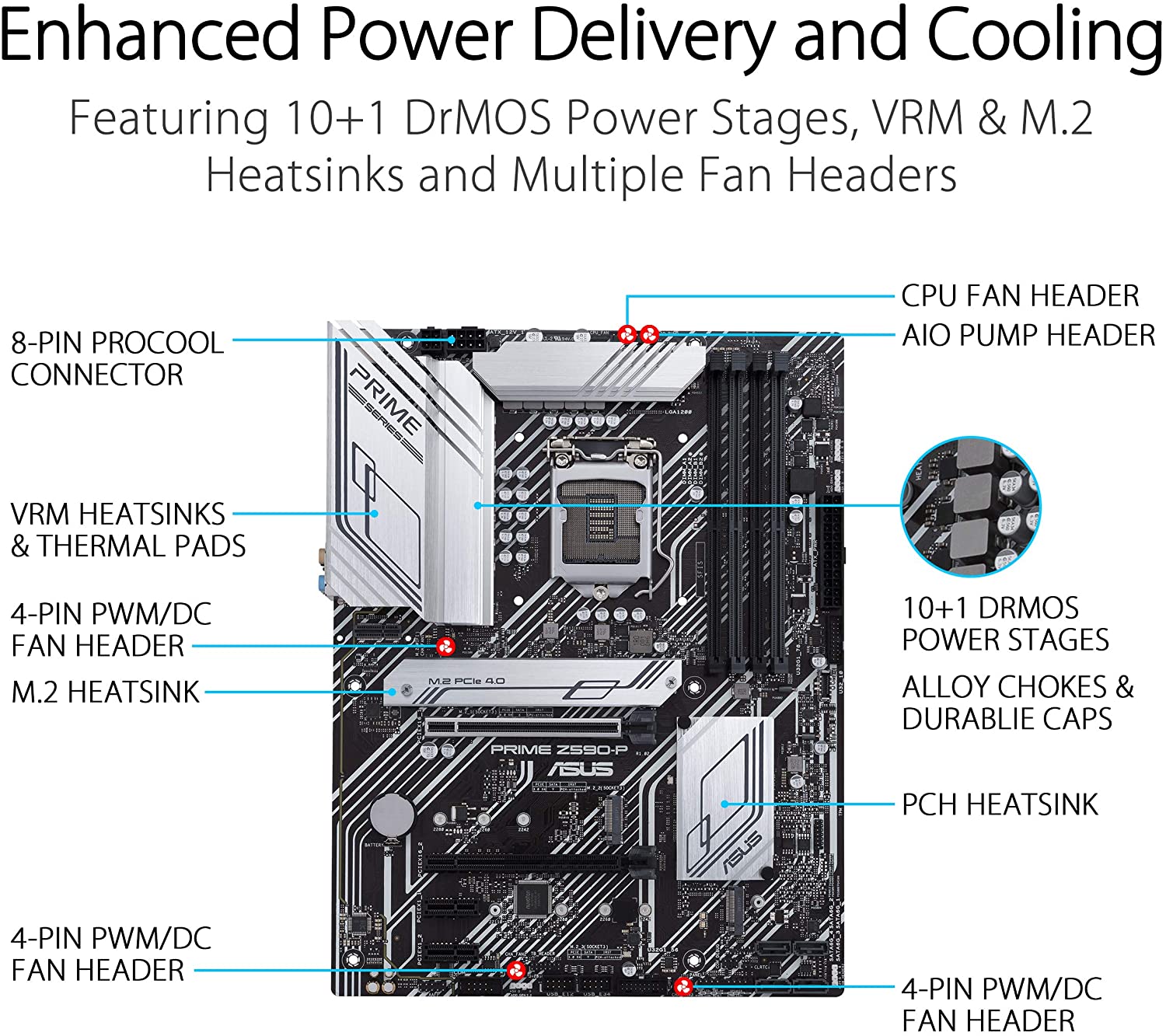

COOLING ADVANCEA

The Prime Z590 series is ñ ada with integrated heat dissipation ltiples and a variety of hot fan heads to ensure your equipment stays cool and stable under intense workloads.

M. 2 Heatsink

The M. 2 unit is under a passive sink that prevents temperature accumulation from reducing performance. The sink is fastened by captive screws that allow you to move it to another M. 2 slot.

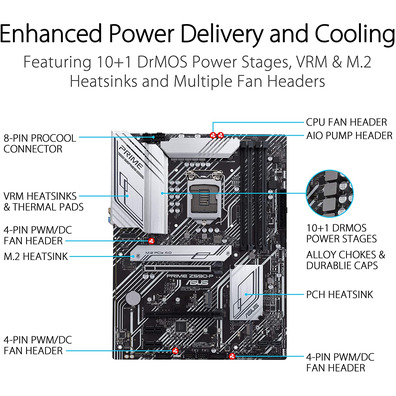

VRM heat dippers and pads

Two massive VRM heat sinks and chemical pads improve the heat transfer of the MOSFET and the chokes for better cooling performance.

M &aecons fresh by dise ñ or

The Prime Z590 series features comprehensive cooling controls that can be configured using the Fan Xpert 4 software or the UEFI BIOS.

Specifications:

• Details t &eUcics
  • Format: ATX
  • Chipset: Intel Z590
  • Amount of PCI Express slots: 4
  • Processor family: Intel
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4

Processor

• Processor Socket: Socket 1200
• Processor Family: Intel Celeron, Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-10 ª Gen, Intel Core i9-10 ª Gen, Intel Core i9-11 ª Gen, Intel Pentium

Memory

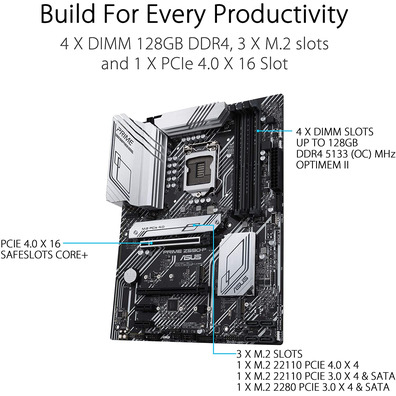

• Memory slots: 4x DIMM
• Memory slot type: DIMM
• Internal memory m &axime: 128 GB
• Supported memory module capacities: 32 GB
• Non-ECC: S &iute;
• Memory without buffer: S &iute;
• Memory channel support: Dual
• compatible memory types: DDR4-SDRAM
• Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz, 3400 MHz, 3333 (OC), 3600 (OC), 4133 (OC), 4500 (OC), 4600 (OC), 4700 (OC), 4800 (OC), 5000 (OC), 5133 (OC)

V

• M &axime resoluci &oatecn: 4096 x 2304 Pixels

Audio

• Audio Output Channels: 7.1
• Audio System: Realtek ALC897

Slots &oatecn

• PCI Express Configurations: 2 x1, 2 x16
• N &o-number of PCI Express slots: 2
• PCI Express slots: 3.0, 4.0

Internal I/O

• Power Connector to EPS (8-pin): 1
• CPU fan: S &iute;
• ATX power connector (24 pins): S &iute;
• Front panel audio connector: S &iute;
• Jumper Clear CMOS: S &iute;
• TPM connector: S &iUte;
• USB 2.0 connectors: 2
• USB connectors C: 1
• N &uenders for chassis fan: 3
• Connectors M. 2: 3

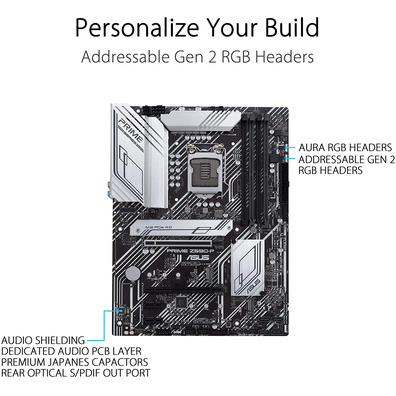

• RGB/LED strips: 4
• Thunderbolt connector: 1

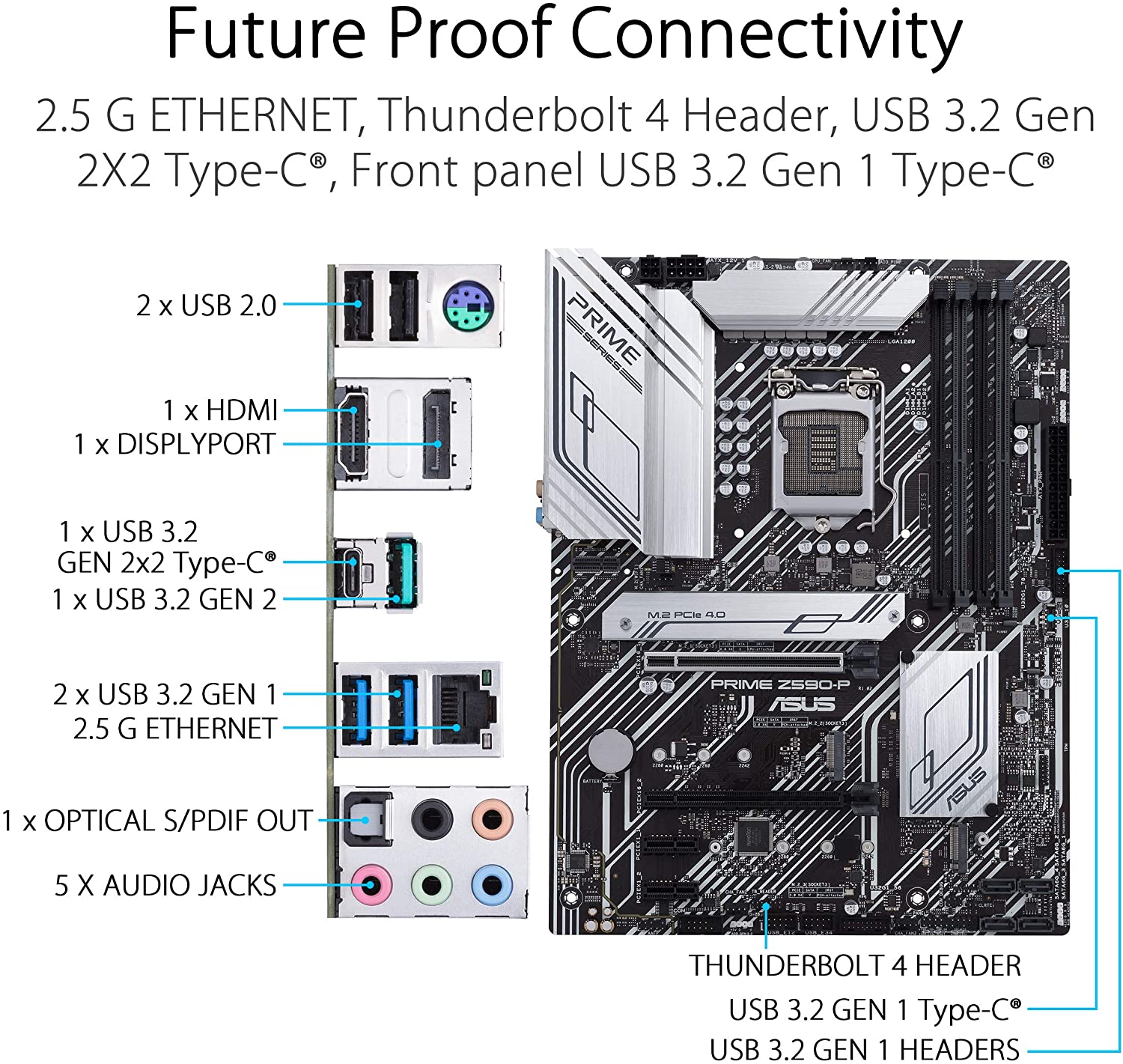

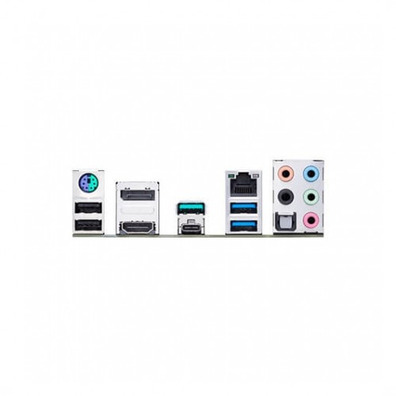

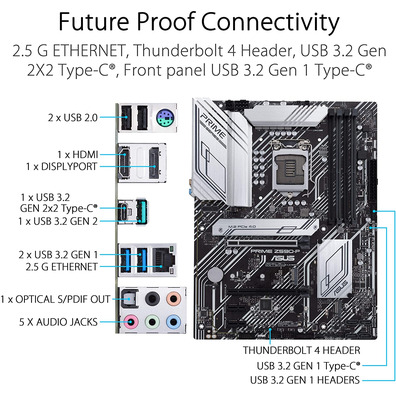

Rear Panel I/O Ports (Input/Output)

• Speaker, headphone, output jack: 5
• Quantity of DisplayPorts: 1
• Number of HDMI ports: 1
• Number of USB ports 2.0: 3
• Number of USB ports Type-C: 1
• Ethernet (RJ-45): 1
• S/PDIF output port: 1
• • Ethernet: S &iute.
  : S &iute;
• BIOS
  • BIOS, tamañ or memory: 192 (128 + 64) MB
  • BIOS types: UEFI AMI
  • Weight and dimensions
    • Width: 30.5 cm
    • Depth: 23.4 cm

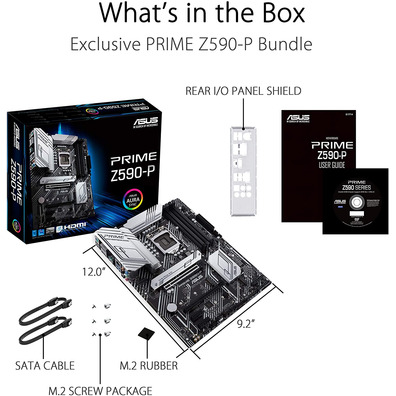

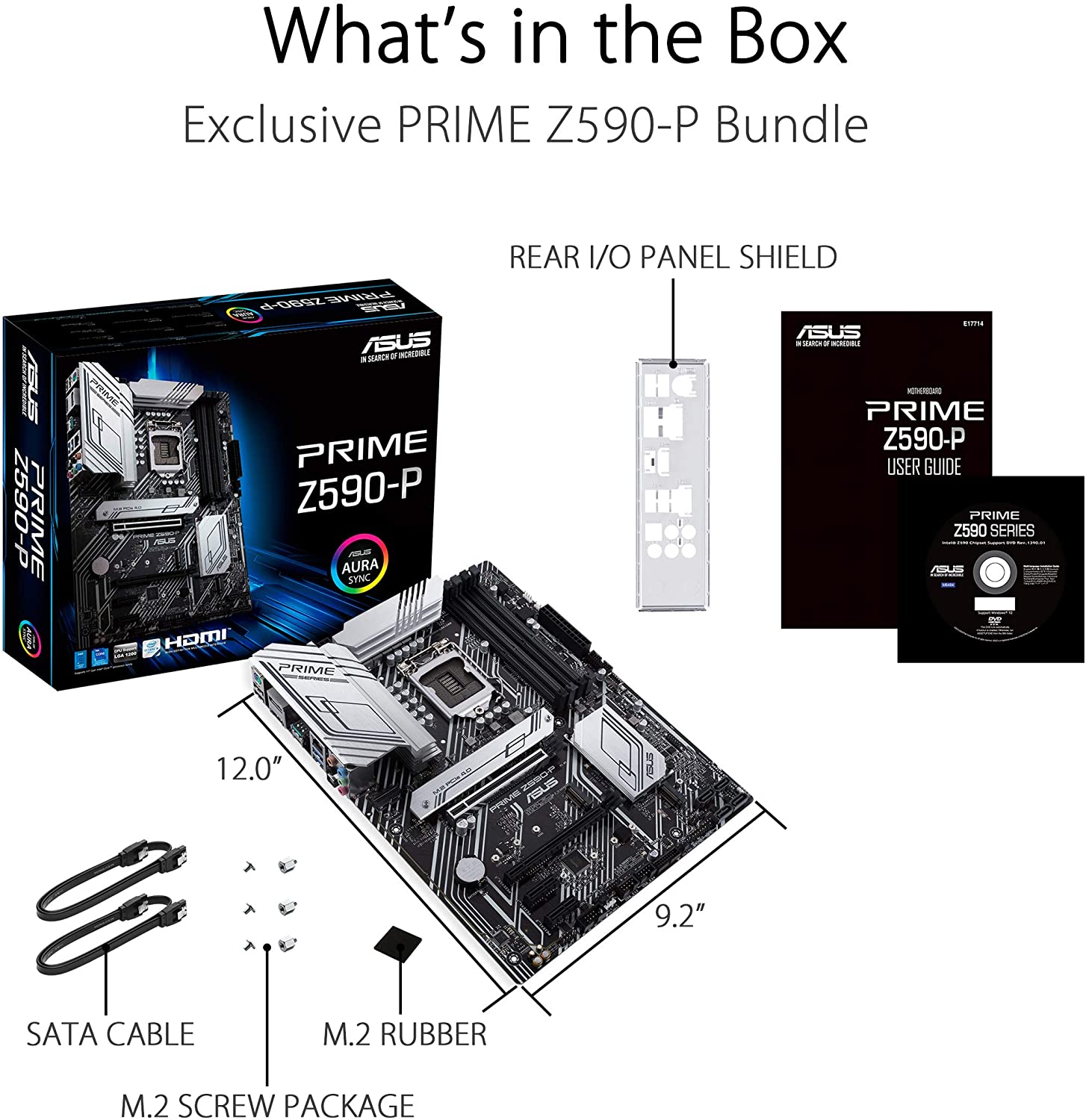

  • Packaging contents
    • Material included: Controller CD, SATA, screws M. 2
