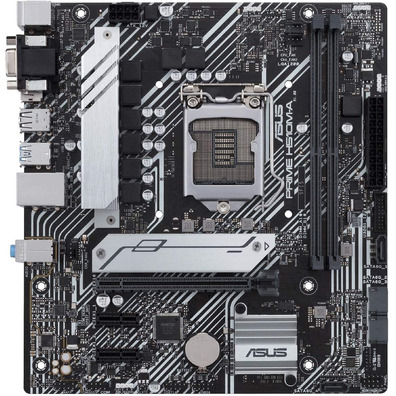

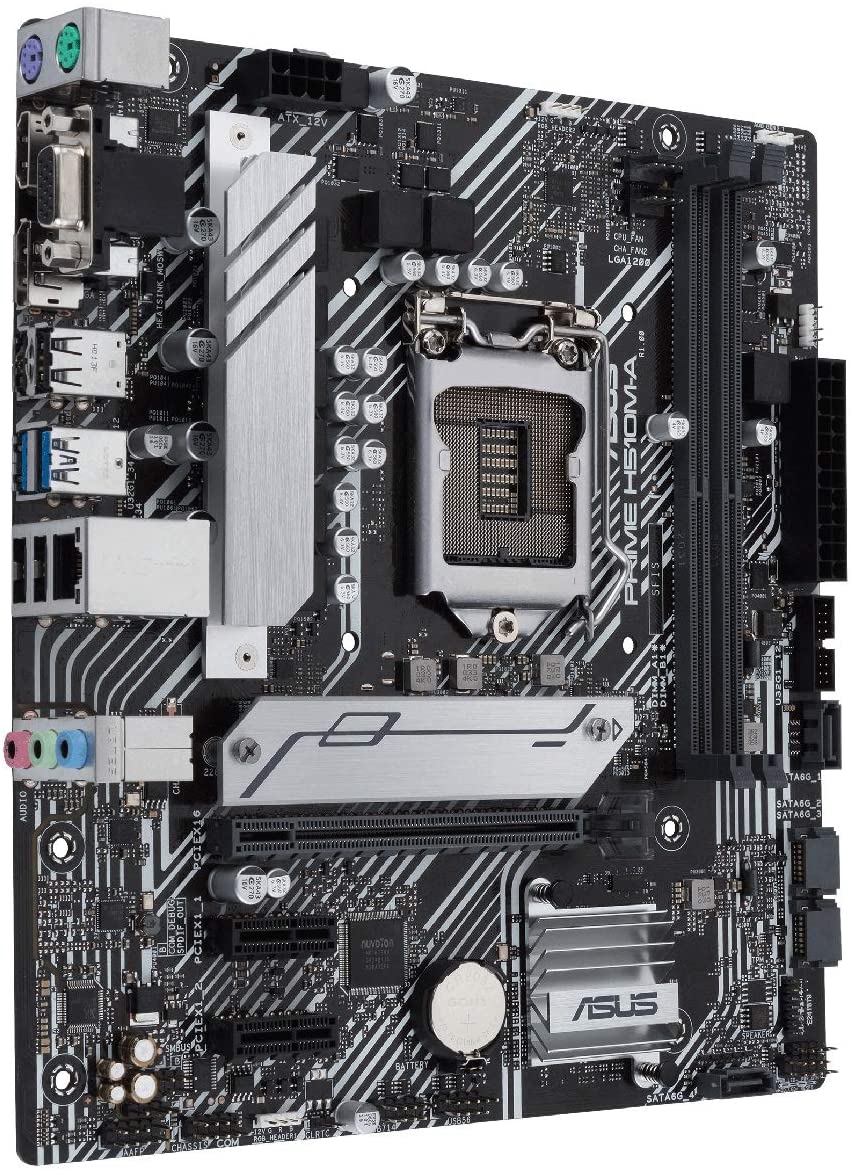

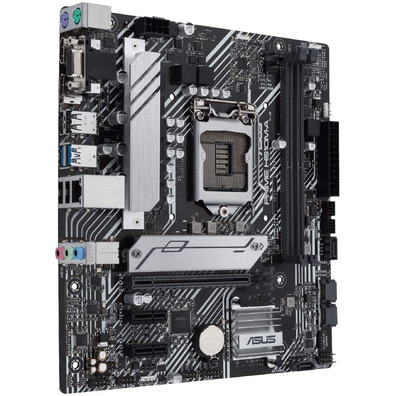

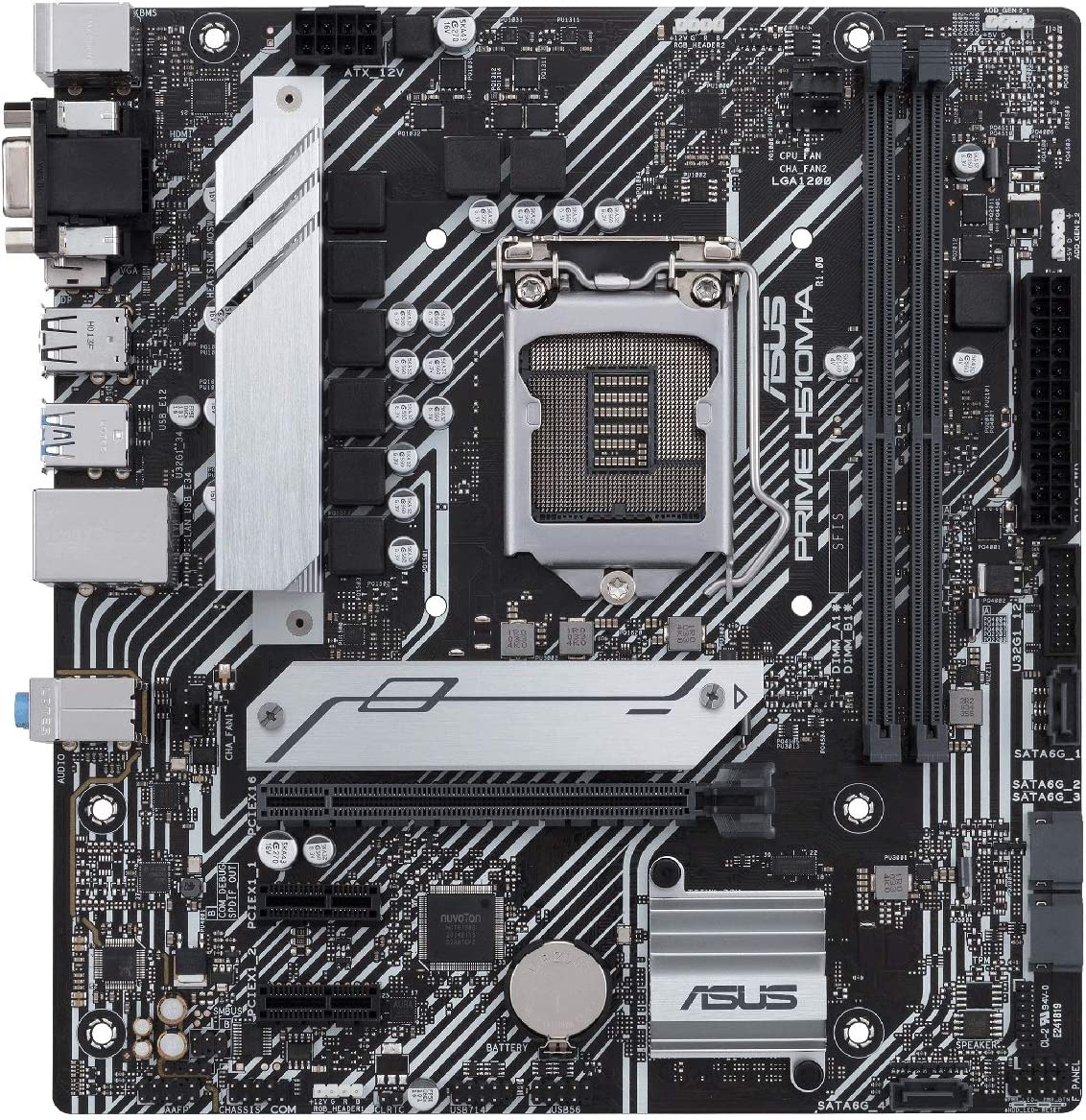

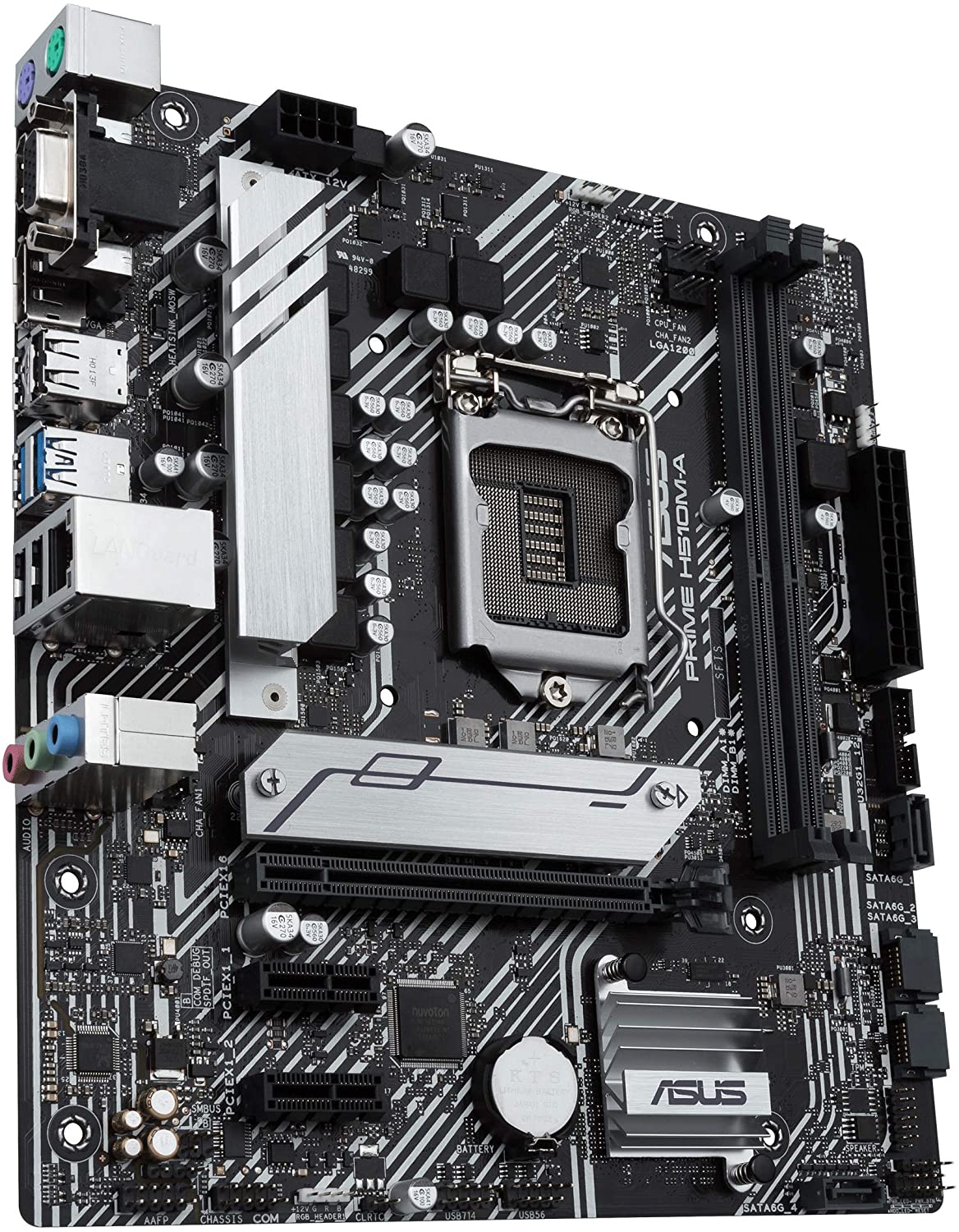

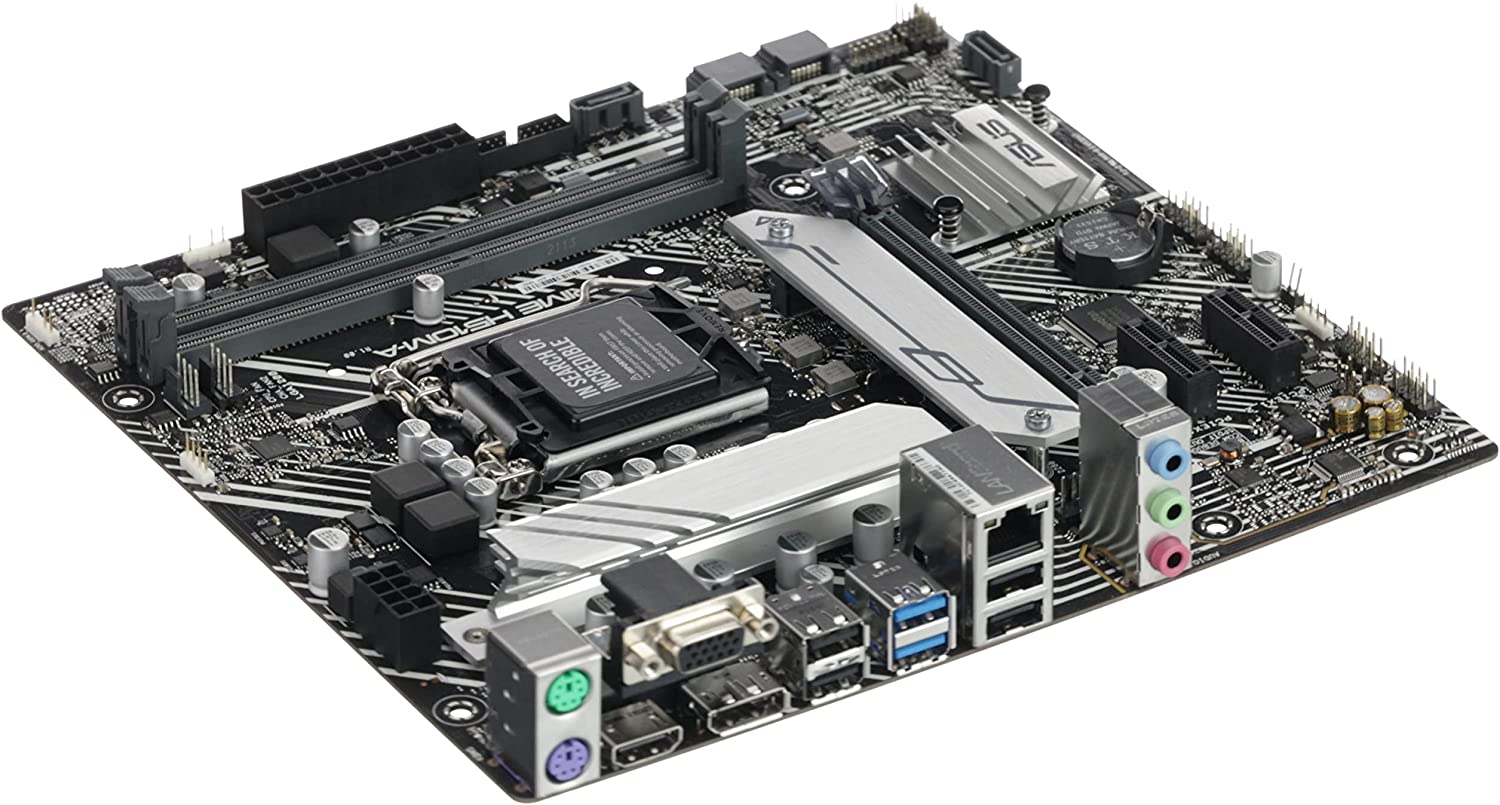

ASUS 1200 Prime H510M-A Base Plate

ASUS 1200 Prime H510M-A Base Plate

The ASUS Prime series base plates are ñ ed by experts to unlock the full potential of 11 ª and 10 ª. With a ñ or energy-to-robust power, integral cooling solutions, and smart tuning options, Prime H510M-A provides daily users and PC DIY assemblers with a range of performance tuning options for intuitive software and firmware functions.

AJ &UTE; STALA AS YOU WANT

The ASUS Prime series incorporates a variety of controls. The H510M-A motherboard includes options that help you customize and adjust every aspect of your system so that you can work your way, have the maximum performance and be productive.

Comprehensive energy efficiency

With the Energy Processing Unit (EPU), enjoy energy savings íto throughout the system. The EPU optimizes autom &aesthetically the consumption of energy ía and maximizes savings with the Away mode.

Fan Xpert 2 +

The base plates of the Prime series include very complete controls for fans and cooling systems. The autom setting mode configures all the pair &aetuesm with a simple click.

Accurate digital power control

The Digi + voltage regulator module (VRM) controls the tensions in real time, changes the frequencies and the configuration of the power &iutea, and allows you to regulate the CPU voltage so that you enjoy the maximum performance without compromising the stability of the system.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to set up, and adjust your system. It offers intelligently simplified options for PC DIY beginners, as well as integral functions for experienced veterans.

Advanced tuning for serious tweakers

An intuitive advanced mode that is offered to the UEFI &ealds allows you to take full control. A built-in b &uenteel seda function facilitates the b &ualtiment of options, and several advanced functions that allow you to make smart adjustments so that you can mark the performance in the way you want.

Quick and Simple &oatutin r &oatuas

EZ mode shows vital &iactionals and security settings and also provides guided wizards, drag-and-drop functionality, and an application with a click of important configurations, all to help put your computer running in a short time.

FR &IaUTO OR TO THE M É DULA

The Prime H510 series is ñ ada with m &utilines integrated heat sinks and a variety of fan heads h íbras to ensure your equipment stays cool and stable under intense workloads.

M. 2 Heat Disiper

An M. 2 unit is located below a passive heat sink to avoid strangulation that can occur with sustained transfers. The heat sink is held in place by means of captive screws of the extra-difficult extracci.

VRM heat sink and rmica t pad

The VRM heat sink with thermal pad below improves the heat transfer of the MOSFET for better cooling performance.

M &aecons fresh by dise ñ or

The Prime H510 series features comprehensive cooling controls that can be configured using the Fan Xpert 2 + software or by using UEFI BIOS.

BUILD ON A LIDA S &OASTIDE BASE

ASUS H510 motherboards provide all the basics to increase your daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

STORAGE

M. 2 (up to 32 Gbps)

The M. 2 supports an x4 PCI Express 3.0 bandwidth, data transfer speeds of up to 32 Gb/s. It is the perfect choice for an operating system or application unit, which makes all your PC or professional applications work the same way as possible.

CONNECTIVITY

PCIe 4.0

ASUS H510 base plates are ñ ads specifically for Intel Core 11 ª CPU and provide PCIe 4.0 connectivity for recent GPUs. The wide bandwidth and the transmission speeds of ultrarr &aetups allow you to create rich builds in functions that can handle large loads without effort.

USB 3.2 from 1.a generation &o type A

Numerous USB ports support high-end equipment loaded with rich perif, including USB-type A connectors on the rear panel with USB 3.2 Gen 1 USB for compatible cases.

REDES

Intel 1Gb Ethernet

The Intel Ethernet I219-V connection reduces CPU overhead and offers exceptionally high TCP and UDP performance for a fast and fluid transfer of data.

Specifications:

• Format: Micro ATX
• Chipset: Intel H510
• Amount of PCI Express slots: 3
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, Serial ATA III
• N Number of processors supported: 1
• • Processor Socket: Socket 1200
  • Processor Family: Intel Celeron, Intel Core i3-11 ª Gen, Intel Core i5-10 ª Gen, Intel Core i5-11ª Gen, Intel Pentium Gold
• Memory
  • Memory slots: 2x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 64 GB
  • Non-ECC memory module capacities supported: 32 GB
  • Non-ECC: Yes
  • Memory Channel Support: Dual
  • Supported memory clock speeds: 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 (OC)
V &iudos deo
• M &axime resoluci &oatuos
: 4096 x 2304 Pixels
• Audio
  • Audio Output Channels: 7.1
  • Audio System: Realtek ALC897
Slots &oatecn
• PCI Express Configurations: 1 x16, 2 x1
• N PCI Express slots (total)
• PCI Express slots: 2
• PCI Express slots: 3.0, 4.0
• Internal I/O
  • Connector to EPS (8-pin): 1
  • ATX power connector (24 pins): Yes
  • Front panel audio connector: Yes
  • Jumper Clear CMOS: Yes
  • Fan Connector: Yes
  • TPM Connector: Yes
  • S/PDIF, Output Connector: Yes
  • USB 2.0 connectors: 2
  • SATA connectors 3: 4
  • Connectors M. 2: 1
  • RGB/LED strips (Input/Output

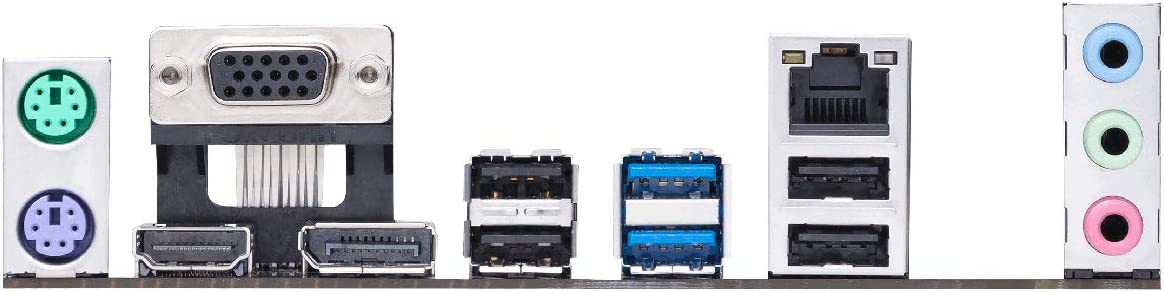

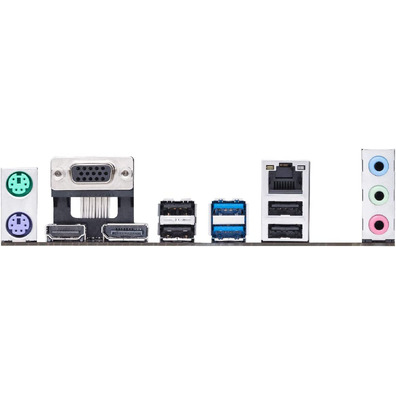

• Number of DisplayPorts: 1
• VGA (D-Sub): 1
• Number of USB ports 2.0: 4
• Quantity of USB 3.2: 2
• Ethernet (RJ-45): 1
• Micr &o, input jack:
• • Character &ianstics network: 10/100/1000 Mb/s
  • ethernet interface type: Gigabit Ethernet
  • BIOS
    • BIOS types: UEFI AMI
  • Weight and dimensions
    • Width: 22.6 cm
    • Depth: 21.1 cm
