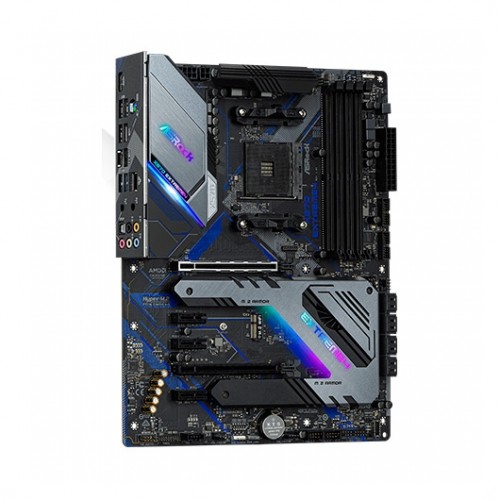

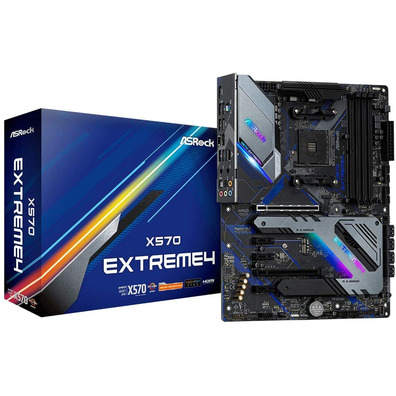

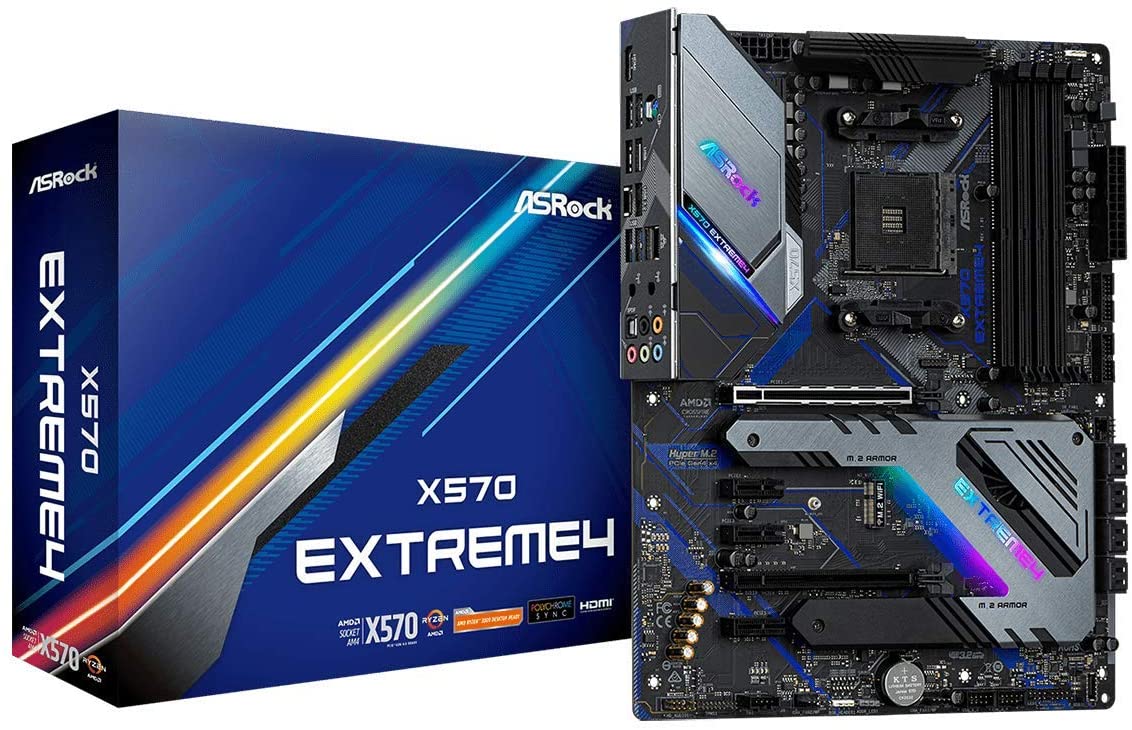

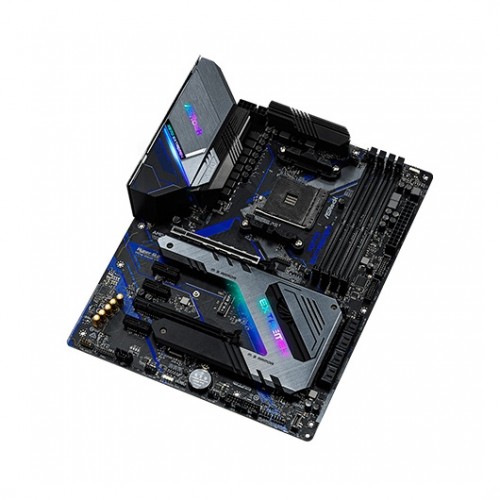

Base Asrock X570 Extreme4 AM4

Asrock X570 Extreme4 AM4 Base Plate

&O. Ó s

Steel Slot with to Protect PCI Express 4.0

The PCI Express 4.0 maximum power generation is capable of double the speed of comparison with the previous third generation. The exclusive ASRock steel slot with additional anchor points has been added in a revolutionary way to ensure the stability of the ñ to the and tambi n to ensure that the heavy cards are well installed in the PCI-E slot safely.

Dual Hyper M. 2 for SSD

Supports the PCI Express 4.0 M. 2 SSD of the highest generation &oatutin, is able to perform twice the speed in comparison with the third generation of the previous generation, which provides an experience of data transfer to you &iactebly r &aâtepas.

ILLUMINATING N

Create your own lighting path | POLYCHROME RGB

ASRock provides a very complete control to perform built-in RGB LEDs or attached LED strips, CPU fans, coolers, chassis, and any problem-free RGB devices. The devices also can be synced to trv &ealds of the Polychrome RGB Sync certified accessories.

COMPONENT

Dise ñ or 10-phase power

With robust components and a completely smooth power delivery to the CPU. In addition, it offers incomparable overclocking capabilities and improved performance with low temperature m &arecons for advanced players.

Dr. MOS

&iexex; Dr. MOS is the integrated power-stage solution that is optimized for tensi applications ó n &o ncrona! Intelligently supplying a high current and generating up to 50 A of continuous current for each phase, which provides a better result and superior performance.

Premium Power Condensers 60A

ASRock's 60A power capacitors make the saturation current up to three times better, which provides an improved and improved Vcore voltage to the motherboard.

CONNECTIVITY

USB 3.2 Gen2 (Type A + Type C)

This motherboard has a pair of USB 3.2 Gen2 integrated Type A and Type C ports built into the back/out to support USB 3.2 Gen2 devices from the maximum generation &oatern and to deliver up to 10 Gbps of data transfer.

front USB 3.2 Gen1 type-C

The USB 3.2 Gen1 Type C front cover offers a data transfer rate of up to 5 Gbps and a ñ or reversible USB device for maximum generation &oatecon in the front panel of the computer box.

AIC Thunderbolt 3 Header

Thunderbolt 3 is no longer limited to certain chipsets, ASRock is the first motherboard manufacturer to implement h &abilly the Technolog íto Thunderbolt 3 on the AMD X570 motherboards. All you need is a Thunderbolt 3 AIC R2 .0!

SONIDO

Purity Sound 4

It's time to enjoy the ultra-high-defined audio performance m. Purity Sound 4 is a combination of several hardware and software audio solutions. Audio 7.1 CH HD with the latest Realtek ALC1220 audio dec & audio dec, individual PCB layers for R/L audio channel, 120dB SNR DAC, and other techs to deliver the sound effects.

Specifications:

• Details T &eUcics
  • Format: ATX
  • Chipset: AMD X570
  • Multi-GPU: AMD Quad CrossFire, CrossFireX
  • Amount of PCI Express slots: 5
  • Processor family: AMD
  • Supported hard disk drive interfaces: M. 2 PCIe, Serial ATA III
  • N
  of processors: 4
• Processor
  • Processor Socket: Socket AM4
  • Processor Family: AMD Ryzen 2000, AMD Ryzen 3000

Memory

• Slots of memory: 4x DIMM
• Memory slot type: DIMM
• Internal memory m &axime: 128 GB
• Supported memory module capacity: 32 GB
• ECC: No
• Non-buffer memory:
&iute;
• Memory channel support: Dual
• Memory channel support
2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3800 (OC), 3866 (OC), 4200 (OC), 4266 (OC), 4300 (OC), 4400 (OC)

V &iudero deo

• M &axime resoluci ón: 4096 x 2160 Pixeles

Audio

• Audio output channels: 7.1
• Audio system: Realtek ALC1220

slots &oatecn

• PCI Express Configurations: 2 x16, 3 x1
• N &uetos (total) of PCI Express slots: 3
• PCI Express slots: 3.0, 4.0

Internal I/O

• Power Connector to EPS (8-pin): 1
• Connector CPU Fan: S &iute;
• ATX Power Connector (24 pins): S &iute;
• Front Panel Audio Connector: S &iute;
• Chassis Connector: S &iute;
• TPM Connector: S &iute;
• USB 2.0 Connectors: 2
• N &o connectors to chassis fan: 4
• Connectors M. 2: 2
• RGB/LED strips: 5
• Thunderbolt connector: 1

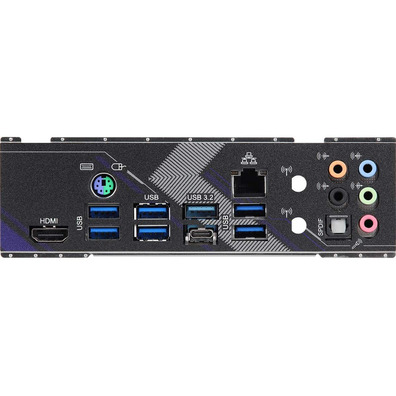

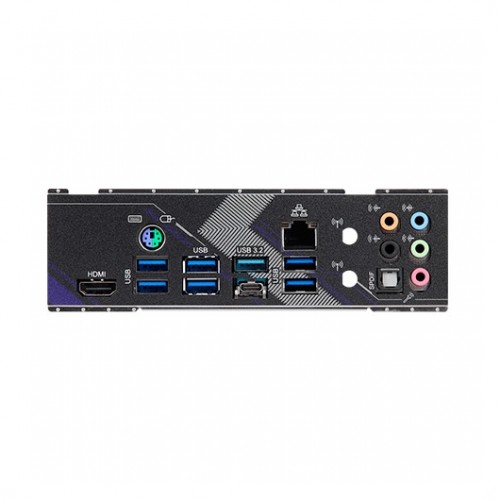

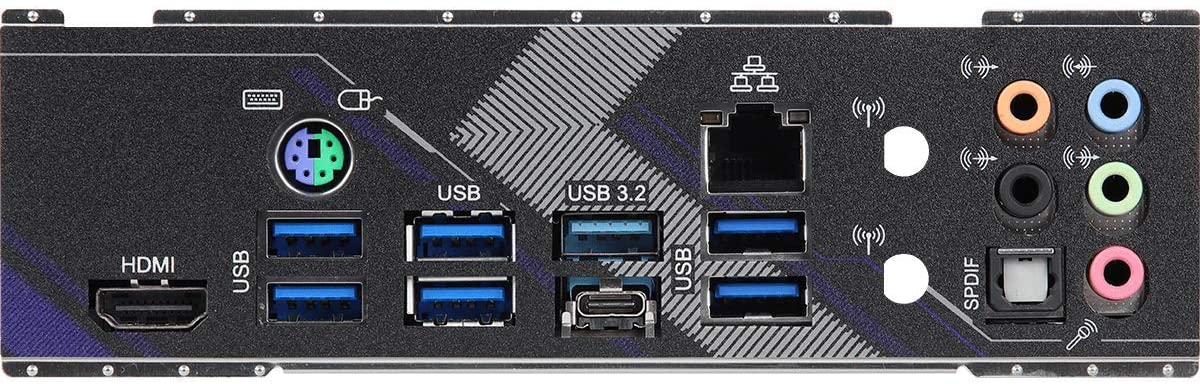

Panel rear I/O Ports (Input/Output)
• Speaker, headphone, output jack: 5
• N HDMI port number: 1
• Number of USB ports 3.2: 7
of USB Type-C ports: 1
• Ethernet (RJ-45): 1
• Microphone &o, jack of entry: 1
controllers
• RAID levels: 0
• • Network features: 10/100/1000 Mb/s
  • LAN Controller: Intel I211-AT
• BIOS
  • BIOS, tama ñ or memory: 256 MB
    • BIOS types: AMI UEFI
    • Versi &oatuos ACPI: 5.1
    • Weight and dimensions
      • Width: 24.4 cm
      • Depth: 30.5 cm
    • Packaging contents
      • Material included: SATA
      • Gu &aituas a: S í
