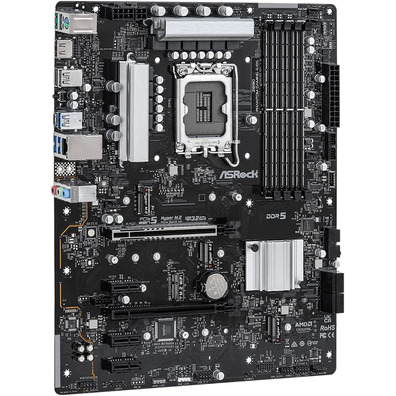

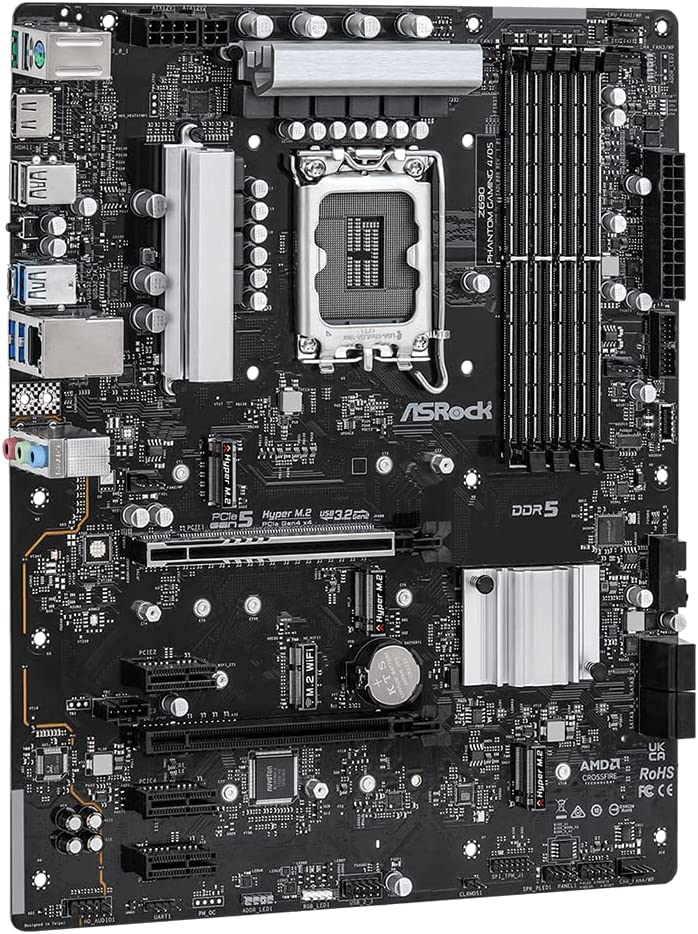

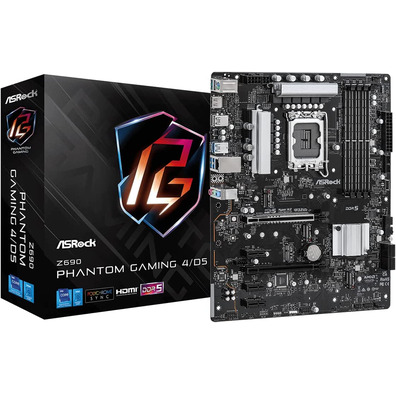

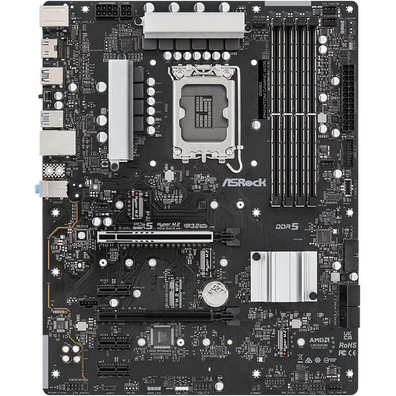

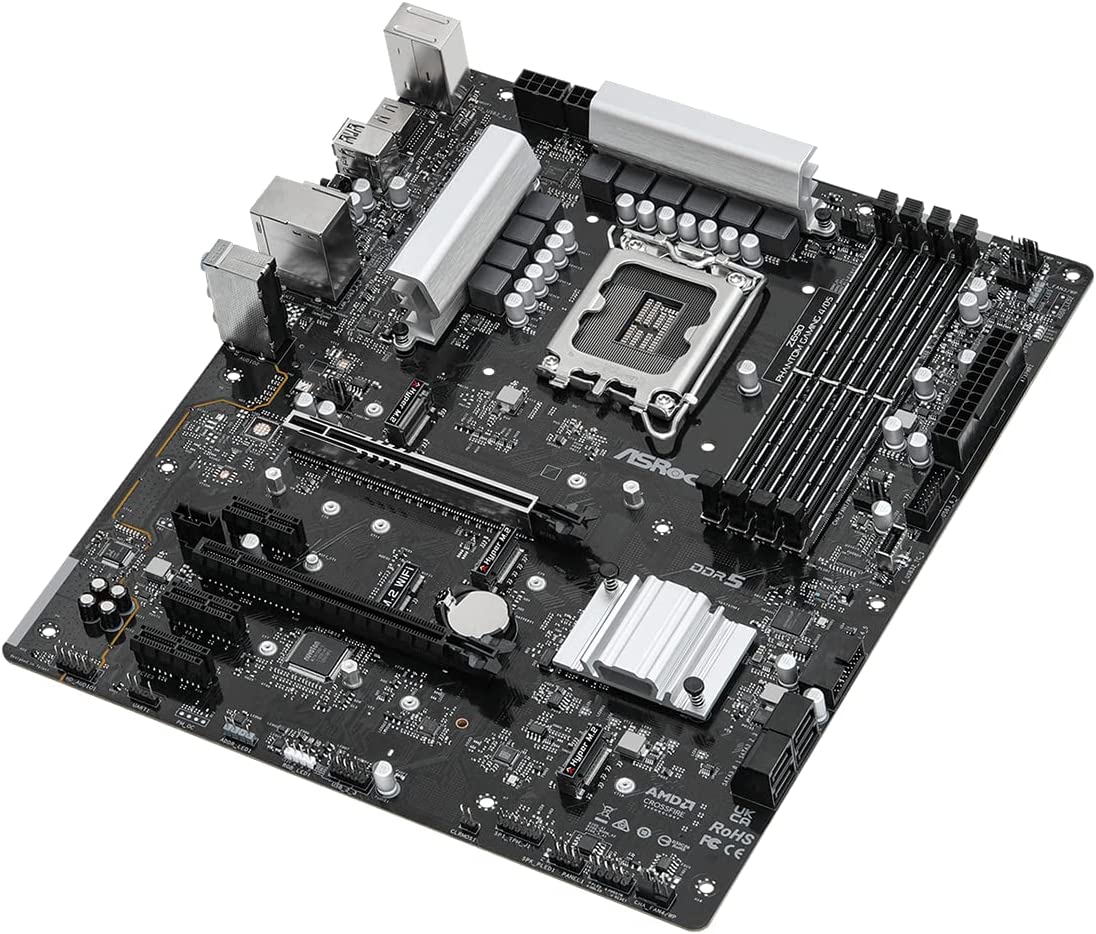

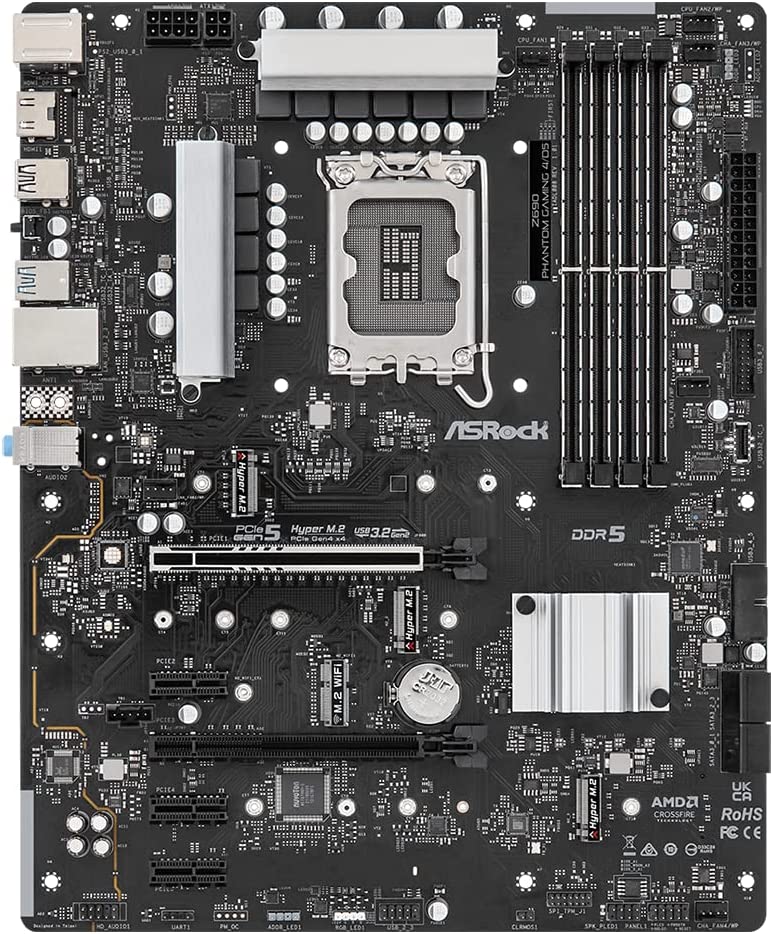

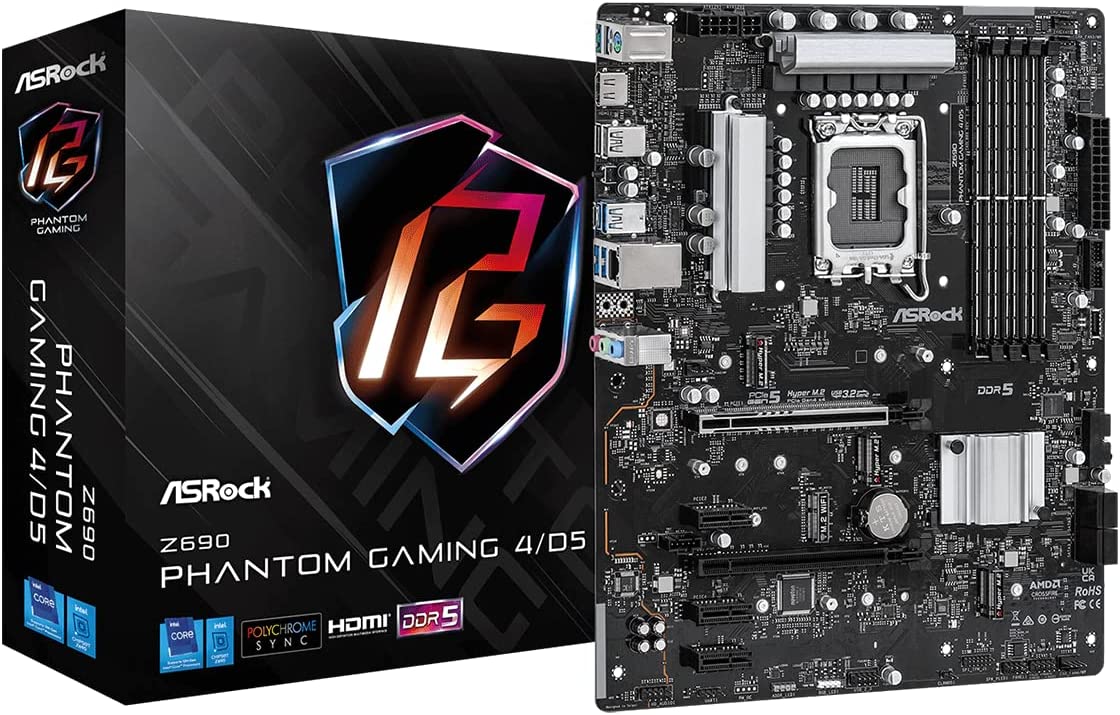

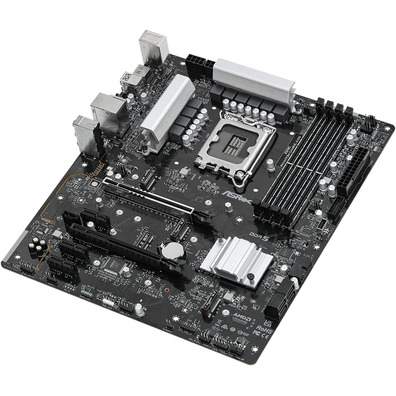

Asrock Base Plate 1700 Z690 Phantom Gaming 4

Asrock Base Plate 1700 Z690 Phantom Gaming 4

DDR5 memory with protection circuit n

Enhanced DIMM slot

The reinforced DIMM slot is mounted on the surface of the base plate to provide better physical resistance and a stable ñ memory. With this superior revolutionary Dñ s, it is able to accelerate dr &austically the m &oedudos DRAM up to a frequency incl.

Dise ñ or construct &oatuten f &aplicile

Due to the architecture of the DDR5 DIMMs, there is a high risk of giving ñ the memory module of memory if the AC power is not disconnected correctly during the extraction or installation. To avoid this, ASRock has implemented a no-problem protection circuit on each DDR5 motherboard, which reduces the risk of giving ñ the m &o memory module.

PCIe 5.0 + technolog surface mount íg

In comparison with the conventional DIP-style PCIe slot, the SMT-type PCIe slot improves the flow of the ñ to and maximizes high-speed stability, a key advance for fully admitting the speed of the latest &uente; ndar PCIe 5.0.

Nahimic audio

Audio that matters

Whether you're using, headsets or speakers, to bring in USB, Wi-Fi, anal output or even HDMI, Nahimic Audio offers you the attractive, vibrant and rich listening experience.

Improving the quality of communication &oatun

The powerful algorithms to guarantee the best conversation without noise, providing a constant level of voice regardless of the distance of your phone. The Nahimic audio engine cleans up the sound and eliminates the noise of interference and reduces the variance of the voice. The result is a better understanding and less fatigue.

Definitive game experience

Sound Tracker: The Sound Tracker is a visual indicator that is ñ to the addresses where the predominant sounds come from. Each sound is correctly positioned in 360 ° on a radar for a total dive during the game.

Works on any device: Enjoy high quality, vibrant surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and guarantees the best sound with any of them. Nahimic measures and improves to optimize the technology and offers the best experience.

High-speed2 &oatu. M. 2

This motherboard is capable of accommodating M 2 storage devices M. 2, one of which can support PCI Express 4.0 M. 2 SSD, is able to perform twice the speed in comparison with the third generation prior, providing an ultra-high data transfer experience.

POLYCHROME RGB

Adem &arectors of the built-in RGB &oatro n, tambi &eacetín features integrated RGB headers and an addressable RGB header that allows the motherboard to connect to compatible LED devices, such as strips, fans, dissipators, refrigeration, etc. The users also can synchronize RGB LED devices to bring the Polychrome RGB Sync certified accessories to create their own unique lighting effects.

front USB 3.2 Gen2x2 Tipo-C

The latest USB 3.2 Gen2x2 Type-C offers a data transfer rate of up to 20 Gbps, which is twice as much as the previous generation, which provides an ultra-high data transfer interface with a reversible ñ or USB Type-C that adapts to the connector in any way.

BIOS Backspace

Get the BIOS update of the appropriate BIOS with just one click. Users can easily obtain the latest BIOS compatibility with a USB and a power supply, without the need for CPU, RAM, or other components.

M. 2 (Key E) For WiFi

Adem &aecons of the integrated LAN port, users also can choose wireless connections 802.11ac by slot M. 2 (Key E).

Specifications:

• Format: ATX
• Chipset: Intel Z690
• Multi-GPU: AMD CrossFire
• Amount of PCI Express slots: 5
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
• N Number of supported processors: 1
• N DIMM slots: 4
• Processor
  • Processor Socket: Socket 1700
  • Processor Family: Intel Core i3-12 ª Gen, Intel Core i5-12 ª Gen, Intel Core i7-12 ª Gen
  Intel Core i9-12 ª Gen
  • • Memory slots
    DIMM
    • Internal memory m &axime: 128 GB
    • Non-ECC: Yes
    • Memory No buffer: Yes
    • Memory channel support: Dual
    • Supported memory types: DDR5-SDRAM
    • Supported memory clock speeds: 4000 MHz, 4800 (OC), 5000 (OC), 5800 (OC)
    • V &iudos
      • Graphics chipset: Intel
    • HDCP: Yes
    • • Audio output channels
      7.1
      • Audio system: Realtek ALC897
    • Expansion slots &oatucn
      • PCI Express configurations: 2 x16, 3 x1
      • N (total) PCI Express slots: 5
      • X1 PCI Express slots: 3
      • PCI Express slots x16: 2
      • Versi PCI Express entries: 3.0, 4.0, 5.0
    • Internal I/O
      • Connector to EPS (8-pin): 1
      • ATX power connector (24 pins): Yes
      • TPM connector: Yes
      • USB 2.0 connectors: 2
      • USB connectors C: 1
      • N &uendos chassis fan
      :SATA connectors 3: 4
      • Connectors M. 2: 3
      • RGB/LED strips: 4
      • Connector for Thunderbolt: 1

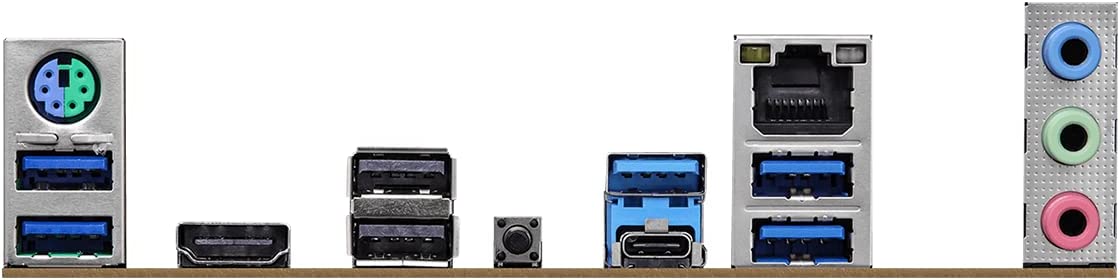

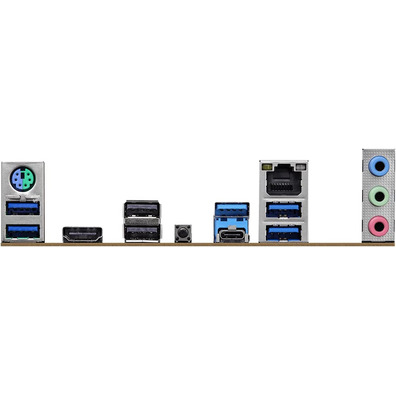

      Rear Panel I/O Ports (Input/Output)
      • Speaker, headphone, jack of output: 2
      • Number of USB ports 2.0: 2
      • Number of USB ports Type-C: 1
      • Ethernet (RJ-45): 1
      • Micr &o, jack of entry: 1
      • Port of rat &o-keyboard PS/2: 1
      • Storage Regulators
        • RAID levels: 0, 1, 10, 5
      • • Bluetooth: No
        • Network &ianstics Character: 10/100/1000 Mb/s
        • Network &otor: Yes
        • Ethernet Controller: Intel I219-V
        • Ethernet: No
        • Wi-Fi
        • BIOS
        • BIOS, tama ñ or memory: 128 MB
        • Versi &oacution ACPI
        6.0
        • Weight and dimensions
          • Width: 30.5 cm
          • Depth: 24.4 cm
