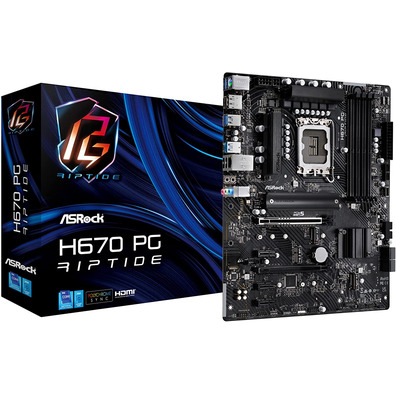

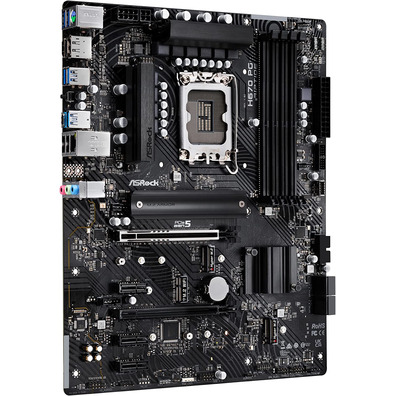

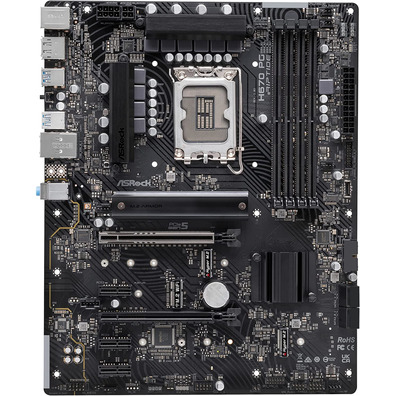

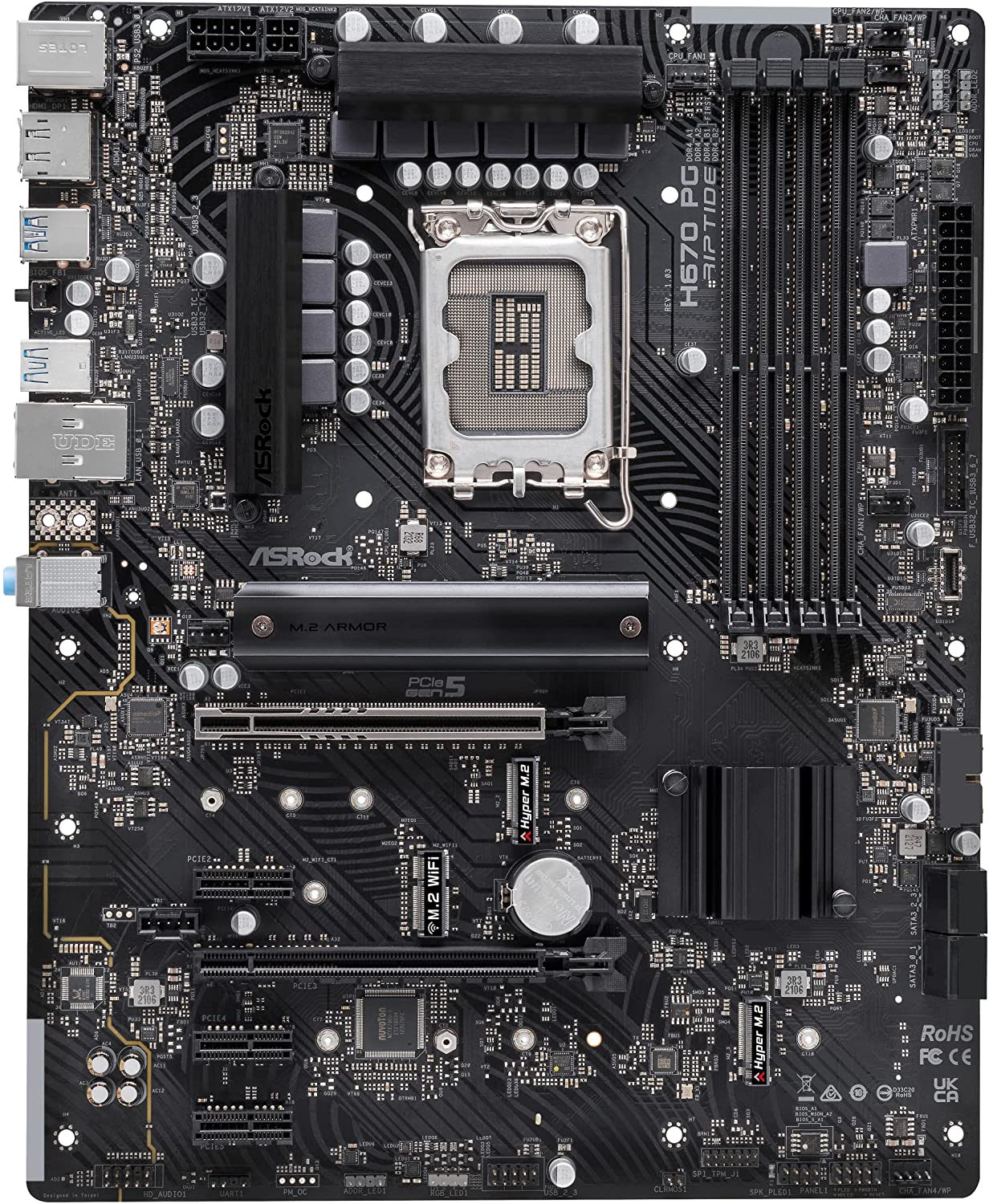

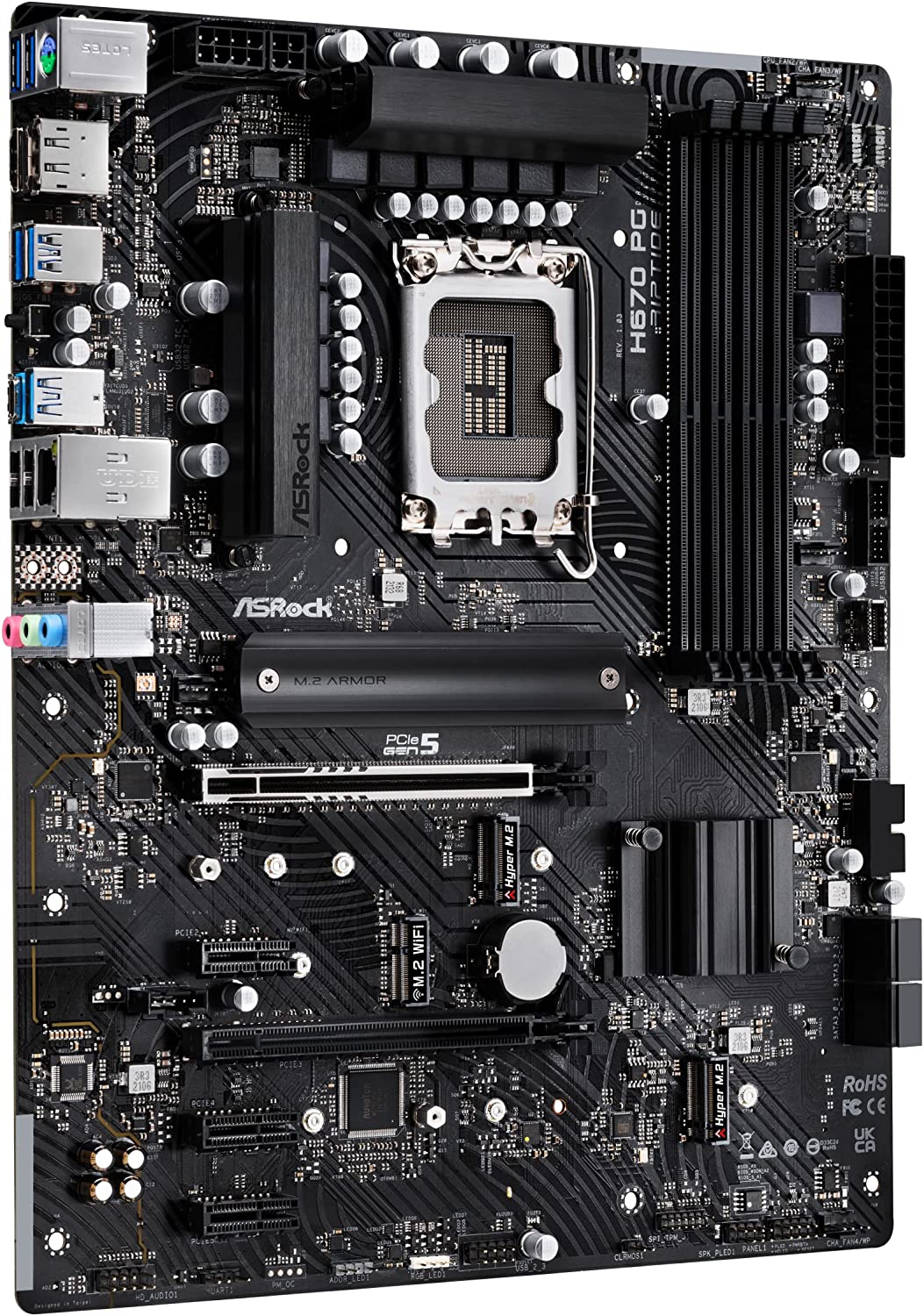

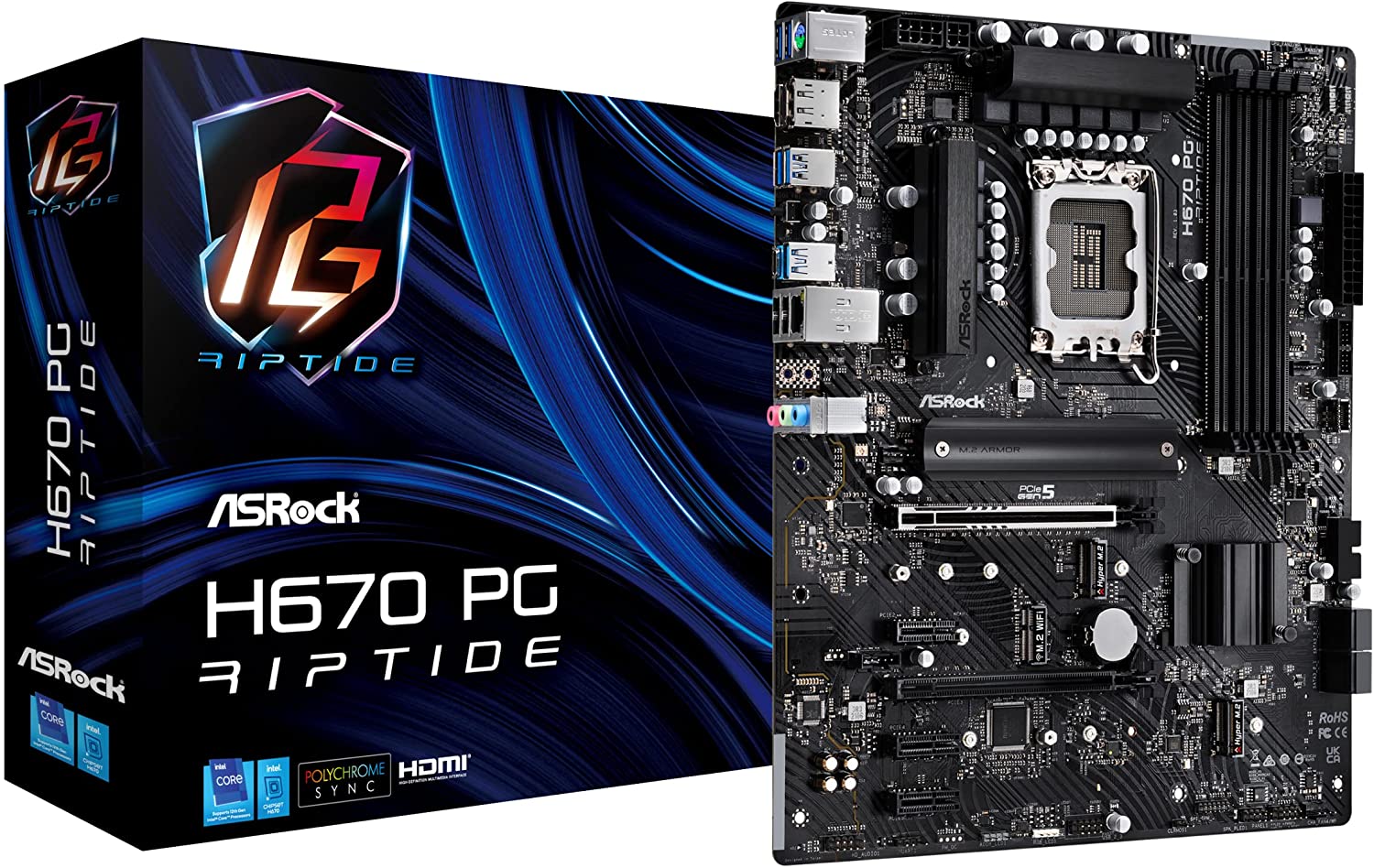

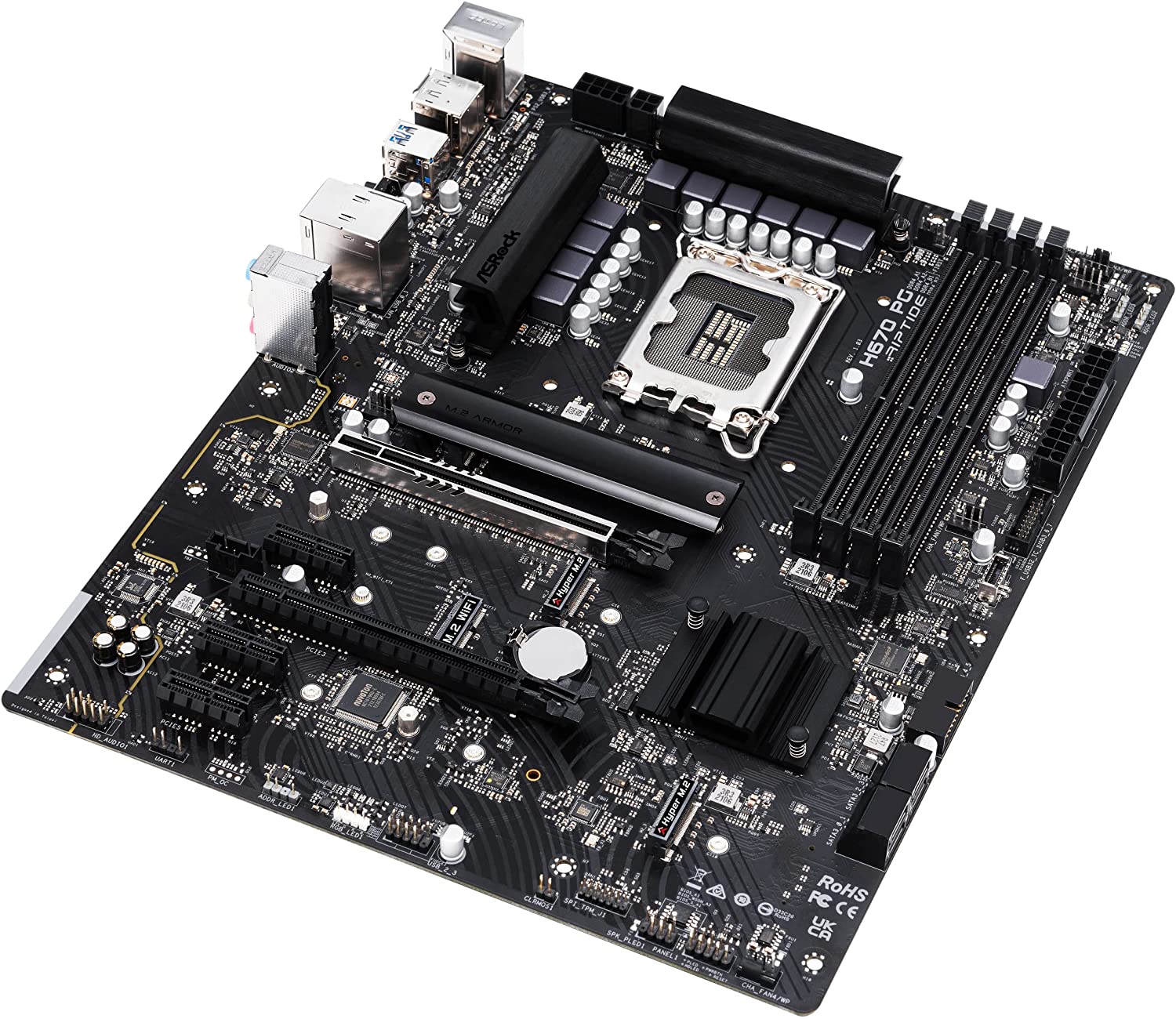

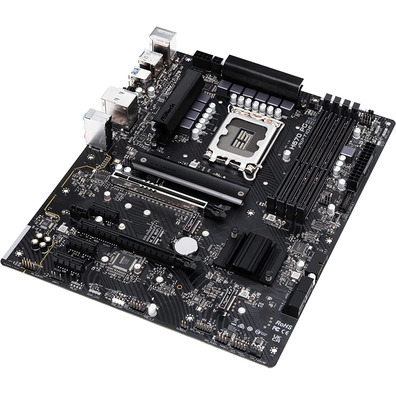

Asrock Base Plate 1700 H670 PG Riptide DDR4

Asrock Base Plate 1700 H670 PG Riptide DDR4

Riptide bears the name of a specific type of water stream with strong waves that occurs in the year, which represents the philosophical philosophy of the unlimited, calm and double-sided force of the sea. Built around powerful gaming-related functions, Riptide has dealt a huge blow and has plunged users into the sound of stability.

Dise ñ or optimized VRM

• Dr. MOS

&iexex; Dr. MOS is the integrated power-stage solution that is optimized for application s í n reductive applications! In comparison with traditional discrete MOSFET, it intelligently delivers a high stream to each phase, resulting in improved performance and superior performance.

• Dise ñ or 9 power phases

With resilient components and a power delivery to the CPU completely fluid. In addition, it offers unmatched overclocking capabilities and improved performance with low temperature m &arecons for advanced players.

• -layer PCB

&iex; The 6-layer PCB provides traces of ñ to stable and power forms that offer a low temperature & low temperature and higher energy efficiency for memory overclocking! Therefore, you are able to support the last m &onodules of memory with the memory performance of the extreme &aasties.

Nahimic audio

• Audio that matters

Whether you're using, headsets or speakers, to bring in USB, Wi-Fi, anal output or even HDMI, Nahimic Audio offers you the attractive, vibrant and rich listening experience.

• the quality of communication &oatun

The powerful algorithms to guarantee the best conversation without noise, providing a constant level of voice regardless of the distance of your phone. The Nahimic audio engine cleans up the sound and eliminates the noise of interference and reduces the variance of the voice. The result is a better understanding and less fatigue.



• Definitive game experience

Sound Tracker: The Sound Tracker is a visual indicator that is ñ to the addresses where the predominant sounds come from. Each sound is correctly positioned in 360 ° on a radar for a total dive during the game.

Works on any device: Enjoy high quality, vibrant surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and guarantees the best sound with any of them. Nahimic measures and improves to optimize the technology and offers the best experience.

• Lightning ports for games

&iex; Directed players and enthusiasts for hard drives! Lightning Gaming ports are obtained from two different controller interfaces that help players connect high-speed mice/keyboards with lower fluctuation and latency.

POLYCHROME RGB

Adem &arectors of the built-in RGB &oatro n, tambi &eacetín features integrated RGB headers and an addressable RGB header that allows the motherboard to connect to compatible LED devices, such as strips, fans, dissipators, refrigeration, etc. The users also can synchronize RGB LED devices to bring the Polychrome RGB Sync certified accessories to create their own unique lighting effects.

• -speed2 &oatu.

This motherboard is capable of accommodating M 2 storage devices M. 2, one of which can support PCI Express 4.0 M. 2 SSD, is able to perform twice the speed in comparison with the third generation prior, providing an ultra-high data transfer experience.

• frequency booster (BFB) technology

The BFB technology allows the use of growing TDP to enjoy the base frequency boost with the hidden power of the processors with non-K series of users and selected base plates of the 600 series of ASRock. While ASRock BFB gives life to the non-K series CPUs, the frequency of impulse to &urecon depends on the cooling system applied on your platform.

M. 2 (Key E) For WiFi

Adem &aecons of the integrated LAN port, users also can choose wireless connections 802.11ac by slot M. 2 (Key E).

front USB 3.2 Gen2x2 Tipo-C

The latest USB 3.2 Gen2x2 Type-C offers a data transfer rate of up to 20 Gbps, which is twice as much as the previous generation, which provides an ultra-high data transfer interface with a reversible ñ or USB Type-C that adapts to the connector in any way.



Double USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of USB 3.2 Gen2 Type A and Type C ports integrated into the rear of the I/O to support USB 3.2 Gen2 devices from the maximum generation &oatern and to deliver data transfer speeds of up to 10 Gbps.

BIOS Backspace

Get the BIOS update of the appropriate BIOS with just one click. Users can easily obtain the latest BIOS compatibility with a USB and a power supply, without the need for CPU, RAM, or other components.

Specifications:

• Details T &eUcics
  • Format: ATX
  • Chipset: Intel H670
  • Multi-GPU: AMD CrossFire
  • Amount of PCI Express slots: 5
  • Processor family: Intel
  • Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
  • N Number of supported processors: 1
  • N DIMM slots: 4
Processor
• Processor Socket: Socket 1700
• Processor Family: Intel Core i3-12 ª Gen, Intel Core i5-12 ª Gen, Intel Core i7-12 ª Gen
Intel Core i9-12 ª Gen
• Memory
  • Memory slots
  DIMM
  • Internal memory m &axime: 128 GB
  • Non-ECC: Yes
  • Memory without buffer: Yes
  • Memory channel support: Dual
  • Supported memory types: DDR4
  • Supported memory clock speeds: 3200 MHz, 5333 (OC)
  • V &iudero deo
    • Graphics chipset: Intel
    • HDCP: Yes
    • M &axime resoluci &oatuos n: 7680 x 4320 Pixels
  • Audio
    • Audio output channels: 7.1
    • Audio system: Realtek ALC897
• Expansion slots &oatulos
  • PCI Express Configurations: 2 x16, 3 x1
  • N &o PCI Express slots: 5
  • X1 PCI Express slots: 3
  • PCI Express slots: 2
  • Versi PCI Express entries: 3.0, 5.0
• Internal I/O
  • Connector to EPS (8-pin): 1
  • ATX power connector (24 pins): Yes
  • TPM connector: Yes
  • USB 2.0 connectors: 2
  • USB connectors C: 1
  • N chassis fan connectors: SATA 3: 4
  • Connectors M. 2: 3
  • Strips RGB/LED Connectors: 4
  • Cooling Connectors &o n L &iacuity: 1
  • Connector for Thunderbolt: 1

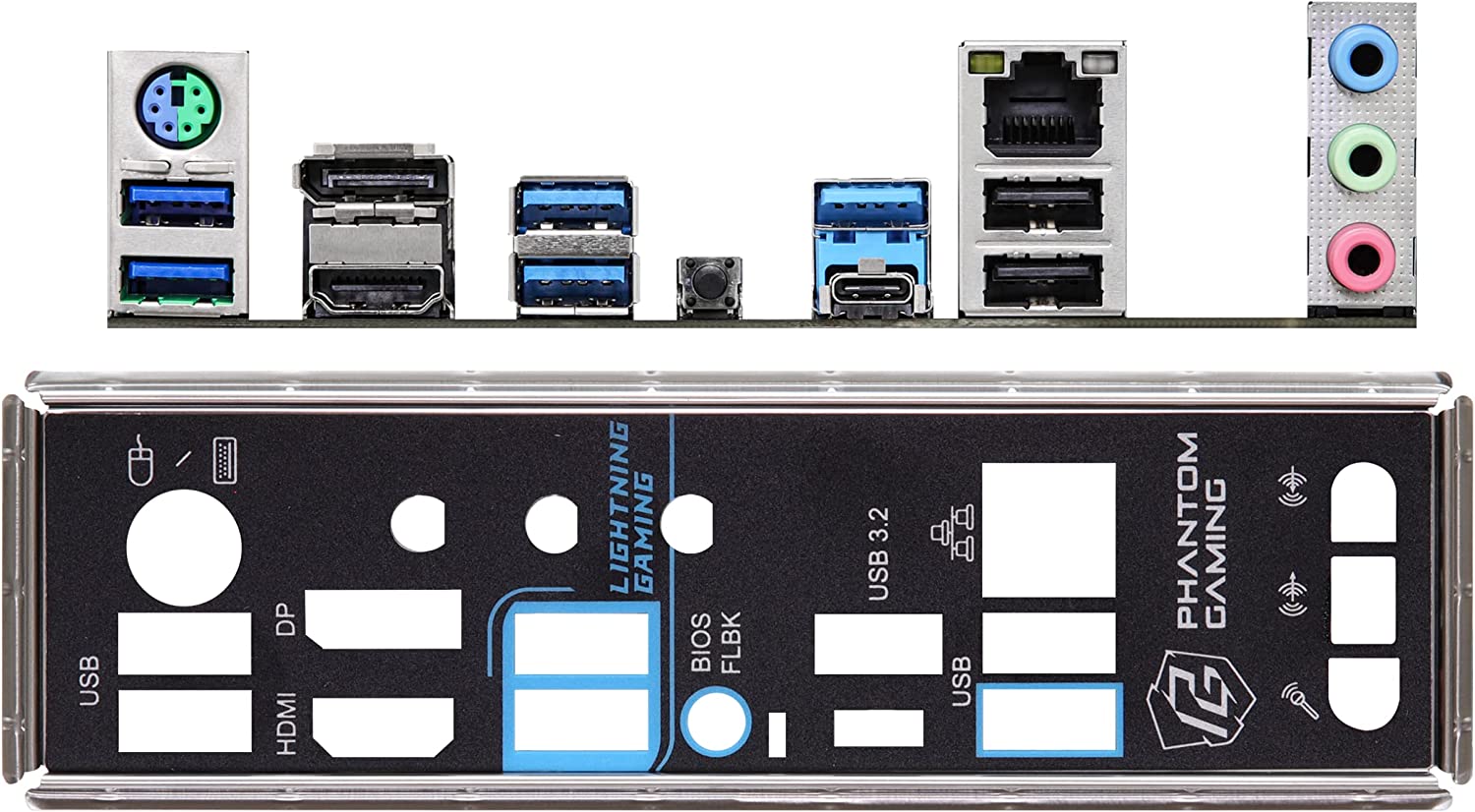

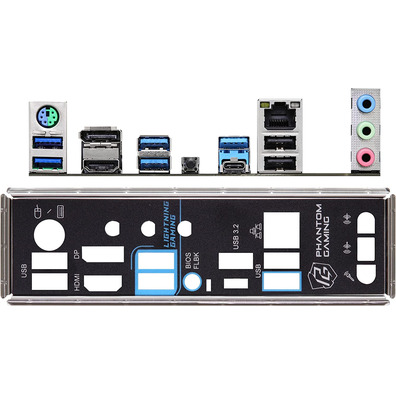

  • Rear Panel I/O (Input/Output)
    DisplayPorts: 1
    • Number of USB ports 2.0: 2
    • Number of USB ports Type-C: 1
    • Ethernet (RJ-45): 1
    • Micr &o, jack of input: 1
    • Port of rat &oatun-keyboard PS/2: 1
• Storage Regulators
  • RAID Levels: 0, 1, 10, 5
• • Bluetooth: No
  • Network &iUtistic Character: 10/100/1000 Mb/s
  • Network &ooptionn: Yes
  • Ethernet Controller: Intel I219-V
  • Ethernet: Yes
  • Ethernet Gigabit Ethernet interface type
  • Wi-Fi:
  • BIOS
    • BIOS switch BIOS: Yes
    • BIOS, tama ñ or memory: 128 MB
    • BIOS types: AMI UEFI
    • Versi &oatuñas ACPI: 6.0
    • Weight and dimensions
      • Width: 30.5 cm
      • Depth: 24.4 cm
    contents

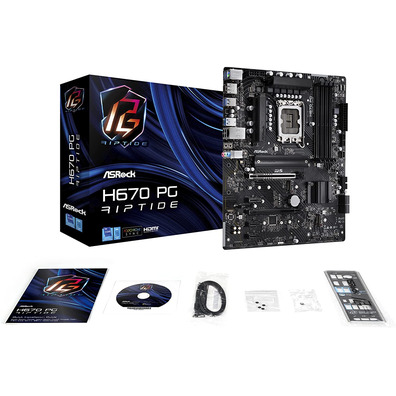

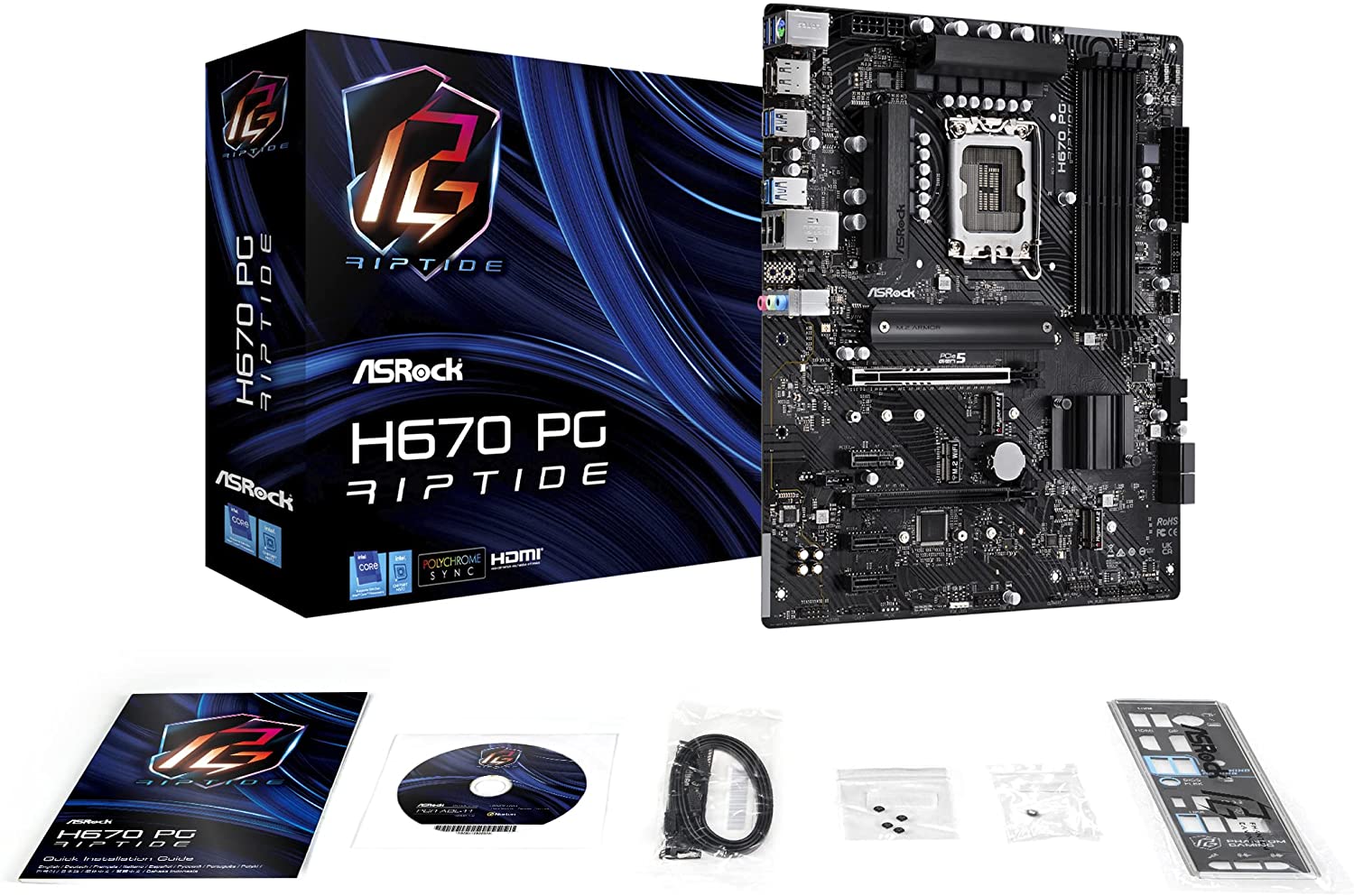

    • Material included: Driver CD, SATA, screws M. 2
    • Gu &iaci to install &oatuas:
