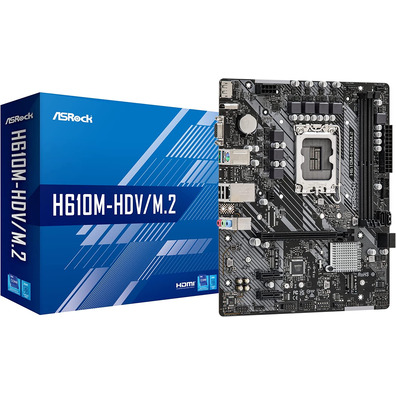

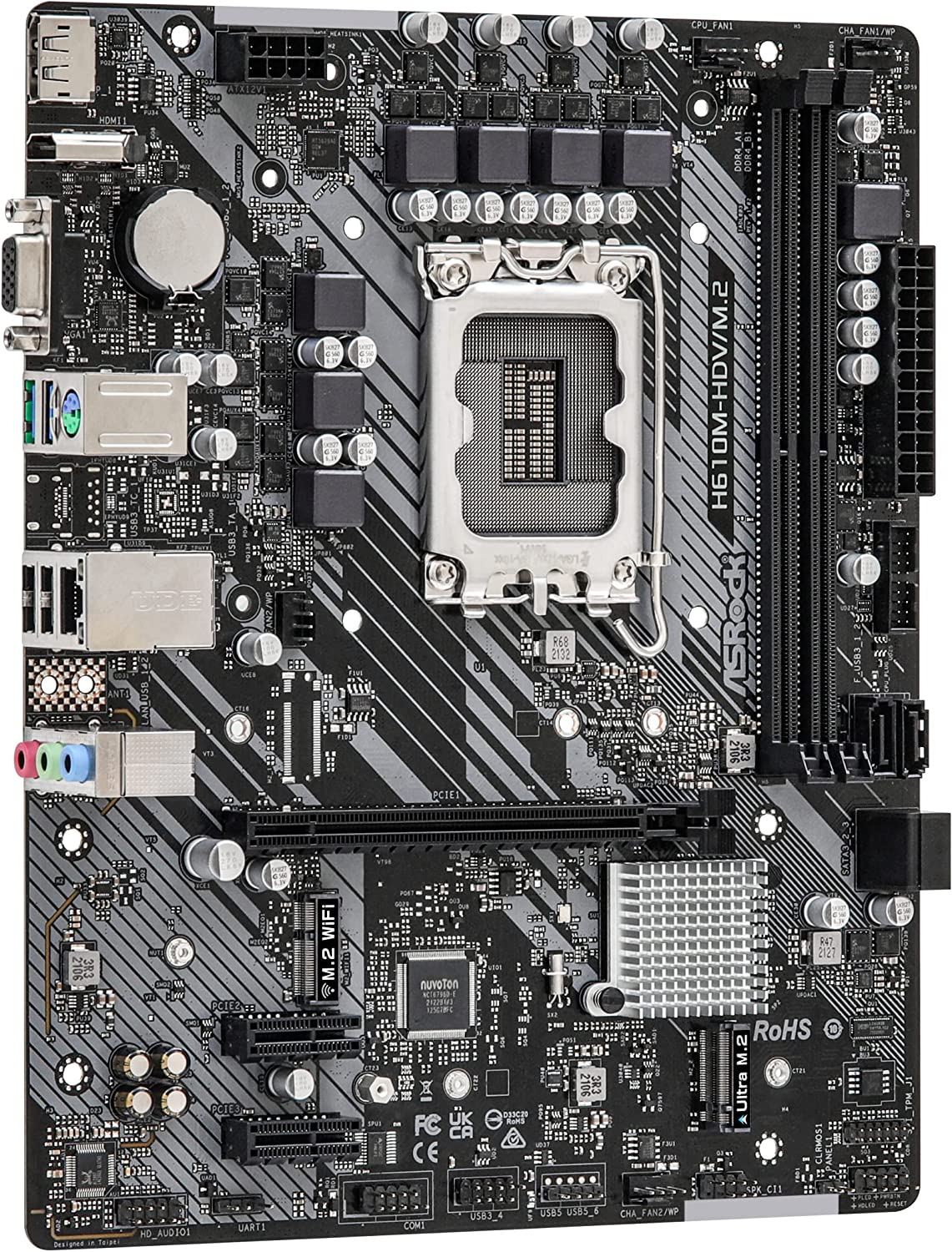

Base plate Asrock 1700 H610M-HDV/M2

Asrock Base Plate 1700 H610M-HDV/M2

Digi Power

Unlike traditional motherboards using anal &o-power supply, this motherboard uses dñ or pr &oxime generation digital PWM that provides efficient and smooth CPU Vcore voltage, so that the stability and life &utillator of the motherboard is much greater.

Ultra M. 2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M. 2 interface pushes data transfer at speeds up to 32Gb/s. Adem &atiacas, tambi én supports m &oeduentas M. 2 SATA3 6Gb/s.

Intel Gigabit LAN

Intel LAN provides the best processing performance, lower CPU utilization, improved stability, and &iexex; is able to deliver the ultimate experience for network users!

M. 2 (Key E) For WiFi

Adem &aecons of the integrated LAN port, users also can choose wireless connections 802.11ac by slot M. 2 (Key E).

3 Gr &aemical outputs

&iex; Complete with the three types of m &aempos connectors used! Equipped with a VGA (D-Sub) + DisplayPort + HDMI combo.

ASRock Super Alloy Motherboard

Premium Feed Choke

In comparison with traditional chokes, the new generation of ASRock feed chokes increases effectively up to 3 times the saturation stream, providing a higher and better Vcore voltage to the base plate.

Sapphire Black PCB

A purely black aspect of the PCB. The new black sapphire PCB represents a quality s &oacuity and gives the motherboard a mysterious touch.

High Density glass fiber PCB

Dise ñ or high-density v-fiber PCB PCB that reduces the gaps between the PCB layers to protect the base plate against moisture-caused ctrics.

Proteci n complete against tensi peaks &oatun

Some sensitive digital components of the motherboard are vulnerable to tensioning surges, the excessive current can cause the system to malfunction immediately. The ASRock Full Spike Protection includes several techs to prevent the components of your motherboard from being given ñ in unexpected tensi &oatons.

Specifications:

• Format: Micro ATX
• Chipset: Intel H610
• Multi-GPU: No
• Number of PCI Express slots: 3
• Processor family: Intel
• Supported hard disk drive interfaces: Serial ATA III
• N &uteer; number of processors supported: 2
• Processor
  • Processor Socket: Socket 1700
  • Processor Family: Intel Core i3-12 ª Gen, Intel Core i7-12 ª Gen
  Intel Core i9-12 ª Gen
  • Memory
    • Slots of memory: 2x DIMM
    • Memory slot type: DIMM
    • Internal memory m &axime: 64 GB
    • Non-ECC memory module capacities supported: 32 GB
    • Non-ECC: Yes
    • Memory channel support: Dual
    • Supported memory types: DDR4
    • Graphics chipset: Intel
    • HDCP: Yes
    • M &axime resoluci &oatuas n: 7680 x 4320 Pixeles
    • Audio
      • Output channels audio: 7.1
      • Audio system: Realtek ALC897
    • Expand slots &oatecn
      • PCI Express Configurations: 1 x16, 2 x1
      • N &uetos (total) PCI Express slots: 2
      • PCI Express slots: 3.0
      4.0
    • Internal I/O
      Connector: Yes
      • ATX power connector (24 pins): Yes
      • Front panel audio connector: Yes
      • intrusi chassis &obution: Yes
      • Fan connector: Yes
      • TPM connector: Yes
      • USB 2.0 connectors: 2
      • USB connectors 3.2: 1
      • N &ute; number of connectors to chassis fan: 2
      • N &o connectors for SATA connectors 3: 1

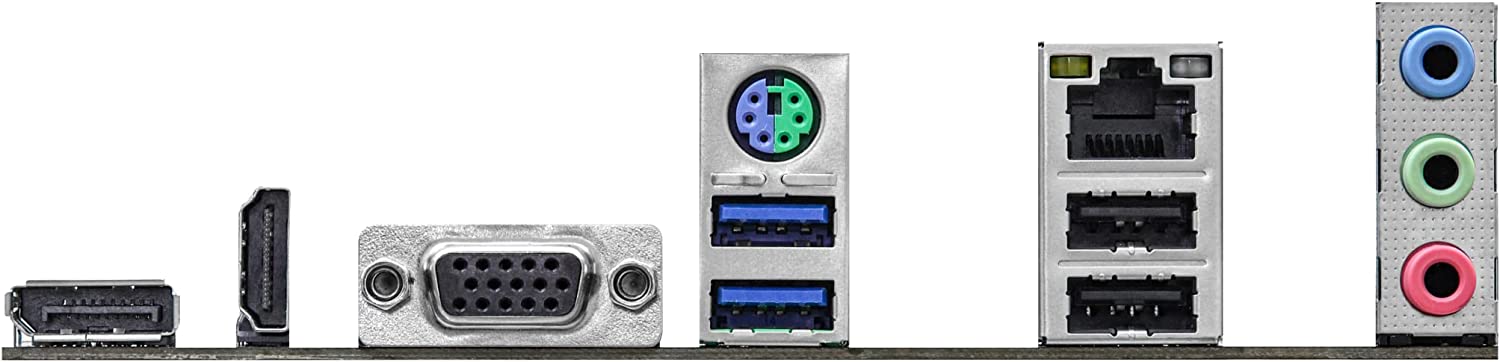

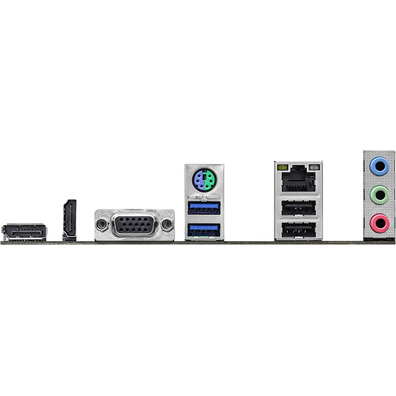

    • Rear panel I/O (Input/Output)
      • Number
      DisplayPorts: 1
      • VGA (D-Sub):   1
      • Amount of USB 2.0 ports: 2
      • Number of ports USB 3.2: 2
      • Ethernet (RJ-45): 1
      • Micr &o, jack of input: 1
      • Port of rat ón-keyboard PS/2: 1
  • • Bluetooth: No
    • Network &iUtims
    Yes
    • Ethernet Controller: Intel I219-V
    • Ethernet
    Yes
    • Wi-Fi:
    BIOS
    • BIOS, tama ñ or memory: 128 MB
    • Types of BIOS: AMI UEFI
    • Versi &oatón ACPI: 6.0
    • Weight and dimensions
      • Width: 24.4 cm
      • Depth: 20.1 cm
