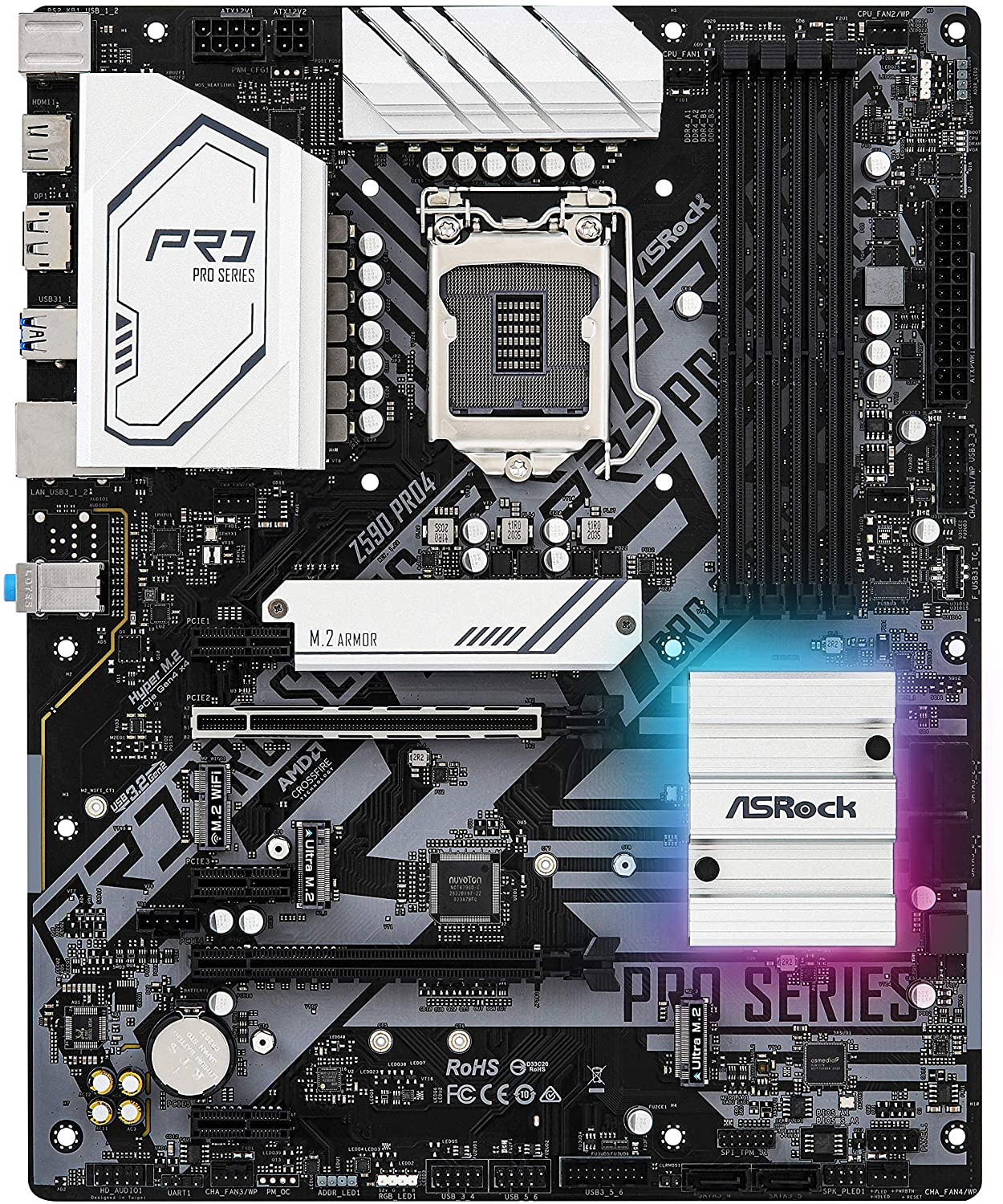

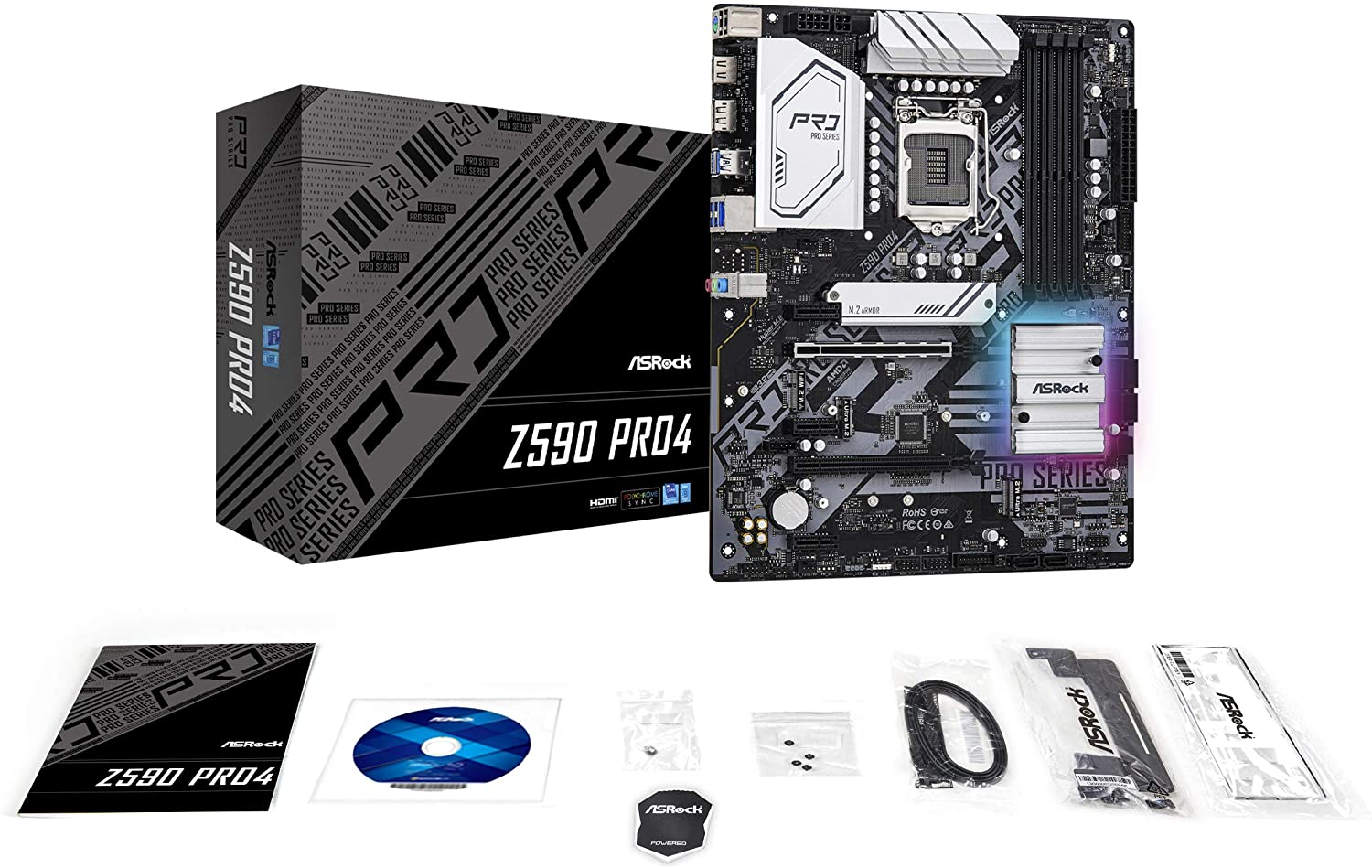

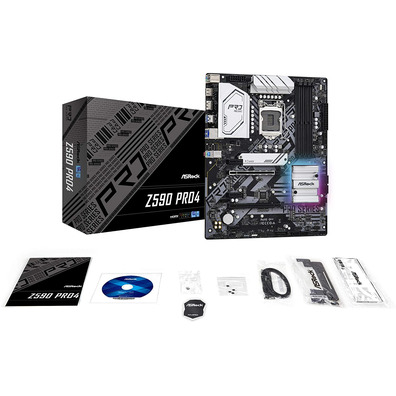

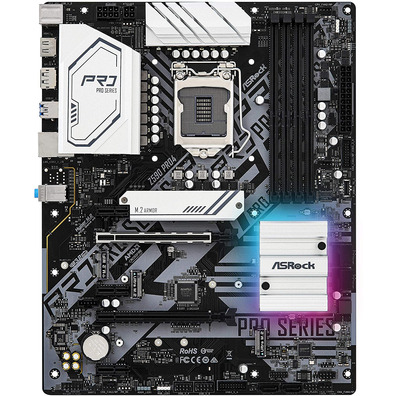

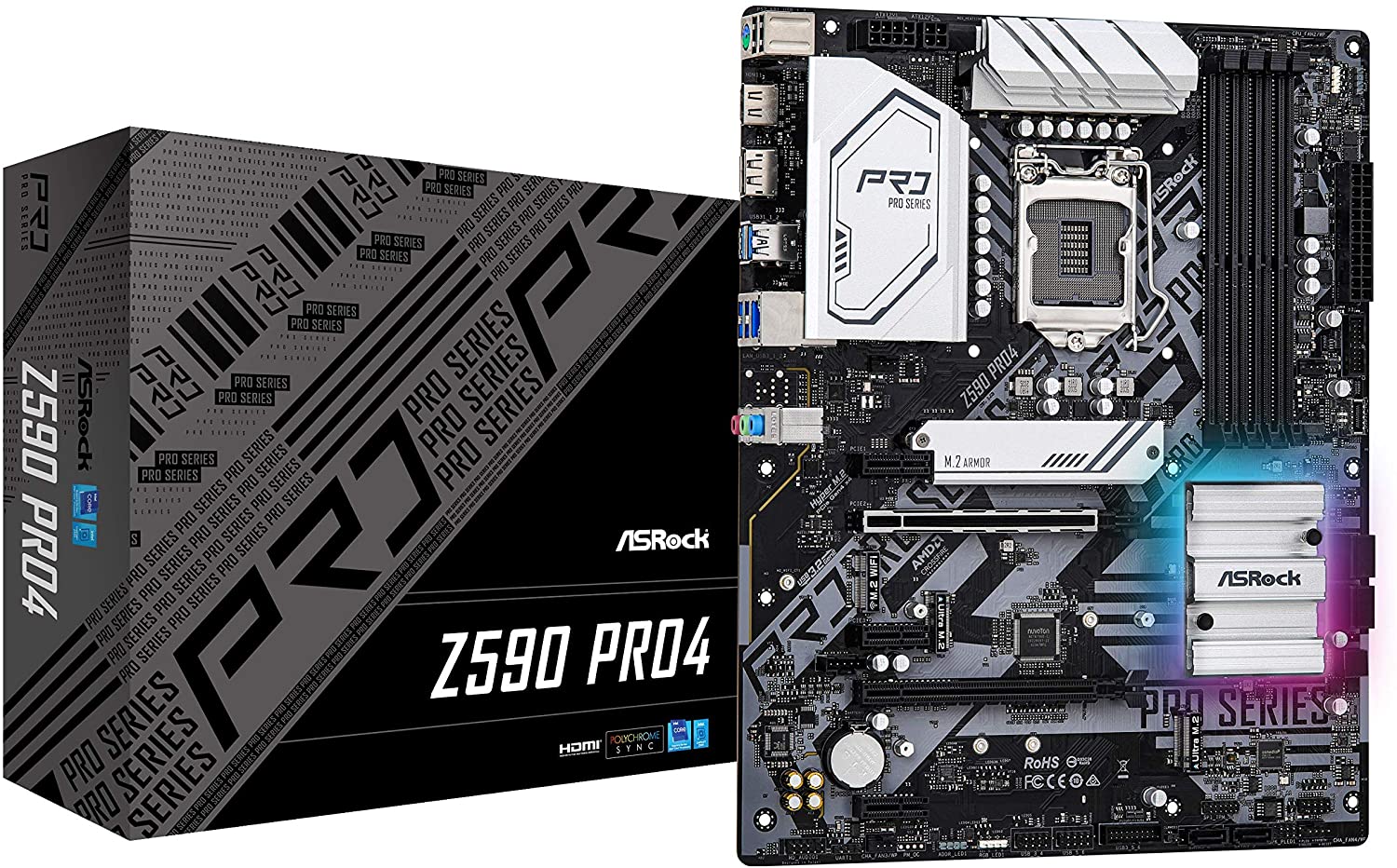

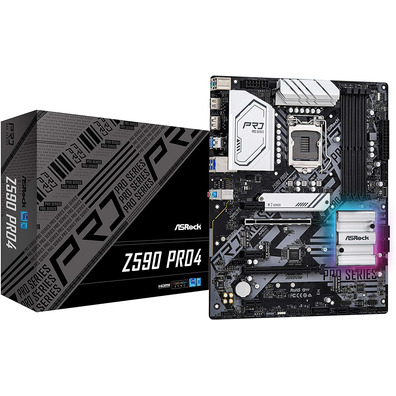

Base Asrock Plate 1200 Z590 Pro 4

Asrock Base Plate 1200 Z590 Pro 4

DISE Ñ OR SMART THAT PROMISES SUPERIOR PERFORMANCE

Dr. MOS

&iexex; Dr. MOS is the integrated power-stage solution that is optimized for applications s &o. In comparison with traditional integrated MOSFET, it intelligently provides a high stream for each phase, providing an improved performance and superior performance.

Premium 50A power choke

In comparison with traditional shocks, ASRock's premium 50A power shocks make the saturation current up to three times better, providing an improved Vcore voltage to the motherboard.

Clever Access Memory

The conventional PC system processor can only access a fraction of the memory and limits the performance of the system. With Clever Access Memory, the data channel expands to take advantage of the full potential of the GPU memory, eliminates the bottleneck and increases performance.

Base frequency booster (BFB) technology

¿ Qui &eacutin said only the K series CPU and Z family platform are capable of running with the maximum power? A trav s of the technology &iasties to ASRock BFB (Base Frequency Boost), users can install their non-K-series CPUs on the selected base plates of the ASRock 500 series and immediately enjoy the base frequency increase with the hidden power of the processors.

status LEDs

A simple troubleshooting tool that shows CPU/DRAM/VGA/BOOT performance each time the system starts. Post Status Checker is a quick and easy way to identify the source of the problem.

ILLUMINATING N

POLYCHROME RGB

The ASRock motherboards offer amazing performance and a superior test to master your own colorful lighting form. ASRock offers very complete control for built-in RGB LEDs or connected LED strips, CPU fans, dissipators, chassis and any problem-free RGB devices. The devices also can be synced to the following of the accessories with the Polychrome RGB Sync certificate.

CONNECTIVITY

Dual &aaivics Exits

&iex; Complete with two types of used m &apos connectors! With an HDMI + DisplayPort combo, you now have m &aemacas output options for the graphics.

HDMI 4k to 60 Hz

Supports the output specification of the recent gr &aemical HDMI 4K 60Hz m &aaists. With a large bandwidth and a higher frame rate, the movement on the screen becomes fluid and less blurred.

REFRIGERACI &OULDN

Water pump header

This is not a fan header is the CPU, &iexex; tambi n is compatible with water pumps! This header provides a maximum of 2A power to support the popular water pumps. The user also can adjust the water pump voltage to obtain better cooling performance with low noise.

EXCLUSIVE ASROCK

Live and application store update

ASRock Live Update & APP Shop is a ñ ado for ease of use. Several applications and support software are provided for users to download. You can also optimize your system and keep your motherboard updated with ASRock Live Update & APP Shop.

Full-on-peak protection

Some sensitive digital components on the motherboard are vulnerable to surges, excessive current can cause your system to not function properly immediately. ASRock Full Spike Protection includes several techs to prevent the components of your motherboard from being given ñ by these unexpected voltage spikes.

Specifications:

• Format: ATX
• Chipset: Intel Z590
• Multi-GPU: AMD Quad CrossFireX, CrossFireX
• Amount of PCI Express slots: 5
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
• N Number of supported processors: 1
• N DIMM slots: 4
• Processor
  • Processor Socket: Socket 1200
  • Processor Family: Intel Celeron, Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-10 ª Gen, Intel Core i9-10 ª Gen, Intel Core i9-11 ª Gen, Intel Pentium
• Memory
  • Memory slots: 4x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 128 GB
  • Supported memory module capacities: 32 GB
  • compatible memory types: DDR4
  • Supported memory clock speeds: 4800 (OC)
  • V &iudero deo
    • HDCP: Yes
    • M &axime resoluci &oatron n: 4096 x 2304 Pixels
  Audio
  • Audio output channels: 7.1
  • Audio system: Realtek ALC897

• Power connector &iUte; to EPS (8-pin): 1
• ATX power connector: Yes
• Front panel audio connector: Yes
• TPM connector: Yes
• USB 2.0 connectors: 2
• USB connectors C: 1
• N &o connectors to chassis fan connectors: 4
• N &u; SATA connectors 3: 6
• Connectors M. 2: 3
• Strips RGB/LED Connectors: 4
• Cooling Connectors &o n L &iacuity: 1
• Connector for Thunderbolt: 1

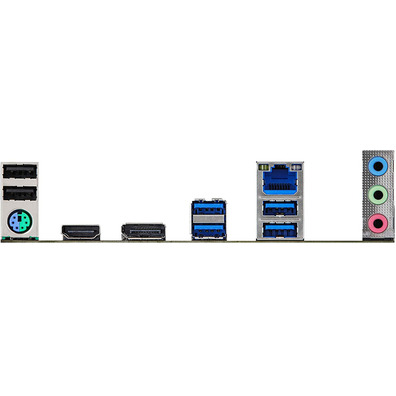

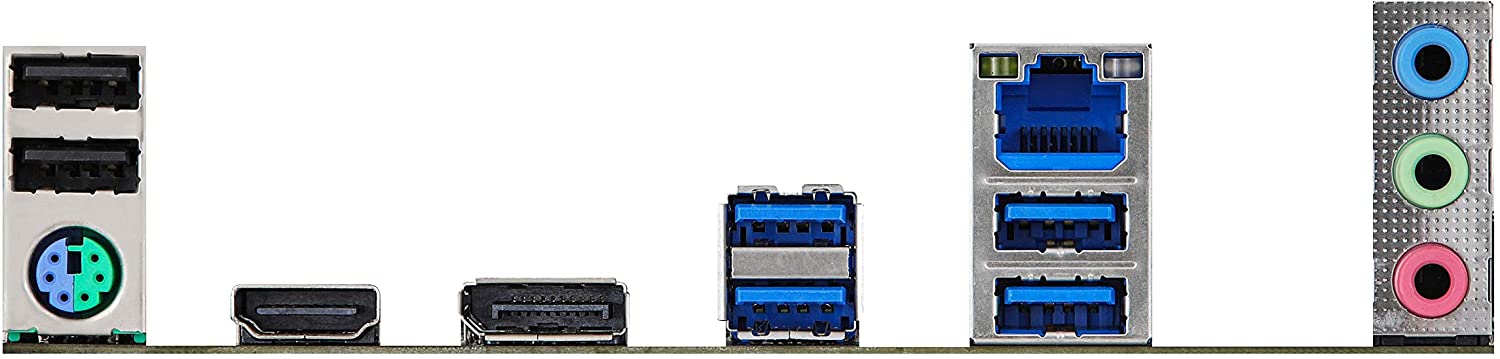

• Rear Panel I/O (Input/Output)
  DisplayPorts: 1
  • Number of USB ports 2.0: 4
  • Ethernet (RJ-45): 1
  • Micr &o, jack of entry: 1
  • PS/2 keyboard &o-keyboard: 1
