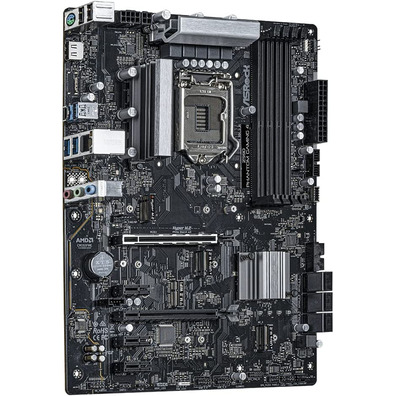

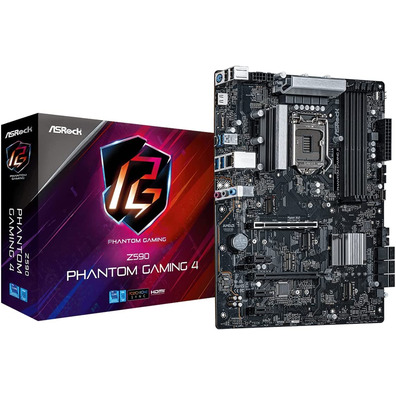

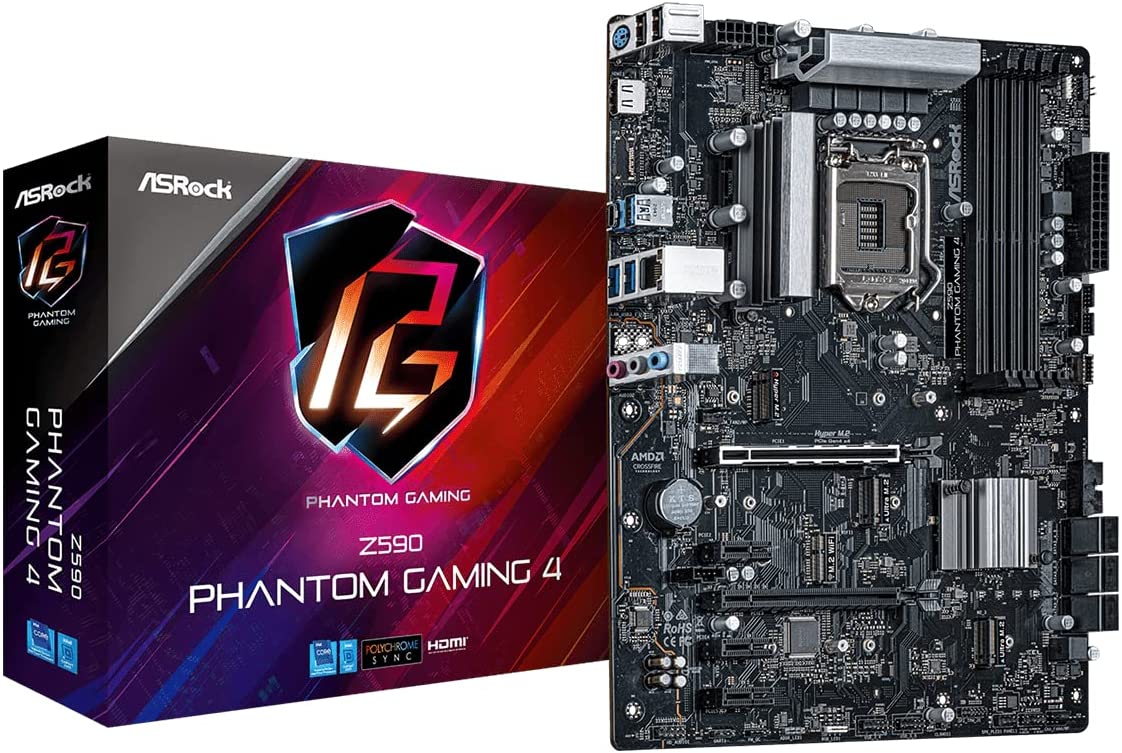

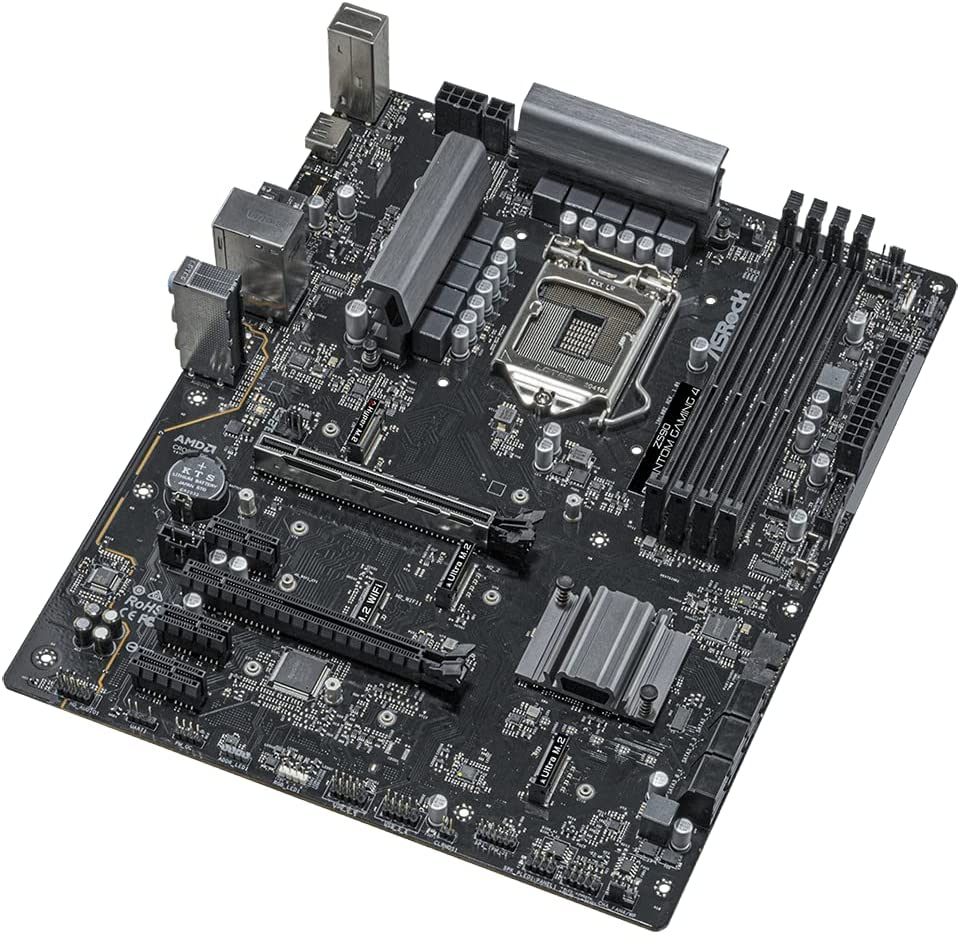

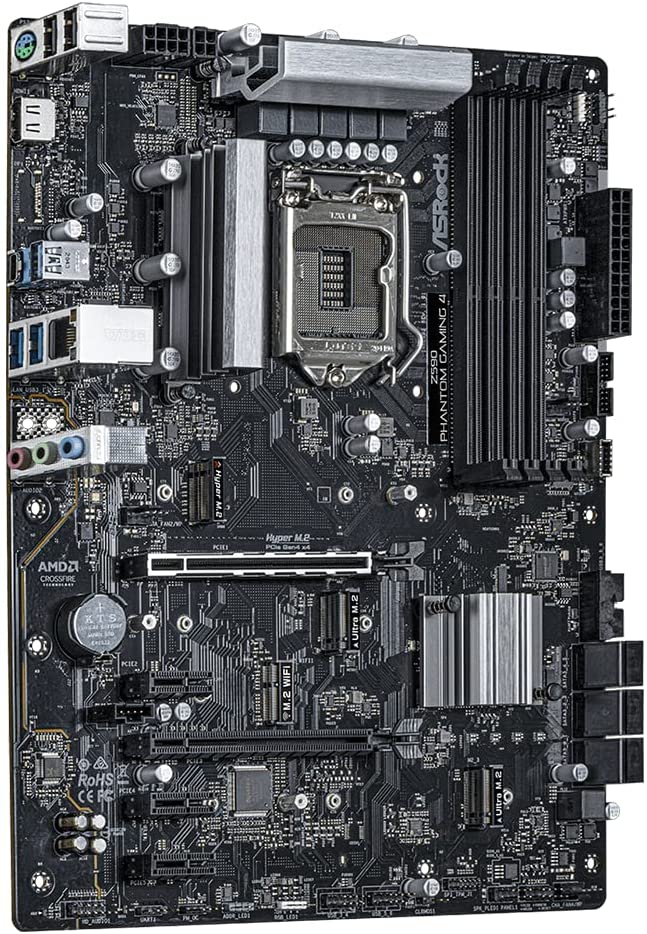

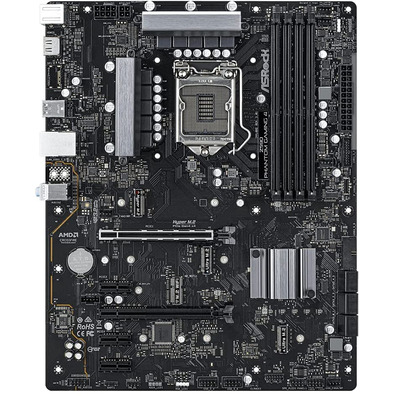

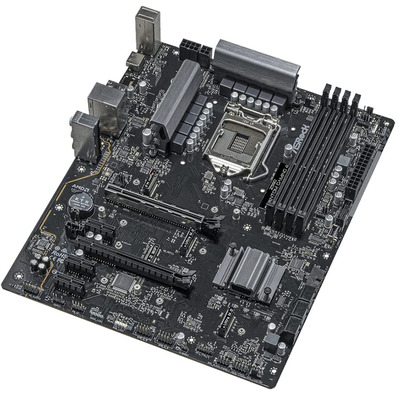

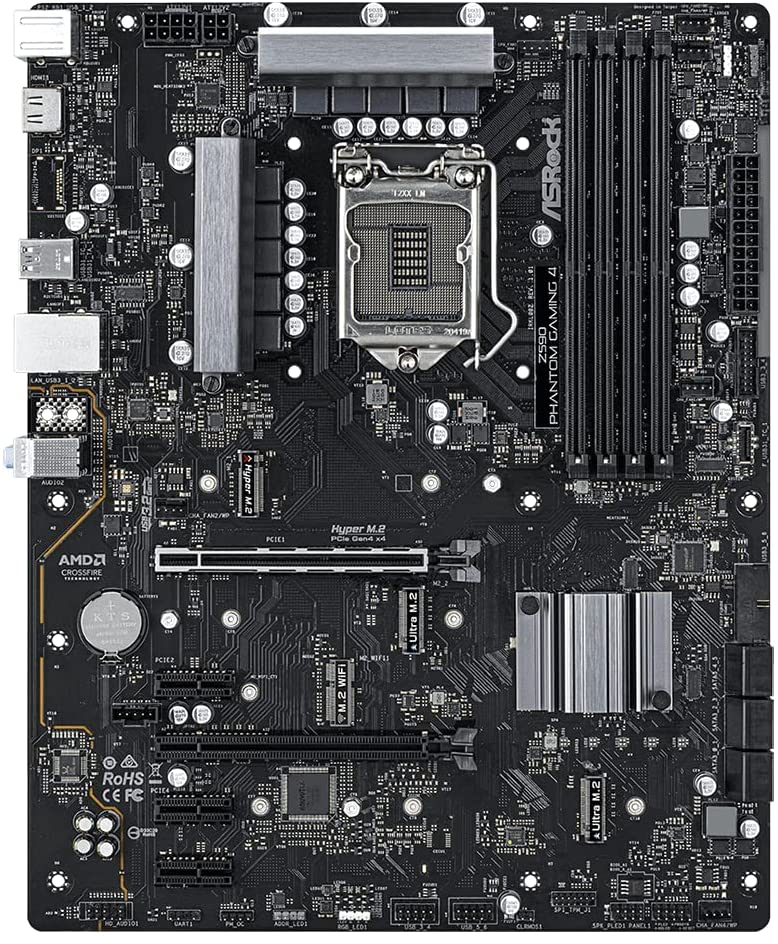

Asrock Base Plate 1200 Z590 Phantom Gaming

Asrock Base Plate 1200 Z590 Phantom Gaming

Phantom Gaming is ñ driven by players and players. Beneath their relentless appearance are numerous game-oriented functions and excellent gaming capabilities.

DISE Ñ O

High-density glass fabric PCB

Dise ñ or high-density glass fabric PCB that reduces gaps between the PCB layers to protect the base plate against moisture-caused ctrics.

Premium 50a power choke

In comparison with traditional shocks, ASRock's premium 50A power shocks make the saturation current up to three times better, providing an improved Vcore voltage to the motherboard.

Dise ñ or 8-phase power

With resilient components and a completely smooth power delivery to the CPU. In addition, it offers unmatched overclocking capabilities and improved performance with low temperature m &arecons for advanced players.

MEMORY

Smart access memory

The conventional PC system processor can only access a fraction of the memory and limits the performance of the system. With Clever Access Memory, the data channel expands to take advantage of the full potential of the GPU memory, eliminates the bottleneck and increases performance.

STORAGE

High-speed PCIe 4.0 M. 2 Soluci &oacution

This motherboard is capable of accommodating m &uantiples storage devices M. 2, one of which can even admit SSD PCI Express 4.0 M. 2 of the maximum generation &obutin n, it is able to perform the double of speed in comparison with the third generation prior, providing an experience of ultrarr data transfer.

CONNECTIVITY

USB 3.2 Gen2 type C

The last USB 3.2 Gen2x2 Type-C offers a data transfer rate of up to 20 Gbps which is 2 times m &aecas request that the previous generation, providing a data transfer interface incre &iUdibly r &aecas with a reversible ñ or USB Type-C that adapts to the connector in any way.

2 x USB3.2 Gen2

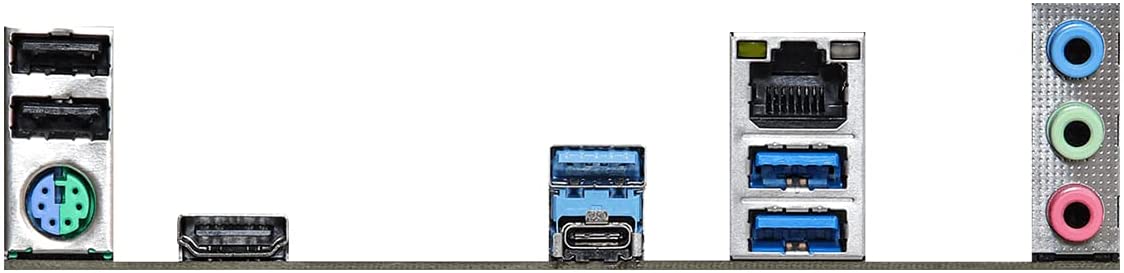

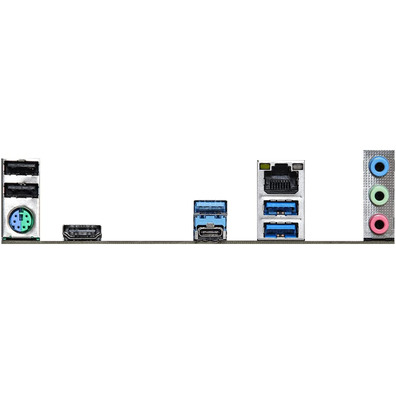

This motherboard has a pair of USB 3.2 Gen2 Type A and Type C ports integrated into the rear E/S to support USB 3.2 Gen2 devices from the maximum generation &oatutin and to deliver data transfer speeds of up to 10 Gbps.

Intel LAN

Intel LAN provides the best performance performance, lower CPU utilization, improved stability, and is able to deliver the ultimate experience for network users.

HDMI 4k to 60 Hz

Supports the output specification of the recent gr &aemical HDMI 4K 60Hz m &aaists. With a large bandwidth and a higher frame rate, the movement on your screen becomes fluid and less blurred.

ILLUMINATING N

POLYCHROME RGB

The ASRock motherboards offer amazing performance and a superior test to master your own colorful lighting form. ASRock offers very complete control for built-in RGB LEDs or connected LED strips, CPU fans, dissipators, chassis and any problem-free RGB devices. The devices also can be synced to the following of the accessories with the Polychrome RGB Sync certificate.

AUDIO

Nahimic audio

Whether you're using headphones, internal or external speakers, to bring USB, Wi-Fi, anal output or even HDMI, Nahimic Audio gives you the experience of listening to you, vibrant and rich in detail.

REFRIGERACI &OULDN

Water Pump Header

This is not just a CPU fan head, but it is also compatible with water pumps. This head provides a maximum power of 2 A m to support the popular water pumps. The user also can adjust the voltage of the water pump to obtain a higher cooling performance with less noise.

&O. Ó s

Full-on-peak protection

Some sensitive digital components on the motherboard are vulnerable to surges, excessive current can cause your system to not function properly immediately. ASRock Full Spike Protection includes several techs to prevent the components of your motherboard from being given ñ by these unexpected voltage spikes.

EXCLUSIVE ASROCK

Live and application store update

ASRock Live Update & APP Shop is a ñ ado for ease of use. Several applications and support software are provided for users to download. You can also optimize your system and keep your motherboard updated with ASRock Live Update & APP Shop.

Specifications:

• Format: ATX
• Chipset: Intel Z590
• Multi-GPU: AMD Quad CrossFireX, CrossFireX
• Amount of PCI Express slots: 5
• Processor family: Intel
• Supported hard disk drive interfaces: M. 2 PCIe, M. 2. SATA, Serial ATA III
• N Number of supported processors: 1
• N DIMM slots: 4
• Processor
  • Processor Socket: Socket 1200
  • Processor Family: Intel Celeron, Intel Core i3-10 ª Gen, Intel Core i5-10 ª Gen, Intel Core i7-10 ª Gen, Intel Core i9-10 ª Gen, Intel Core i9-11 ª Gen, Intel Pentium
• Memory
  • Memory slots: 4x DIMM
  • Memory slot type: DIMM
  • Internal memory m &axime: 128 GB
  • Supported memory module capacities: 32 GB
  • Non-ECC: Yes
  • Memory channel support: Dual
  • compatible memory types: DDR4
  • Supported memory clock speeds: 2133 MHz, 2666 MHz, 4666 (OC), 4800 + (OC)
• V &iudero
  • HDCP:
  • Audio output channels: 7.1
  • Audio system: Realtek ALC897
• Expansion slots
  • PCI Express Configurations: 2 x16, 3 x1
  • N PCI Express slots (total):   4
  • X1 PCI Express slots: 3
  • PCI Express slots: 3.0

• Internal I/O connector (8-pin): 1
• ATX power connector (24 pins): Yes
• Intrusi connector to chassis: Yes
• TPM connector: Yes
• TPM connector: Yes
• USB 2.0 connectors: 2
• USB 3.2 connectors: 2
• USB connectors C: 1
• N &uidermof connectors to chassis fan: 4
• N &o number of SATA connectors 3: 6
• connectors M. 2: 3
• Strips RGB/LED Connectors: 1
• Connector for Thunderbolt: 1
