Parabolic antenna Mikrotik mtad-5g-30d3 5ghz 30dbi PA

Parabolic antenna Mikrotik mtad-5g-30d3 5ghz 30dbi PA

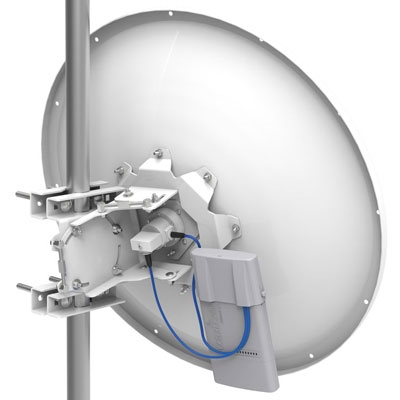

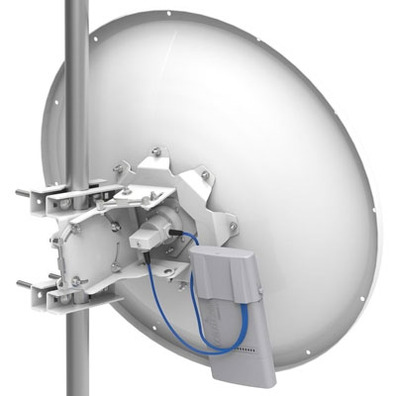

mANT30 is a satellite dish provider 5 GHz 30dBi of gain, manufactured with the highest standards of the industry. Built to accommodate the products of series Basebox of MikroTik, but it is compatible with any wireless device mounted on mast, due to the length of the cable FlexGuide that takes included. There are two models available: 1) with mounting type-standard (MTAD-5G-30D3), and (2) with mounting precise alignment (MTAD-5G-30D3-PA).

INCLUDES: Cables FlexGuide RPSMA RF (RP-SMA male to RP-SMA-male) x 2pcs; Bracket for mounting radio series BASEBOX; Tape self-adhesive for insulating the RF cables x 2; Mechanisms of precise alignment (Version PA only).


ModeloMTAD-5G-30D3-PA

Features

- Antenna gain: 30 dBi

- Polarization: Vertical and horizontal

- Opening: 3rd

- Frequency range: 4.7 - 5.875 GHz

Additional features

- VSWR: ≤ 1,4 typ, ≤ 1,8 max

- Isolation port to port: > 40dB min

- Ratio front-to-back: > 30 dB

- Cross-polarization: > 40 dB

- Rated power: 100 W

- Impedance: 50 ohms

- Range elevation adjustment: /- 15 degrees

- Diameter x Depth: 70 x 45 cm

- Weight 5.7 kg

- Reflective Material: Aluminum

- Outdoor rating: ETSI en 300 019-2-4

- Standards: en 302 326 DN1, DN2, DN3, DN5

- Wind resistance: 201 km/h

- Wind load (201 Km/h): 181.4 kg

- Operating temperature: -50 ° C 80 ° C

- Range of diameter of the post anchor: 3 - 10 cm

- Connector: 2x RP-SMA female
