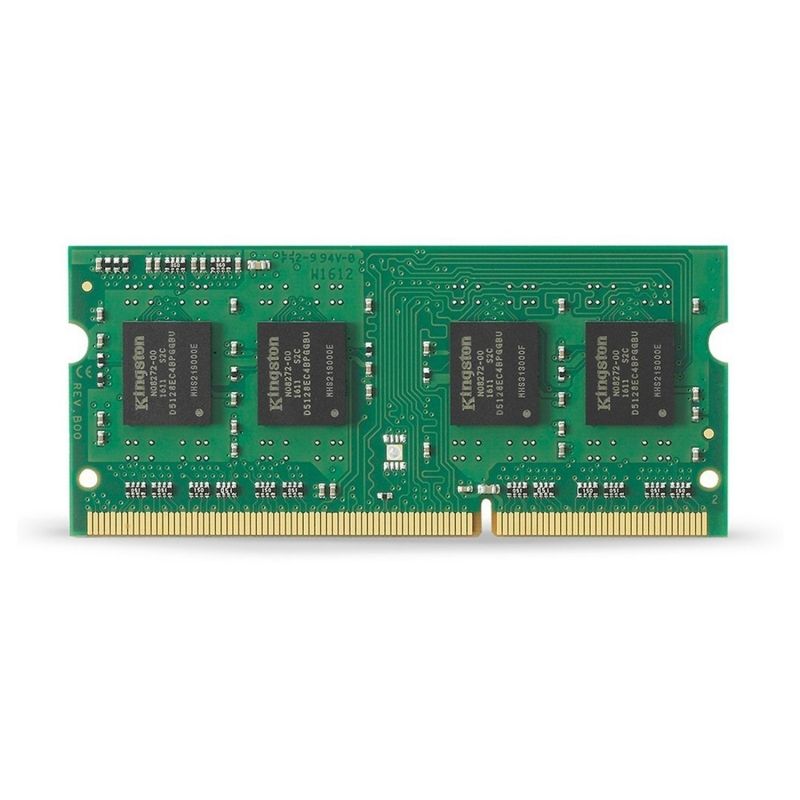

Kingston KVR16S11S8/4 4GB DDR3 1600MHz SODIMM RAM

Kingston KVR16S11S8/4 4GB DDR3 1600MHz SODIMM Memory RAM

Kingston Technology is the world's largest independent memory manufacturer and has excellent reputation for the quality of its products and competitive prices. Your ValueRAM memory is an industry-wide test and helps you to enhance your system's performance and productivity. In addition, the Kingston Technology ValueRAM memory modules are manufactured with top-level components.

KVR16S11S8/4 Kingston Specifications:

• Power supply &obutin n: JEDEC est 1.5V (1.425V ~ 1.575V)
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal banks
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Latency: 0, CL-2, or CL-1 clock
• Length of r &arecutive: 8 (Interval without limit, sequential only with initial direction "000"), 4 with tCCD = 4 that does not allow transparent reads or writes [or to flight using A12 or MRS]
• Bi-directional Strobe Data Differential
• Internal Calibration (Auto): Autocalibrate internal &o n by pin ZQ (RZQ: 240 ohm ± 1%)
• On Die "End" using ODT pin
• Average 7.8us update period to a minor than TCASE 85 º C, 3.9us to 85 º C
• PCB: High 1.180? (30.00mm), dual-sided components
• CL (IDD): 11 cycles
• Row cycle time (tRCmin): 48.12ns (min)
• Upgrade to Active/Refresh time command (tRFCmin): 260ns (min.)
• Row cycle time (tRASmin) 35ns (min.)
• Power of operation 2,100 W (Power vary depending on SDRAM used)
• UL Rating 94 V-0
• Operating temperature 0 º C to 85 º C
• Storage temperature -55 º C to + 100 º C
