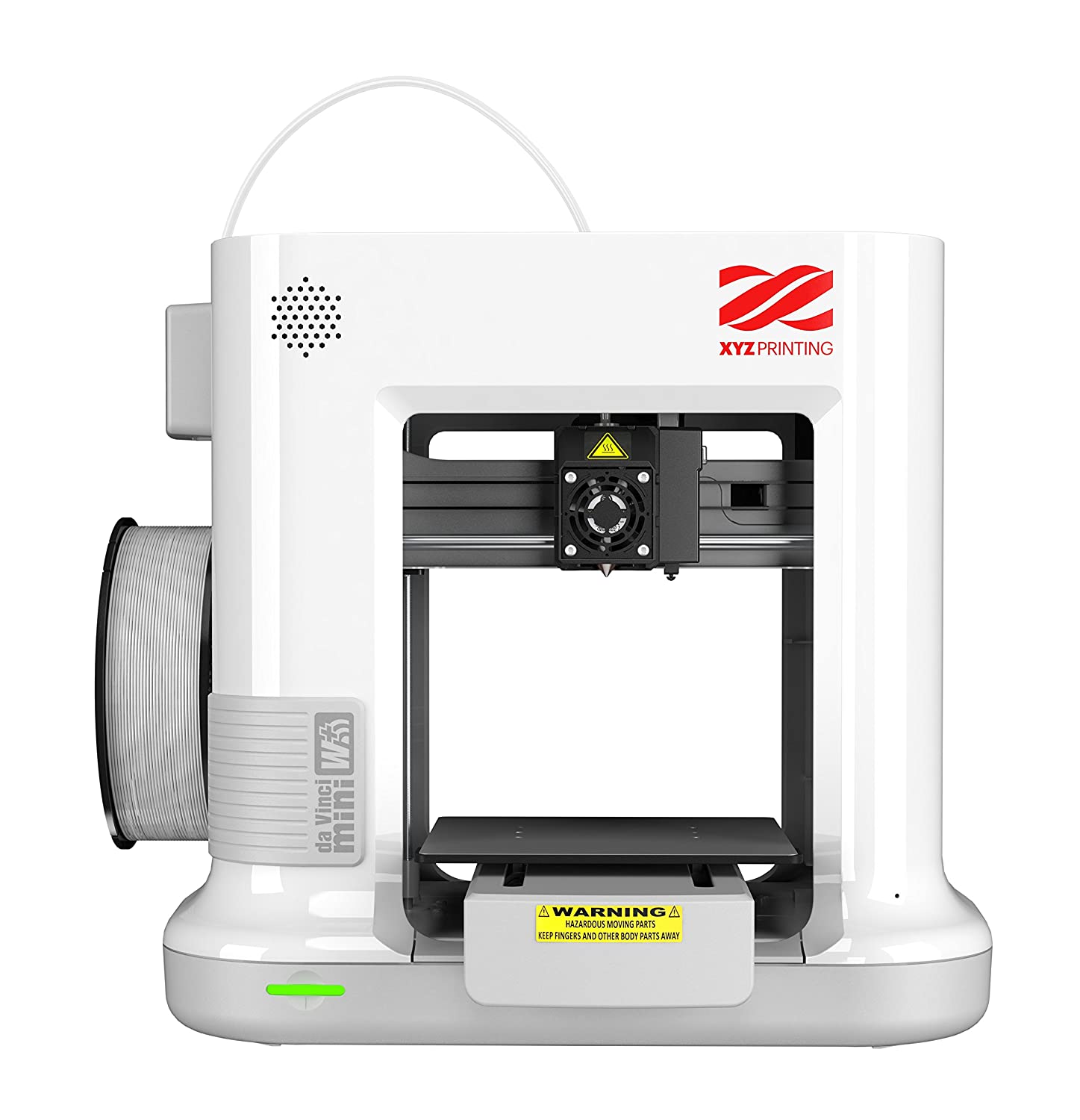

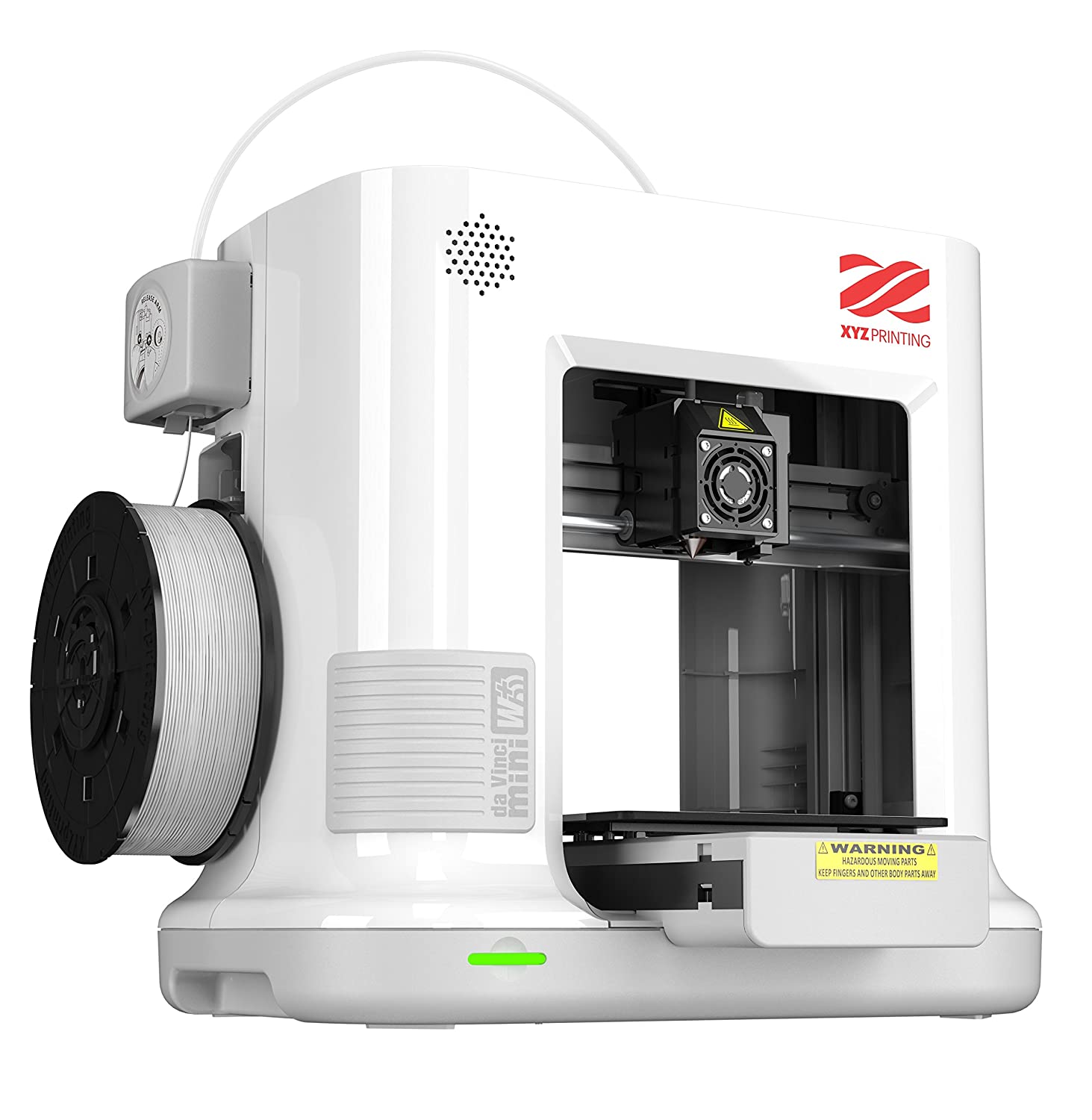

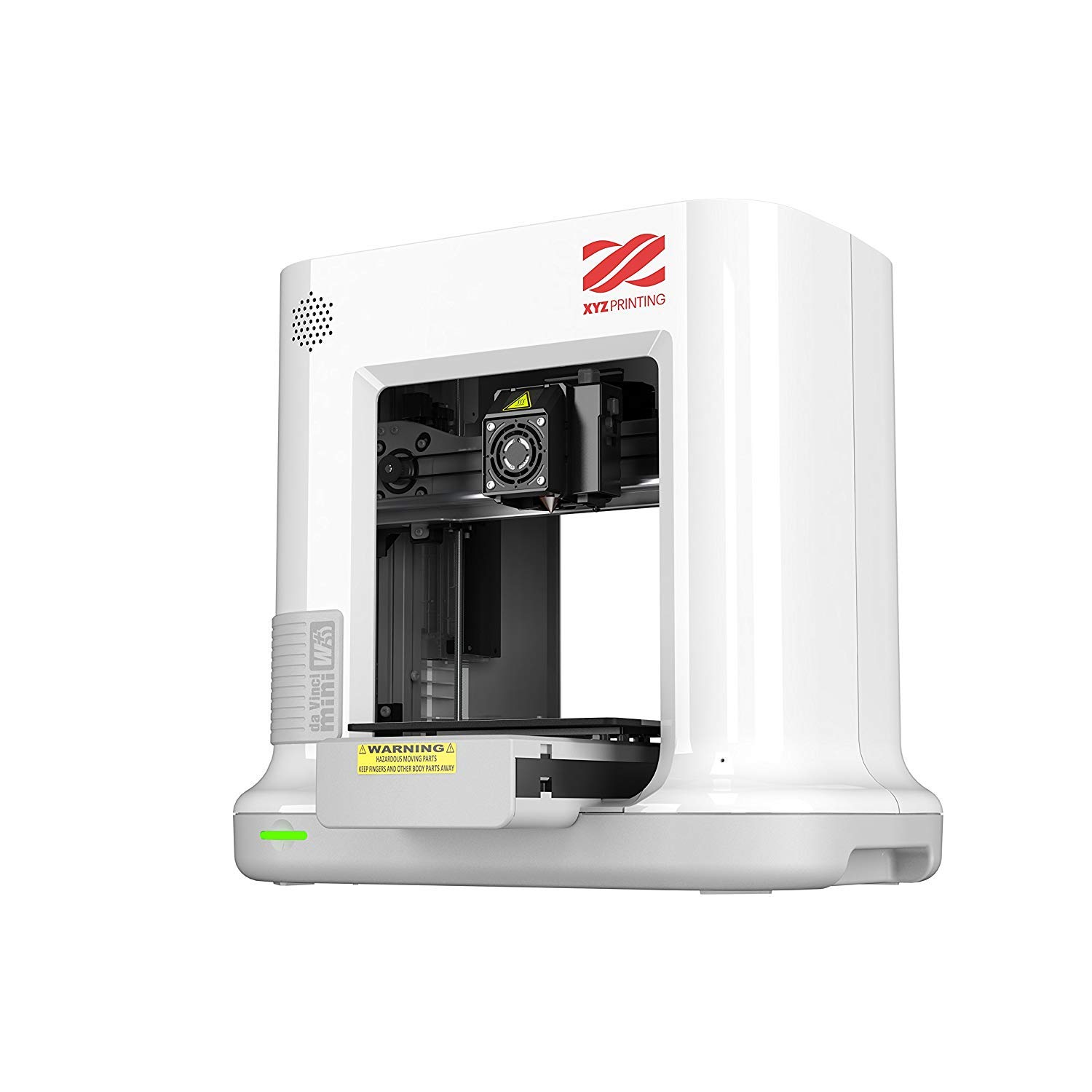

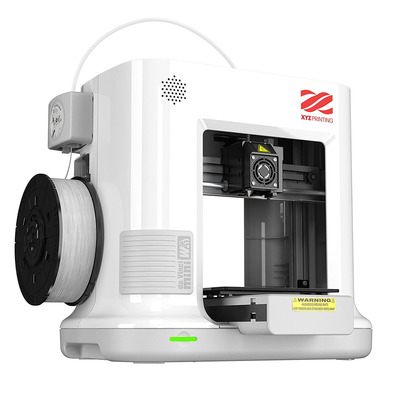

3D printer XYZ Da Vinci Mini Wifi

3D printer XYZ Da Vinci Mini Wifi

All printers XYZprinting include a software-cut and computer-aided design (CAD). The friendly design of the interface will guide you from modeling to printing. The printing platform is made of aluminium and, thanks to its size of 150 x 150 x 150 mm, allows you to print objects of greater size and quality in a printer smaller.

Print securely

The filament PLA used in the Da Vinci Mini Wifi is made from natural materials, and contains no DEHP or heavy metals. This gives you the peace of mind to leave the printer working in a corner. As you are only using filament XYZprinting, do not adjust the settings of the material. With the filament of COURTESY and the automatic calibration feature, you can print your first design right away. The da Vinci Mini weighs less than 10 kg making it very easy to transport to any project.

Only works with filament PLA brand XYZ

XYZprinting offers more than 30 online lessons based on the principles of the NGSS that will promote collaborative learning and problem-solving skills to your child or student.

Wifi Connection

The da Vinci Mini-w connects wirelessly to your home network to facilitate 3D printing in your home, office or classroom.

Specifications 3D Printer XYZ Da Vinci Mini Wifi :

• Print properties
  • Printing technology
    • FFF (Manufacture of strand cast)
  • Construction area of max. (an. x pr. x al.)
    • 150 x 150 x 150 mm
  • Resolution of layer
    • 100 - 400 micrometers
  • Precision of the XY positioning
    • 12.5 micrometers X/y
  • Positioning accuracy Z
    • Z: 0.001 mm
  • Print Software
    • XYZmaker Suite
  • Supported file formats
    • .stl, .3mf, .obj .igs, .stp, .ply, .amf, XYZ format (.3w), .nkg (.stl)
  • Speed of movement max.
    • Max. 120 mm/s
• Hardware
  • Language
    • Multilingual
  • Power supply system of the filament
    • YES
  • Stepper motors
    • Stepper motor HB 1.8 º
  • User interface
    • Software interface
  • Connectivity
    • Cable USB 2.0, Wifi 802.11 b/g/n
  • Material
    • Compatibility of material

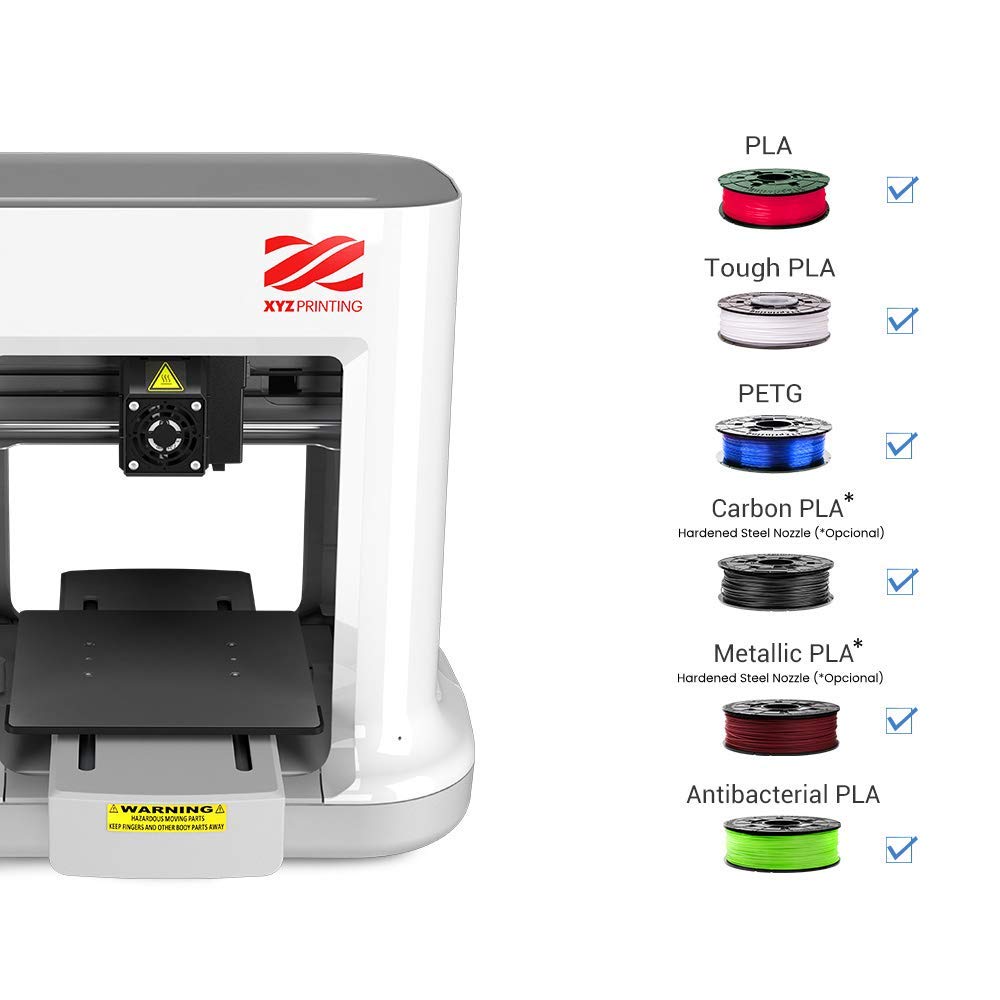

    • PLA / Antibacterial PLA / PETG / Tough PLA
  • Filament diameter
    • 1.75 mm
  • Extruder ( Standard)
    • Diameter of the nozzle
    • 0.4 mm
  • Number of nozzles
    • 1
  • Printing platform
    • Printing platform
      • Metal, non-removable
• Calibration
  • AUTO
• System requirements
  • Operating systems
    • Windows 7 / 8 / 8.1 / 10 (64-bit)
    • macOS 10.12 / 10.13 / 10.14
• Minimum hardware requirements
  • For PC: CPU: Intel® Core™ i5 4th generation or higher. RAM: 8 GB. Hard disk space: 20 GB minimum.
  • For Mac: RAM: 8 GB. Hard disk space: 20 GB minimum.
• Operational requirements
  • Power requirements
    • 100 V ~ 240 V 24 V/60 W
  • Operating temperature
    • 15 °C ~ 32 °C
  • Operating humidity
    • 30 ~ 60 % RH (non-condensing)
  • Storage temperature of the filament
    • 10 °C ~ 40 °C
• Size and weight
  • Product dimensions (w. × pr. × al.)
    • 390 x 335 x 360 mm
  • Weight of the product
    • 7 kg
  • Dimensions with packing (w. × pr. × al.)
  • 500 x 400 x 470 mm
  • Weight with packaging
    • 11.5 kg
