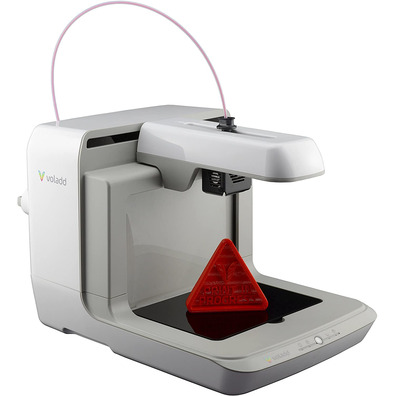

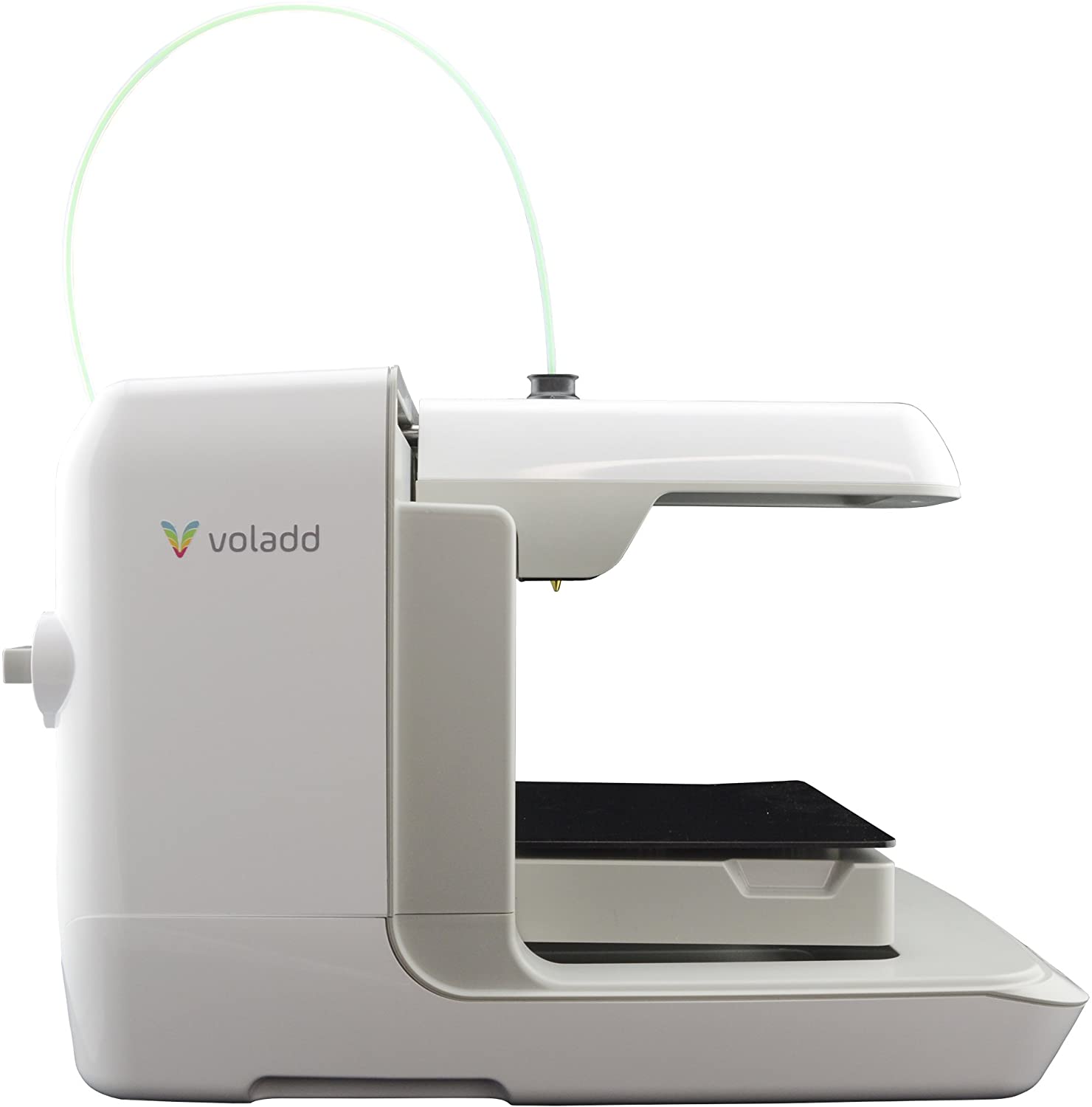

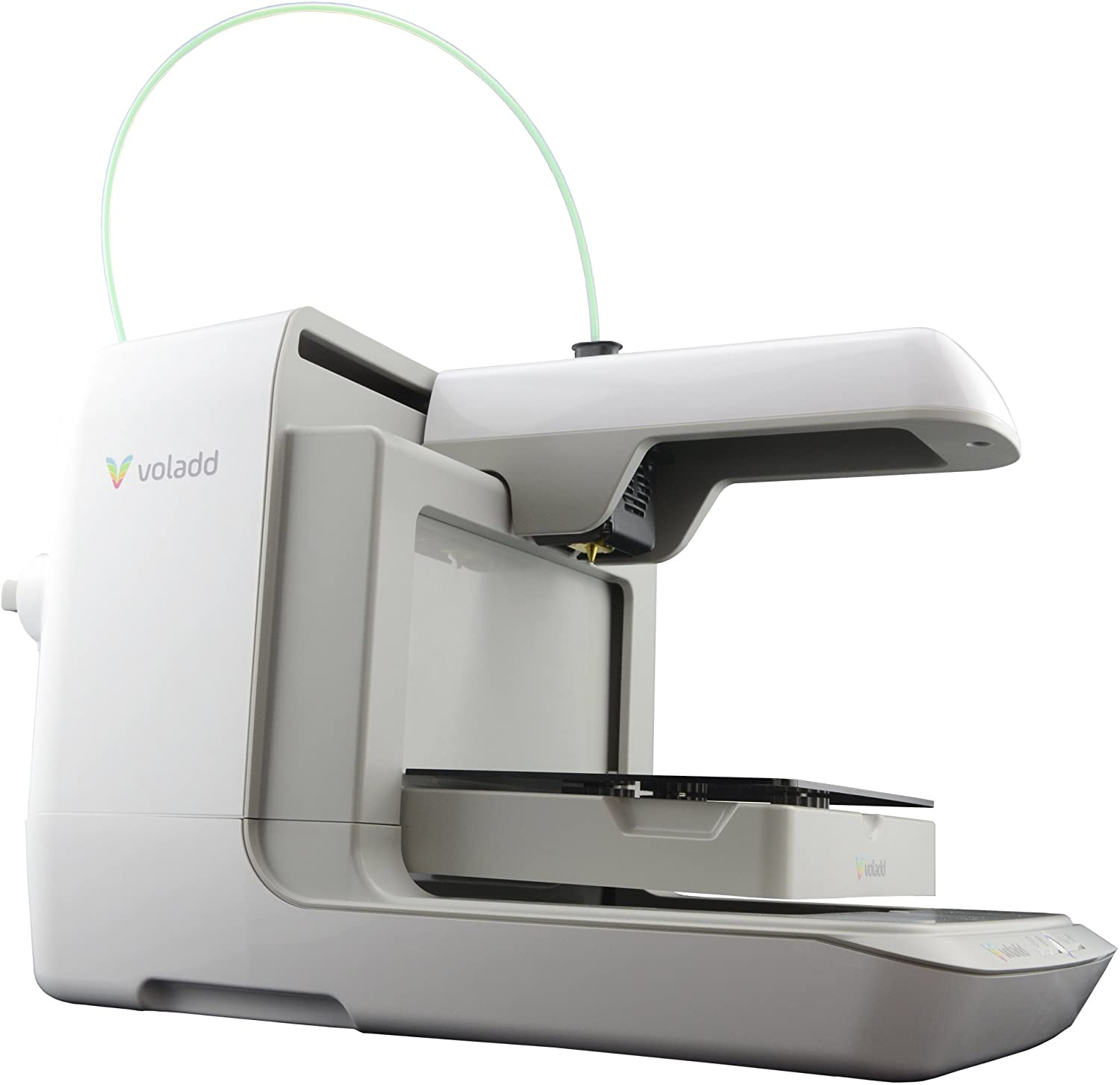

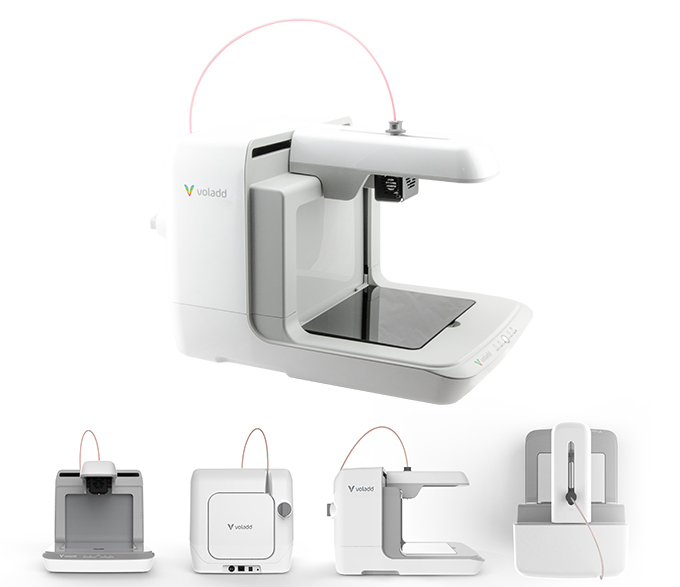

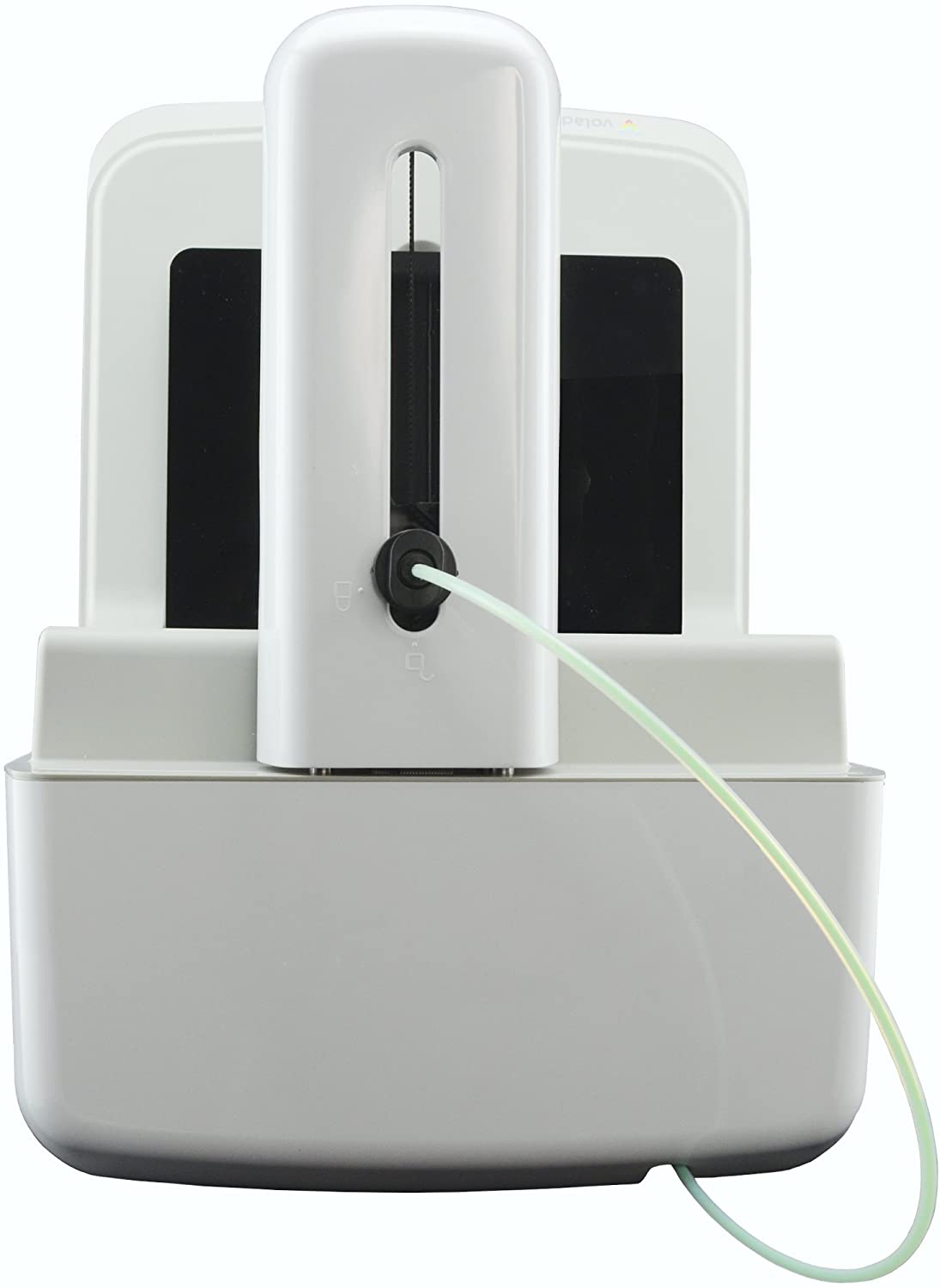

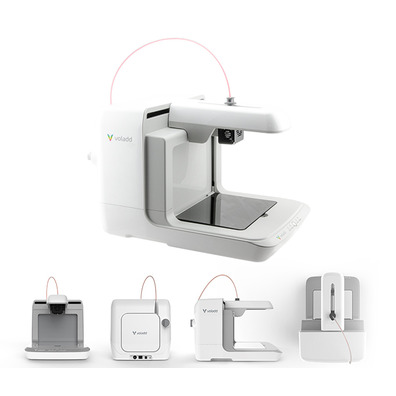

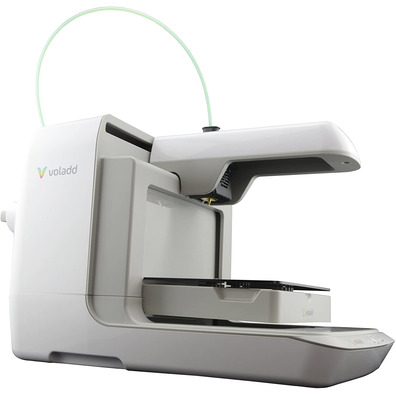

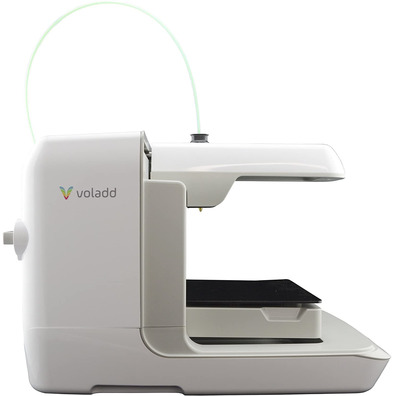

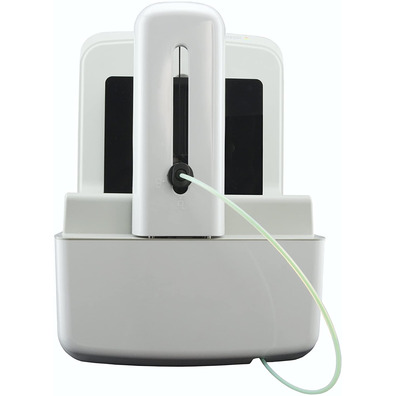

3D printer Colido Tumaker Voladd

3D printer Colido Tumaker Voladd

The new printer 3D Tumaker Voladd you could say that it goes a step ahead of the rest working in an environment 4.0, intended to be used on the network, and with the possibility to connect to the private area devoladd, you are where you are and when you want. And even going further, thanks to the protocol MQTT to be able to connect and communicate to other robots or devices in IOT.

Offers a cloud storage by way of a private library with which to make creations and share them with team mates, friends and family. Everything perfectly organized for a quick read to the information of our projects. Voladd Cloud is the Operating System in the cloud that allows you to do things that were impossible until recently. In addition, the platform Voladd built-in advanced options for professionals who integrate seamlessly with the printer 3D Voladd, as well as with other products Tumaker. Therefore, it is the easiest way ever created to create and share digital objects.

Voladd is the first 3D printer in the world with cartridges that include head of variable diameter. A clever and innovative system, that allows you to create objects with different definition in addition to the layer height. With Voladd you are in control of the definition to another level. Works the same as the thickness of a pen. When you want to have a quality item, quickly, and without the definition is so fundamental, we will use a cartridge tip normal. If we want an object that requires more detail and definition, we'll use a cartridge tip or HD fine. So, you'll be able to cope with different strategies of print for many solutions.

Features Colido Tumaker Voladd:

• 3D printer with the online platform integrated with thousands of objects available and accessible from any device from any part of the world
• Very easy to use: Explores, selects and prints instantly.
• Includes NFC technology to manage their consumables in real-time
• Electronic mini-computer BeagleBone Black and Linux operating system Debian with Kerner Real-Time including serial
• System air flow dynamic that varies according to the direction of printing
• Of reduced dimensions (it occupies approximately the same as a laptop of 15" with the display open)

Technical specifications:

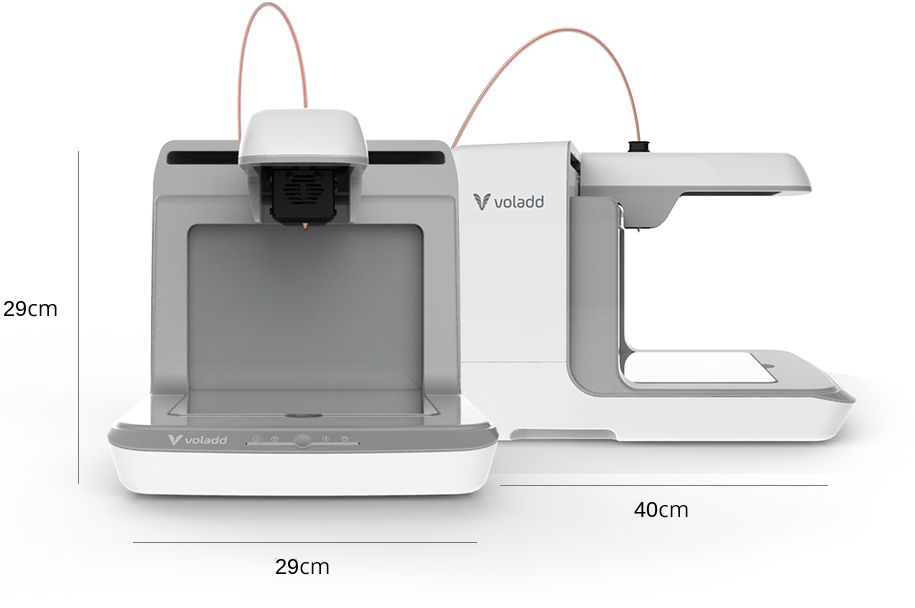

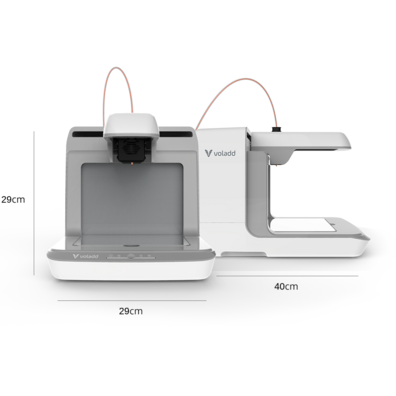

• Size: (x) 29cm - (and) 40cm - (z) 29 cm
• Print area: 170mm (x) 120mm (y) 150mm (z). Total 3281 cm cubic.
• Color: White and grey
• Relationship size printer printing area: >7%
• Processor: ARM Cortex-A8 ultra-low power consumption
• Operating system: GNU Debian Linux RTOS
• Communications: Wifi 802.11 b/g/n - NFC - Ethernet - MQTT
• Software: Without software. From a Web browser.
• App: Android and IOS
• Tray to print:
  • Removed and put.
  • With fixation of neodymium magnets.
  • Adjustable with three rollers high-precision touch.
  • The glass tray.
• Fans:
  • The Coolers component activation/deactivation according to the direction of movement.
  • Main fan with automatic activation and deactivation.
• Buttons and leds:
  • Multi-function button with color indicators.
  • Button power on-off.
  • Rotary knob for armed Voladd Cartridge.
  • Led indicator connectivity OK.
  • Status Led general Voladd Ok.
  • Led interaction with servers.
  • Led indicator hot-heading or in the heating process.
• Security:
  • Algorithm for the prevention of incidents related to temperatures.
  • Indicator of hot-headed or in the heating process.
  • Data encryption 256-bit AES encryption with TLS/SSL.
  • Insertion system and sure-lock head.
  • Protection Hiccup overload.
  • 30% of margin to surge.
  • Overtemperature protection power Shutdown and auto-start once recovered normal conditions.
• Other:
  • Certifications CE, EAC
  • Firmware updates automatic.
• Electrical and operating requirements:
  • Voltage: 100 to 240 V AC.
  • Frequency: 50 to 60 Hz.
  • Operating temperature: 23 to 35 °C.
  • Storage temperature: -25 to 39 °C.
  • Relative humidity: 0 to 90 % non-condensing.
• Weight:
  • Without packaging: 4.5 Kg
  • With packaging: 6.9 Kg
