Seasonal Focus GX850 ATX 850W Power Supply

Seasonic Focus GX850 ATX 850W Feed Source

FOCUS SERIES

Seasonic engineers have made improvements to the popular FOCUS PLUS SERIES to transform it into the FOCUS GX SERIES, such as the removal of capacitors in the line in the supplied cables. In addition to the ñ or change in the name of the series, the feed source housing and its packaging also are updated to be in line with the OneSeasonic Initiative concept.

80 PLUS GOLD

The FOCUS GX achieves the 80 PLUS Gold certificate with its 90% efficiency at 50% system load.

DISE Ñ OR CONNECTION NO N-CABLES

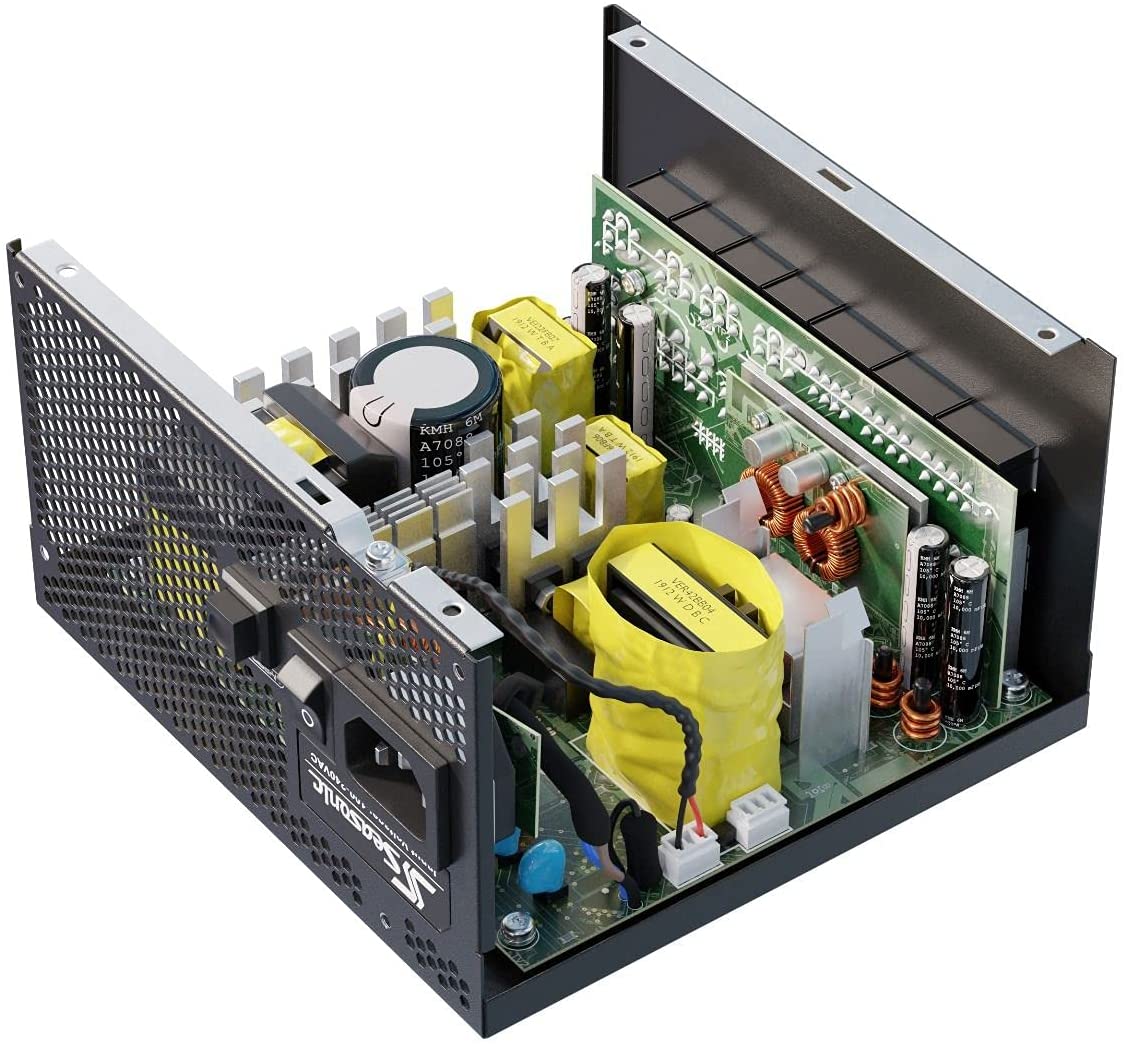

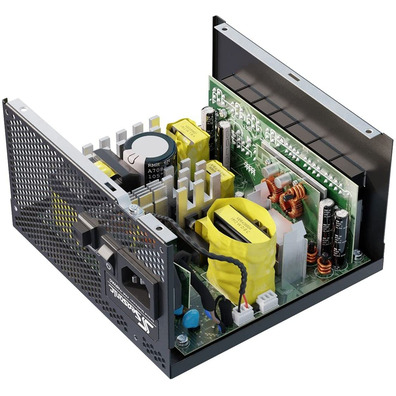

Seasonic engineers have implemented a new ñ or, where instead of cables; the rear panel and the PCB (printed circuit board) are attached by a copper plate. This innovative solution not only reduces the possibility of production errors during the manual insert, but also improves the quality of output power.

SILENT FAN CONTROL H &IDXX_ENCODE_CASE_CAPS_LOCK_OFF.

The first advanced three-phase advanced thermal control by Seasonic of the industry achieves an adjustment of the silence and cooling. This silent fan control h íbro works in three operational stages: fan mode, silent mode and cooling mode.

FAN CONTROL &O N &O

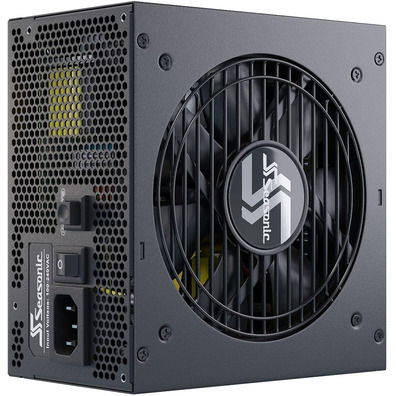

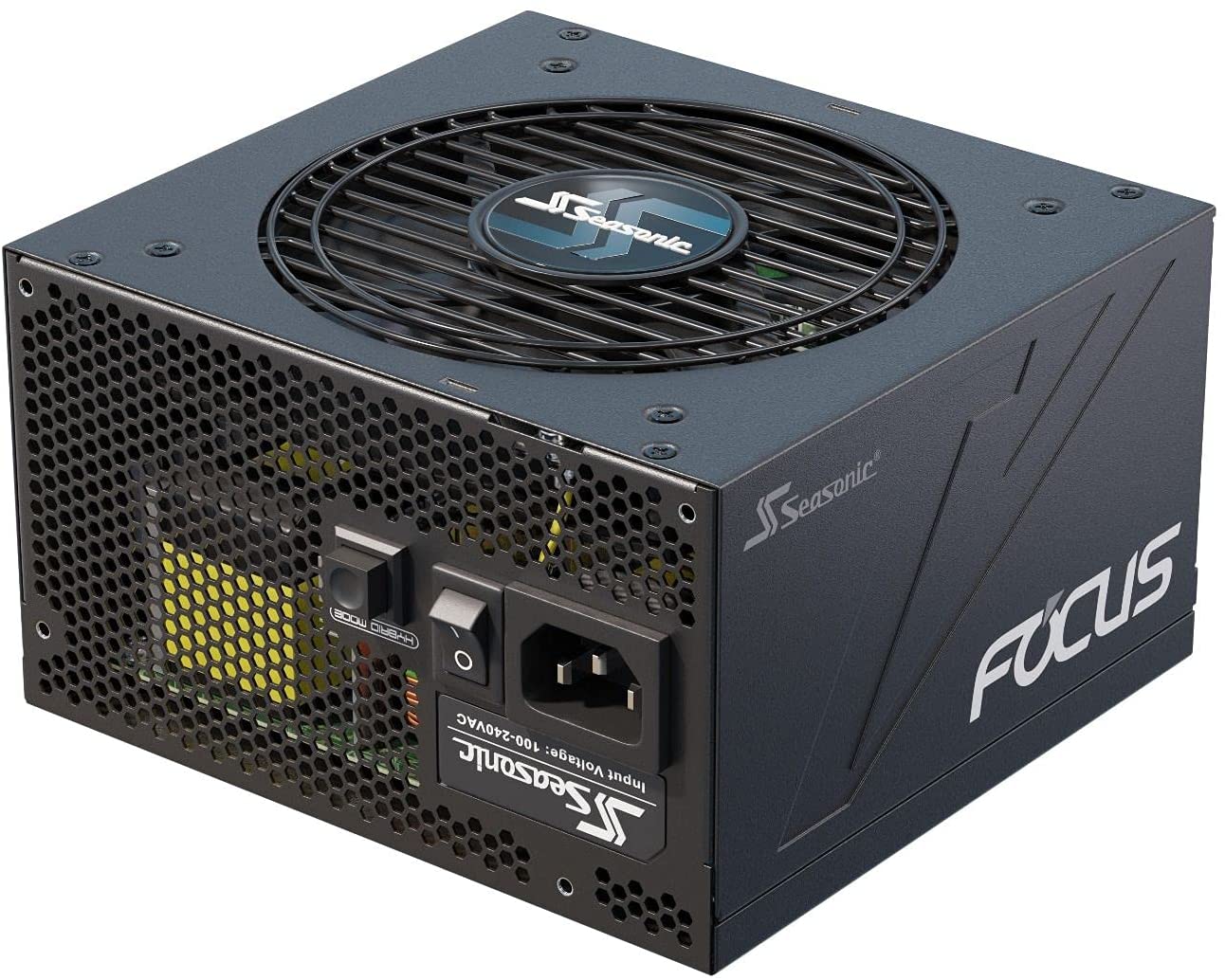

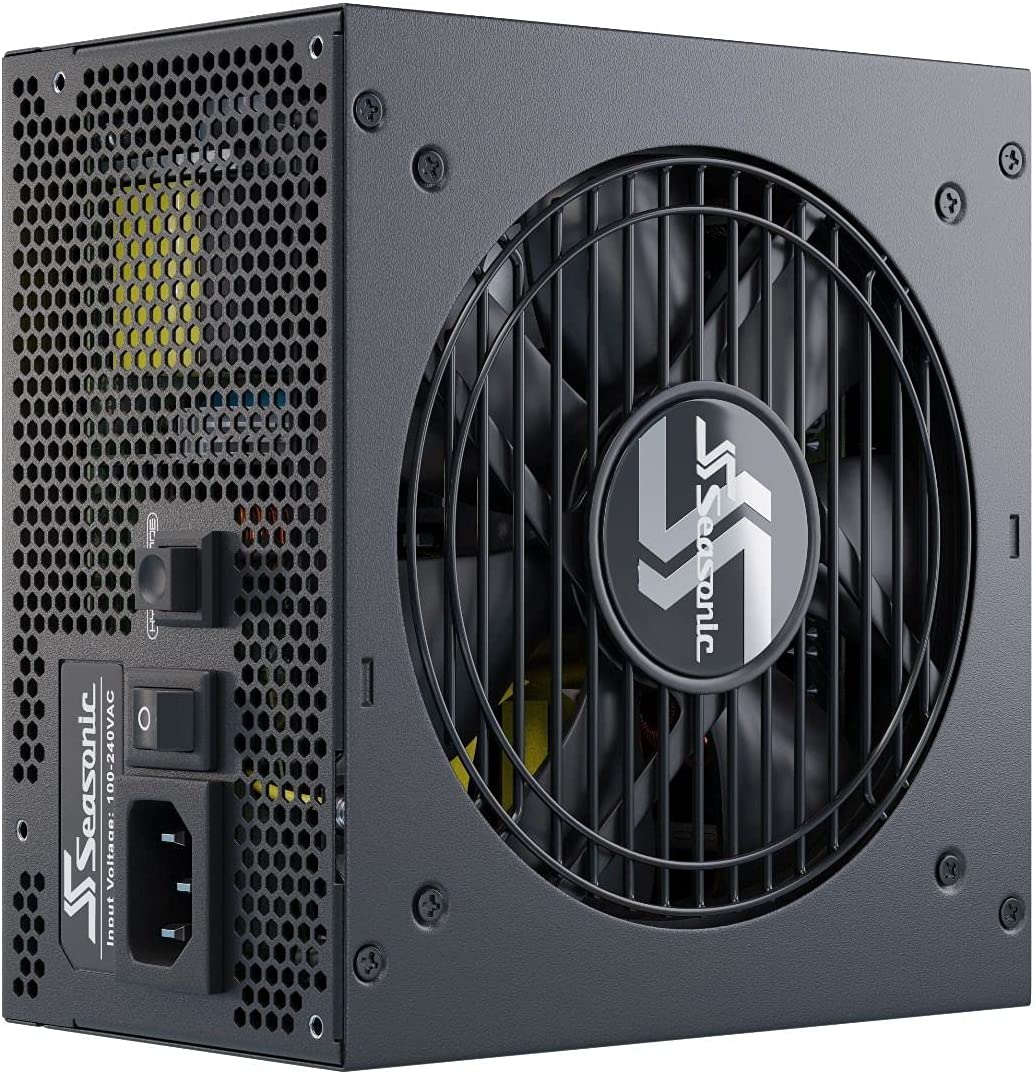

The fan control bot is located on the back of the power supply, next to the power switch. Do not pressure the bot if you want to include the fan mode, which means that the fan of the power supply does not rotate when the power supply is subjected to light loads. Press the bot if you want the fan to turn at all times, even with low loads.

DIN FAN BEARING

High-performance, fluid-to-fluid (FDB) bearing fans are ñ s to take advantage of the oil impact absorbance effects. They are extremely reliable and generate considerably less operating noise and heat than fans with ball bearings. The lubrication of the bearing surface reduces friction and vibration and thereby reduces the overall consumption of energy. Due to the quiet and effortless rotation and its robust construction, this highly reliable fan-to-fan technology also greatly increases the life of the fan.

Specifications:

• Certificate &oatecn 80 PLUS: 80 PLUS Gold

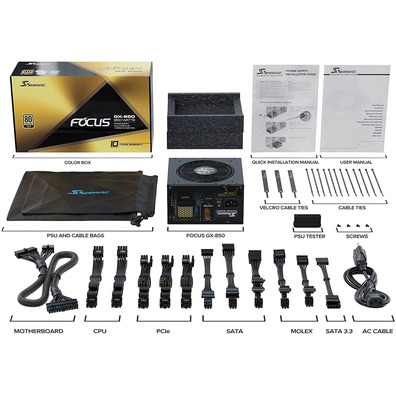

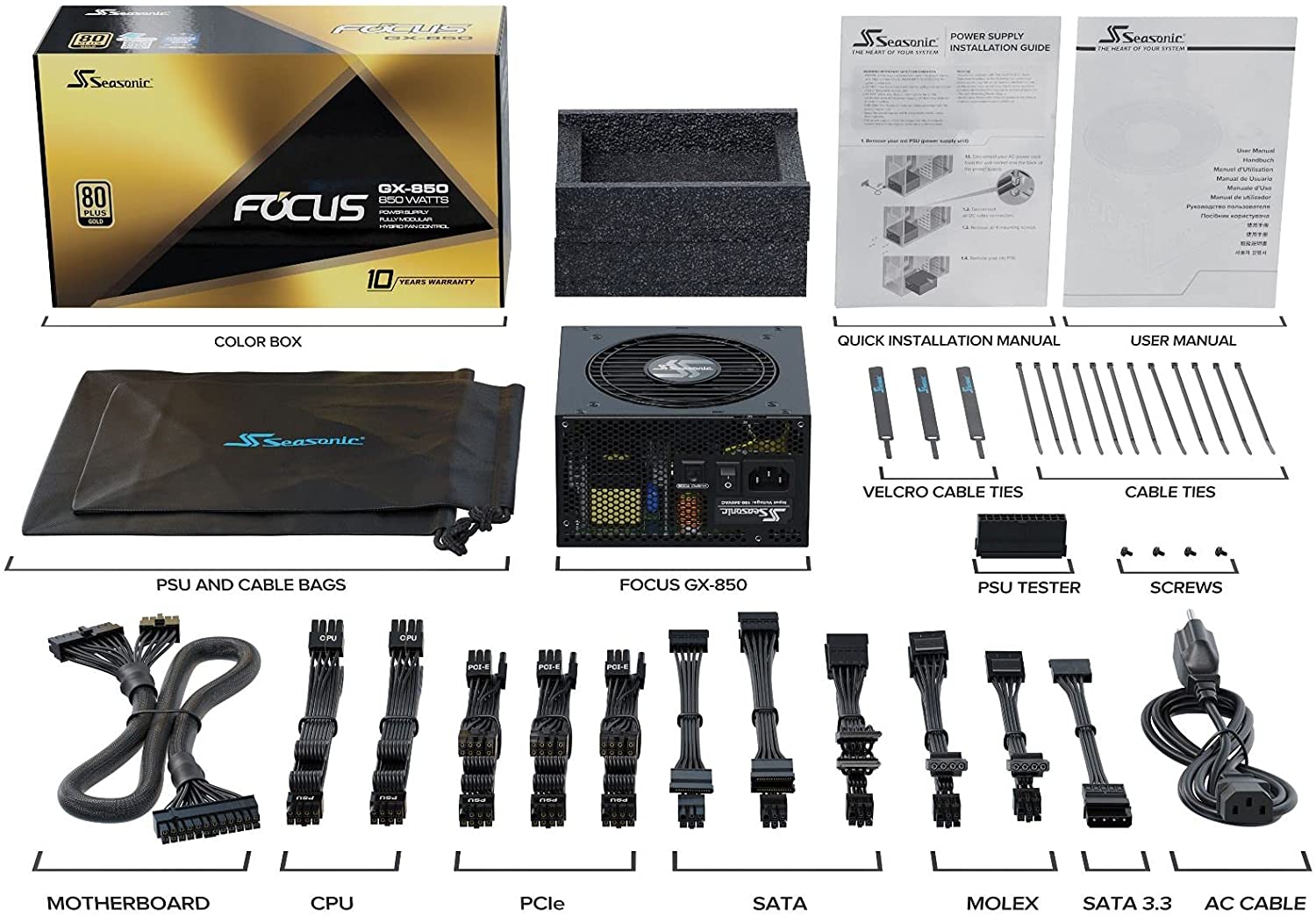

• Connectivity
  • Form Factor: ATX
  • Wiring Type: Modular
  • Power Feeder &iacto for Mother Card: 20 + 4 pin ATX
  • Power connectors (4 pin) peripherals (Molex): 5
  • Power connectors PCI Express (6 + 2 pin): 2
  • N Power connectors to SATA: 10
• Weight and dimensions
  • Height: 86 mm
  • Width: 150 mm
  • Depth: 140 mm

Details t &eicnics

• Color: Black

Power control &iuteres to

• Nominal power: 850 W
• Input stream: 12-6 A
• Current m &aximum output (+ 12V): 70 A
• Output maximum output (+3.3V): 20 A
• Current m &axime output (-12V): 0.3 A
• M &axime power &iachets to: 850 W
• Combined power (+ 12 V): 840 W
• Combined power (+ 5 V): 100 W
• Combined power (+ 5 VSB): 15 W
• Combined power (-12V): 3.6 W
• Combined power (+ 3.3 V): 100 W
• AC input voltage: 100-240 V

Cooling

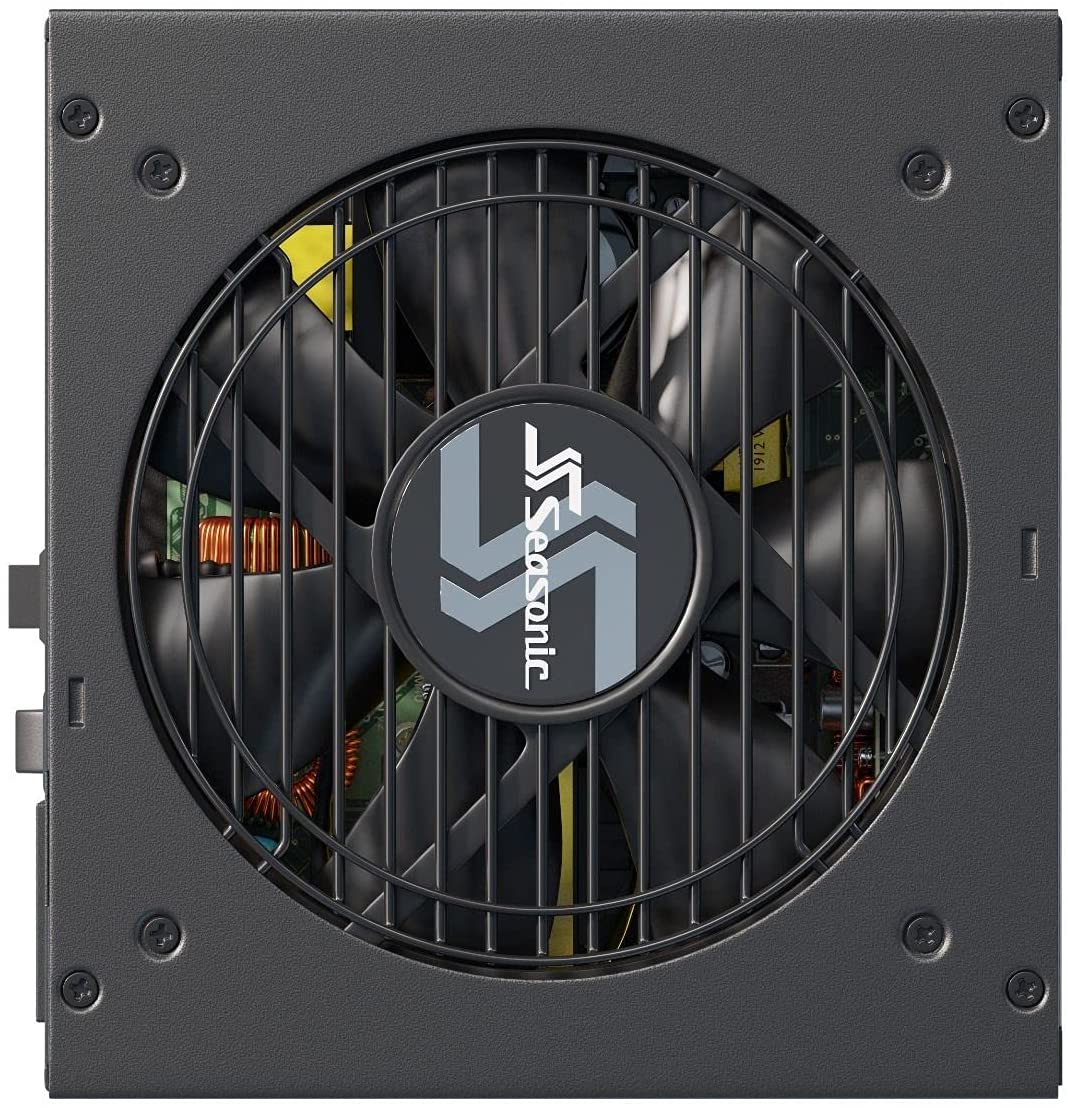

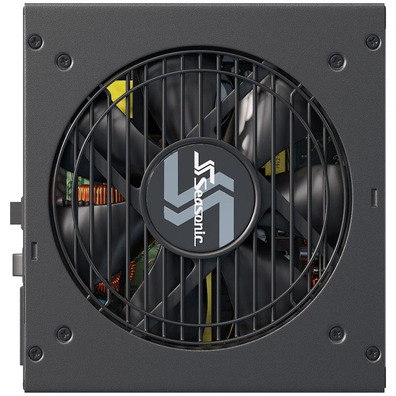

• Say fan meter: 120 mm
• Fan Location: 1
• Type of cooling:

Environmental conditions

• Operating temperature range: 0-50 ° C

Resistance

• Average time between failures: 100000 h
