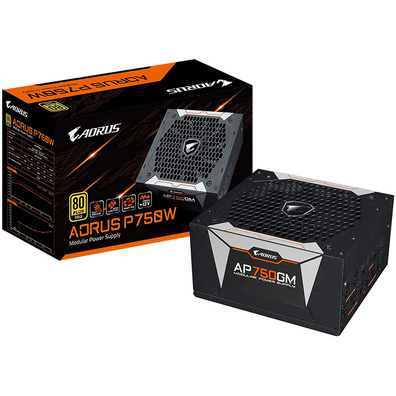

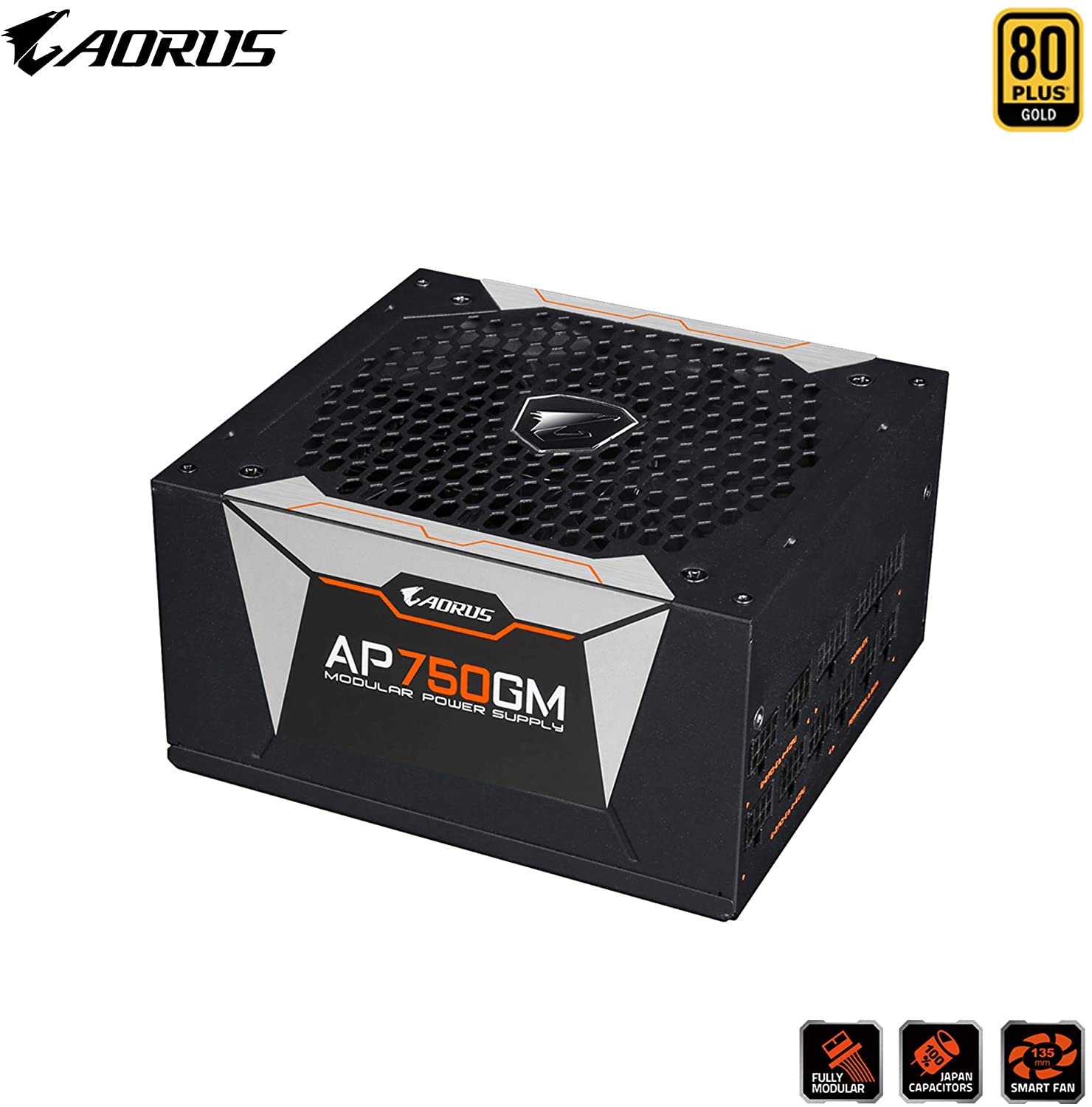

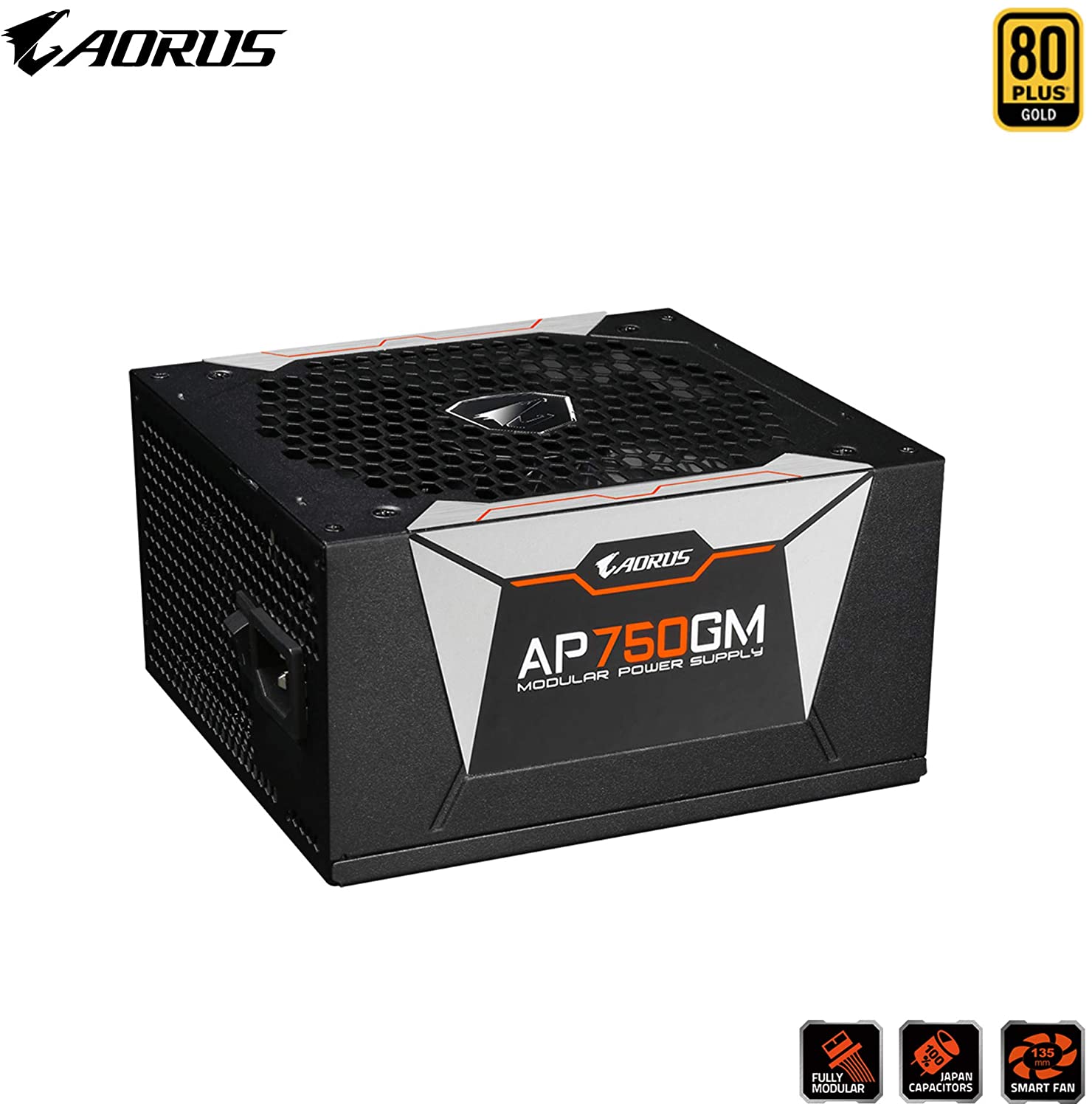

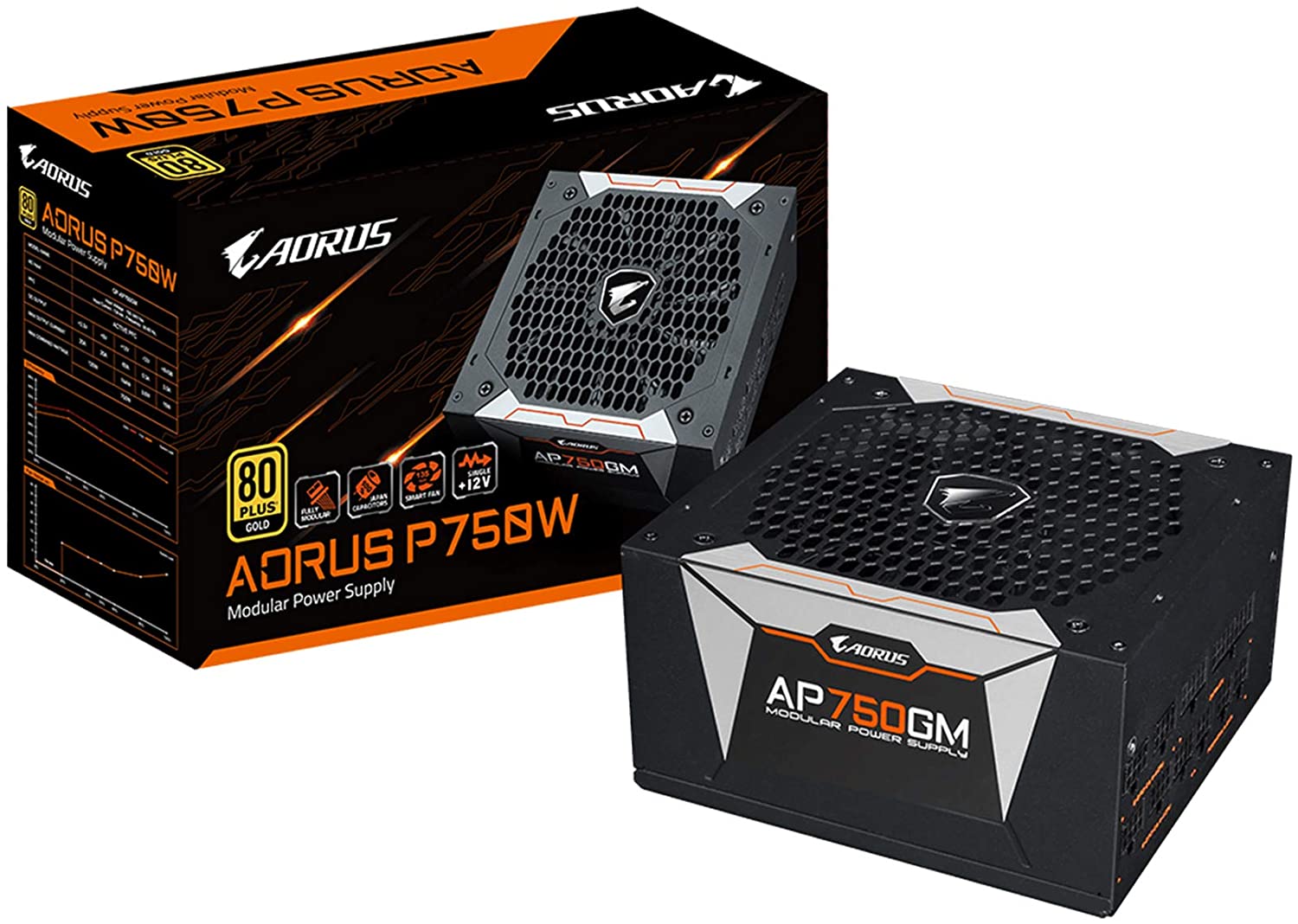

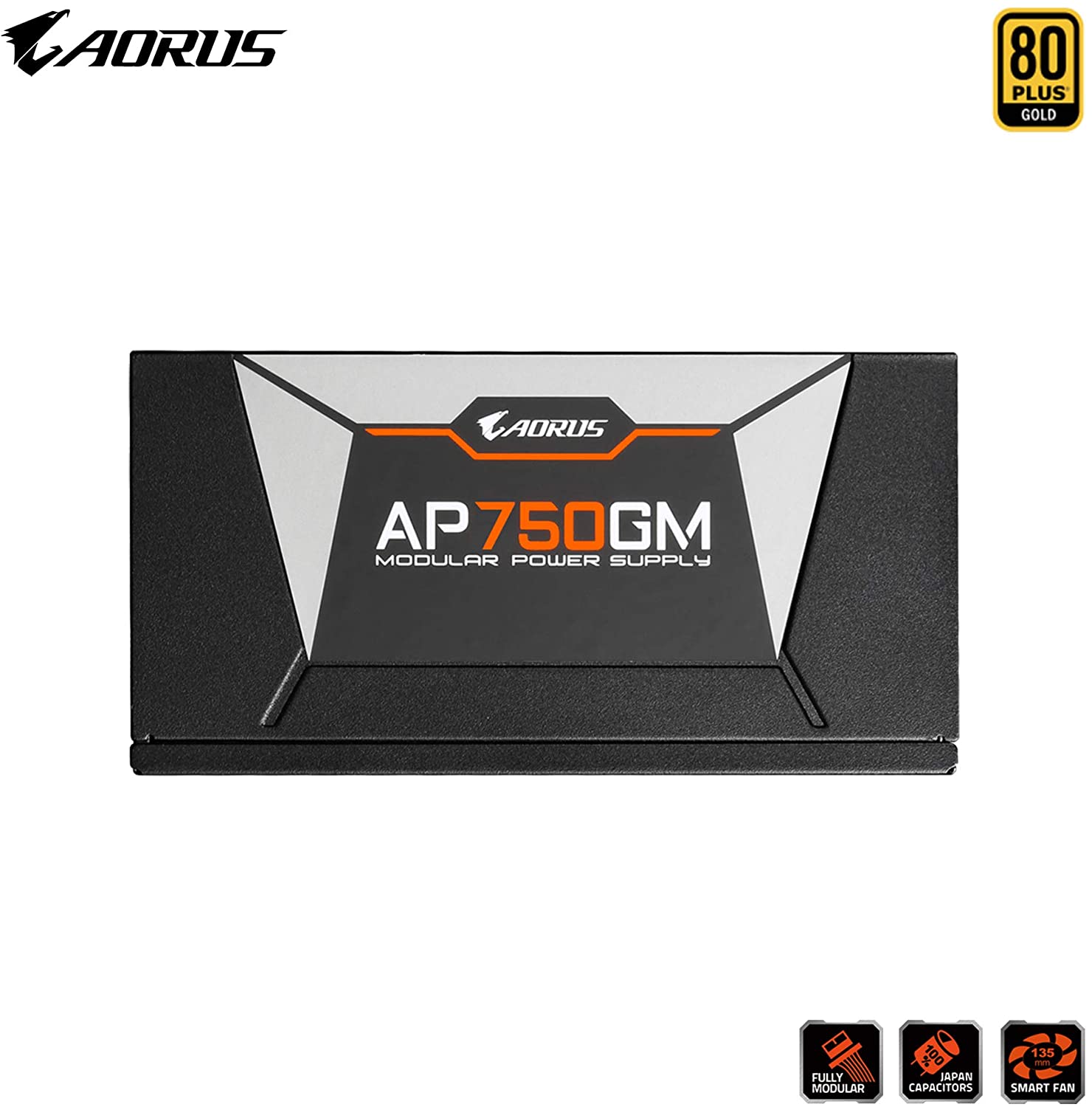

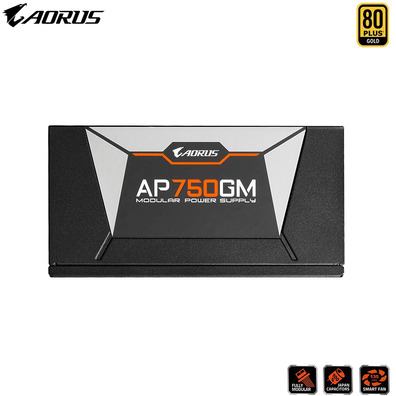

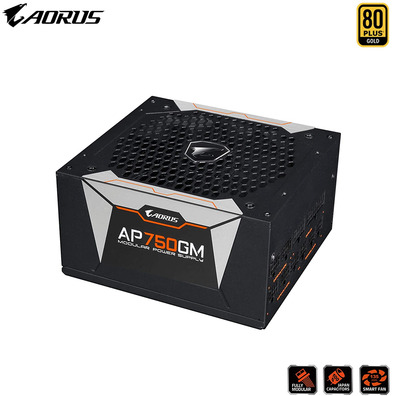

Gigabyte Aorus ATX 750W Power Supply

Gigabyte Aorus ATX 750W Feed Source

All black flat cables are ñ or modular. Install only the cables you need to reduce clutter, increase air flow, and improve the performance t &eacermic performance of the ch &aessis.

100% HIGH-QUALITY JAPANESE CAPACITORS

All capacitors are high quality Japanese capacitors to produce efficient performance and ensure greater reliability.

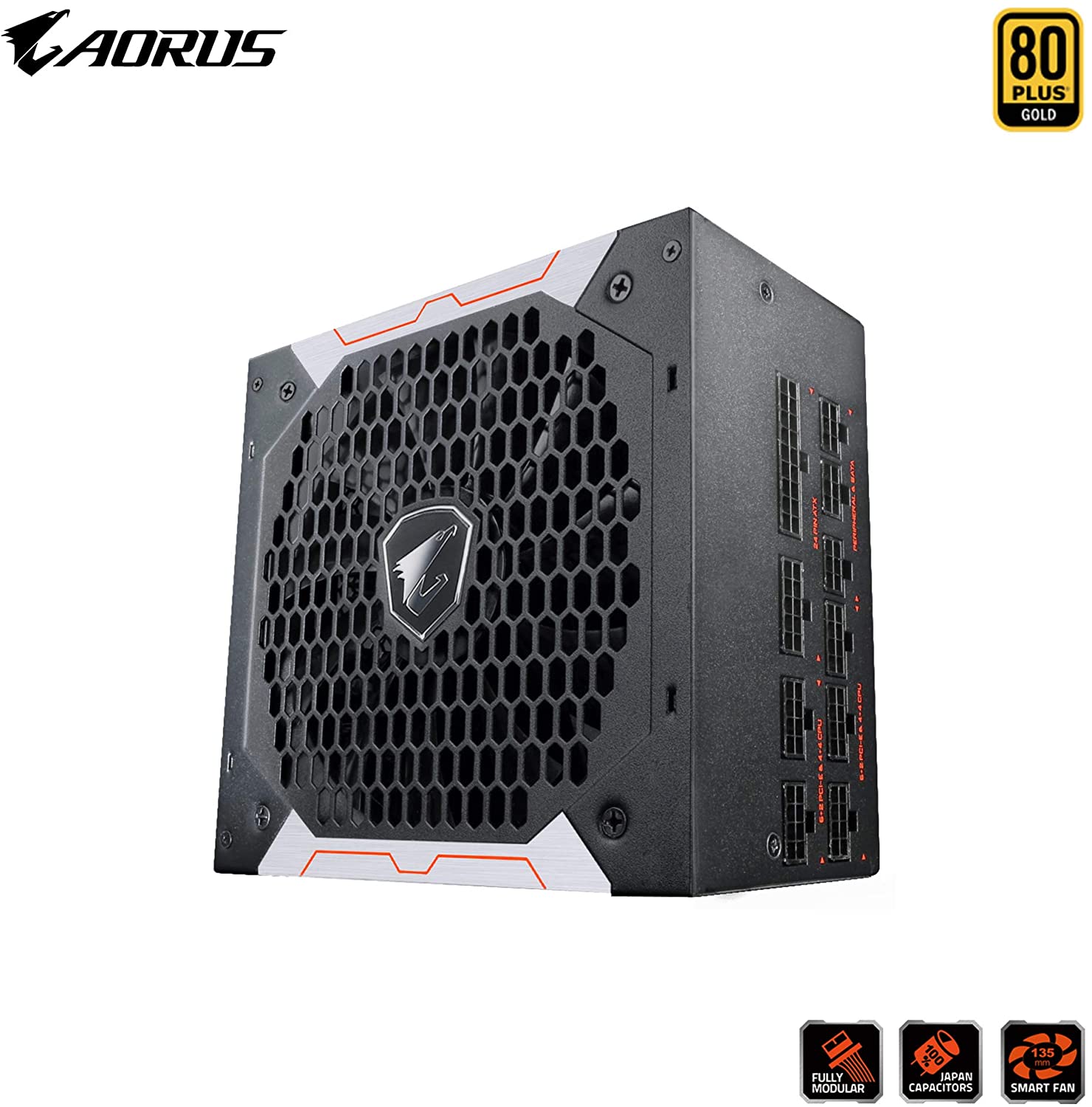

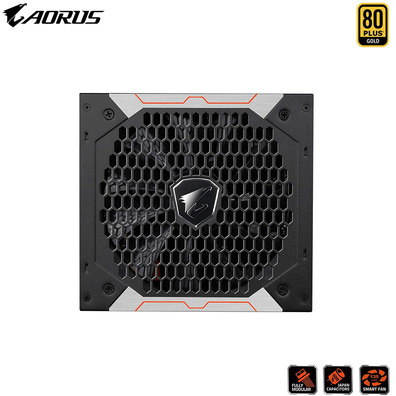

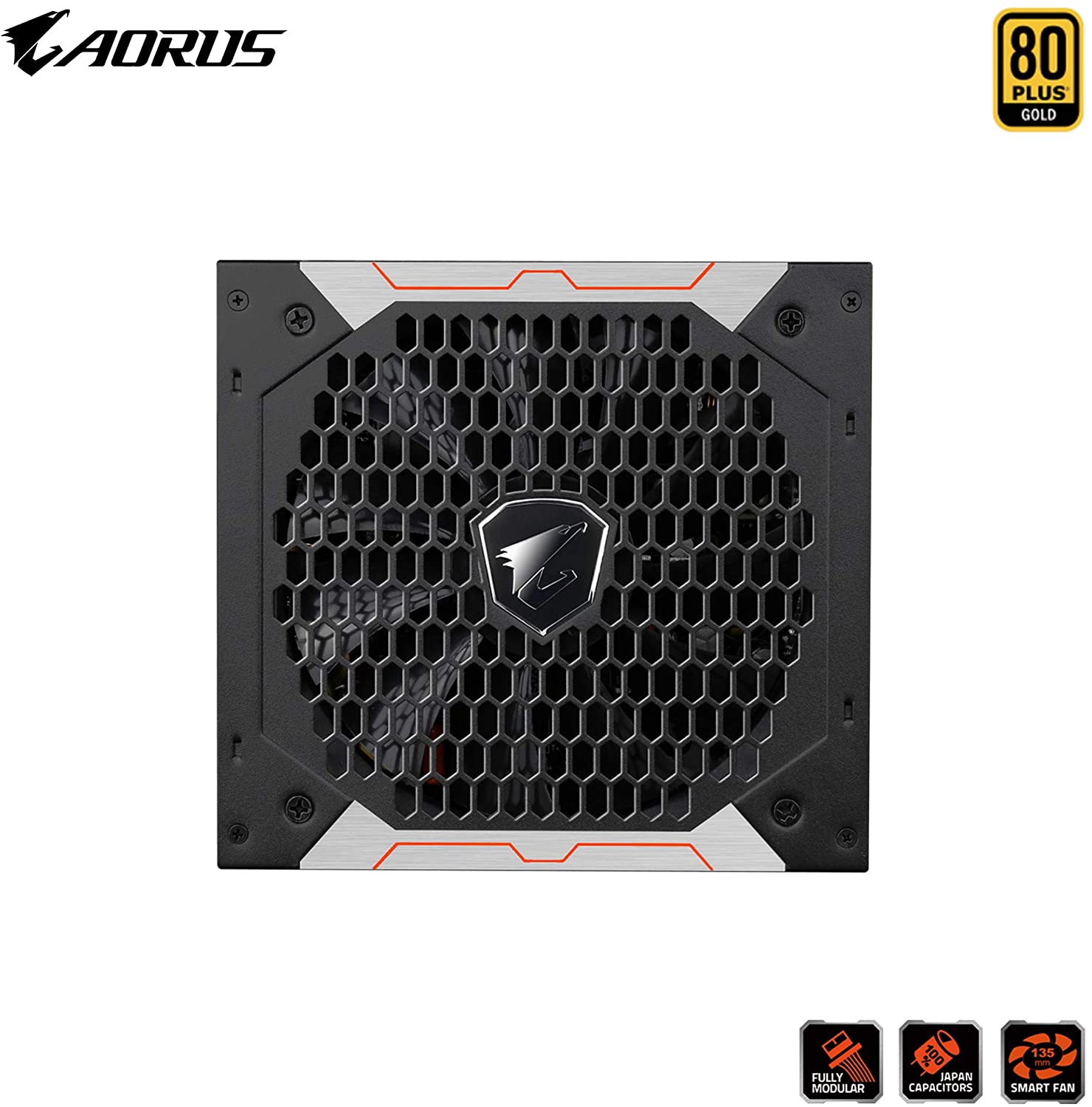

135 MM SMART FAN

The fan speed will be adjusted according to the system load. And the fan will be stopped when the system is idle or with little load (less than 20% load). The 2-ball bearing structure provides a life &util til long. The ball bearing 2 is the durable fan construction with a durability of 50 000 hours. The life of the 2-ball bearing is from 5 to ñ s.

CERTIFICATE 80 PLUS GOLD

The 80 Plus Gold certificate ensures 90% efficiency with a 50% load. The best energy efficiency generates less energy waste, less heat and less fan noise. And with the support of Intel processors, save &aemacas energ í a and m &aemas s money.

SINGLE + 12V RAIL

The simple + 12V rail provides the best output power, stability and compatibility for the hardware. It provides the easy way to install the feed cable. And it's the best dise ñ or for overclocking.

PROTECTION

In order to ensure that the entire system is stable, it operates in a stable manner in any one of the fields. GIGABYTE does not only add ñ s of protection, such as OCP, OTP, OVP, OPP, UVP and SCP, but also guarantee the stable operation of your system through the security certification of several countries.

Specifications:

• Regulatory Approvals
  • Certification &oatecn 80 PLUS: 80 PLUS Gold
• Form Factor: ATX

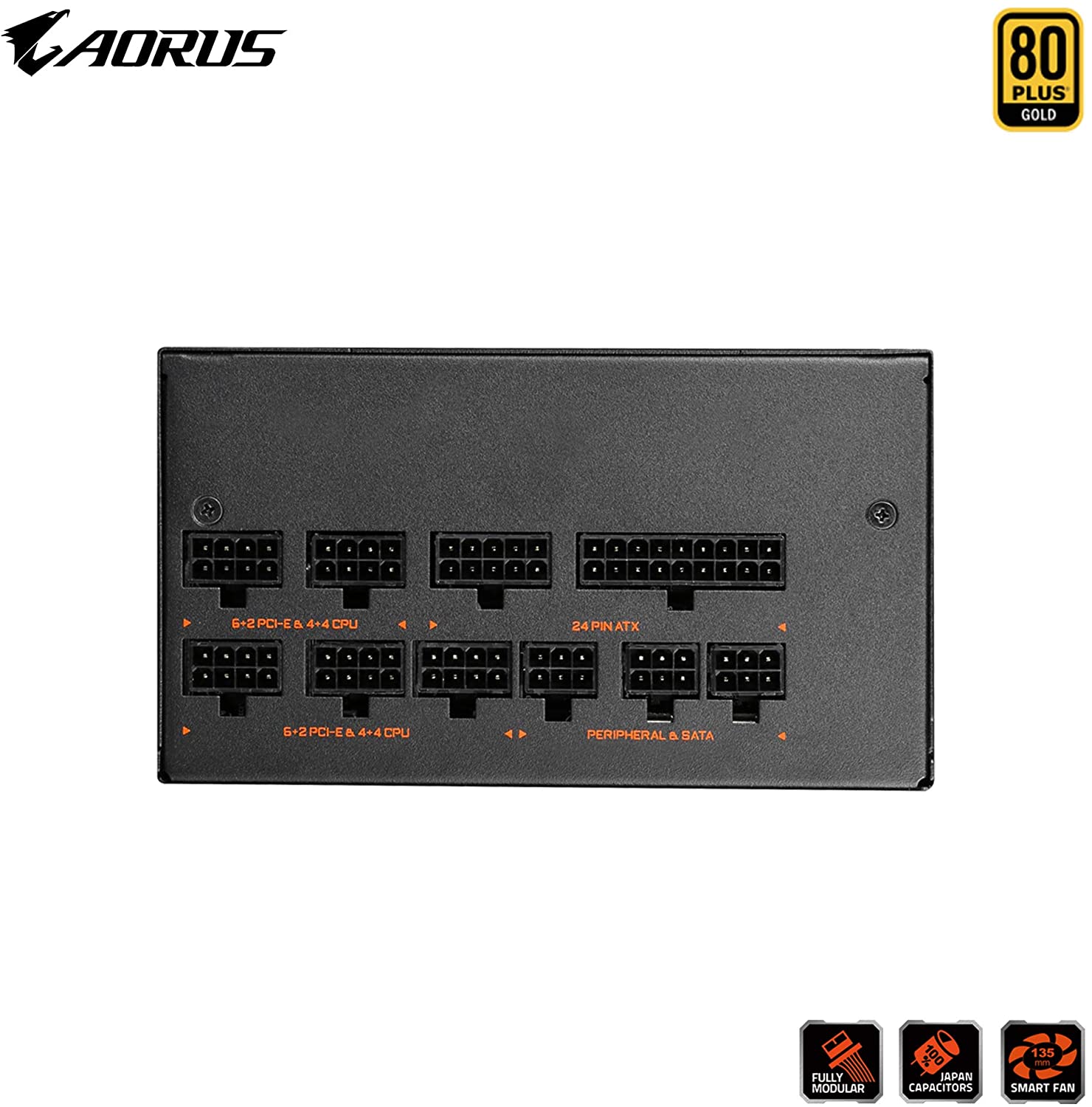

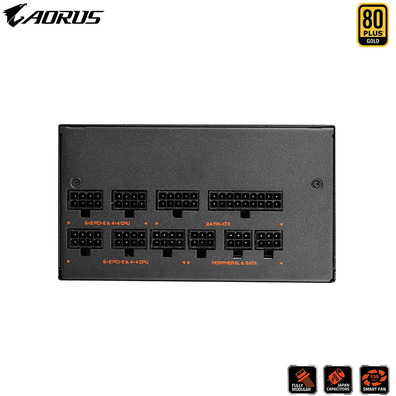

• Wiring Type: Modular
• Power Feeder &iacto for Mother Card: 20 + 4 pin ATX
• Power Connector &iute; to EPS (8-pin): 1
• Power connectors (4 pin) peripherals (Molex): 6
• Power connectors PCI Express (6 + 2 pin): 6
• CPU connector
n (4 + 4 pins): SATA: 6
Weight and dimensions
• Height: 86 mm
• Width: 150 mm
• Depth: 160 mm
• Details t &eucnics
  • Color: Black
  • ATX Power Connector (20 + 4 pin): S &iute;
  • Versi ó n ATX: 2.31
• Power control &iachets to
  • Type power factor (PFC)
  Active
  • Input stream: 10A
  • Maximum output current (+ 12V): 62 A
  • Maximum output stream (+3.3V): 20 A
  • Maximum output (+ 5V) stream: 20 A
  • Output maximum output (+ 5Vsb): 3 A
  • Current m output (-12V): 0.3 A
  • Efficiency: 90%
  • Power factor: 50-60 Hz
  • Power protection functions: Low voltage, Cortocircuit, Overheat, Overvoltage, Overvoltage
  • M &axime power &irecutive to: 750 W
  • Combined power (+ 12 V): 744 W
  • Combined Power (+ 5 V): 120 W
  • Combined Power (+ 5 VSB): 15 W
  • Combined Power (-12V): 3.6 W
  • Combined Power (+ 3.3 V): 120 W

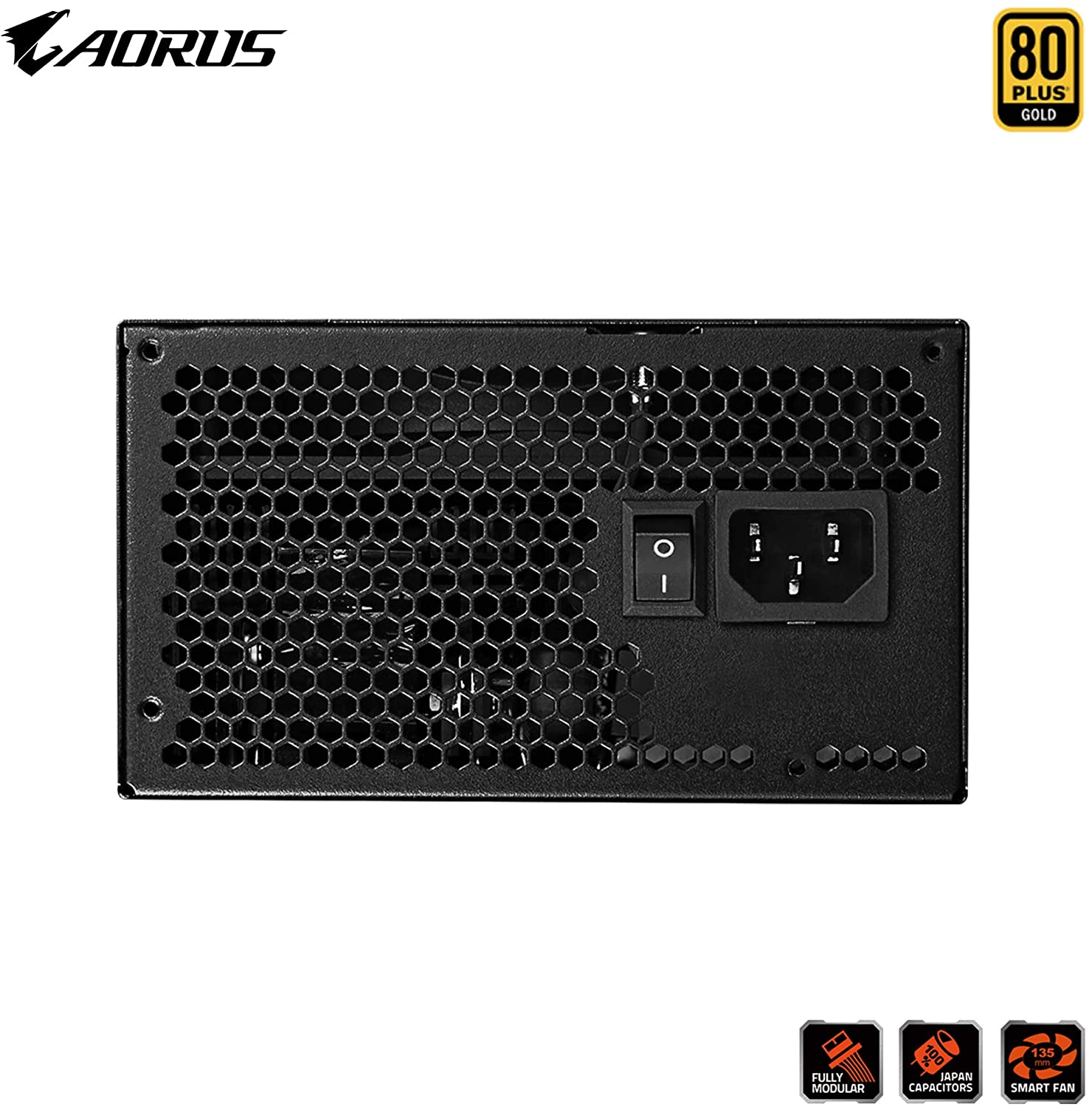

  • AC Input Voltage: 100-240 V
Cooling
• Fan Tube: 135 mm
• Fan Location:
• Type of cooling:
Resistance
• Average time between failures: 1000000 h
