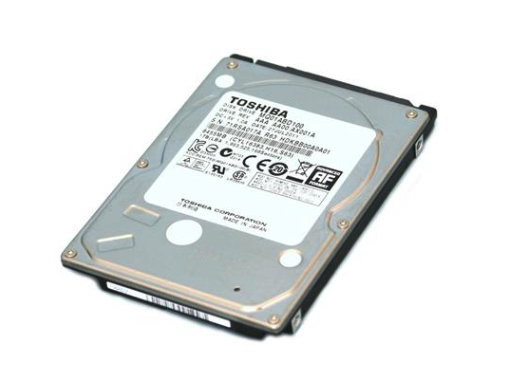

Disk 2,5" Toshiba 1tb Sata 6 8mb

The internal hard drive, Toshiba has a slimmer design and optimized to perfectly adapt to applications of storage leading.

Toshiba Storage Device Division offers a line of 2.5-inch hard drives and 5400 rpm with a new slimmer design, optimized to adapt perfectly to the storage applications most cutting-edge of our industry. The last of the series of hard disk, the MQ01ABD100, provides a wide range of different capacities from 250 GB up to 1 TB, with a design of 9.5 mm height and a maximum of only two plates.

A capacity of 1 TB

Slimline design with a height of 9.5 mm

5400-rpm

Excellent energy efficiency

Technology Silent-Seek

SPECIFICATIONS

Features

• Capacity with formatting 1TB
• Form Factor 2.5-Inch
• Interface type Serial ATA
• Standard Interfaces supported ATA-8 Serial ATA 3.0
• Hit detection Circuit and shock sensor
• S. M. A. R. T. Is compatible with the set of SMART commands.

Parameters Physical

• Number of Plates 2
• Number of Heads 4
• Bytes/sector 512

Access times

• Average seek time 12 ms
• Maximum time search 22 ms
• Search time between track and track 2 ms

Transfer speeds

• SATA (host) max. 3 Gbit/s
• Rotational speed rotational Speed 5,400 rpm Buffer
• Buffer size 8,192 kByte
• Cache Cache read-ahead Cache write

Specifications of reliability

• MTTF 600,000 Hours
• Speed of search of errors 1 error for every 106 searches
• Index of unrecoverable errors 1 error for every 1014 searches

Energy consumption

• Start (maximum) 4.5 W
• Search (average) 1.85 W
• Read (average) 1.5 W
• Write (average) 1.5 W
• Inactivity, low consumption (average) 0.55 W
• Sleep (average) 0.15 W
• Expected (average) 0.18 W

Unit

• Supply voltage 5 V ( /- 5 %)
• Noise/Ripple allowable Max. 100 mV

Mechanical specifications

• Width of the unit 69.85 mm
• Unit height 9.5 mm
• Depth of the unit 100 mm
• Unit weight 0.117 kg
• Mounting instructions (screwing) The unit can be installed on the 6 axes (6 directions)

Temperature

• In operation From 5 °C to 55 °C
• Non-operating -40 °C to 60 °C
• Transport Of -40 °C to 70 °C
• In operating 8 % to 90 %
• Non-operating 8 % to 90 %
• Transportation 5% to 90

Acoustic noise

• Idle mode (disk spinning) Max 23 db
• Random search Max 24 db
